Adapter USB to Serial ; Y-108

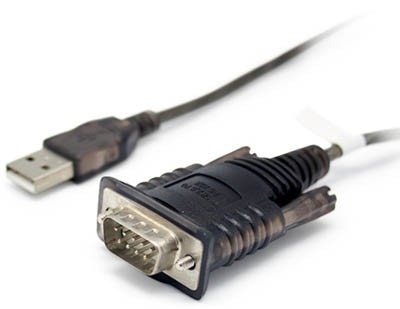

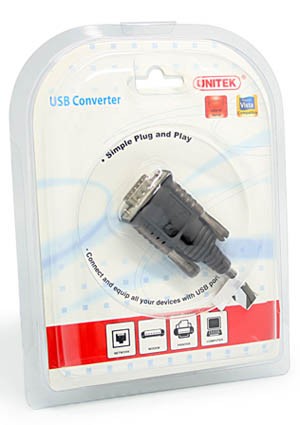

Unitek Y-108 converter USB to Serial

The adapter with a USB 2.0 port RS-232 is the easiest and cheapest way to connect devices using the RS-232 to USB port. The converter is designed especially for users of computers that are not equipped with a serial port for example. Installers and more demanding consumers are forced to connect RS-232 to USB 2.0 port on your computer.

Adapter based on the chip FT232R, which is a complete and fully configurable converter with USB 2.0 to RS232 / 422/485.
A characteristic feature of this device is a powerful customizable system controller.

- Y-108 converter
- CD plate

• Single chip USB to asynchronous serial data transfer
• Protocol USB is entirely controlled by one chipset
• UART interface support for 7 or 8 data bits, 1 or 2 stop bits and bits of odd / even / mark / space / lack of parity
• Fully hardware or software (X-On / X-Off) negotiation signal.
• Data transfer rate of 300 baud to 3 Megabaud (RS422 / RS485 to TTL levels) and 300 baud to 1 Megabaud (232)
• Drivers FTDI's royalty-free VCP and D2XX
• Built-in support for trade events and conditions interrupt lines
• The new chipset USB FTDIChip-ID ™
• New configurable CBUS pins I / O
• Control Buffer automatic transmission for applications 485
• Signals transmission and reception for LEDs
• New timing of the output signals of 48MHz, 24MHz, 12MHz, and 6MHz clock output signal. Options for external MCU or FPGA.
• buffers transmit and receive FIFO for high throughput
• Adjustable time interval receive buffer
• Options synchronous and asynchronous bit bang mode signals goals RD # and WR #
• New option CBUS mode bit bang
• Integrated internal EEPROM 1024 Bit for storing configuration USB VID, PID, serial number and description of the device and CBUS I / O.
• The device is programmed with a unique serial USB
• Supports pause and resume for USB
• Supports configuration of USB power bus, its own power supply
• Integrated 3.3V level converter for USB I / O
• Integrated level converter on UART and CBUS for 5V - 1.8V
• Real output CMOS 5V / 3.3V / 2.8V / 1.8V and input TTL
• Option High I / O pin output drive
• Integrated USB resistors
• Integrated circuit power-on-reset
• Fully integrated clock - no external oscillator or resonator
• Fully integrated AVCC supply filtering - No external RC filter and separate pins AVCC
• Option inversion signal UART
• USB bulk transmission mode
• Power supply 3.3V to 5.25V
• Galvanic isolation of inputs / outputs.
• Low current
• Low bandwidth consumption USB
• Compatible with the host controller UHCI / OHCI / EHCI
• Compatible with USB 2.0
• Operating temperature range -40°C to 85°C
• Complies with the RoHS directive

• Windows Server 2008 R2
• Windows 7
• Windows 7 x64
• Windows Server 2008
• Windows Server 2008 x64
• Windows Vista
• Windows Vista x64
• Windows Server 2003
• Windows Server 2003 x64
• Windows XP
• Windows XP x64
• Windows 2000
• Windows ME
• Windows 98
• Linux
• Mac OS X
• Mac OS 9
• Mac OS 8
• Windows CE.NET (version 4.2 and higher)
