HDMI Extender on Cat.5e/6/6a/7 twisted pair cable, with IR receiver, black
Technical data
Type | Adapter |
Colour | Black |
Dimensions | 72 x 67 x 25 mm |
Other features | - Transmission range: 60m - Resolution: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz. - Bandwidth: 10.2Gbps - Power supply: 2x DC5V1A |
Accessories included | - HDMI transmitter extender - HDMI receiver extender - Receiver and IR transmitter - Power supply DC5V1A x 2 - User instructions |
Usage | Computer |
Connectors #1 | RJ45 Female |
Connectors #2 | RJ45 Female |
Standard | HDMI High Speed with Ethernet |
Designation | CE+WEEE |
Description
HDMI Extender after cable Cat.5e/6/6a/7 up to 60m, with IR receiver
- Simple way to extend HDMI 1.3 b signal using Cat6 / Cat7 cabling
- Allows you to place the monitor in a convenient location

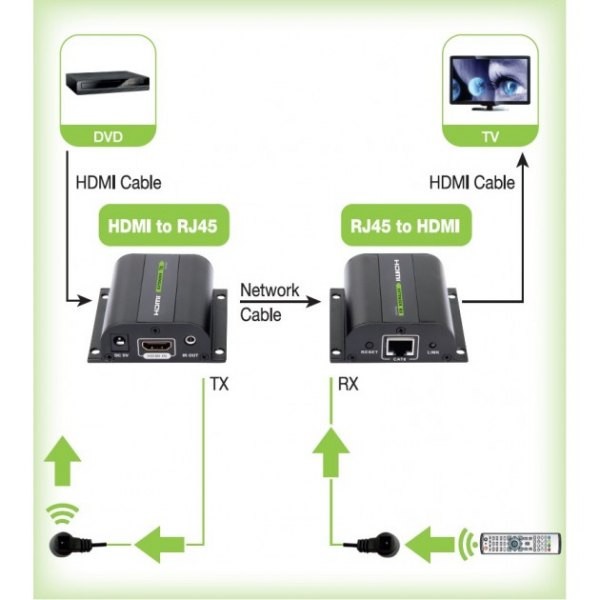

- Receiver and IR transmitter - You can remotely control your signal source (eg DVD) from the receiver (LCD) using the standard remote control (20-60Hz)
- Industrial metal housing for easy mounting to the substrate
- Providing A / V signal transmission up to 60m at 1080p resolution using a single Cat6 / Cat7 UTP RJ45 cable - For best picture quality, use only fully-featured copper cables - such as Intellinet
- Compact size
- Supports 8-bit color depth (Deep color) per channel (24-bit for all channels)
- Supports stereo PCM sound
- Automatic adjustment allows you to adjust the settings according to different cable lengths from 1 to 60m, for the best possible view.
72 x 67 x 25mm

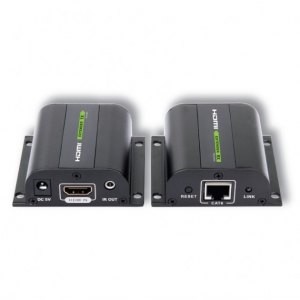

- HDMI transmitter extender
- HDMI receiver extender
- Receiver and IR transmitter
- Power supply DC5V1A x 2
- User instructions
- Transmission range: 60m
- Resolution: 480i @ 60Hz, 480p @ 60Hz, 576i @ 50Hz, 576p @ 50Hz, 720p @ 50 / 60Hz, 1080i @ 50 / 60Hz, 1080p @ 50 / 60Hz.
- Bandwidth: 10.2Gbps
- Power supply: 2x DC5V1A
