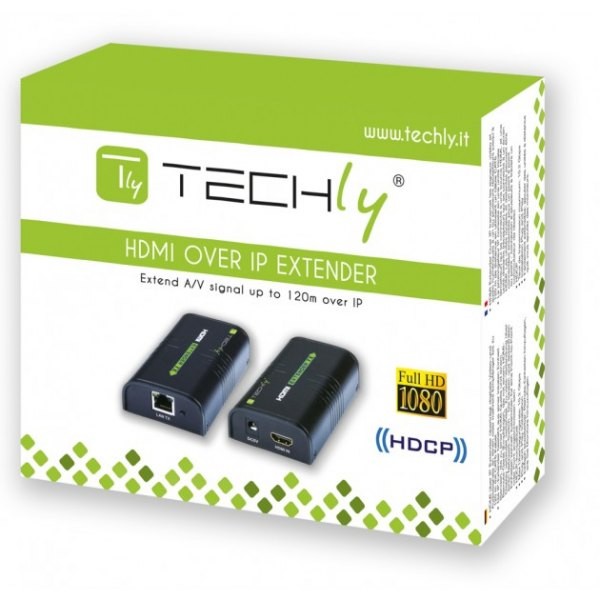

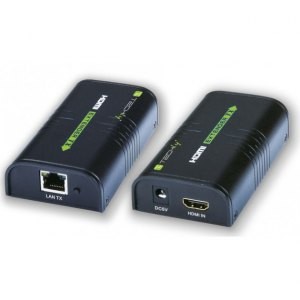

Extender/HDMI splitter after cable Cat.5e/6/6a/7 up to 120m, over IP, black
Technical data
Type | Adapter |
Colour | Black |
Dimensions | 57 x 106 x 26 mm |
Weight | 0.562 kilogram |
Other features | - HDMI signal: HDCP compliant 1.2 - 10.2 Gb / s - transmission range: Cat5e: up to 100m; Cat6: up to 120m - Supported resolutions: 480p at 60Hz, 576p at 50Hz, 720p at 50 / 60Hz, 1080p at 50 / 60Hz - Supports 24, 30 and 36-bit color depth - Co-operating with Cat5e / 6 / 6a / 7 copper copper cables - Signal source - Transmitter: up to 5m (High Speed HDMI cable, min. 26 AWG) - Receiver - Display: up to 5m (High Speed HDMI cable, min. 26 AWG) - Possibility of connecting additional receivers |
Accessories included | - HDMI transmitter module - HDMI receiver module - Power supply 5V DC x 2 - User's Guide |
Usage | Computer |
Connectors #1 | RJ45 Female |
Connectors #2 | RJ45 Female |
Standard | HDMI High Speed with Ethernet |
Description
Extender/HDMI splitter after Cat.5e/6/6a/7 twisted pair, over IP

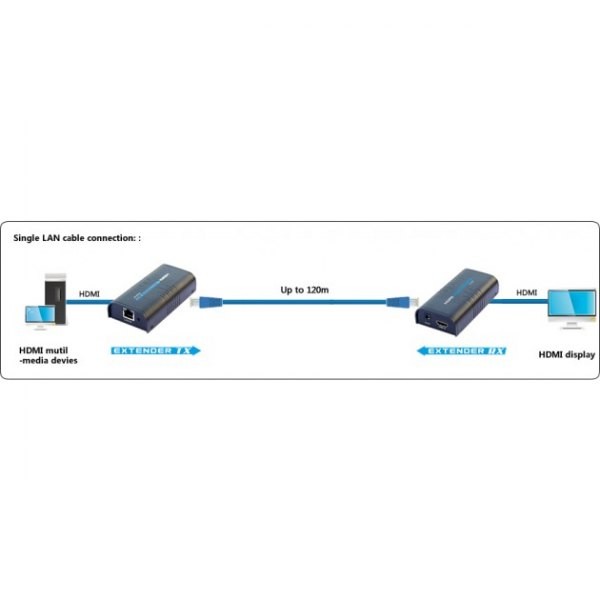

- A simple way to transfer an HDMI AV signal using a network cable
- HDMI signal transmission up to 120m
- Supports Full HD 1080p resolution at 50 / 60Hz and 3D video

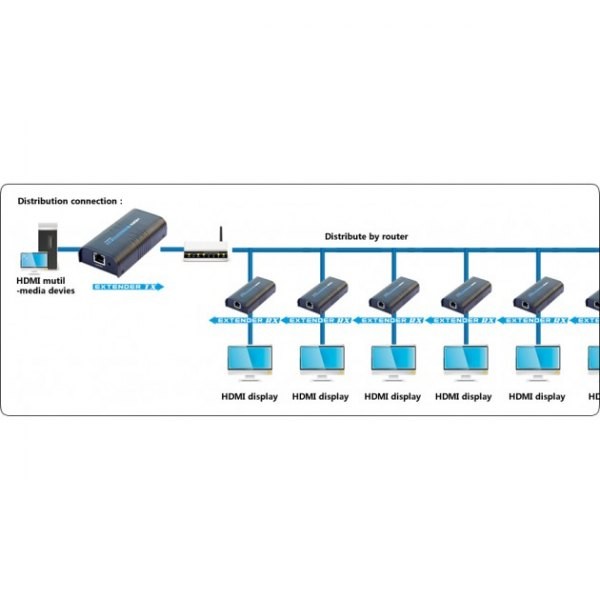

- Up to 253 receivers (P / N: 306011) can be connected to one transmitter using the Ethernet switch
- Supports high-definition multi-channel audio Dolby Digital Plus, LPCM 7.1, Dolby TrueHD and DTS Maser Audio
- Works with any source device with HDMI output port
- Works with any display with HDMI
57 x 106 x 26 mm
- HDMI transmitter module
- HDMI receiver module
- Power supply 5V DC x 2
- User's Guide
- HDMI signal: HDCP compliant 1.2
- 10.2 Gb / s
- transmission range: Cat5e: up to 100m; Cat6: up to 120m
- Supported resolutions: 480p at 60Hz, 576p at 50Hz, 720p at 50 / 60Hz, 1080p at 50 / 60Hz
- Supports 24, 30 and 36-bit color depth
- Co-operating with Cat5e / 6 / 6a / 7 copper copper cables
- Signal source - Transmitter: up to 5m (High Speed HDMI cable, min. 26 AWG)
- Receiver - Display: up to 5m (High Speed HDMI cable, min. 26 AWG)
- Possibility of connecting additional receivers
