Adapter USB- 1xRS-232 + Adapter DB9F/DB25M Y-105A
Technical data
Colour | Black |
Cable length | 1.4 Meter |
Usage | Computer |
Connectors #1 | USB Type A Male |
Connectors #2 | DB9 Serial Port Male |
Designation | CE+WEEE |
Description

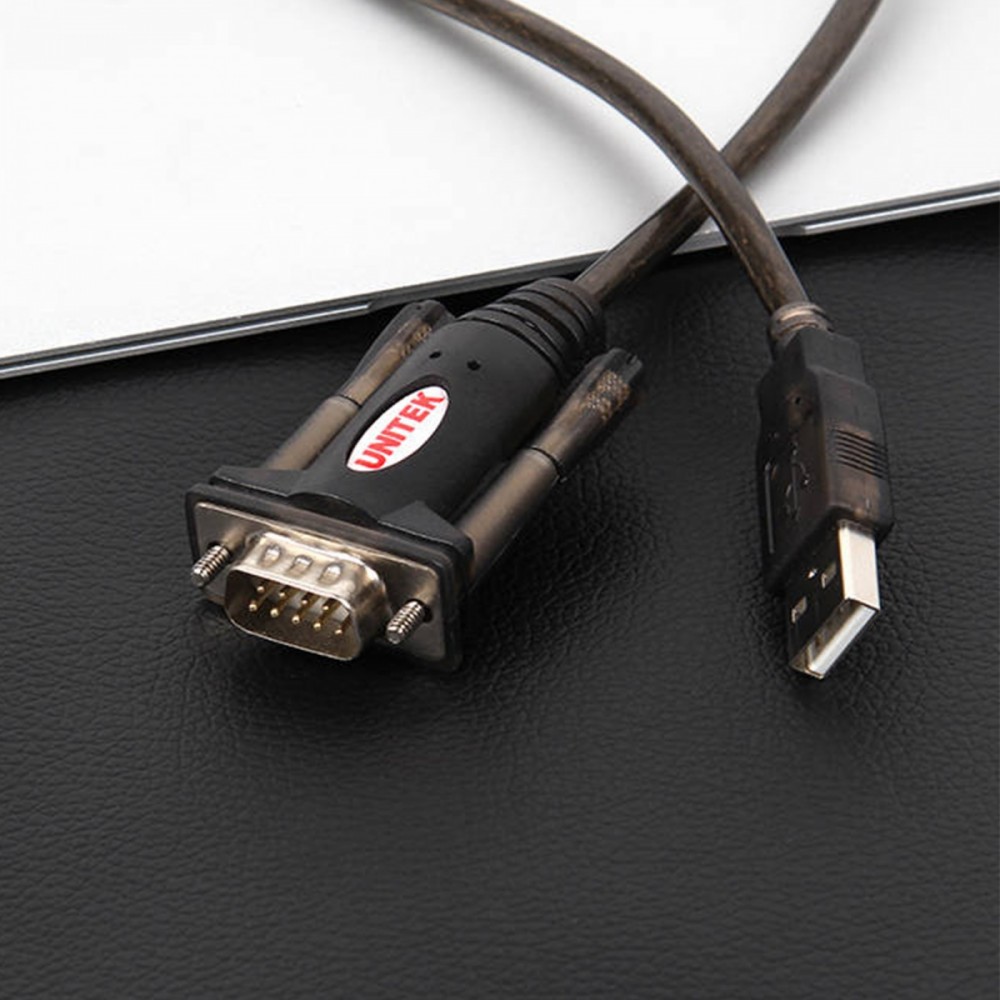

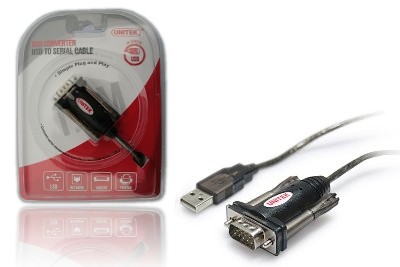

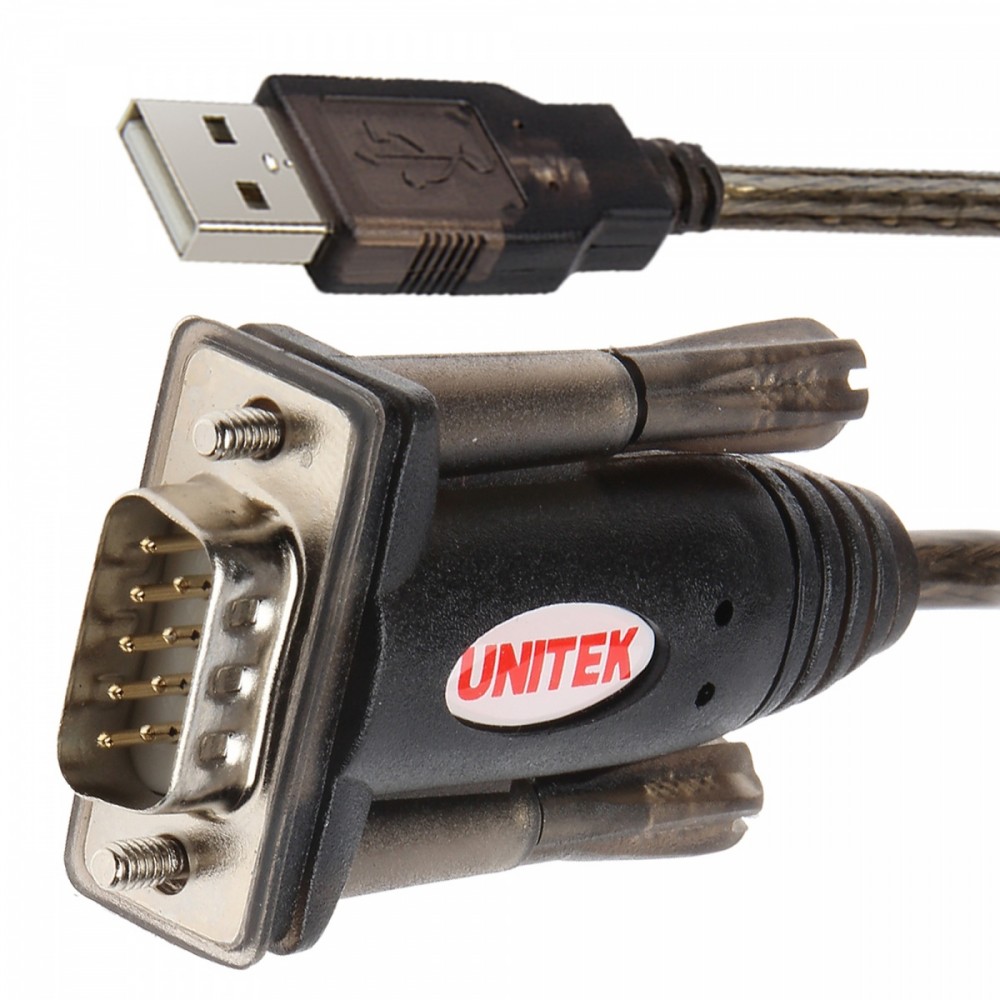

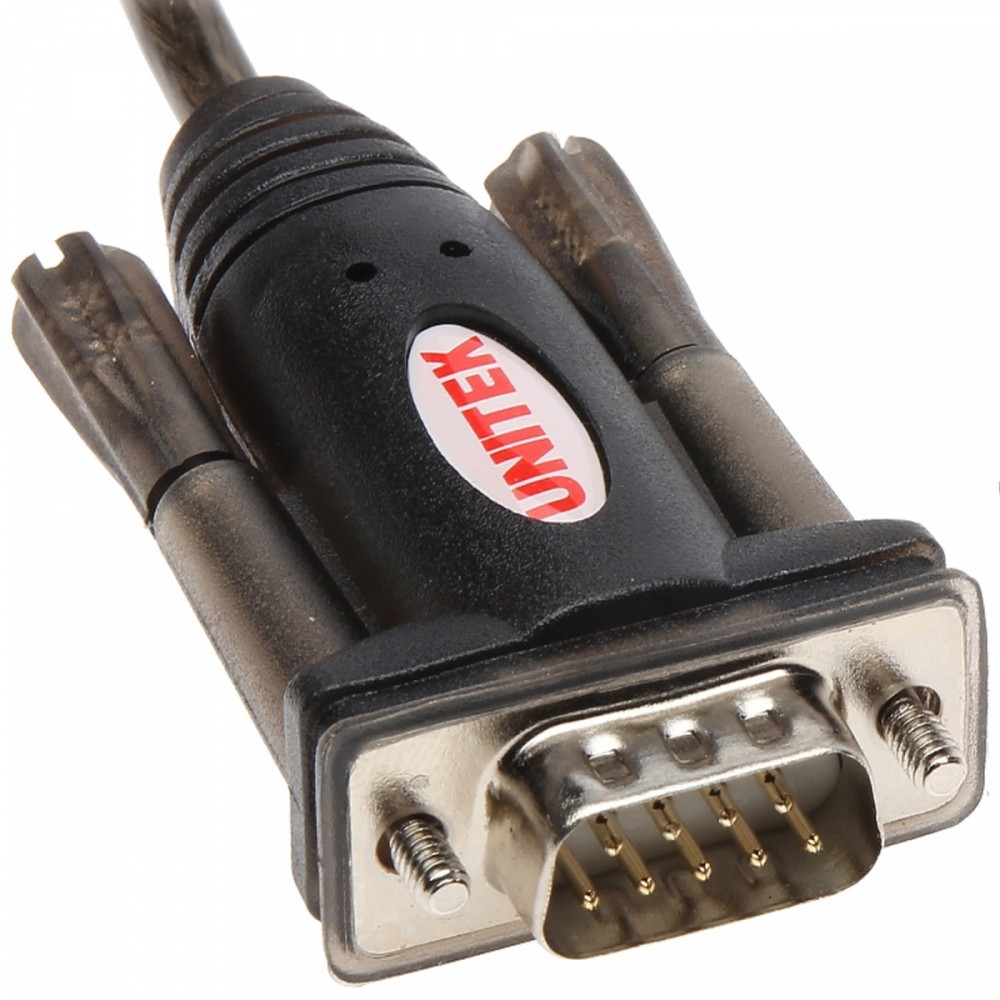

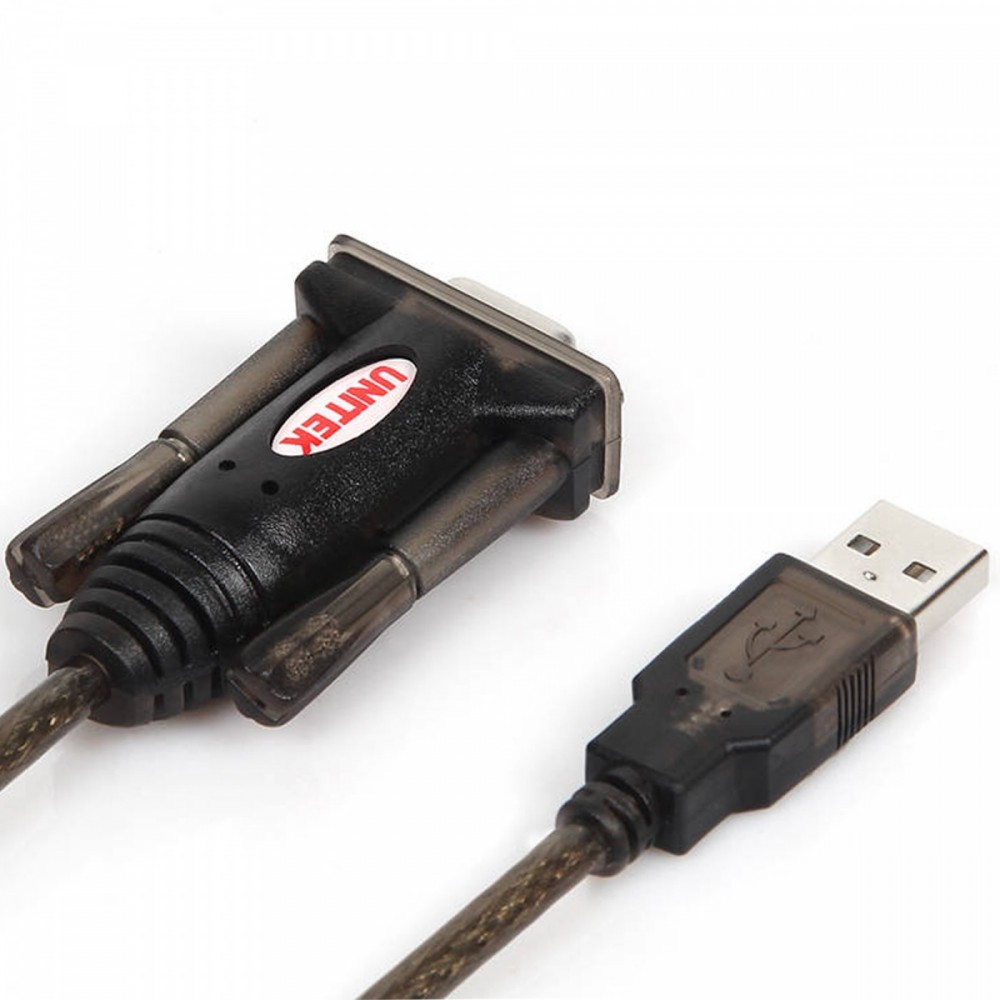

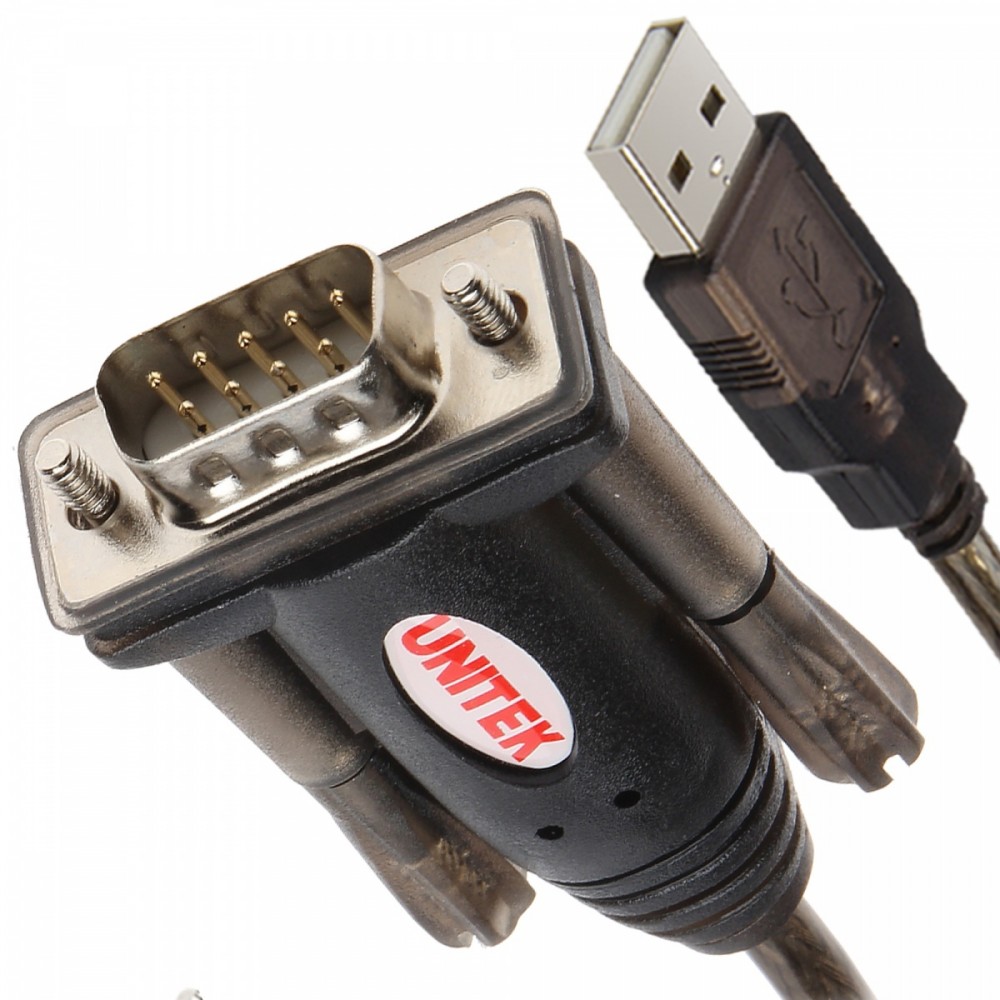

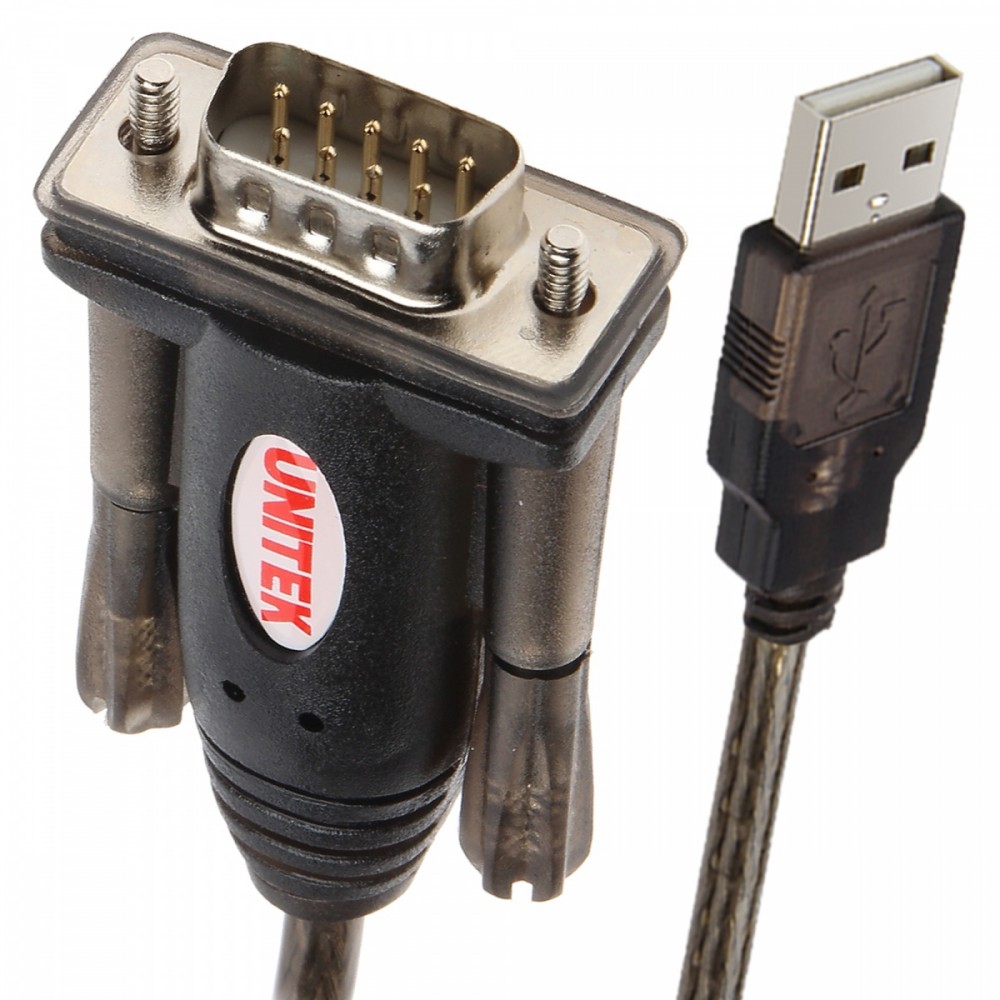

Unitek Y-105A USB converter 1xRS-232 with the adapter
Converter USB to Serial RS-232
Serial port (RS-232) on the USB bus + adapter 9 pin to 25 pin
• compatible with USB 1.1,
• chipset Prolific PL-2303,
• RS-232 DB9M
• Integrated USB cable with a length of 140cm,

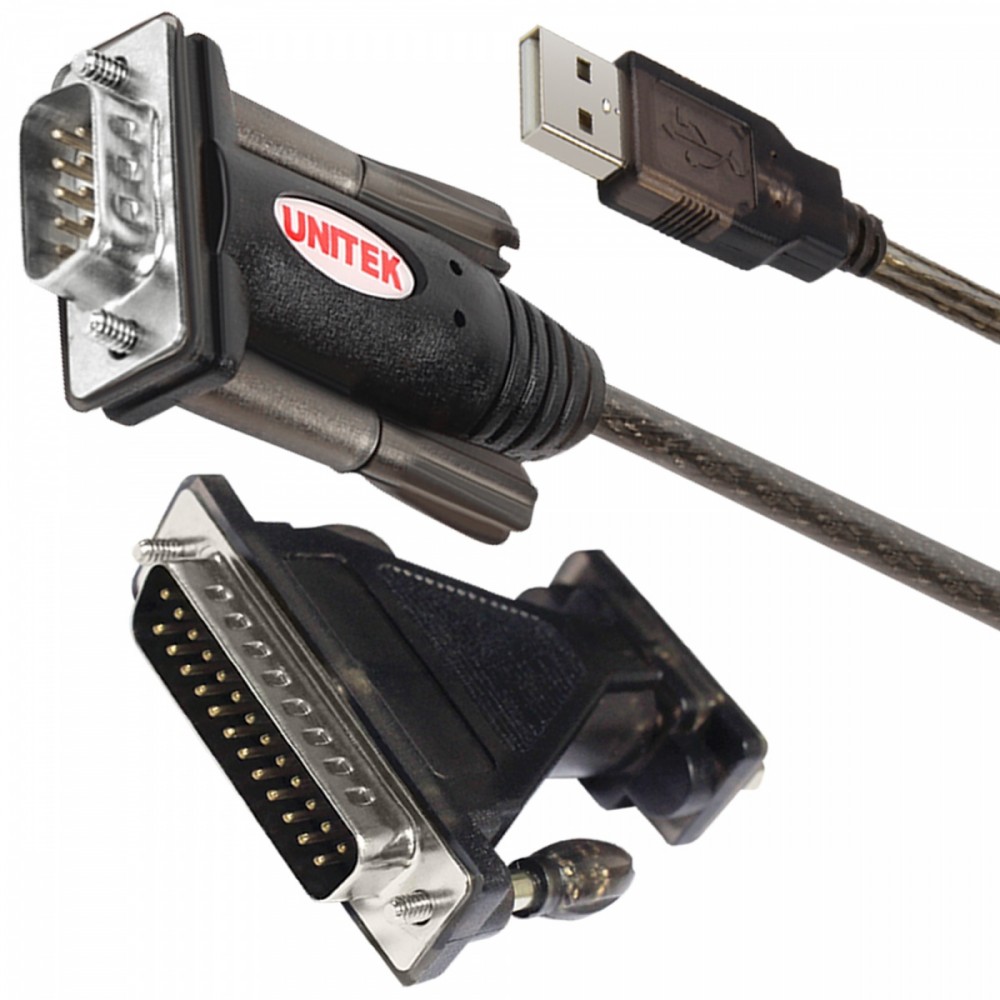

• adapter included RS-232 9 pin to 25 pin
Converter designed especially for computers without a serial port, for example. newest notebooks. It is compatible with RS-232, however, may not work with devices whose software:
• requires the IRQ identification
• refers directly to the controller COM port (UART).
Note! The device creates a serial port RS-232 USB port (not the other way around).
The converter is compatible with Windows 98, ME, 2000, XP, Server2003 (32 & 64-bit), Vista (32 & 64-bit), 7 (32 & 64-bit), Server2008 (32 & 64-bit) and Linux 2.4+.
