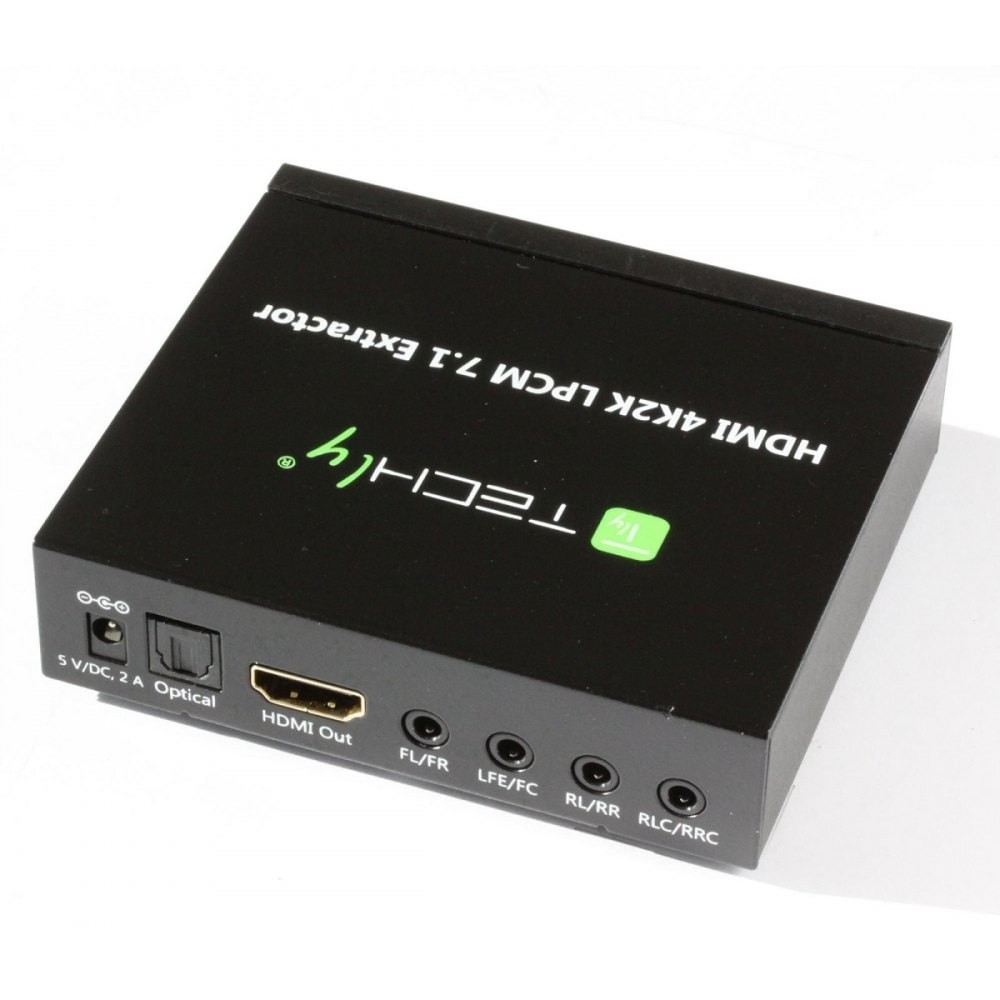

Techly Audio Extractor 7.1 LPCM HDMI 4K UHD 3D

<< Previous Next >>
Availability: Out of stock
Price: €135.14 135.14
quantity pcs
add to wish list
Brand: Techly
Product code/SKU: 73789

Technical data

Colour Black
Dimensions 95 x 82 x 24 mm
Weight 0.461 kilogram

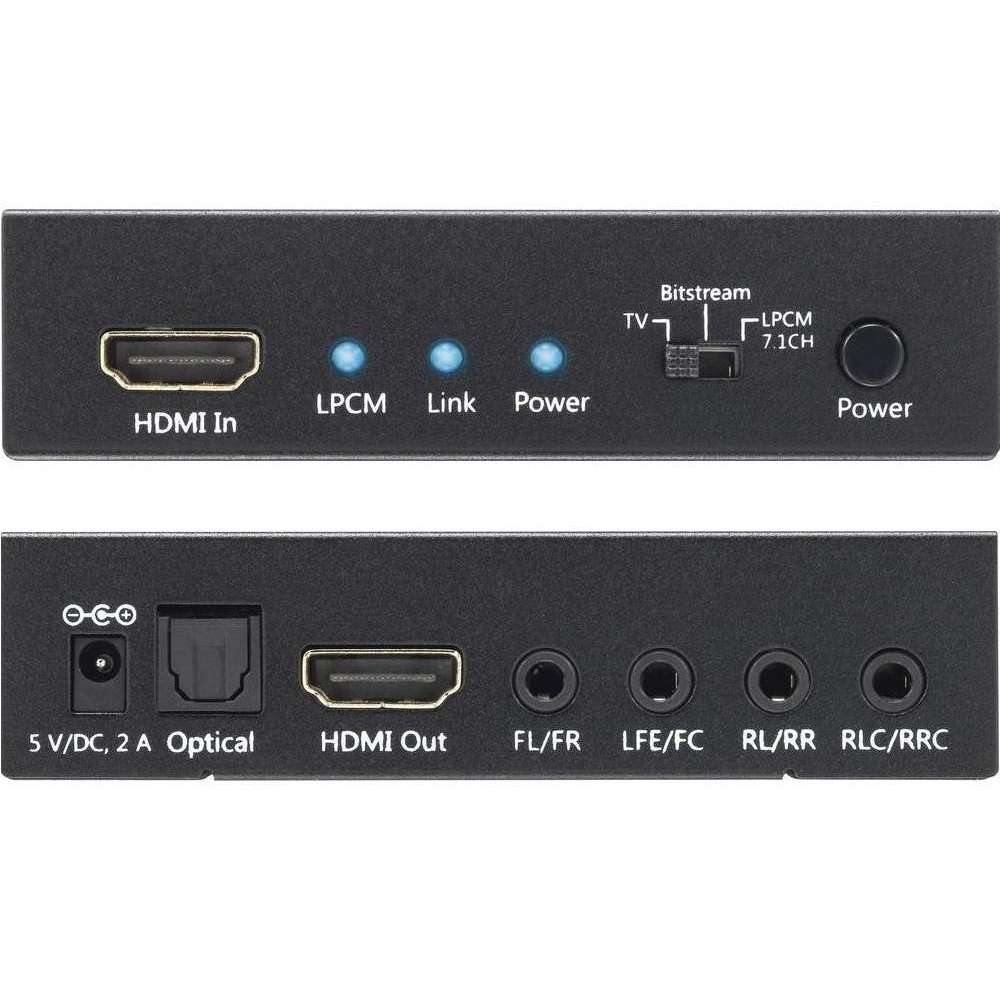

Other features - Input connectors:      1x HDMI female      1x 5V DC power socket - Output connectors:      1x HDMI female      1x S/PDIF (Toslink) female      1x 3.5mm female jack (FL/FR front left and front speaker)      1x Jack 3.5mm female (LFE/FC woofer/subwoofer and front center)      1x Jack 3.5mm female (RL/RR rear left and rear right speaker)      1x 3.5mm Jack female (RLC/RRC left center rear speaker and work) - HDMI audio sampling up to 192 kHz - Sampling digital S/PDIF audio up to 192 kHz - HDMI HBR audio support - Audio switch:      TV      Bitsteram      LPCM 7.1CH - Supports HDMI resolution up to 4Kx2K and 3D 1080p video - Video streaming: 300Mbps/10.2Gbps - Compatible with HDMI, HDCP 1.2 and DVI 1.0
Accessories included - HDMI audio extractor LPCM/7.1CH - 5V DC power supply - User's manual

Description

IDATA HDMI-EA74K extracts the audio signal from the HDMI source and convert it to optical or analog multi-channel digital audio.
It allows you to easily send the HDMI video signal to a TV, projector or monitor, and send the signals to a HDMI audio system with 7 channels.

Features
• It extracts the audio signal from an HDMI source
• Supports HDMI audio sampling rates up to 192kHz
• Supports optical audio sampling rate S / PDIF audio up to 192kHz
• Supports 4 outputs 3.5 "multi-channel analog audio
• Allows 2Kx4K@30 Hz resolutions and 3D reproductions
• Meets HDMI, HDCP 1.2 and DVI 1.0
• Supports audio HDMI high-bit-rate (HBR)
• No HDMI connections for receiving audio on analog and optical outputs
• Incoming and outgoing can use HDMI cables up to 15 meters in length 1080p 8bit resolution, or 10m to 1080p 12bit
• Supports audio feature EDID between LPCM 7.1CH, TV EDID (external) and Audio Bitstream
• Supports CEC bypass
• Black Colour

Technical Specifications
• Video bandwidth: 300Mbps / 9Gbps
• Input ports: 1 x HDMI
• Output Ports: 1 x HDMI, 1 x Optical, 4 x 3.5 "Phone Jack
• HDMI Audio sampling frequency up to 192kHz
• SPDIF Optical Audio sampling frequency up to 192 kHz
• HDMI Audio format: LPCM 2 / 5.1 / 7.1CH, 5.1CH Dolby Digital 2 ~, ~ 2 5.1CH DTS, Dolby Digital Plus, Dolby TrueHD, and DTS-HD Master Audio
• Optical Format Audio: 2CH LPCM, Dolby Digital 5.1 CH 2 ~, ~ 2 and DTS 5.1CH
• Audio Format L / R: 4 x output Phone Jack format; 7.1 CH Analogue Audio
• Power supply included 5V 2A

Environmental Features
• Operating Temperature: 0 ° C ~ 40 ° C
• Storage Temperature: -20˚C ~ 60˚C

Dimensions
• Width: 95 mm
• Depth: 82 mm
• Height: 23 mm

Certifications
• CE
• WEEE

Package Contents
• Audio Extractor IDATA HDMI-EA74K
• Power supply 5V 2A
• Information Sheet
