DIGITUS 4K HDMI EDID Emulator 4K 60Hz UHD HDCP 2.2

<< Previous Next >>
DIGITUS 4K HDMI EDID Emulator 4K 60Hz UHD HDCP 2.2
Availability: Available
Delivery: 04-12-2024
Price: €21.60 21.60
quantity pcs
add to wish list
Brand: Digitus
Product code/SKU: 154077
  • ask about product
  • recommend to a friend

Technical data

Type Adapter
Colour Black
Dimensions 4,4 x 2,0 x 1,3 cm
Weight 15 gram
Other features Supports HDCP 2.2 / 1.4 Supports VESA and CEA specifications Activity LED indicator It does not require an external power source
Accessories included 4K HDMI EDID emulator User manual
Usage Video
Connectors #1 HDMI Type A Male
Connectors #2 HDMI Type A Female
Standard HDMI Ultra HD 4K

Description

Emulates the EDID data for connected HDMI screens/monitors/TVs and solves possible transmission problems with the communicating devices (monitor, signal source)

  • Emulates HDMI EDID (Extended Display Identification Data) information
  • Solves possible transmission problems with the communicating devices (monitor, signal source), for example, at different resolutions, formats, etc.
  • Has preset EDID data (resolutions/timings)
  • Clone function - allows you to read and clone the EDID data of a connected TV/monitor/screen
  • Supports resolutions up to UHD 4K2K / 60Hz
  • HDCP pass-through
  • Supports HDR for UHD and FHD resolutionn4K/60Hz HDR 8-bit YCbCr 4:4:4;n4K/30Hz HDR 12-bit YCbCr 4:4:4

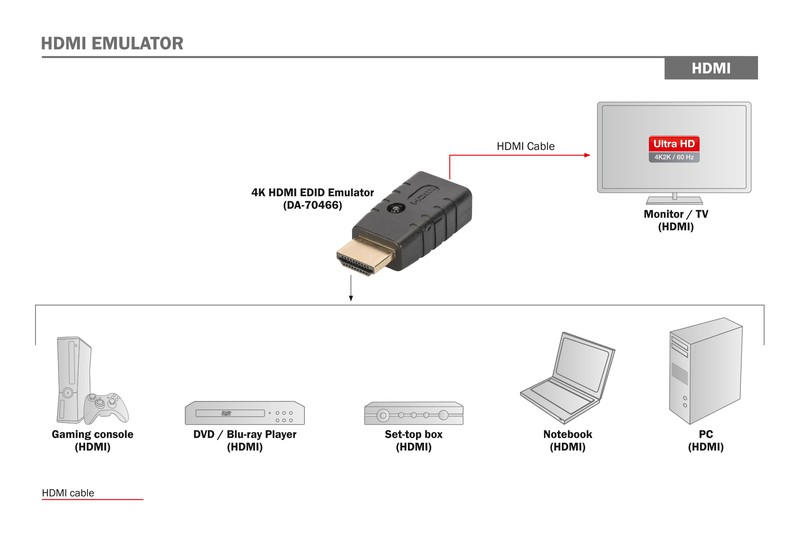

The Digitus 4K HDMI EDID Emulator continuously emulates a connected HDMI monitor so that the signal source does not change or disconnect your signal even when the connection is interrupted. It has preset EDID data (resolutions/timings), which can be found in the user manual. If EDID data of an individual monitor/display are missing, they can be read and cloned quickly and easily by means of the practical clone function. The emulator supports resolutions up to UHD 4K2K/60 Hz. The emulator offers the ideal solution for applications with HDMI extenders, splitters, switches or converters.
