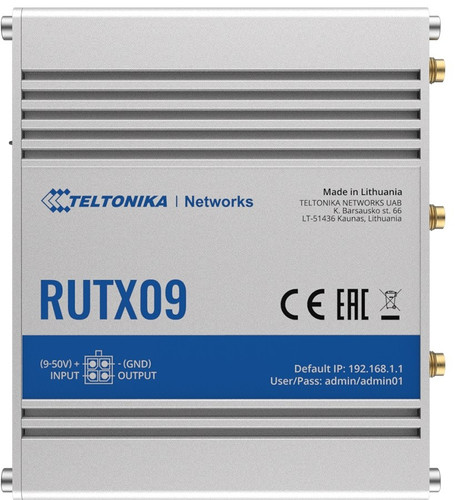

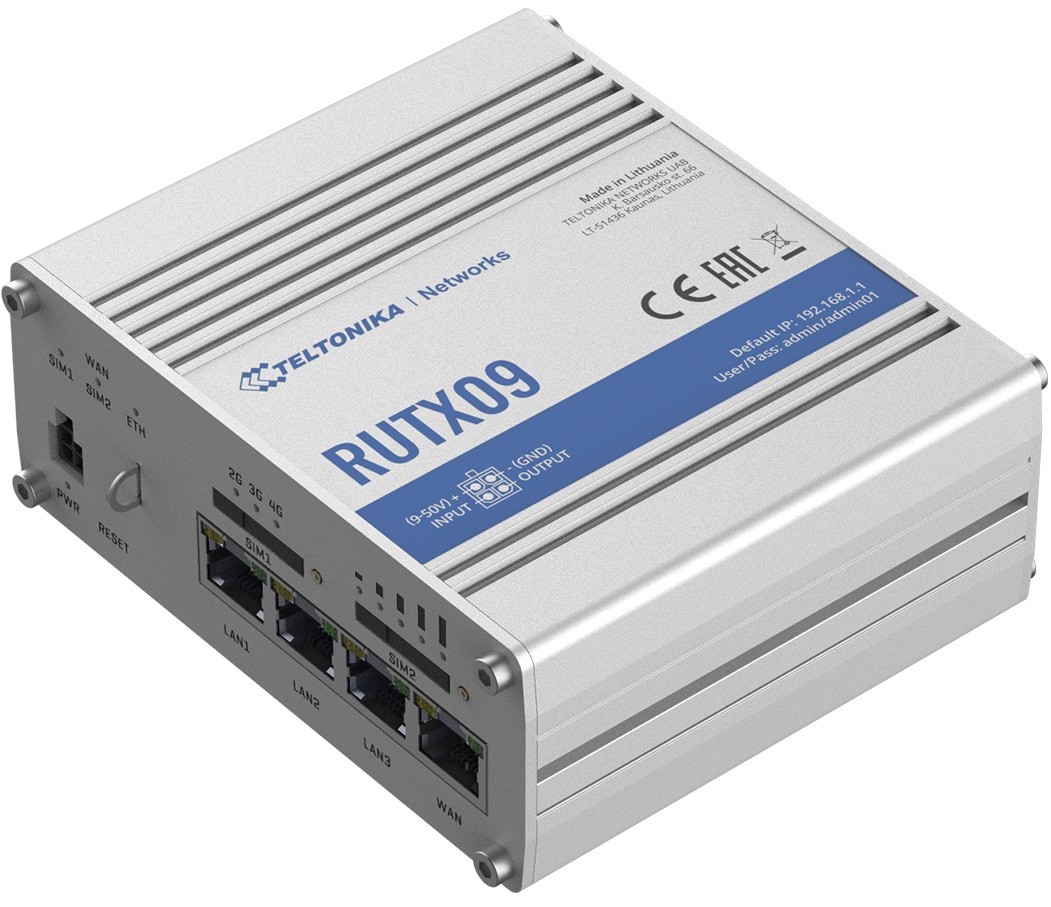

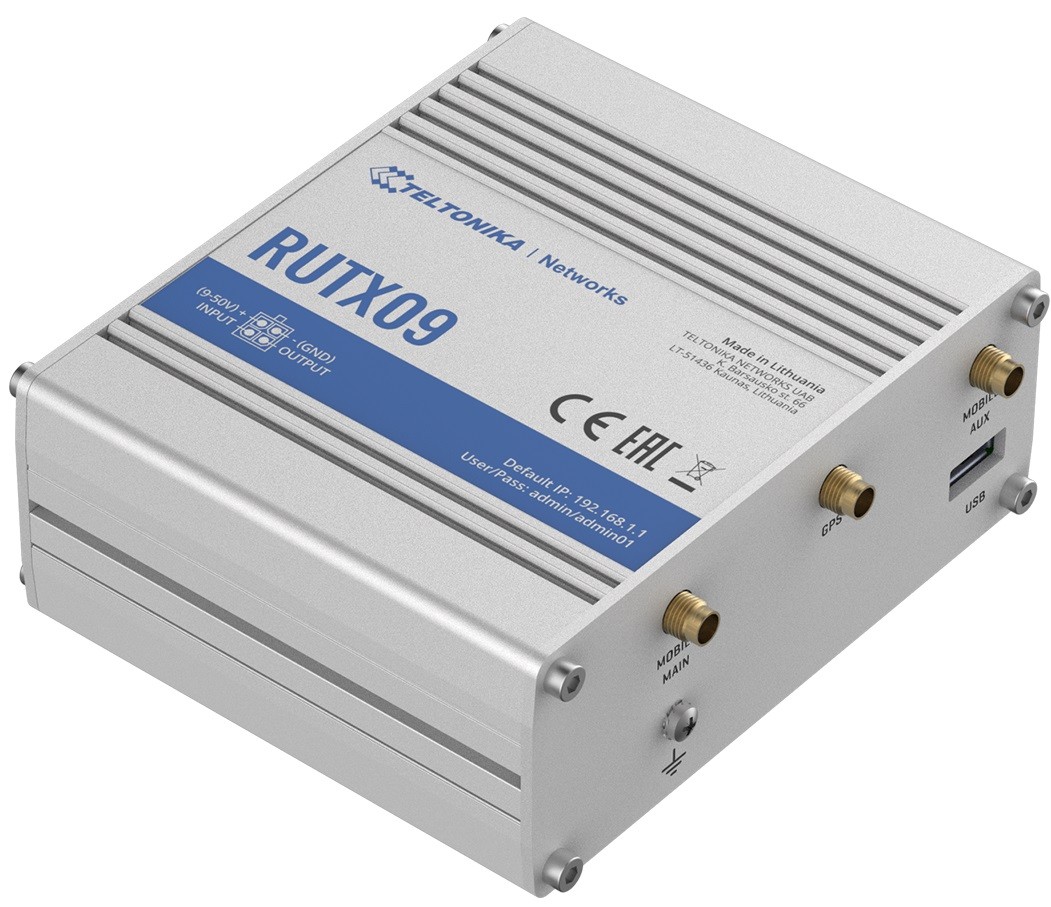

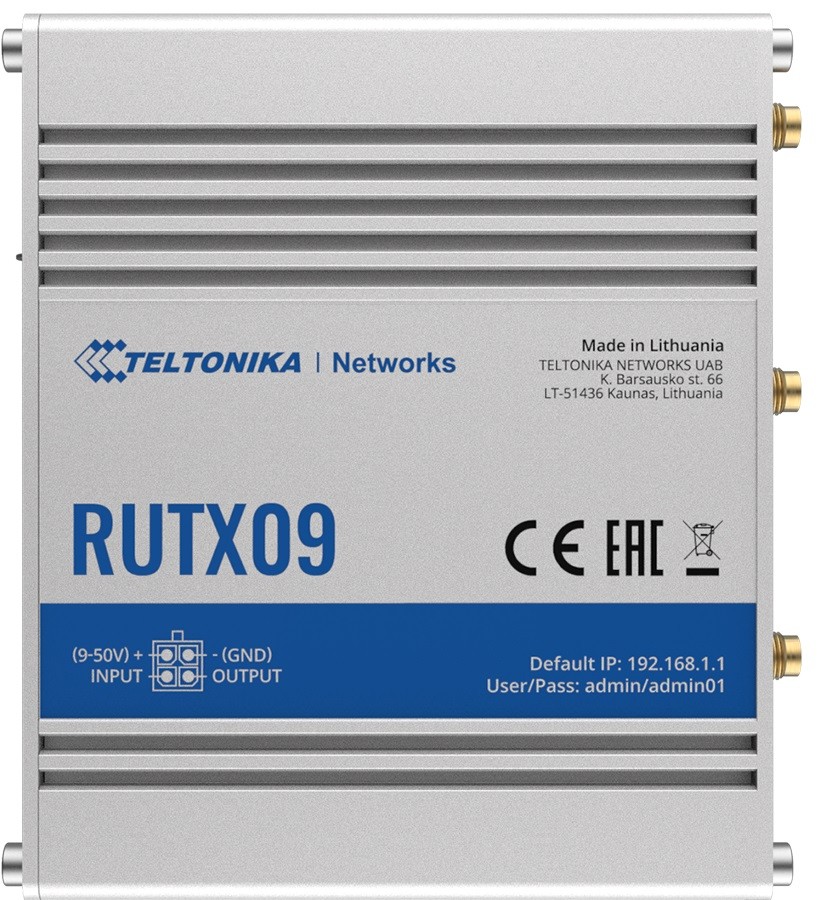

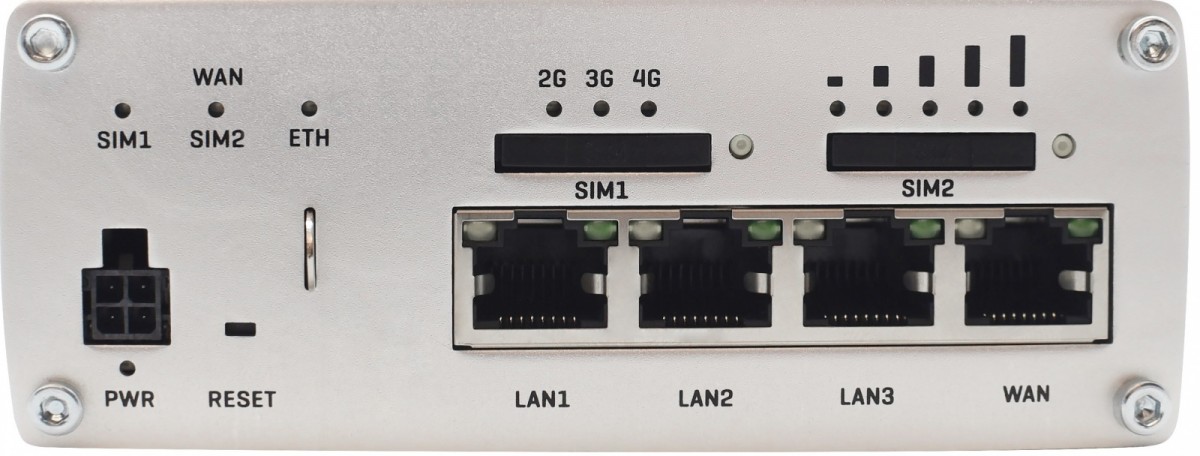

Teltonika Router LTE RUTX09 Cat6 4xGbE GNSS
Availability:
Low Stock
Delivery:
09-01-2025
Price:
€517.37
517.37
add to wish list
Brand:
TELTONIKA
Product code/SKU:
978136
Technical data
Type | GSM 3G/4G |
Colour | Aluminium |
Dimensions | 115 x 44 x 95 mm |
Weight | 455 gram |
Other features | Network support: 4G/LTE (Cat 6), 3G CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz Memory: 256 MBytes Flash, 256 MBytes RAM GNSS support: GPS, GLONASS, BeiDou, Galileo, QZSS Status LED: 3 x WAN type, 2 x connection type, 5 x signal strength, 8 x Ethernet, power |
Accessories included | RUTX09 router 18W power supply 2 x LTE antenna (swivel, SMA male) GNSS antenna (adhesive, SMA male, 3 m cable) SIM Adapter kit Ethernet cable (1.5 m) Brief user manual RMS leaflet |
Model | RUTX09 |
I/O ports | 4 x 10/100/1000 Mbit/s |
Power supply | 4pin power socket, 9-50 VDC |
Security | Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN: Port and tag based VLAN separation Mobile quota control: Custom data limits for both SIM cards WEB filter: Blacklist for blocking unwanted out websites, Whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
Card reader | None |
Data transmission | LTE |
UMTS network | 850 MHz |
LTE network | 2500 MHz |
SIM card | Mini |
Antenna | Detachable external |
Environment requirements | Operating temperature: -40 C to 75 C Humidity during operation: 10% to 90% non-condensing |
Standards | 802.3u |

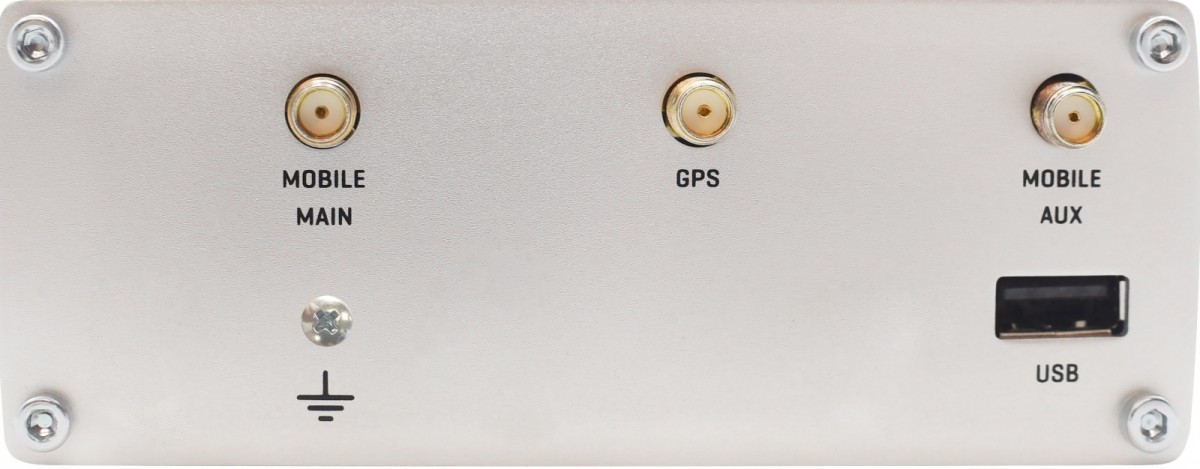

Number of antennas | 3-antenna connectors |
Management, monitoring, configuration | Cellular features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits Network protocols: SMTP, SSLv3, TLS 1.3, ARP, PPP, PPPoE, DHCP, Telnet Network: Failover (Network backup), VLAN, QoS, Load Balancing Management and monitoring: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Moble operator GNSS: NMEA forwarding, AVL, Geofencing Services: DDNS, VRRP, Wake On Lan (WOL), WEB lter, UPNP, Network shares (Samba), Trac Logging Administration: Multi user, Conguration proles, Diagnostics, logs, Conguration backup |
Software | RutOS (OpenWrt based Linux OS) |
Aero2 support | No |
Description
115 x 44 x 95 mm
