Teltonika Gateway LTE TRB255 Cat M1/NB 2G Ethernet
Availability:
Out of stock
Price:
€254.23
254.23
add to wish list
Brand:
TELTONIKA
Product code/SKU:
978158
Technical data
Type | GSM 3G/4G |
Colour | Aluminium |
Dimensions | 83 x 25 x 74 mm |
Weight | 165 kilogram |
Other features | Network support: 4G/LTE (Cat M1), NB-IoT, 2G CPU: Qualcomm, MIPS 24Kc, 650 MHz Memory: Memory 16 MB Flash, 64 MB RAM Antenna connectors: 1 x SMA (cellular), 1 x SMA (GNSS) GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS Status LED: 3 x network type, 3 x signal strength, 2 x Ethernet, power Housing: Aluminum with DIN mounting option Network protocols: TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, FTP, SMTP, SSLv3, TLS 1.3, ARP, PPP, DHCP |
Accessories included | TRB255 9W power supply Cellular antenna, rotatable, 1 piece (SMA male) GNSS antenna 1x (self-adhesive, SMA male, 3m cable) 16 pin connector (terminal block) Assembly key Ethernet cable (1.5 m) Quick start guide RMS leaflet |
Model | TRB255 |

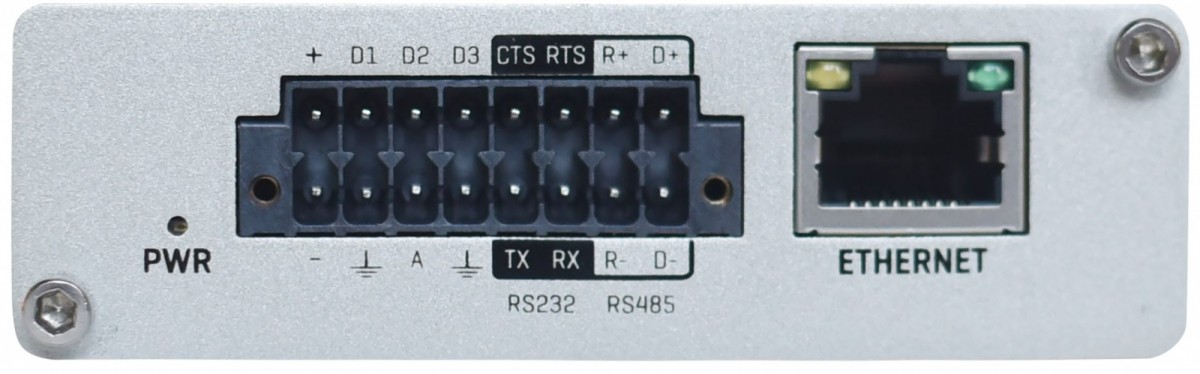

I/O ports | 1 x RS-485 |
Power supply | 16 pin terminal, 9-30 VDC |
Security | Authentication: Pre-shared key, digital certificates, X.509 certificates Firewall: Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T Attack prevention: DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) VLAN (planned): Tag based VLAN separation Mobile quota control: Custom data limits for both SIM cards WEB filter (planned): Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only Access control: Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
Card reader | None |
Data transmission | LTE |
GSM network | 1900 MHz |
LTE network | 1900 MHz |
SIM card | Mini |
Antenna | Detachable external |
Environment requirements | Operating temperature range: -40 °C to 75 °C Humidity range: 10-90% non-condensing |
Standards | 802.3u |
Number of antennas | Two connectors |
Management, monitoring, configuration | Mobile features: Multiple PDN, Auto APN, Band lock, SIM switch, Operator black/white list, Data/SMS limits Monitoring and management: WEB UI, CLI, SSH, SMS, TR-069, SNMP, JSON-RPC, MQTT, RMS, Ping Reboot, Wget reboot, Periodic Reboot, LCP and ICMP for link inspection Cloud solutions: RMS, FOTA, Telenor, Azure IoT Hub, Cloud of Things, Cumulocity, ThingWorx NTP: NTP Server, NTP Client, Sync with: External NTP server, GNSS, Mobile operator GNSS: NMEA forwarding, AVL, Geofencing Modbus: TCP slave, TCP master, RTU master, RTU gateway, Modbus over MQTT Serial: Console, Over IP, Modem, NTRIP, Modbus Administration: Multi user, Configuration profiles, Diagnostics, logs, Configuration backup |
Software | RutOS |
Aero2 support | No |
Designation | CE+WEEE |
Description
83 x 25 x 74 mm
