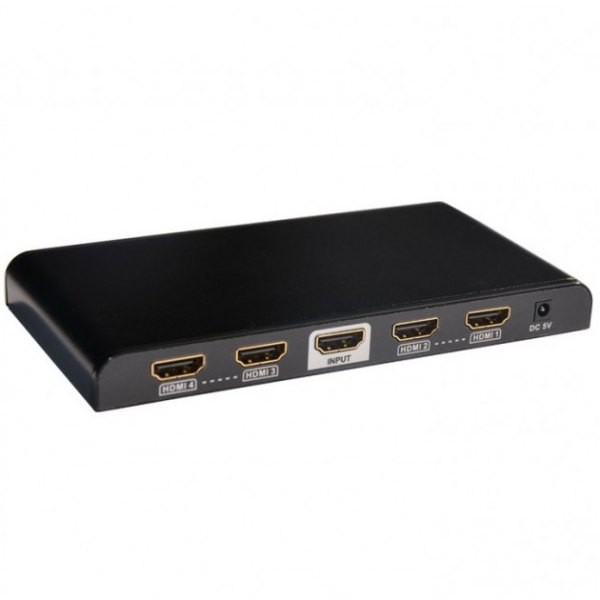

Splitter-splitter HDMI 1/4 Ultra HD, 3D
Technical data
Colour | Black |
Dimensions | 17 x 156 x 79 mm |
Weight | 205 gram |
Other features | - Possibility to extend distance - up to 30 m from signal source and up to 25 m to receivers - 3D support - CEC support - HDCP support 1.2 - Supported Audio: HD, including DTS-HD Master Audio / Dolby TrueHD / LPCM 7.1 / DTS / AC3 Dolby- / DSD - Ultra HD resolution 3840 x 2160 and 3D, Deep Color 30bit, 36bit, Blu-ray 24/50 / 60fs / xvYCC - Supports ultra-4K * 2K resolution - HDMI Supported resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p (50Hz, 60Hz), 1080p / 24Hz 3D 720p / 720p 3D 50Hz / 60Hz 3D, 4Kx2K; - Operating temperature: -10 to 55 ° C |
Accessories included | - HDMI Splitter - Power supply 5V / 1A - User manual |
Special functions | Allows you to split audio / video signals of one HDMI source such as BlueRay, DVD, STB, PS3, etc .. for four LCD monitors, projectors, and HD screens simultaneously. |
Inputs | 1 x HDMI |
Outputs | 4 x HDMI |
Designation | CE+WEEE |
Description

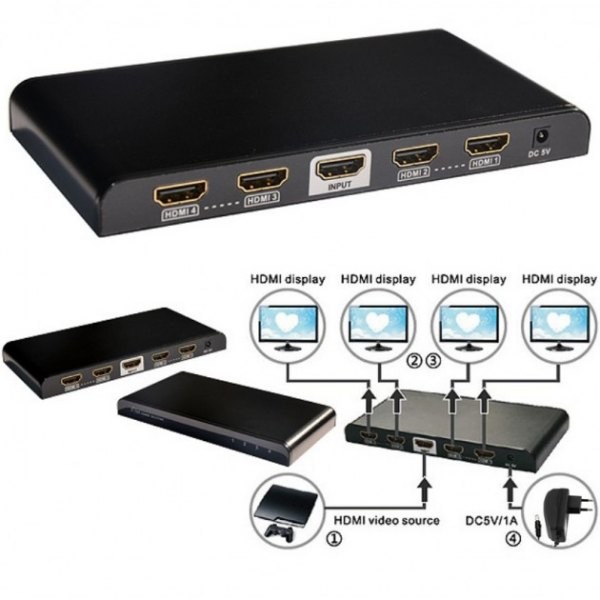

Allows you to split audio / video signals of one HDMI source such as BlueRay, DVD, STB, PS3, etc. for four LCD monitors, projectors, and HD screens simultaneously.
- HDMI Splitter
- Power supply 5V / 1A
- User manual
17 x 156 x 79mm
- Possibility to extend distance - up to 30m from signal source and up to 25m to receivers
- 3D support
- CEC support
- HDCP support 1.2
- Supported Audio: HD, including DTS-HD Master Audio / Dolby TrueHD / LPCM 7.1 / DTS / AC3 Dolby- / DSD
- Ultra HD resolution 3840 x 2160 and 3D, Deep Color 30bit, 36bit, Blu-ray 24/50 / 60fs / xvYCC
- Supports ultra-4K x 2K resolution
- HDMI Supported resolutions: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p (50Hz, 60Hz), 1080p / 24Hz 3D 720p / 720p 3D 50Hz / 60Hz 3D, 4Kx2K;
- Operating temperature: -10 to 55 ° C
