Lanberg Switch DSP2-1008-12V 8X 1GB/S DES. DSP2-1008-12

<< Previous Next >>
Availability: Available
Delivery: 08-01-2025
Price: €33.96 33.96
quantity pcs
add to wish list
Brand: LANBERG
Product code/SKU: 357948

Technical data

Dimensions 89 x 137 x 28 mm
Weight 240 gram
Application Home and small office
Power consumption 4.53 Watt
Network architecture GigabitEthernet
Fan No
Power supply AC, AC/DC, network (230V), external
Chassis type Desktop
Switch class Unmanaged
Switch layer L2
Number of 10/100/1000 Mbps ports 8
Number of SFP+ ports None
Throughput 16 GB/s
MAC address table size 4000
Support for Jumbo frames No
Stackability No
Number of 10/100 Mbps ports 8
Number of 10Gb ports None
Number of PoE ports (PoE & PoE+) None
Number of PoE+ ports None
Number of COMBO ports None
Number of SFP ports None
Number of QSFP+ ports None
Console port No
Forwarding mode Store-and-forward
Supported protocols and standards IEEE 802.3ab 1000Base-T, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control)

Description

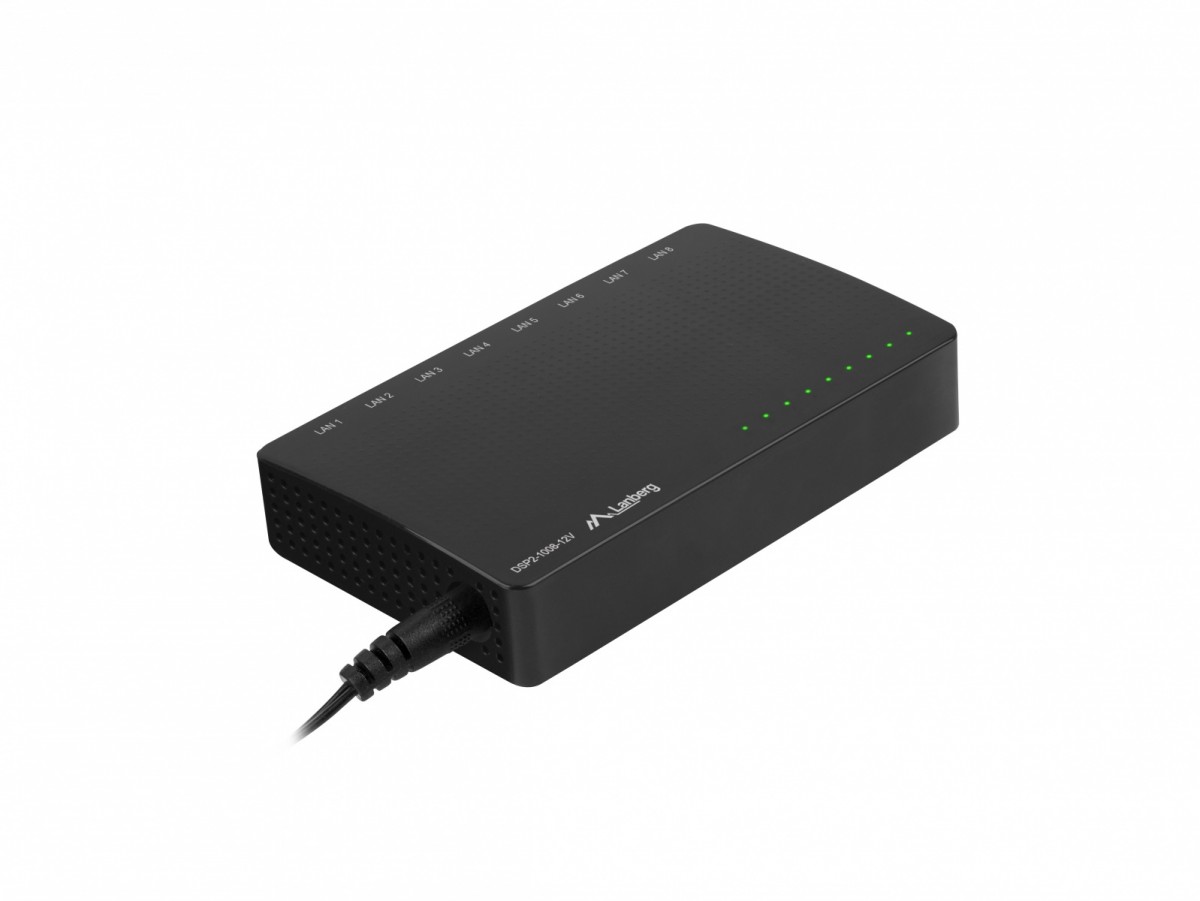

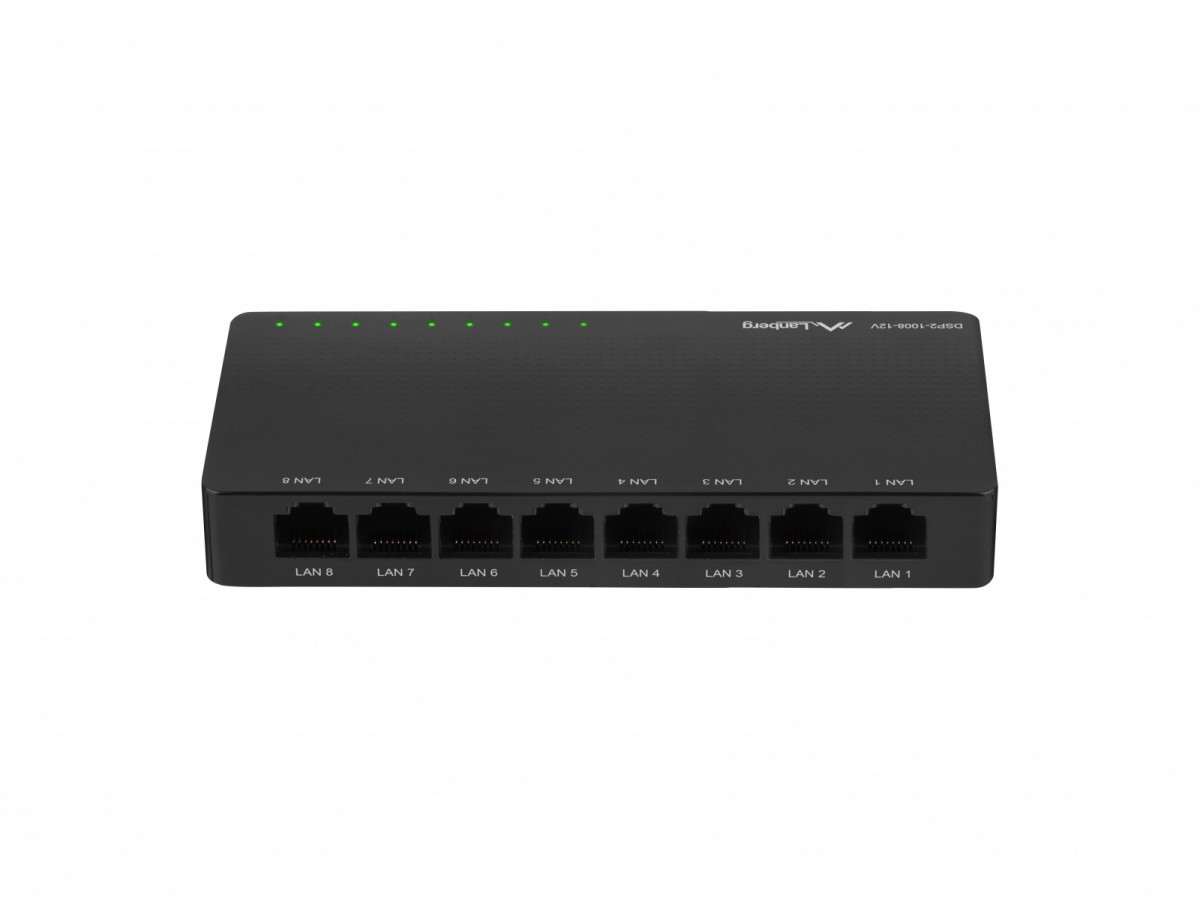

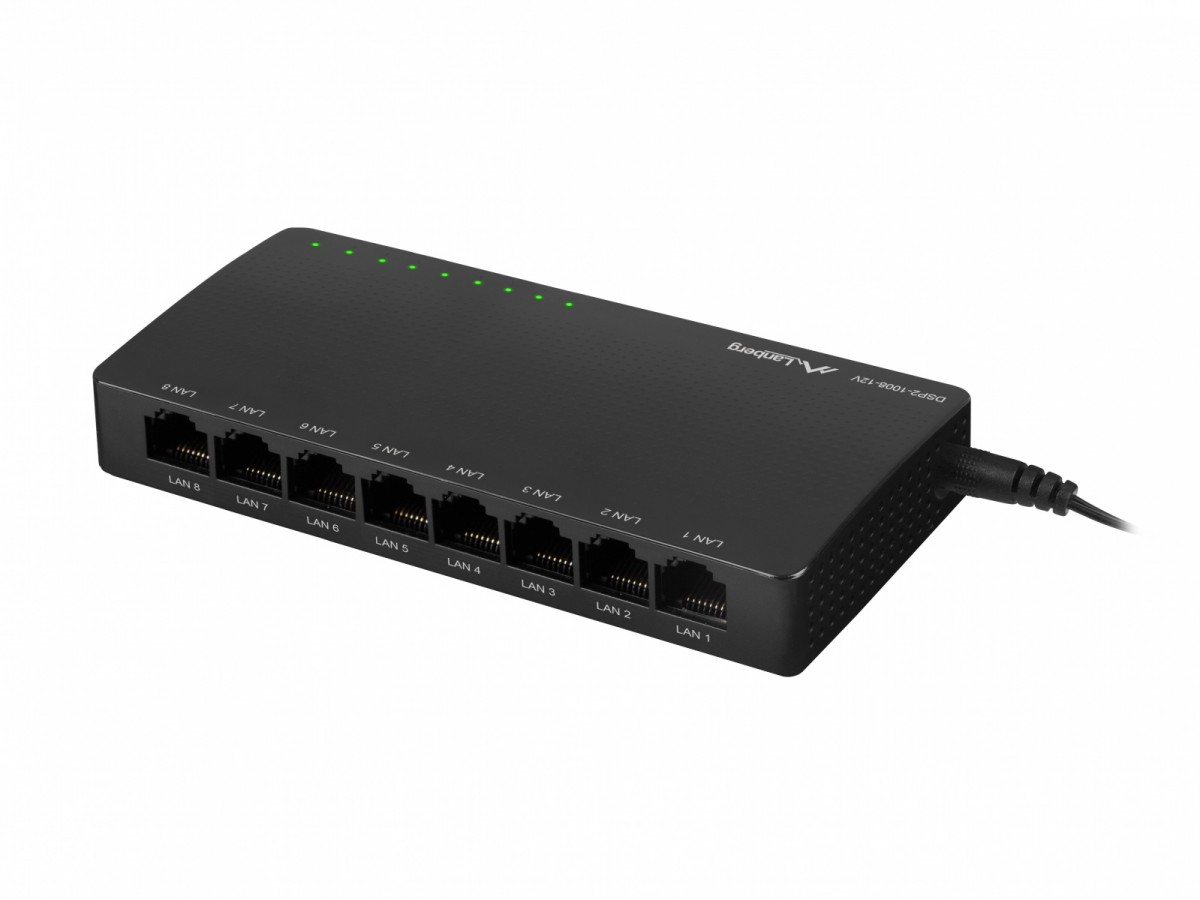

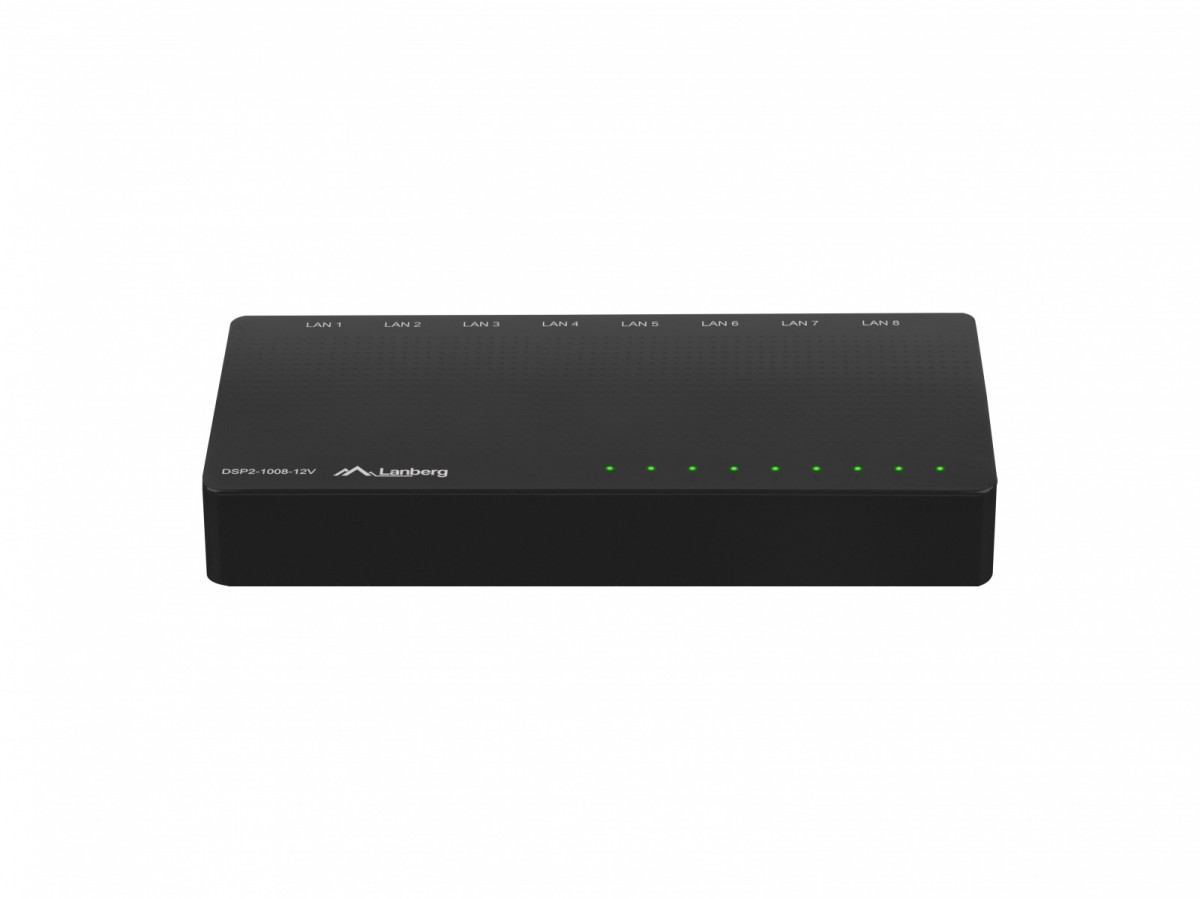

Lanberg DSP2-1008 is a compact, unmanaged desktop switch equipped with 8 x Gigabit Ethernet RJ-45 ports. The device itself is small and handy with Plug & Play operation principles. Product provides switching functions for 8 x 10/100/1000 Mbps RJ-45 ports with automatic connection negotiation and MDI-MDIX support.

The distinctive feature of the DSP1 and DSP2 series switches is the use of universal 12V power supply, used in many other IP and CCTV surveillance, alarm, security, and IT devices. With this solution, the end-users, ISPs, or installers are not forced to use the default power supply, thus the greater freedom in regards to delivering the power to the switch using this voltage. The benefits of using 12V power include:

- 12V voltage is present in alarm systems and older CCTV solutions. In such cases, a collective power supply is used, which eliminates the need for any additional energy sources and allows for easy replacement of the main power adapter in case of failure,
- There are many manufacturers on the market offering 12V buffer power supplies offering a jack cable. Such small devices provide power to compact products such as routers and switches. 12V used in the DSP2 series allows you to connect all sorts of buffer power supplies to maintain the device's operation after a power outage,
- Increased stability of the equipment and better current efficiency of the device through the use of higher voltage.



- 8 x RJ-45 10/100/1000 Mbps ports with automatic connection negotiation,
- Plug-and-play support – product does not require any additional configuration,
- MDI / MDIX support, MAC-learning, MAC-aging,
- Flow control function: Back Pressure @ Half-Duplex and IEEE 802.3x @ Full-Duplex,
- Topology: Star,
- Protocol: CSMA / CD,
- MAC address table support: 4K,
- Switching bandwidth: 16 Gbps,
- Passive cooling for silent switch operation,
- Mounting holes for wall installation.

Interface:

- Power supply: external (AC: 100-240 V, 50/60 Hz, 0.3 A; DC: 12 V, 0.5 A)
- Power consumption: max. 4.53 W,
- LEDs indicating PSU operation: Power, LAN ports (Link / ACT),
- Dimensions: 89 x 137 x 28 mm.
