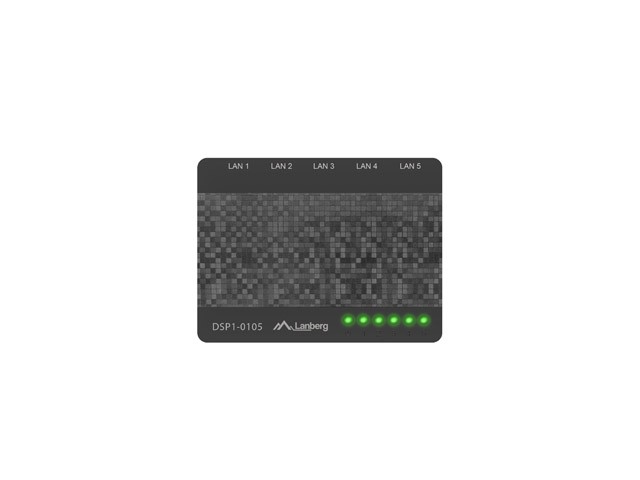

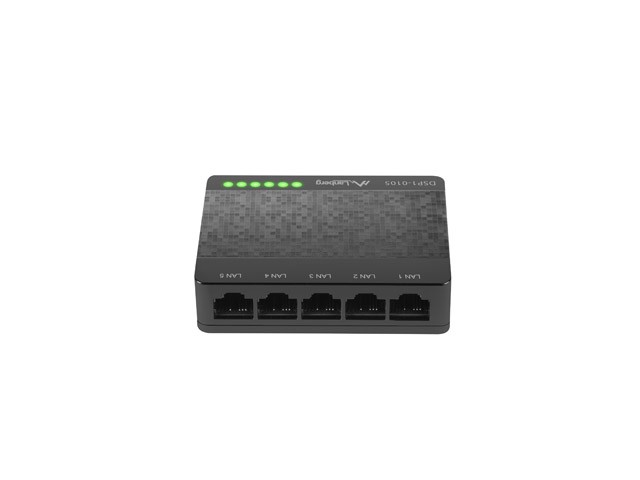

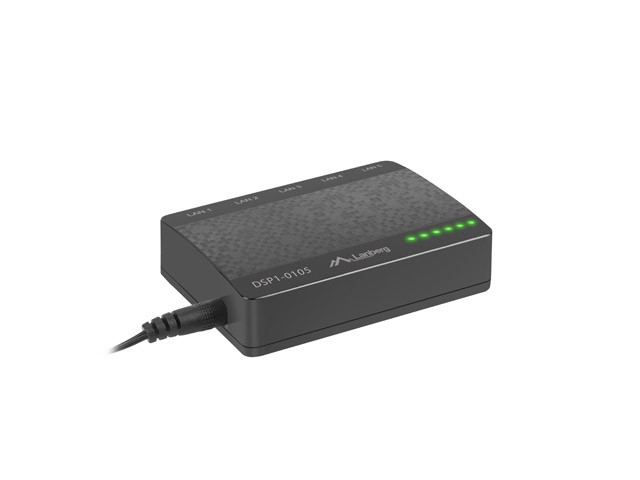

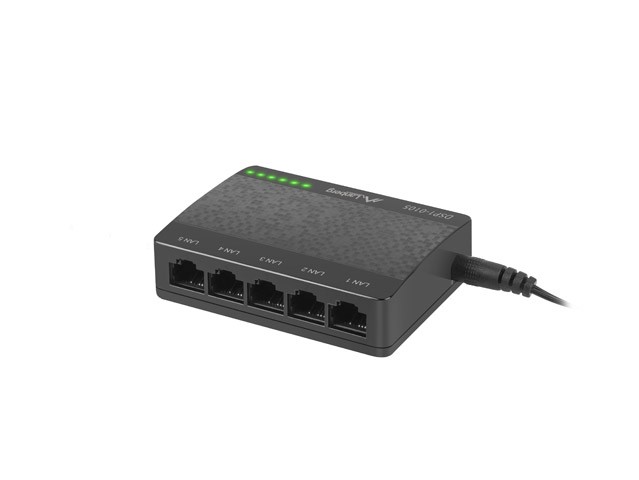

Lanberg Switch 5-port 100M/S DSP1-0105

<< Previous Next >>
Availability: Available
Delivery: 08-01-2025
Price: €16.56 16.56
quantity pcs
add to wish list
Brand: LANBERG
Product code/SKU: 195000

Technical data

Dimensions 82 x 52 x 22 mm
Weight 100 gram
Application Home and small office
Power consumption 2.15 Watt
Network architecture FastEthernet
Power supply AC: 100-240 V, 50/60 Hz, 0.3 A; DC: 5 V, 1.0 A
Chassis type Desktop
Switch class Unmanaged
Switch layer L2
Number of 10/100/1000 Mbps ports None
Number of SFP+ ports None
Throughput 1 GB/s
MAC address table size 1000
Number of 10/100 Mbps ports 5
Number of 10Gb ports None
Number of PoE ports (PoE & PoE+) None
Number of PoE+ ports None
Number of COMBO ports None
Number of SFP ports None
Number of QSFP+ ports None
Console port No
Forwarding mode Store-and-forward
Supported protocols and standards IEEE 802.3i 10Base-T IEEE 802.3u 100Base-TX IEEE 802.3x (Flow-Control)

Description

- 5 x RJ-45 10/100 Mbps ports with automatic connection negotiation,
- Plug-and-play support – product does not require any additional configuration,
- MDI / MDIX support, MAC-learning, MAC-aging,
- Flow control function: Back Pressure @ Half-Duplex and IEEE 802.3x @ Full-Duplex,
- Topology: Star,
- Protocol: CSMA / CD,
- MAC address table support: 1K,
- Switching bandwidth: 1.0 Gbps,
- Passive cooling for silent switch operation,
- Mounting holes for wall installation.

Interface:

- Power supply: External (AC: 100-240 V, 50/60 Hz, 0.3 A; DC: 5 V, 1.0 A)
- Power consumption: Max. 2.15 W,
- LEDs indicating PSU operation: Power, LAN ports (Link / ACT),
- Dimensions: 82 x 52 x 22 mm.
