Extralink Network LAN Cable CAT5E FTP External 305m
Availability:
Out of stock
Price:
€259.39
259.39
add to wish list
Brand:
Extralink
Product code/SKU:
764538
Technical data
Type | Cable |
Colour | Black |
Other features | For outdoor installation Cable type: Installation Conductors: Copper Cable diameter: 0.48 mm ( 0.005 mm) Conductor coating: PE Diameter of conductor with sheath: 0.97 mm Grounding wire: Diameter 0.4 mm, located between the shield and the outer sheath Shielding: Aluminum polymer film Outer sheath: PE, cable outer diameter 5.7 mm Bending radius During installation: > 8 cable diameters After installation: > 4 cable diameters Tensile strength: < 85 N |
Category | CAT 5e |
Cable length | 305 Meter |
Usage | LAN |
Connectors #1 | None |
Connectors #2 | None |
Twisted-pair cable | F/UTP |
Environment requirements | During installation temperature: from -10°C to 60°C After installation temperature: from -50°C to 60°C |
Designation | CE |
Description

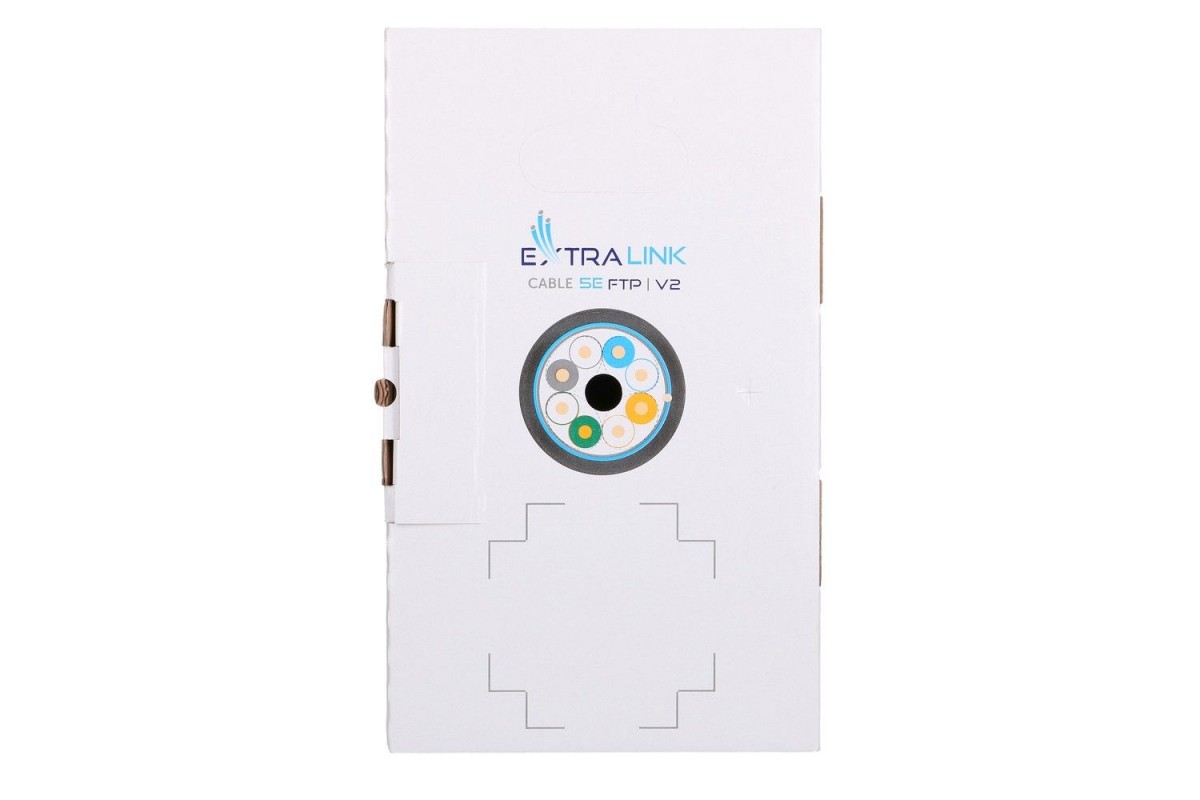

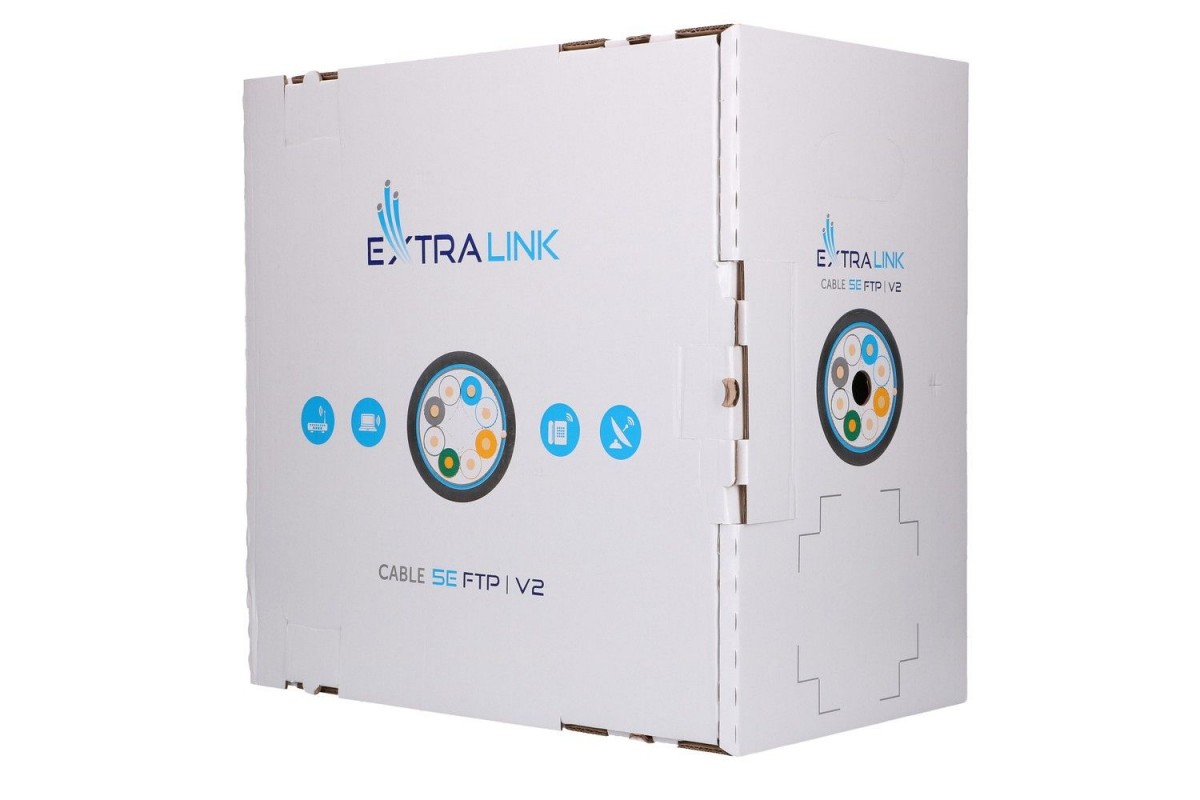

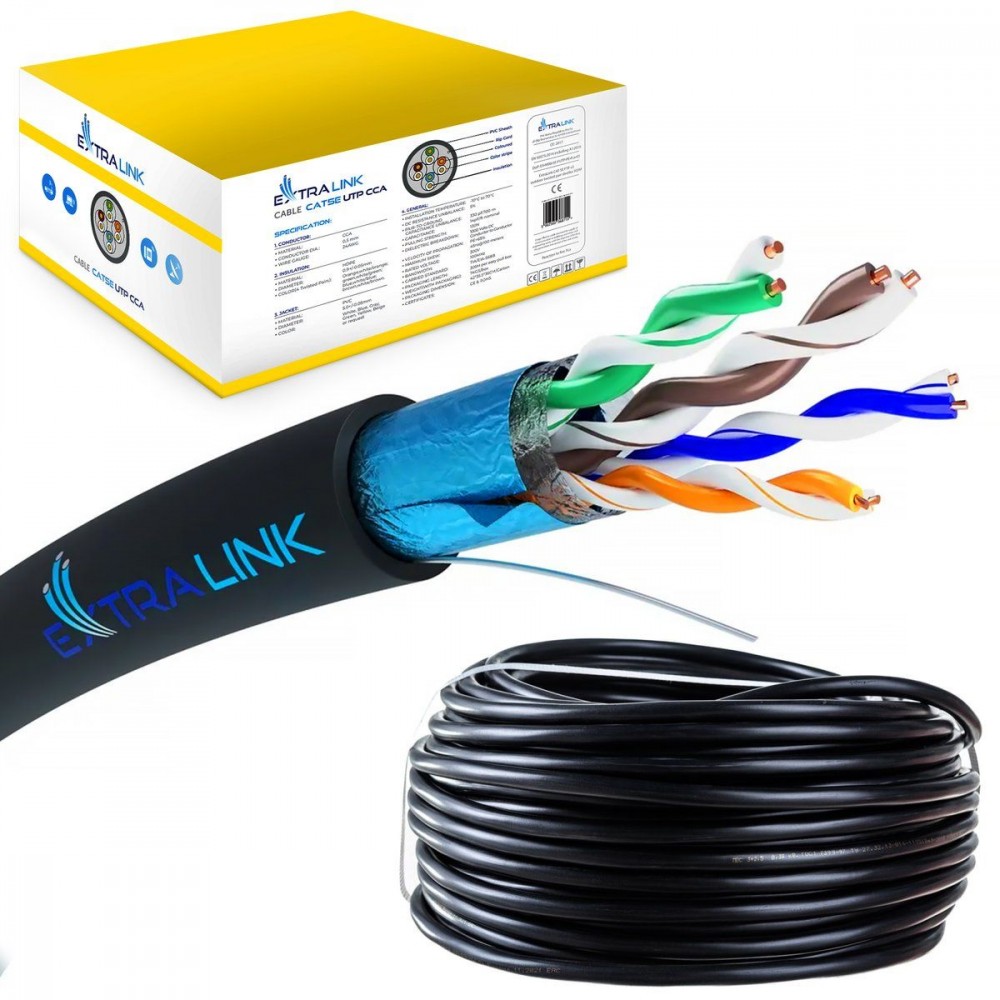

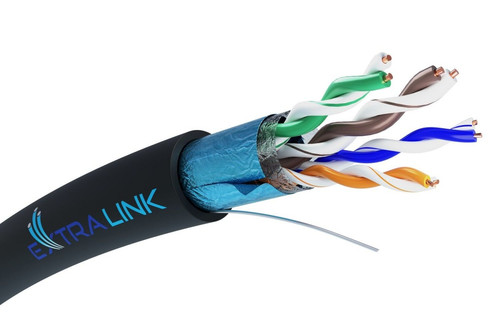

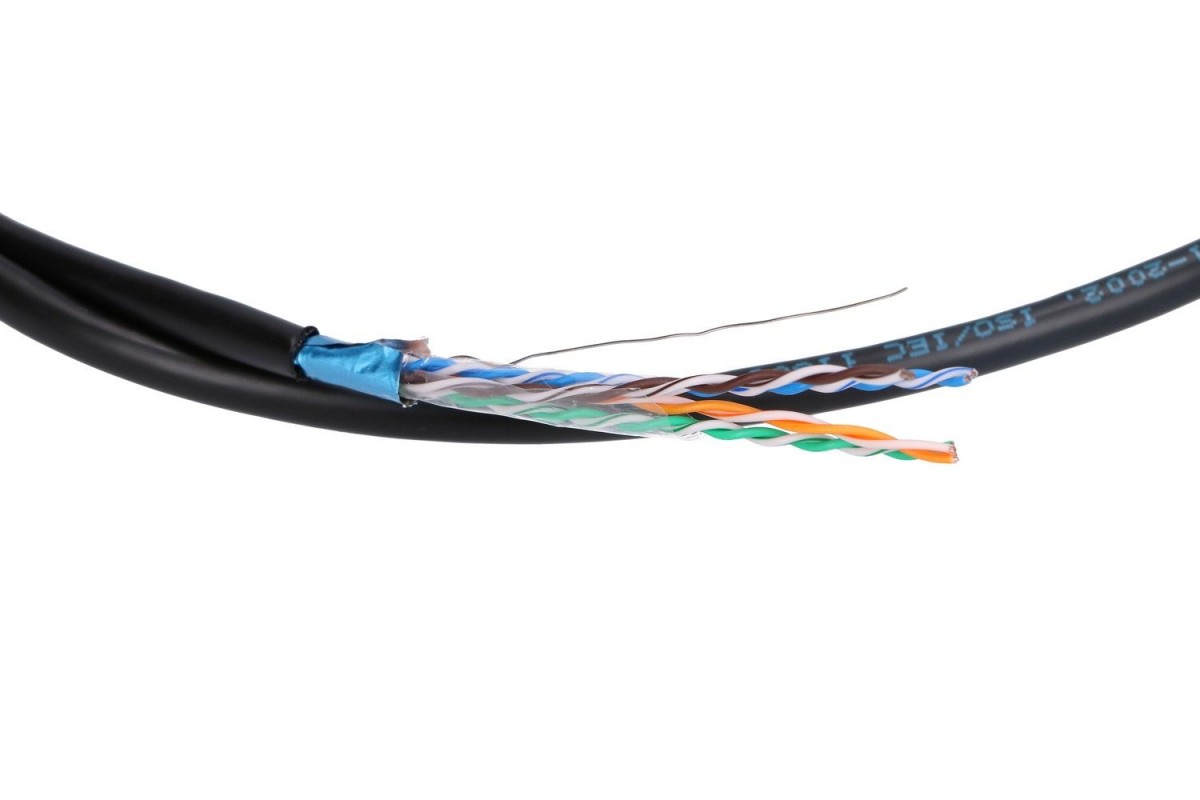

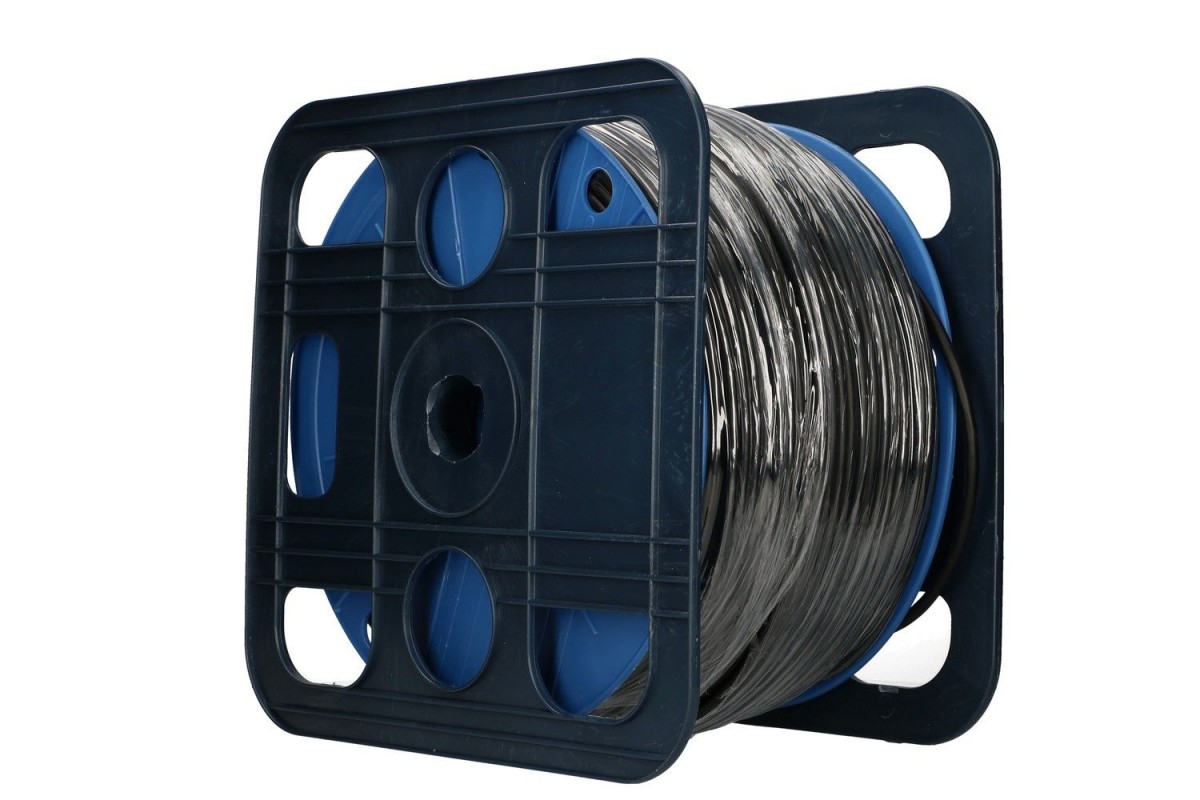

Outdoor Network FTP Cat.5e cable. Built from 24 AWG copper conductor pairs coated by 1.02mm HDPE. Shielded 0.05mm aluminum foil. Additional drain wire helps ground ESD attacks. All coated PE outer jacket 0.55mm thick, designed to work in every weather and environment. Cable packed in to 1000ft. (304.8m) easy to use rolls. Special internal rotating mechanism prevents cable damage while unrolling.
