Alantec Optical Fiber Cable OS2 FTTH Flat SM 2J 9/125 LSOH 1000m, black
Availability:
Out of stock
Price:
€205.82
205.82
add to wish list
Brand:
Alantec
Product code/SKU:
767452
Technical data
Type | Cable |
Colour | Black |
Other features | Coating: UV resistant LSOH CPR fire classification (Euroclass): Eca Reinforcing bar: FRP (Fibre Reinforced Plastic) Tension force: 80 N Temperature range: Installation: from -20 + 60 °C Operation: from -30 + 70 °C Number of fibers: 2 Cable diameter (mm): 3 x 2 Cable weight (kg / km): 9 Fiber attenuation (dB/km) 1310 nm: less than or equal to 0.35 Fiber attenuation (dB/km) 1550 nm: less than or equal to 0.21 Fibre type: G.657.A1 Fibre coating: 250 m Static tensile strength: 60 N Dynamic tensile strength: 80 N Min. bending radius (mm) static: 30 Min. bending radius (mm) dynamic: 60 |
Category | OS2 |
Cable length | 1000 Meter |
Usage | Fiber |
Connectors #1 | None |
Connectors #2 | None |
Designation | CE |
Description

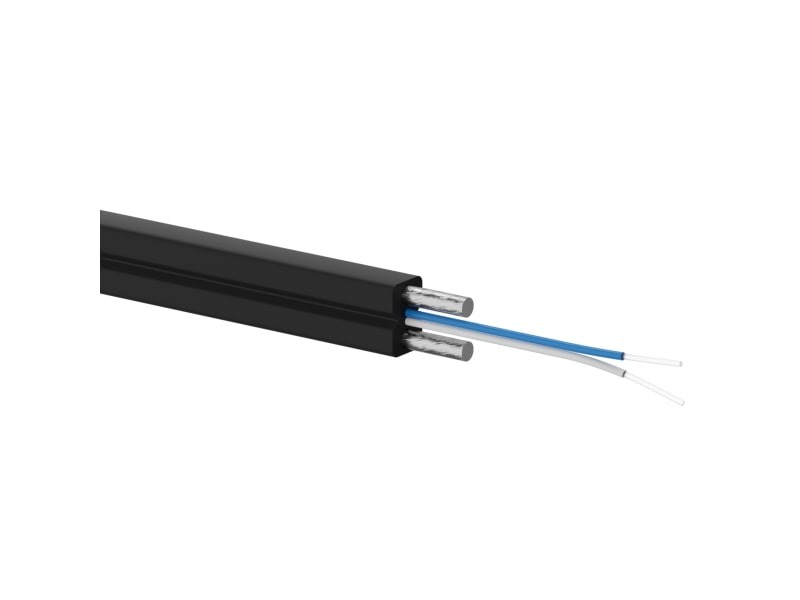

Universal (outdoor/indoor) flat cables are cables for use in FTTx systems. Lightweight construction with small diameter, high flexibility and drag resistance, dry medium, UV resistant LSOH jacket, reinforced with two FRP rods.
Specially designed construction provides very good fibre shielding and additionally enables easy cable routing and fixing directly to walls. The G.657.A1 fibres used additionally allow small bending radii. The two FRP stiffening rods make it possible to bend the cable in one plane.
Application:
- Subscriber cable
- FTTx networks and subscriber lines
- In-building connections
- Residential cables
- The cable meets the Ministerial Decree on installation in multi-family buildings
- Coating: UV resistant LSOH
- CPR fire classification (Euroclass): Eca
- Reinforcing bar: FRP (Fibre Reinforced Plastic)
- Tension force: 80 N
- Temperature range: Installation: from -20 + 60 °C
- Operation: from -30 + 70 °C
- Number of fibers: 2
- Cable diameter (mm): 3 x 2
- Cable weight (kg / km): 9
- Fiber attenuation (dB/km) 1310 nm: less than or equal to 0.35
- Fiber attenuation (dB/km) 1550 nm: less than or equal to 0.21
- Fibre type: G.657.A1
- Fibre coating: 250 m
- Static tensile strength: 60 N
- Dynamic tensile strength: 80 N
- Min. bending radius (mm) static: 30
- Min. bending radius (mm) dynamic: 60
- Colour: black
