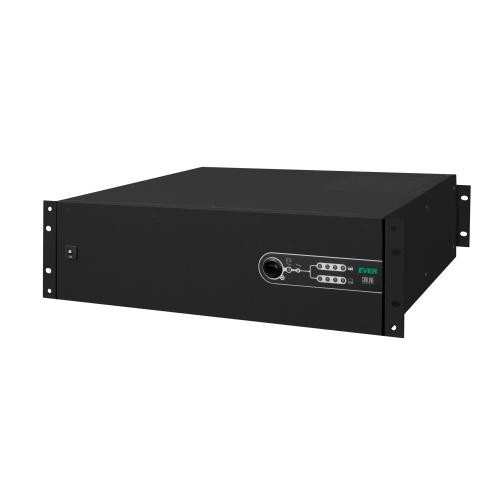

Ever UPS Sinline 3000 3U 19'" Rack L-inter. HID

<< Previous Next >>
Availability: Out of stock
Price: €1,302.48 1302.48
quantity pcs
add to wish list
Brand: EVER
Product code/SKU: 604298

Technical data

Colour Black
Dimensions Height: 132 (3U) mm Width: 483 (19) mm Depth: 400 mm
Weight 31 kilogram
Other features Application: Small office and home, Server room Working temperatures [°C]: 0 ÷ +40 Cooling: Natural Rated input voltage (rms) [V]:     ~ 230 Input voltage range (rms) [V] and tolerance [%]:     ~ 160 ÷ 264 (145 ÷ 280) 2 Rated frequency of the input voltage [Hz]: 50 Input frequency range [Hz] and tolerance [Hz]: 45 ÷ 55 1 Switching thresholds: UPS network [V]: ~ 160 ÷ 264 (145 ÷ 280) 2 % Nominal output voltage (rms) [V]:     ~ 230 Output voltage range (rms) [V] and tolerance [%] - mains operation : ~ 184 ÷ 264 (167 ÷ 280) 2 Output voltage range (rms) [V] and tolerance [%] - back-up operation : ~ 230 5 Output voltage shape (backup / mains operation): Sinusoidal / Same as input Rated frequency of the output voltage [Hz]: 50 Frequency range (tolerance) - mains operation [Hz]: synchronous with mains Frequency range (tolerance) - back-up operation [Hz]: 50 1 Output voltage filtering : LC, RFI/EMI interference filter, varistor suppressor Switching thresholds: UPS mains [V]: ~ 165 / 259 (150 / 275) 2 % Switchover time to standby operation [ms]: < 3 Time to return to mains operation [ms]: 0 Internal batteries: 12 V / 7 Ah VRLA Internal battery backup time (100 % / 80 % / 50 % Pmax) [min]: 3 / 4 / 8 DC circuit nominal voltage [V]: 48 Maximum UPS internal battery charging time - after 80 % battery discharge [h]: 7 Transport position: horizontal Maximum output wire length [m]: < 10 Signaling: Acoustic-optical; LED Data line filter - RJ45: LAN 1 Gbit/s Monitoring and management software: PowerSoft Professional Cold start: yes
I/O connectors 2 x RJ-45 LAN
Battery capacity 7 Ah
Voltage 230 Volt
Charging time 7 Hour
Apparent power 3000 VA
UPS architecture line-interactive
Number of phases input 1 (230V)
No. of batteries 4
Filters / protection Circuit
Input power ports IEC-C20
Output power ports 6 x IEC-C13
Hold-up time (maks) 3 millisecond
Backup time (full load) 3 Minute
Chassis type Rack
Active power 1950 Watt
Designation CE+WEEE
