Digitus HDMI High Speed Repeater, Full HD, 1080p Bandwidth 225MHz, wall mountable

<< Previous Next >>
Availability: Out of stock
Price: €47.07 47.07
quantity pcs
add to wish list
Brand: Digitus
Product code/SKU: 98326

Technical data

Colour Black
Special functions - High Speed HDMI Repeater up to 35m - Video resolution up to 1080p - Supports all 3D formats , including [email protected] / 24Hz , [email protected] / 60Hz / 50Hz - Frequency 225MHz / 2.25Gbps per channel ( 6.75Gbps for all channels) - 12bit color depth per channel ( 36bit all channels ) - Supports HDCP - Supports uncompressed audio such as LPCM , DTS Digital , Dolby Digital (including DTS-HD and Dolby True HD ) - 8 levels of correction EQ from 0 to 7 in order to handle different lengths of HDMI cable from 1m to 35m
Usage Audio
Inputs 1 x HDMI
Outputs 1 x HDMI

Description

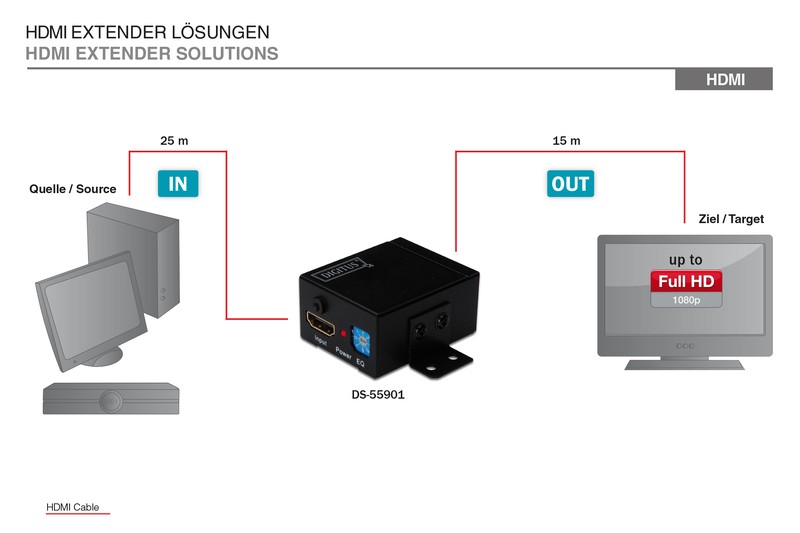

Extends the HDMI signals up to 35 m - ideal for HDMI signal distribution and digital signage

  • Extends the HDMI signals up to 35 m - ideal for HDMI signal distribution and digital signage
  • Supports 3D all format, including [email protected]/24Hz, [email protected]/60Hz/50Hz
  • Bandwidth 225MHz/2.25Gbps per channel (6.75Gbps all channel)

Extends the max. length of HDMI cable up to 35M by regenerating the HDMI signal before it sends the outputs to the HDMI monitor or projector. Furthermore according to the length of HDMI cable the special designed EQ can be adjusted to reach the best transmission function.

Technical Details

  • HDMI High Speed Repeater for up to 35m
  • Video resolution up to 1080p
  • Supports 3D all format, including [email protected]/24Hz, [email protected]/60Hz/50Hz
  • Bandwidth 225MHz/2.25Gbps per channel (6.75Gbps all channel)
  • Deep color 12bit per channel (36bit all channel)
  • HDCP pass through
  • Supports uncompressed audio such as LPCM, DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)

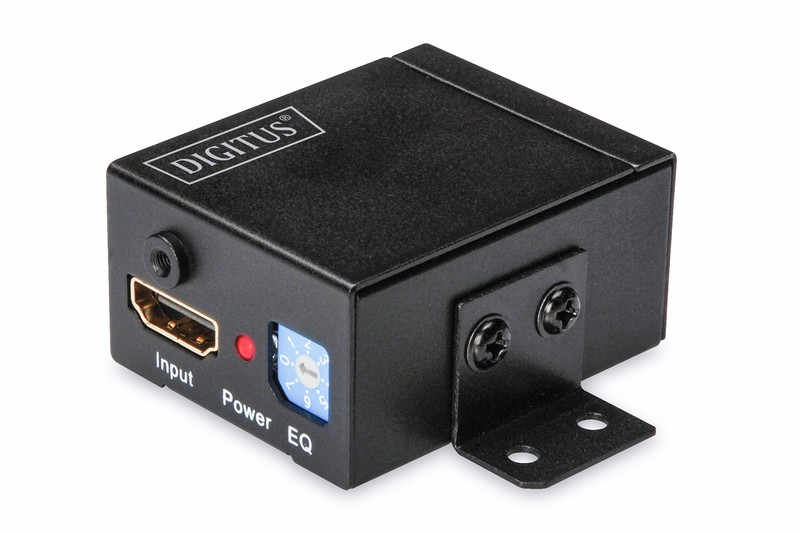

  • 8 levels of equalization settable by turning EQ from 0 to 7, so that support different length of HDMI cable between 1m to 35m
  • KVM: no
  • PoE (Power over Ethernet): no
  • Distance: 35 m
  • HDTV Resolution max.: 1920 x 1080 Pixel, 60Hz
  • HDTV Standard: Full HD
