BROGRUND Shower set with thermostatic mixer, chrome-plated

<< Previous Next >>
BROGRUND Shower set with thermostatic mixer, chrome-plated
Availability: Available
Delivery: 13-05-2024
Price: €317.26 317.26
quantity pcs
add to wish list Product requires assembly
Brand: IKEA
Product code/SKU: 145121
  • ask about product
  • recommend to a friend

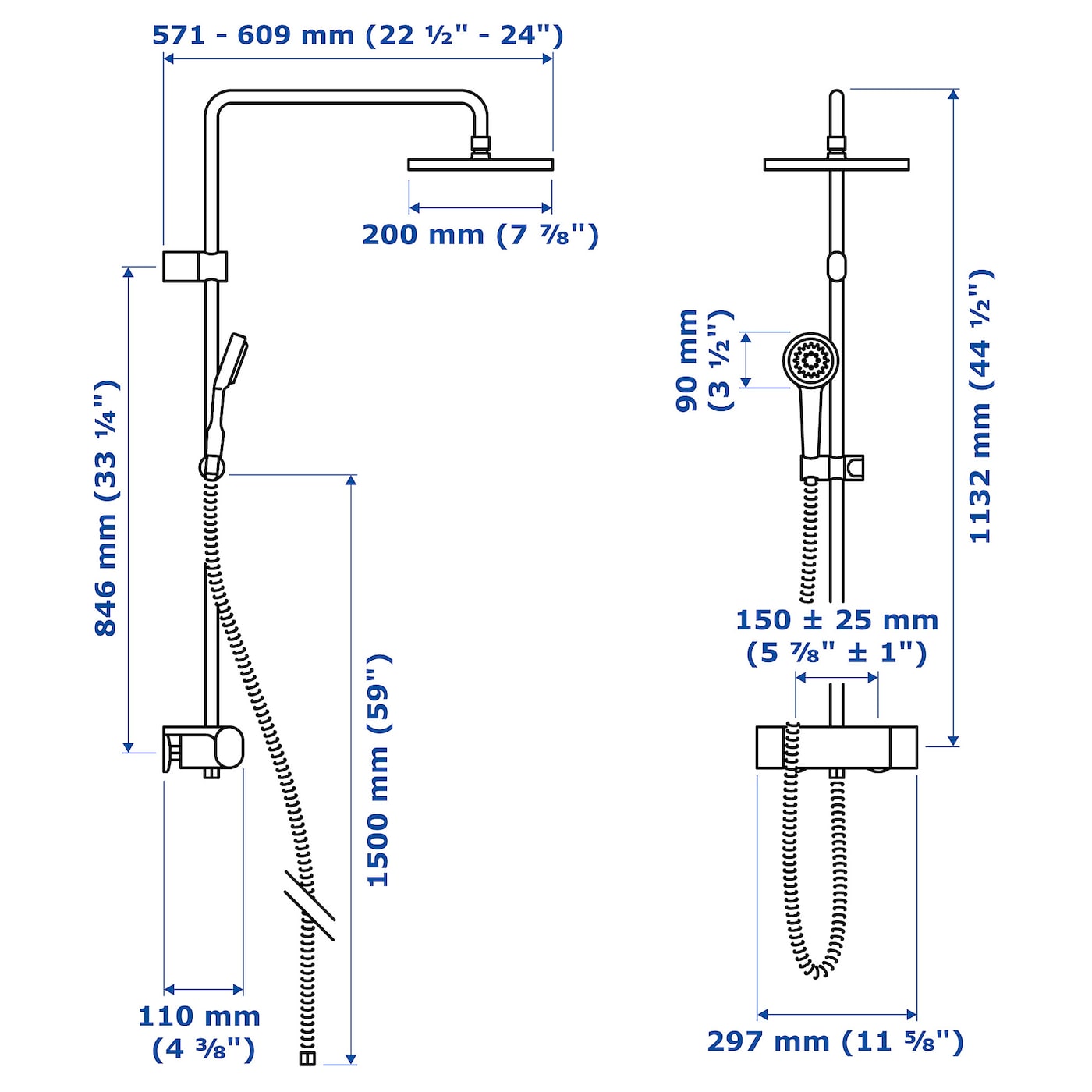

Technical data

Height 1170 mm
Width 300 mm
Depth 570 mm
Care Instructions Clean with a soft cloth dampened with water and a mild washing-up detergent or soap. Never use scouring powder, steel wool or a detergent that is calcium-dissolving, sour or contains alcohol or an abrasive. To remove larger limescale deposits – use diluted, ordinary white vinegar and rinse with water. Rub away limescale deposits with your hands. Turn the thermostat from full cold to full hot from time to time. Check the temperature control on a regular basis, adjust if necessary according to the assembly instructions. Check the washers on a regular basis.
Materials Handheld showerhead inner housing/ Overhead shower inner housing/ Faceplate: Acetal plastic Handheld showerhead outer housing/ Overhead shower outer housing: ABS plastic, Chrome-plated Nozzle: Synthetic rubber Inner hose: Silicone rubber Outer hose: Stainless steel Pipe: Brass, Chrome-plated Rail fitting: Steel, Zinc, Chrome-plated Thermostat body: Polyamide plastic Thermostat housing/ Handle: Zinc, Chrome-plated
Number of packages 1

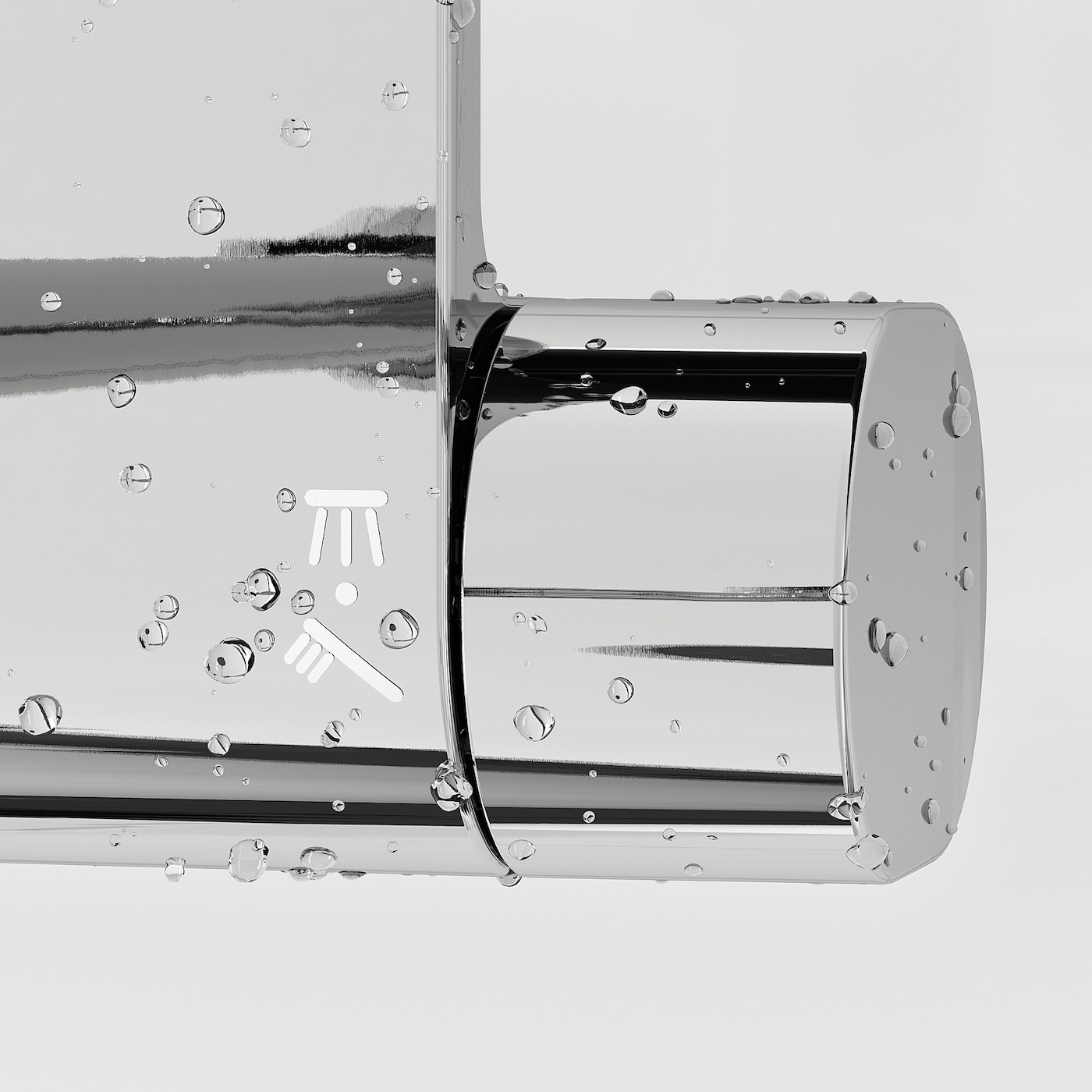

Good to know Pressure compensating washers included with the shower head/hand shower. The head shower comes with full spray and the hand shower comes with full, mesh and full/mesh spray functions. Separate flow and temperature controls. 150 mm fixed inlet centres. Wall fittings included. The thermostatic mixer is pre-set to a safety stop temperature of 38 °C. Since operating conditions in each supply system varies, it might be necessary to calibrate the mixer according to the service and installation instructions. You can override the safety stop temperature by pressing the override button. The thermostatic shower mixer can be used in high pressure systems. Tested to manage a pressure of max. 10 bar (1000 kPa). Recommended working pressure: 1.0 - 5.0 bar (100 kPa - 500 kPa). Max. temperature hot water system 80°C/176°F. Recommended hot water temperature: 60°-65°C/140°F-149°F. Recommended cold water temperature: 10-15°C/50°F-59°F. The hand shower consumes 8 l of water/min. and the head shower consumes 9.5 l of water/min. Spare parts are available to prolong the life of your product. For more information, contact IKEA Customer Services at your IKEA store or IKEA.com. Pressure compensating flow regulator included.
Handshower diameter 90 mm
Connection centre distance 150 mm
Width 300 mm
Depth 570 mm
Height 1170 mm
Headshower diameter 200 mm
Length of hose 1500 mm

Description

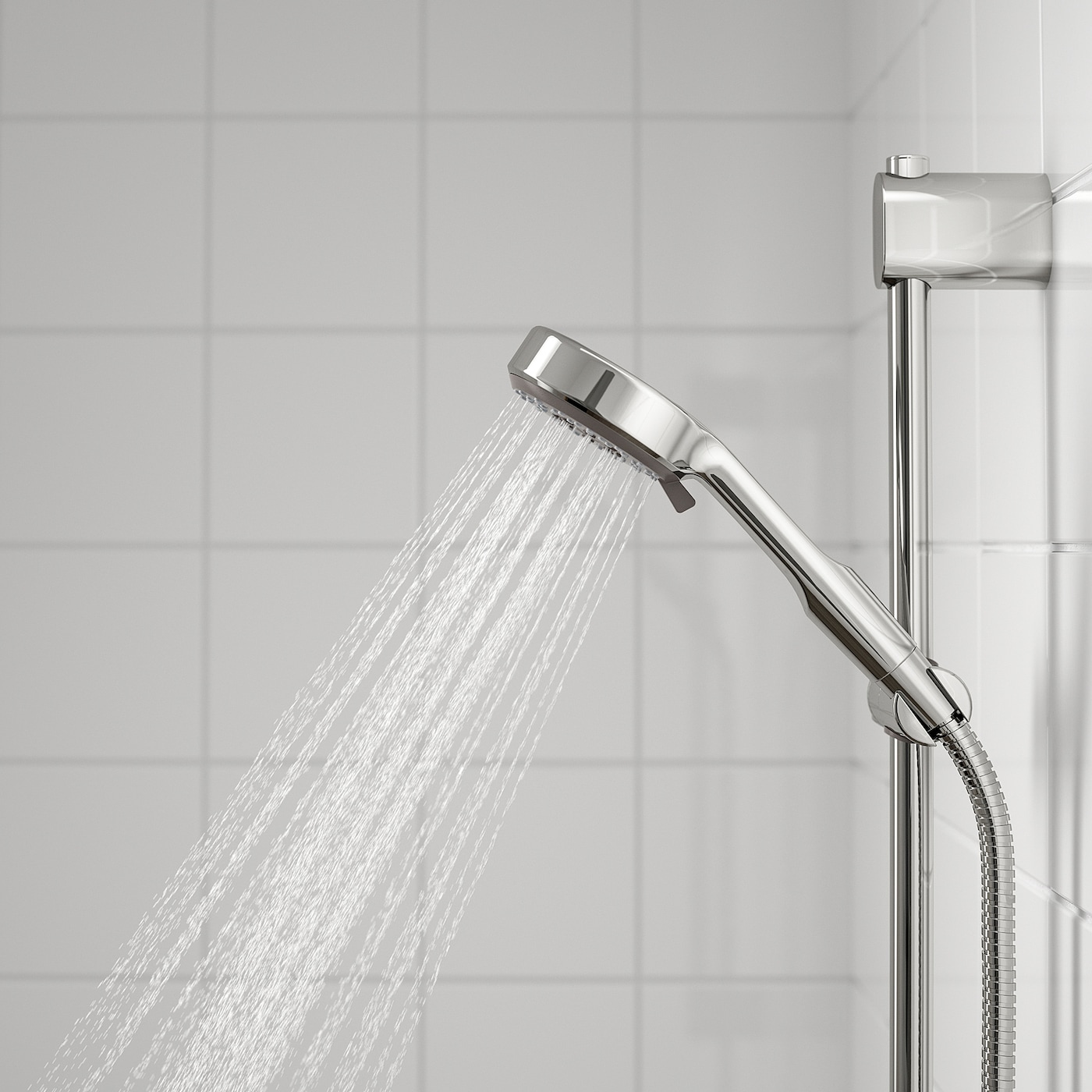

10 year guarantee on the mixer and 3 year guarantee on other parts. Read about the terms in the guarantee brochure. The full spray function of the head shower gives a wide and even coverage over the body, for a calming rainfall feeling. This hand shower with full spray function gives a wide and even coverage for a relaxing shower experience. The mesh spray function boosts the force of the water spray which is perfect for rinsing thick hair. You can choose between full spray or mesh spray or you can combine the two, giving you the best of both worlds. You can easily adjust the height of the hand shower thanks to the flexible parking bracket on the rail. Easy to clean by rubbing the rubber nozzles on the shower heads. A 38°C safety stop button prevents water from getting too hot and accidentally causing burns. Hotter temperatures can be reached by pressing the override button on the temperature control. The shower mixer has a “cold touch” feature. Thanks to the anti-scald technology, the surface of the mixer bar never heats up and is always safe to touch. The built-in shelf on the shower mixer is perfect for all those tall shampoo bottles that are often tricky to store in the shower.

Ikea Number: 20342535
