AXAGON Wireless Charging Pad Charger WDC-P10T 10W

The powerful AXAGON WDC-P10T wireless quick charger is an ideal choice for charging your phone. Due to supported Qi cordless quick charging, the wireless charger charges mobile phones at almost the same speed as the mains power supply adapter.

The slim charger is able to charge with a power of 5W, 7.5W and 10W at a distance of up to 6 mm from the charging pad. Charging is also very comfortable for phones in covers. The charger has foreign object detection integrated and thus charging is not started by putting the keys down, for example.

The Micro USB port supports not only all standard chargers, but also chargers supporting Quick Charge 2.0 or 3.0 5V/2A to 9V/2A.

The system of integrated protection, such as short-circuit protection or heat protection, will ensure safe use. Intelligent charging management ensures the optimum course of charging throughout the period. Due to communication between the charger and the phone also the battery temperature is monitored and the charging current is managed. Due to this, the phone does not overheat and the life of its battery is not reduced.

The compact dimensions, especially the low height, high-quality workmanship, functional design, and wide support of the device make the charger a clear choice for your wireless charging. Its impressive blue indication using a LED strip at the edge indicates the course of charging by getting dark gradually and on placing a metal object it flashes quickly foreign object detection.

Due to low current consumption in stand-by mode and the automatic start and stop of charging, it is easy to "connect and forget" the charger.

Input:
Standard micro USB Female connector.
Input voltage and current DC 5V 9V, max. 2A
Quick Charge 3.0 and 2.0 technology supported max. 18W

Output:
Wireless charging with a power of 5 / 7.5 / 10W
Standard QI and QI Fast Charge wireless charging supported

Example of supported devices:
Apple iPhone 8, X, and later
Samsung Galaxy S6, S7, S8, and S9, and Galaxy Note 8 and 9, 10
HUAWEI Mate 20 Pro, P30 Pro
Xiaomi Mi Mix 3, Mi 9
Sony Xperia XZ2, XZ3
Other devices supporting QI cordless charging: https://axagon.eu/en/produkty/wdc-p10t#supportLinkGoal

Complex protection: OCP, OVP, OTP, OSP, FOD, and EMS:
Over Current Protection - protection of output against current overload.
Over Voltage Protection - protection against overvoltage at the output.
Over Temperature Protection - protection against overheating of the adapter.
Output Short Circuit Protection - short circuit protection at the output.
Foreign Object Detection- detection of foreign metal objects.
Electro-Magnetic Shield - electromagnetic field shielding.

Other features:
A phone is charged at a distance of up to 6 mm from the charging pad,
Charging phones in covers supported (depending on the material and thickness of the cover),
Charging regardless of the orientation of the phone,
Automatic start and stop of charging,
Low consumption in stand-by mode 0.15W,
Lower energy consumption compared with standard cheap chargers,
Intelligent charging management for the optimum course of charging,
Integrated protection and intelligent functions,

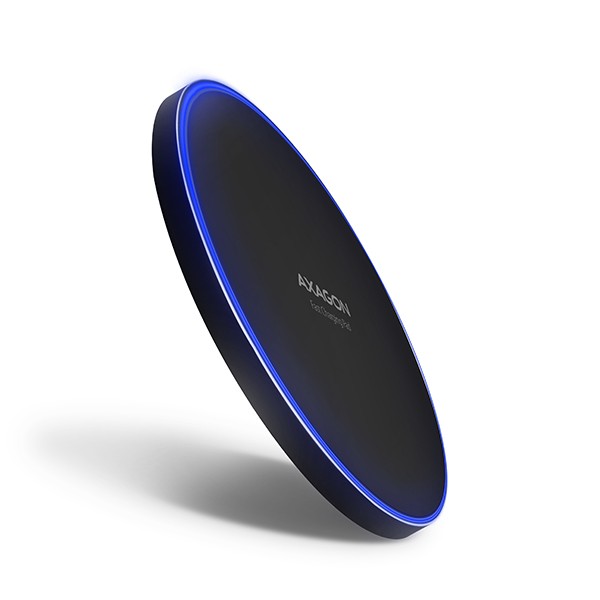

The LED strip at the edge indicates charging and foreign objects,
A metal base with anti-slip feet,
Dimensions: diameter: 99 mm; height: 6.5 mm,
Weight: 58 g,
USB-A Male micro USB Male cable 1m,
Material: plastic/metal.

Package contains:
Thin wireless fast charger,
Multilingual manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
USB type A / micro USB power supply cable 1 m long,
Packed in a cardboard box.

Thin wireless fast charger,
Multilingual manual in CZ / DE / DK / ENG / ESP / FIN / FR / GR / HR / HU / IT / NL / PL / PT / RO / RU / SK / SWE / BG / CN / TR / ARA,
USB type A / micro USB power supply cable 1 m long,
Packed in a cardboard box.

 99 x 6.5 mm
