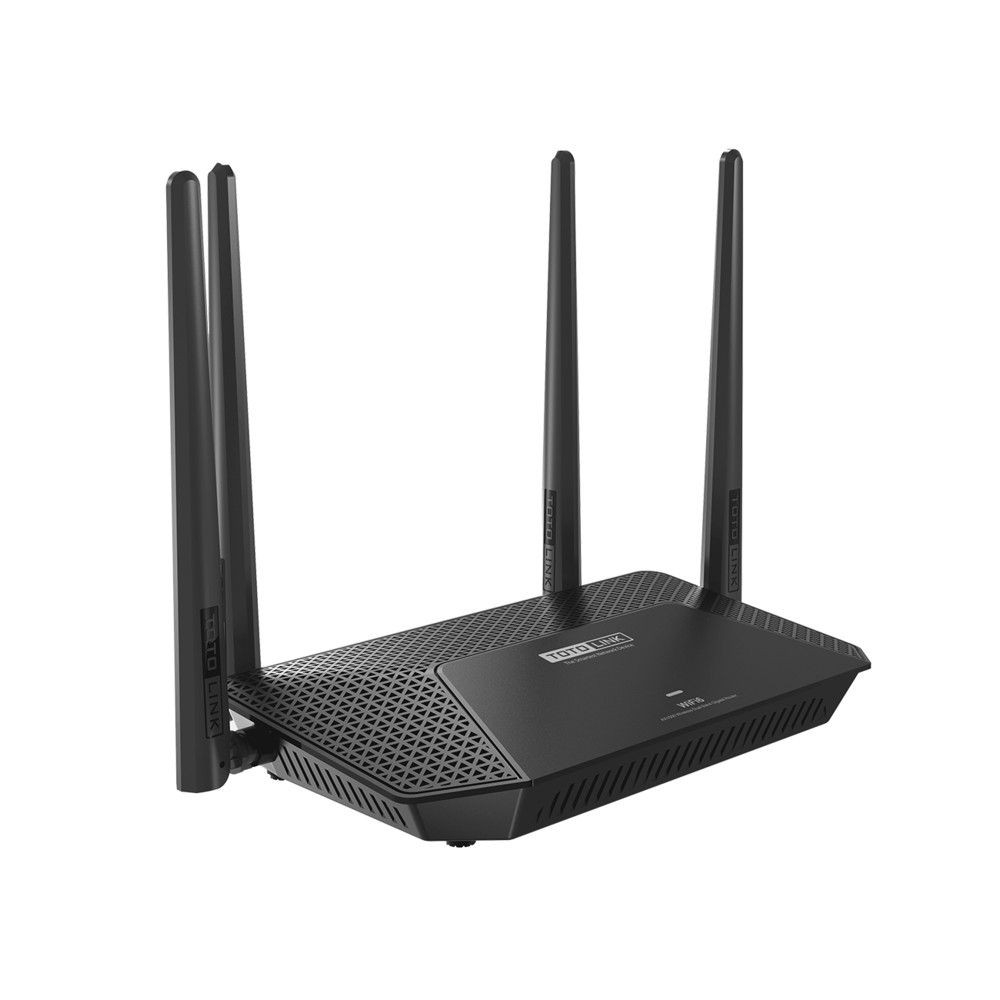

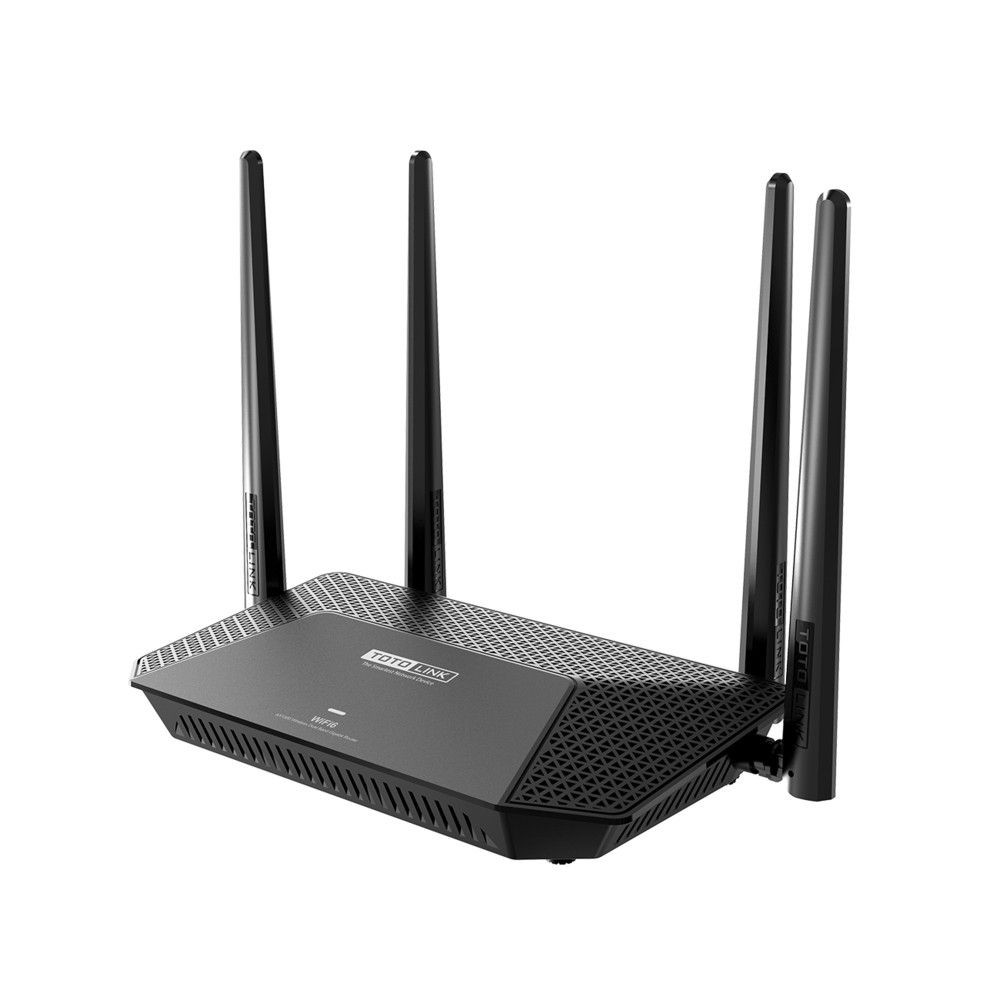

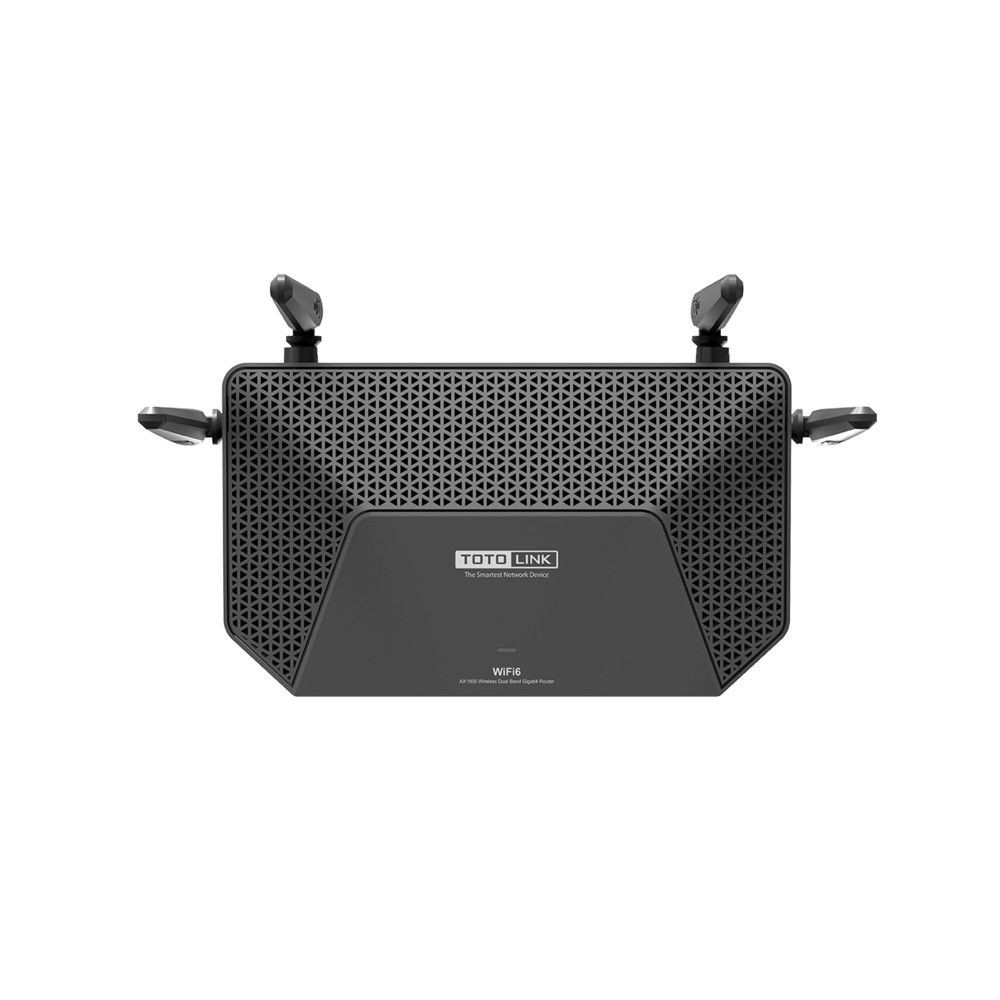

Totolink Router X2000R WiFi 6 AX1500 Dual Band 5xRJ45
Technical data
Type | xDSL |
Colour | Black |
Dimensions | 206 x 121 x 41 mm |
Other features | WAN Type Static IP, DHCP, PPPoE/Russia PPPoE, PPTP/Russia PPTP, L2TP/Russia L2TP IPv6 Protocol DHCP/Static IP/PPPoE Wireless network settings Basic settings Guest network Advanced settings Access control Wireless network schedule QoS Bandwidth control up and down in the WAN, Bandwidth control based on IP address |
Accessories included | Wireless router X2000R Power adapter Ethernet cable Quick Installation Guide |
Model | X2000R |
I/O ports | 4 x 10/100/1000 Mbit/s |
Network architecture | GigabitEthernet |
Power supply | 12V DC/1A |
Security | IP/Port filtering MAC filtering URL filtering |
Antenna | Fixed external |
Operating frequency | 2,4 GHz |
Standards | 802.11ac |
Number of antennas | 4 |
Antenna gain | 5 dBi |
Management, monitoring, configuration | Operation mode Gateway mode Repeater mode AP mode WISP mode Status WAN Wireless LAN System information Network WAN settings LAN settings IPTV settings DHCP&ARP tables Static routing Routing table |
Warning | CE+WEEE |
Description
The Next Generation --- Wi-Fi 6
Wi-Fi 6 (IEEE802.11ax) delivers a huge boost in speed and total capacity and takes your Wi-Fi to the next level
while being backwards compatible with IEEE802.11a/b/g/n/ac Wi-Fi standards. X2000R equips with the
latest wireless technology, Wi-Fi 6, for faster speeds, greater capacity, and reduced network congestion.
1501Mbps Ultra-Fast Wi-Fi Speed
X2000R complies with the latest Wi-Fi 6 (IEEE802.11ax) standard, delivers Wi-Fi speeds of up to 1201Mbps
on the 5GHz band and 300Mbps on the 2.4GHz band. It is able to work on 2.4GHz and 5GHz band
simultaneously and delivers speeds up to 1501Mbps.
OFDMA More Device, Less Congestion
X2000R can easily handle dozens of devices streaming and gaming at the same time—OFDMA,
greatly increases capacity by 4 times to enable simultaneous transmission to more devices.
OFDMA separates a single spectrum into multiple units and enables different devices to share one
transmission stream , increasing efficiency and reducing latency.
Easy Mesh, Seamless roaming throughout the house
EasyMesh is a simple way to form a Mesh network with a single Wi-Fi name for seamless whole-home coverage.
When you move at home, the device will automatically switch between X2000R to achieve seamless roaming.
Four External Antennas, Wide Wi-Fi Coverage
Four external high-performance antennas and Beamforming technology focus signal towards
individual clients for broader coverage.

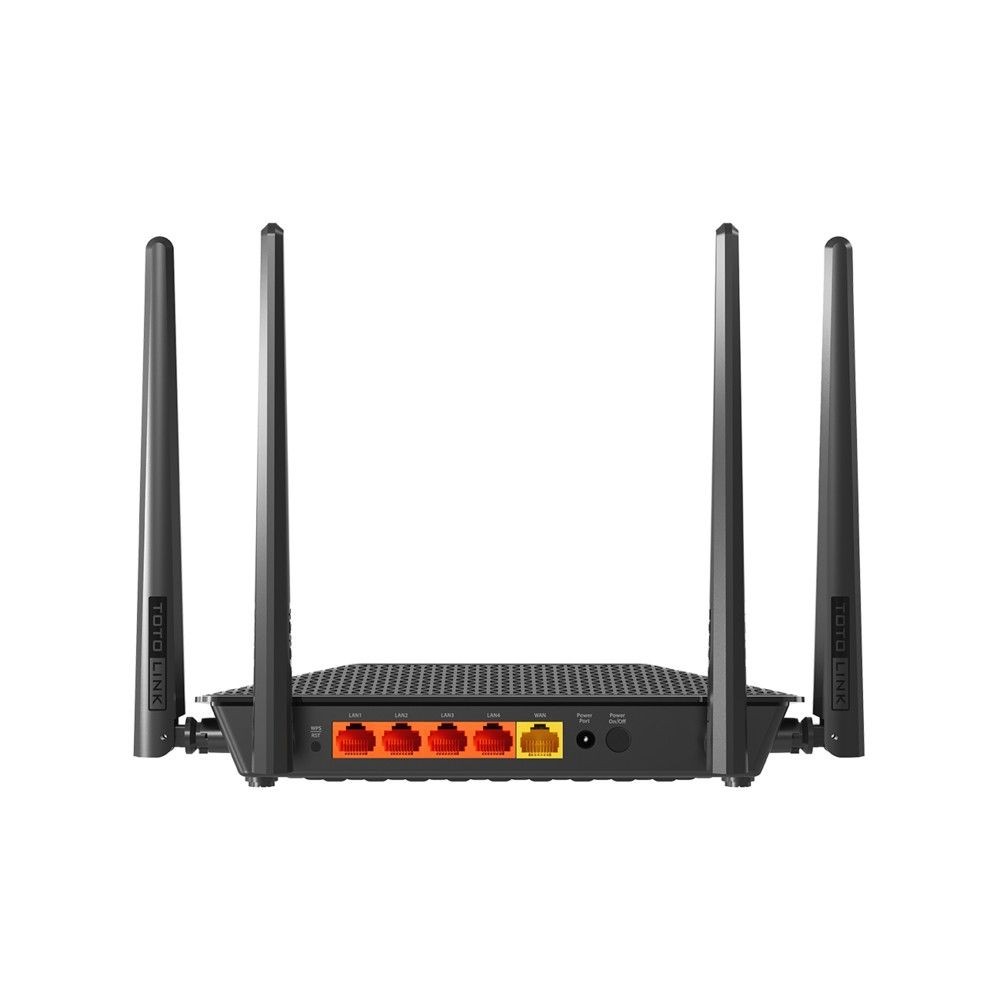

Adaptive WAN/LAN Ports
The router no longer differentiates between WAN (dial-up port) and LAN (Internet access port), but adopts an
adaptive WAN/LAN. Users can connect the Internet access line to any network ports to surf the Internet.
