TP-Link Media Converter Chassis FC1420 14 slots
Technical data
Dimensions | 482 x 309 x 86 mm Standard 19-inch 2U Height |
Other features | 2 fans |
Power supply | AC Power Supply: 100-240VAC, 50/60Hz Output power: 14 x 5VDC/0.6A |
Environment requirements | Permissible operating temperature: 0~50 C Permissible storage temperature -40~70 C Permissible humidity 10%~90%, non-condensing Permissible Storage Humidity: 5%~90%, non-condensing |
Warning | CE+WEEE |
Description

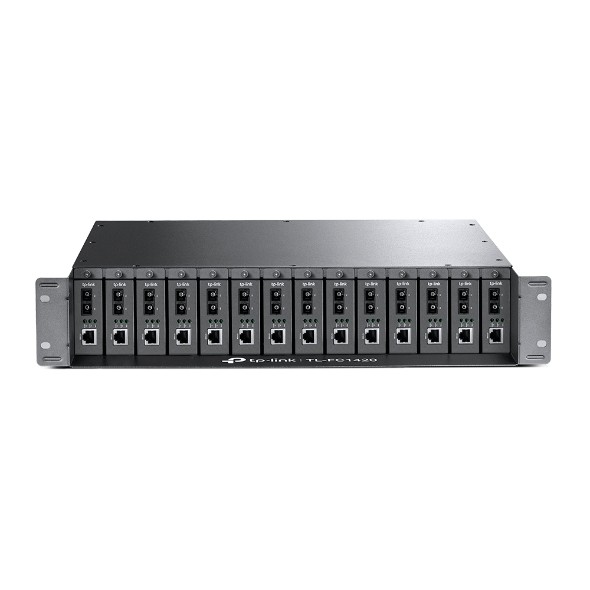

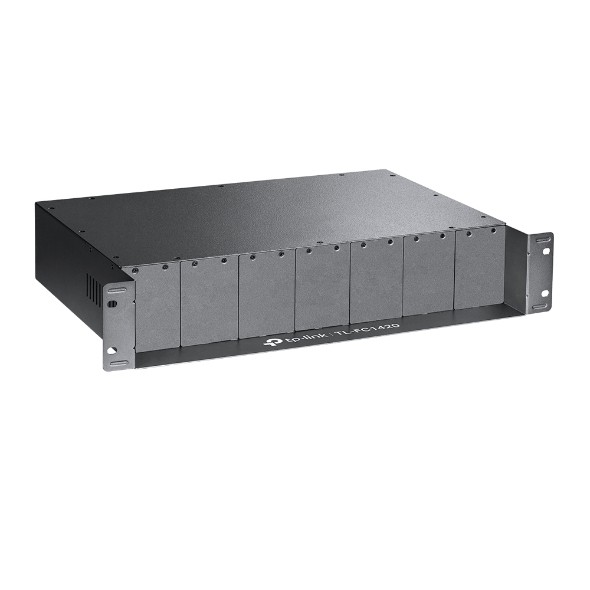

TL-FC1420 14-Slot Rackmount Chassis
- 14 bays to accommodate up to 14 media converters
- Optional redundant power supply ensures continuous and stable operation
- Easy and quick exchange of the media converters via hot-swap function
- Two built-in cooling fans ensure sufficient ventilation
The TL-FC1420 14-Slot Rackmount Chassis is designed to support 14 TP-Link Media Converters. With a central power supply, space and power cables can be saved. Continuous operation is very important in fiber optic communication, so the chassis equipped with optional redundant power supply and hot-swap function allows you to mount/dismount the converter without shutting down the whole chassis. In addition, two cooling fans have been installed to stabilise performance and extend service life. Together with Gigabit FC / Fast Ethernet Media Converters series, TL-FC1420 is an ideal solution for media conversion in the network.
- 482 x 309 x 86 mm
- Standard 19-inch
- 2U Height
- Permissible operating temperature: 0~50 C
- Permissible storage temperature -40~70 C
- Permissible humidity 10%~90%, non-condensing
- Permissible Storage Humidity: 5%~90%, non-condensing
- AC Power Supply: 100-240VAC, 50/60Hz
- Output power: 14 x 5VDC/0.6A
- 2 fans
