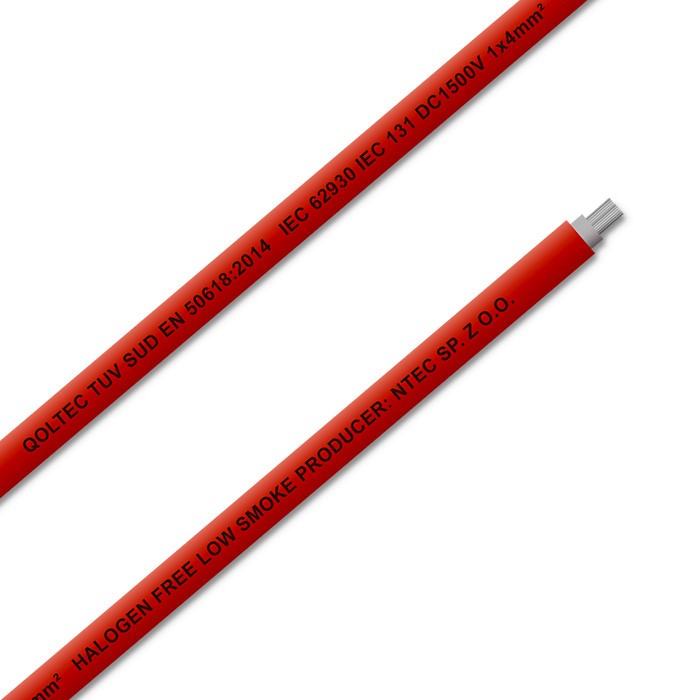

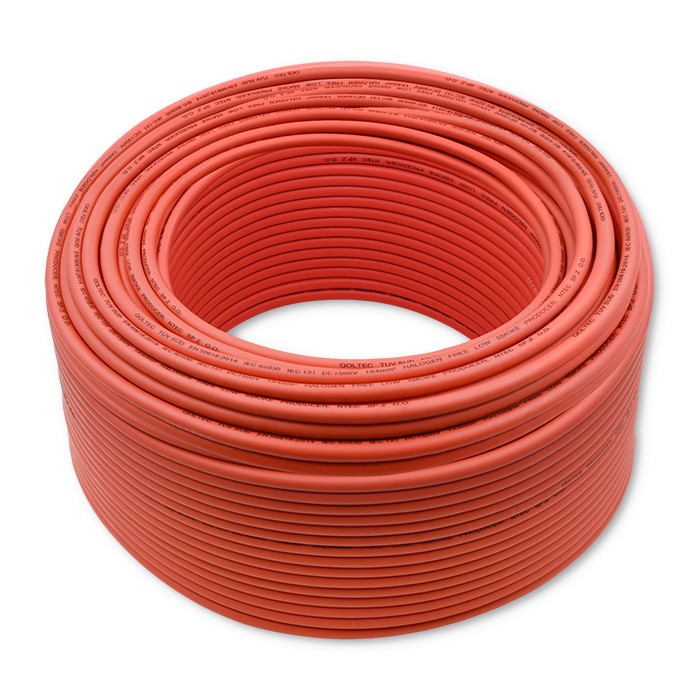

Qoltec Photovoltaic Solar Cable 4mm2 100m, red

<< Previous Next >>
Qoltec Photovoltaic Solar Cable 4mm2 100m, red
Availability: Out of stock
Price: €141.63 141.63
quantity pcs
add to wish list
Brand: Qoltec
Product code/SKU: 841900
  • ask about product
  • recommend to a friend

Technical data

Type Cable
Colour Red
Dimensions Conductor thickness : 2.58 mm Thickness of the insulation coating : 0.7 mm External shell thickness : 0.8 mm
Weight 6 kilogram
Other features Type : H1Z2Z2-K Standard : EN 50618/IEC62930 Power : 82.5kW     Rated voltage : 1500V Rated current : 55 A Resistance to pressure : AC-6.5KV/5min
Cable length 100 Meter
Connectors #1 None
Connectors #2 None

Description

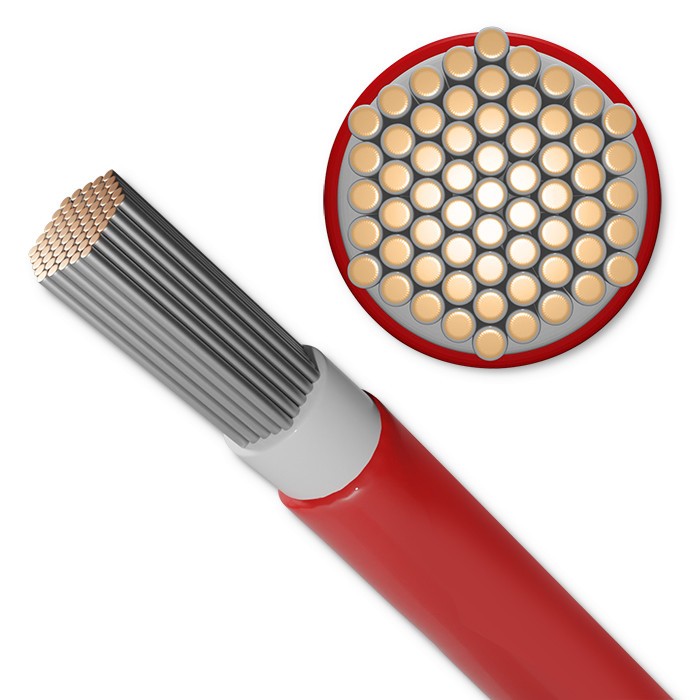

- insulation made of cross-linked XLPE polyethylene, halogen-free,
- strong and flexible conductor made of soft tin-plated copper wires,
- safe, the cable meets all the requirements of EN 50618 and IEC 62930,
- is resistant to temperatures down to -40°C,
- has a maximum continuous operating temperature of up to 90°C, while the maximum conductor temperature may reach 120°C,
- can be used for both outdoor and indoor installations,
- has reaction to fire class Eca,
- flame resistant, in accordance with IEC 60332-1-2



  • Conductor thickness: 2.58 mm
  • Thickness of the insulation coating: 0.7 mm
  • External shell thickness: 0.8 mm
  • Type: H1Z2Z2-K
  • Standard: EN 50618/IEC62930
  • Power: 82.5kW
  • Rated voltage: 1500V
  • Rated current: 55 A
  • Resistance to pressure: AC-6.5KV/5min
