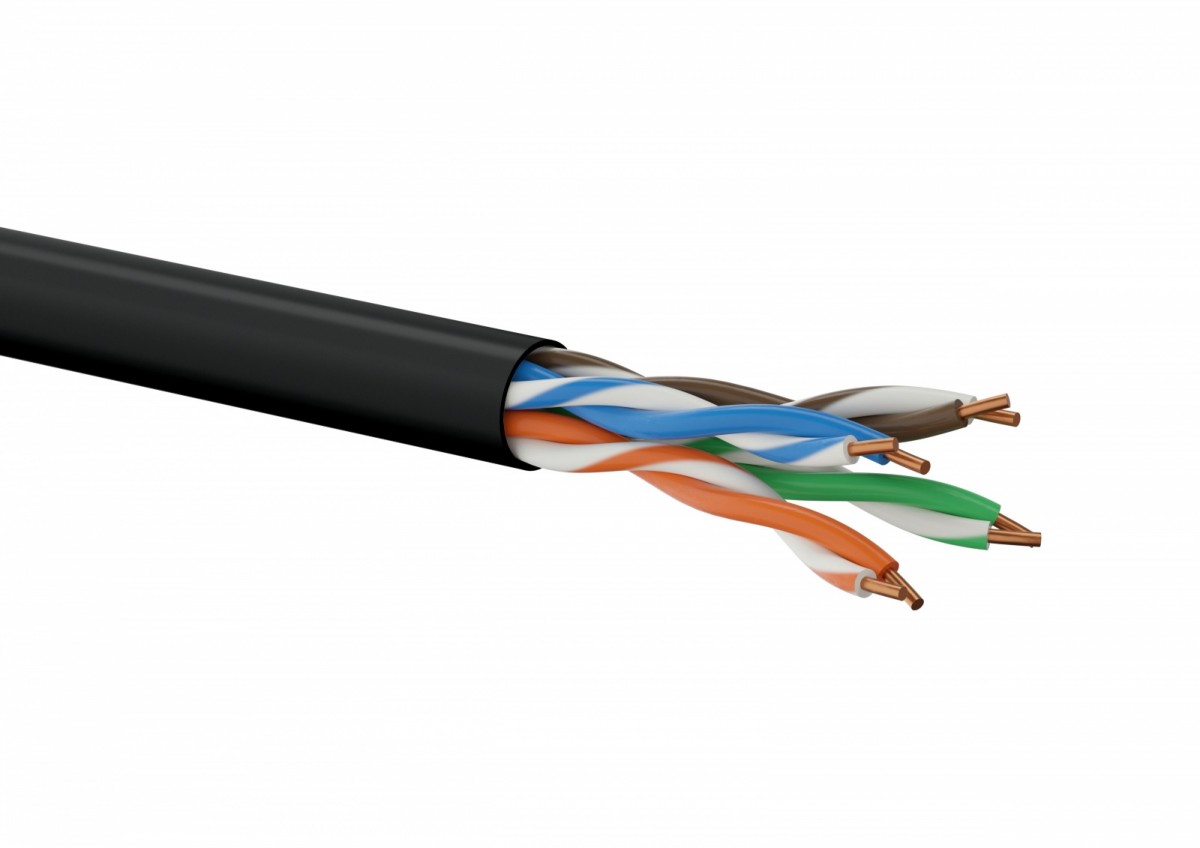

Q-Lantec U/UTP cat.5e 4x2x24AWG Copper cable, PE OUTDOOR
Technical data
Type | Cable |
Colour | Black |
Category | CAT 5e |
Cable length | 305 Meter |
Usage | LAN |
Connectors #1 | None |
Connectors #2 | None |
Twisted-pair cable | U/UTP |
Designation | CE |
Description
The cables are designed for outdoor installations in ICT networks, CCTV, etc.
CONSTRUCTION AND ELECTRICAL PARAMETERS
Category 5e
Class D (100MHz)
Cross section AWG 4x2x24AWG
Conductors single stranded copper (100% Cu)
Insulation polyethylene
Fire classification CPR (Euroclass) Fca

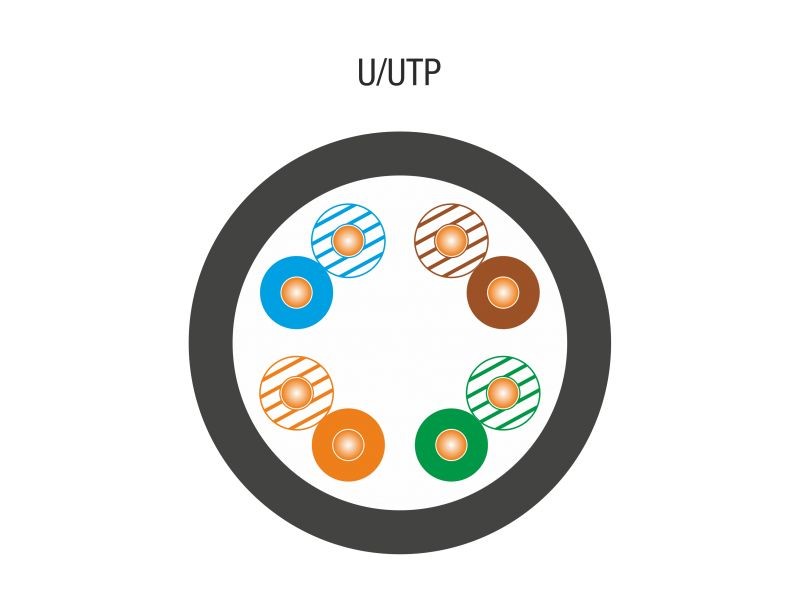

Centre 4 twisted pairs wrapped with polyester film
Shield none
Coating UV resistant polyethylene PE
PoE 802.3 af
ELECTRICAL PROPERTIES AT 20ºC
DC resistance ≤ 95 Ω /km
Variable resistance ≤ 2%.
Insulation resistance (500V) ≥ 5000 MΩ *km
CAPACITIVE REACTIVE RESISTANCE AT 800 HZ NOM. 48 NF/KM
Variable reactive capacitive resistance ≤ 1500 pF/km
Characteristic apparent resistance (1-1000MHz) (100 ± 15) Ω
Nominal propagation speed (NVP) 69%
Delayed propagation Nominally ≤ 535 ns/100m
Delay angle Nominally ≤ 20 ns/100m
DC system tester, 1 min. (core) 1000 V
MECHANICAL PROPERTIES
Bending radius 4 x outer dia.
Max. drawing force 80 N
Temperature range during use -40°C to + 60°C
Temperature range during installation -5°C to + 50°C
Outer diameter 4,8mm
Weight kg/km 25 kg

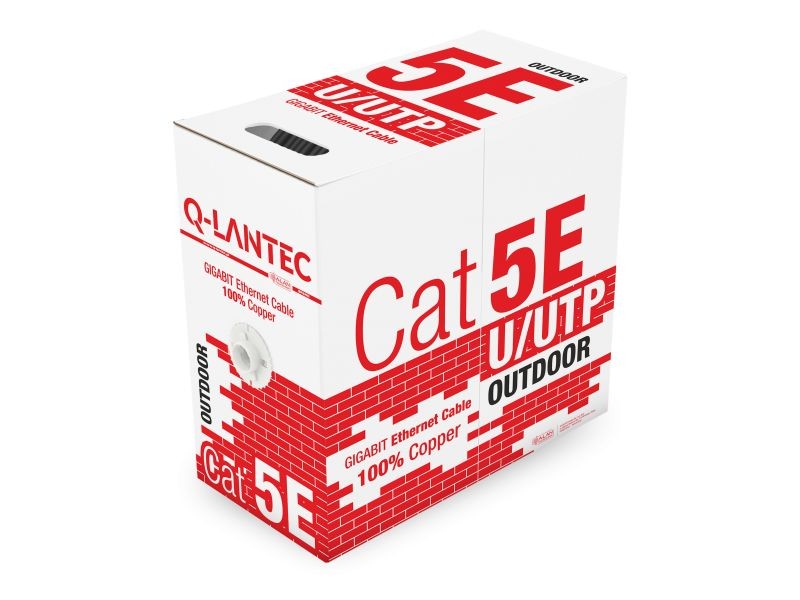

Packing box (305m)
