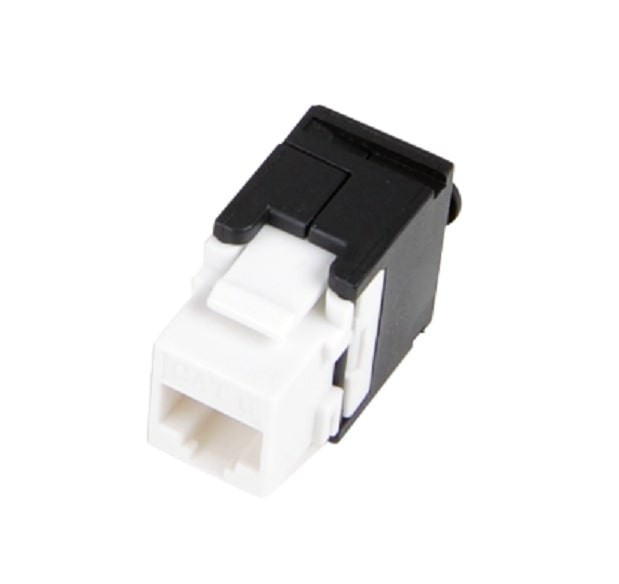

Q-Lantec Toolless Keystone Jack RJ45 Cat.6 UTP
Technical data
Quantity in unit package | 1 |
Connector | RJ-45 |
Warning | CE+WEEE |
Description
Toolless, unshielded transmission sockets Q-LANTEC are designed for building both subscriber's points and patchpanels in indoor horizontal and vertical installations in data communication networks not endangered (UTP) by electromagnetic interferences. Such solution allows to assemble without special tools connectors of whole transmission line.
Category: 6
Class: E / 250 MHz / 1 Gb/s
Screen: no
Type: toolless
BODY
Material: ABS thermoplastic conforming to UL 94 V-0
SOCKET
Durability: > 750 cycles
Contact material: phosphor bronze
Contact coating: 1.25 μm gold layer on 2.5 μm nickel layer
Contact pressure: 100 g per contact
Disconnection force: 50N for 60s
SLOT CONNECTION
Sequence: 568A/B
Knife material: phosphor bronze
Accepts wires: 22-24AWG
Body: fire resistant plastic, conforms to UL 94 V-0
ELECTRICAL PARAMETERS
Max. current: 1,5 A
Insulation resistance: 500 MΩ @ 100 Vdc
Voltage resistance: 1000 Vac RMS @60Hz for 60s
Contact resistance: 20 mΩ
IDC knife resistance: 2.5 mΩ
POE POWER SUPPLY
Type: PoE / 802.3 af (802.3at type 1)
TEMPERATURE RANGE
Storage: -40oC to +70oC
Operating: -10oC to +60oC
