Q-Lantec LAN Ethernet Cable F/UTP Copper Cat.5e PVC Eca 305m, grey
Technical data
Type | Cable |
Colour | Grey |
Category | CAT 5e |
Cable length | 305 Meter |
Usage | LAN |
Connectors #1 | None |
Connectors #2 | None |
Twisted-pair cable | F/UTP |
Description
Category 5e F/UTP Q-LANTEC Cables, manufactured, tested and verified to the ISO/IEC 11801 2nd Edition, EN 50173:2007 and ANSI/TIA/EIA-568-B.2 standards for enhanced performance Category 5e cables.

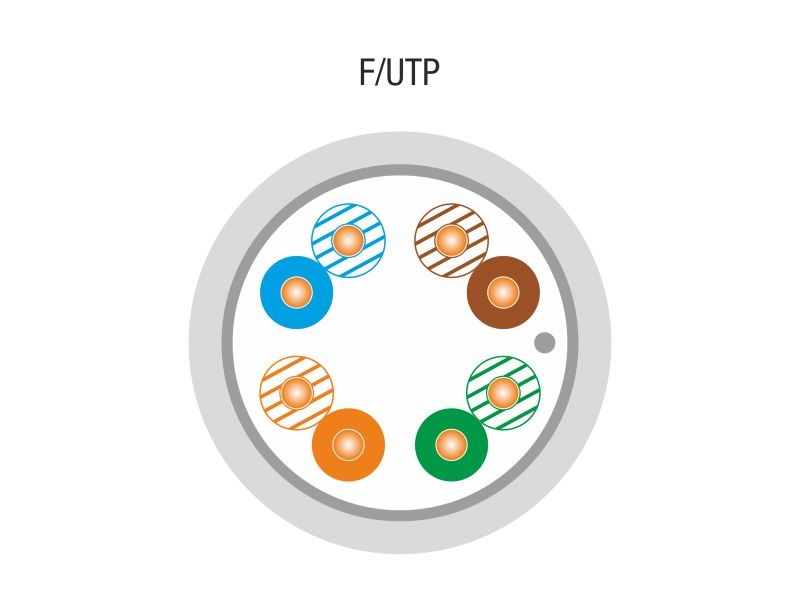

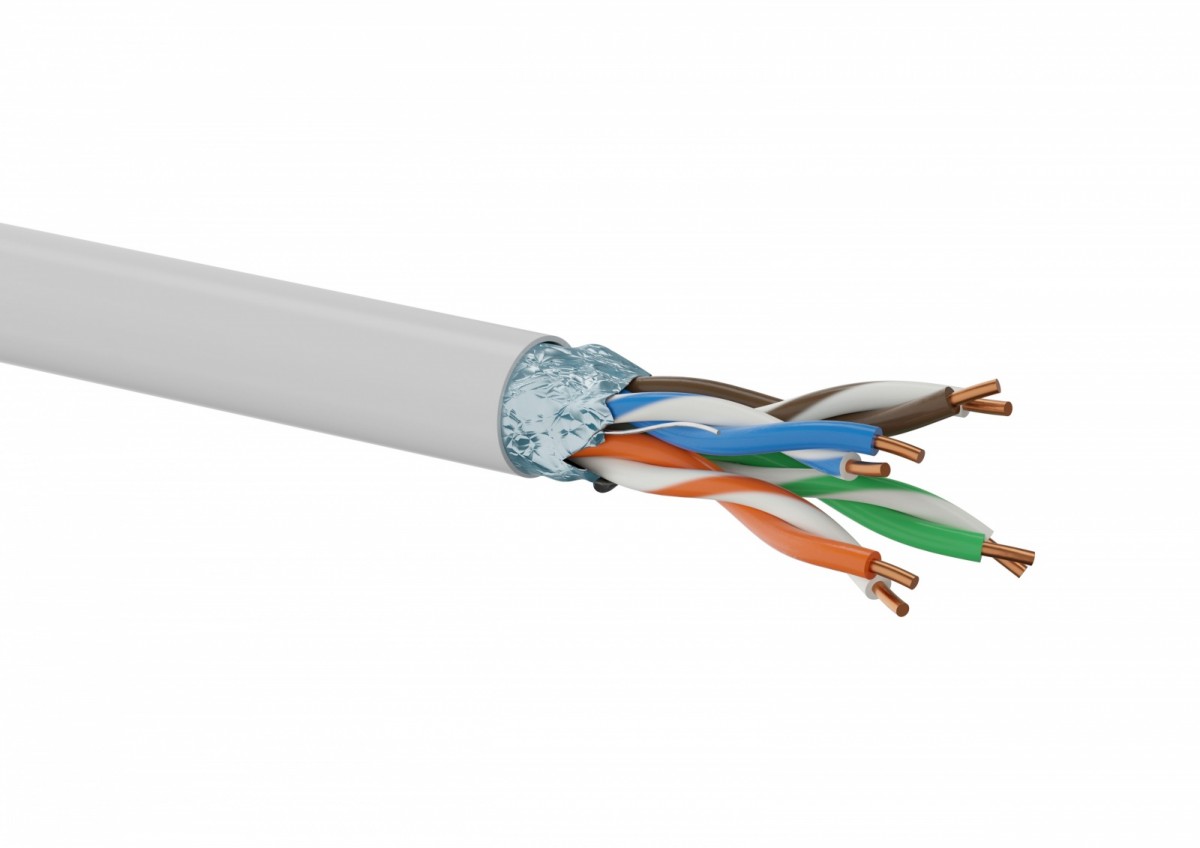

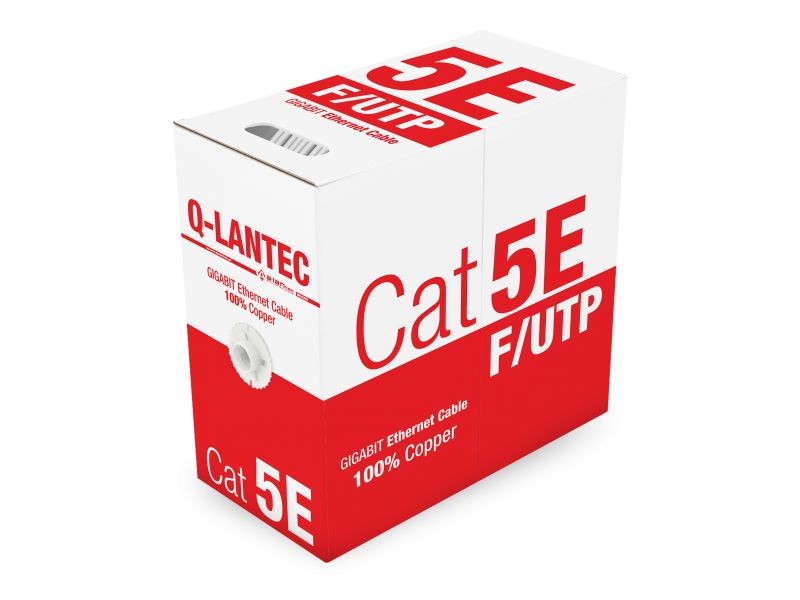

Each cable consists of 8 colour coded polyethelene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in a heat resistant PVC material. The printing detail on the sheath, includes the cables part number, specification details and a unique 305 metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box. A choice of jacket colour enables departmental or application identification where necessary.
- Class: D
- Twisted element: 4x2x24AWG
- Conductor: 100% Cu - bare copper wire AWG 24/1
- Insulation: polyethylene
- Fire euroclass: Eca
- Creen: Yes. Polyester film coated with a layer of aluminum placed inside a metal layer, the earth wire screen of tinned copper wire diameter min. 0,4mm
- Jacket: These pairs, together with a strong nylon rip cord are jacketed in a heat resistant FRPVC material
- PoE: 802.3 af
