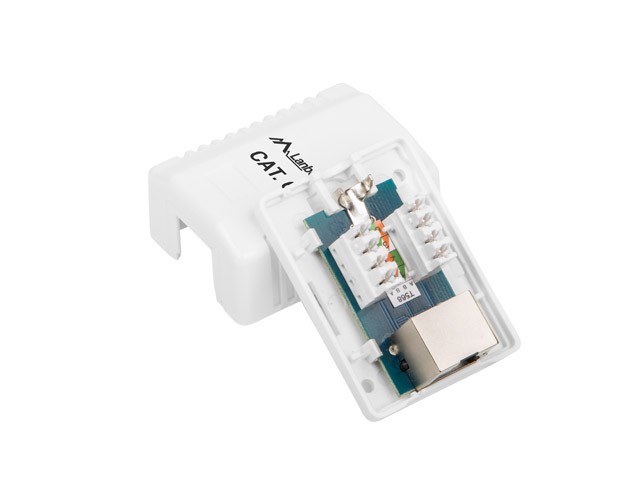

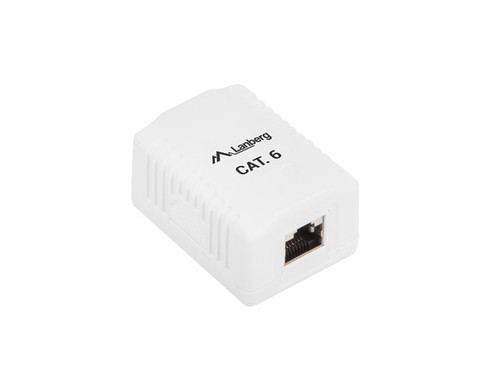

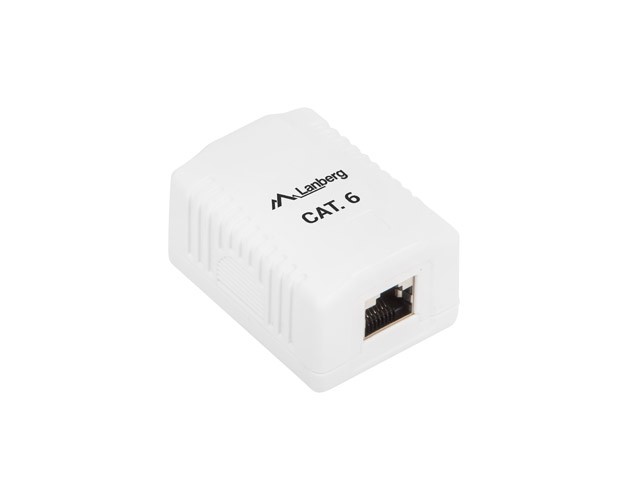

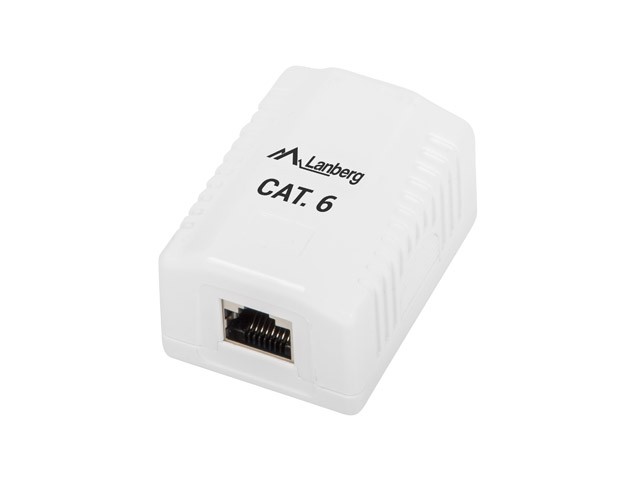

Lanberg Surface-mount Box 1x RJ45 Cat.6, white

Modular plug RJ45 UTP 8P8C cat.6 for wire 100pcs

- RJ45 Cat6 modular plug
- Pins covered with 15 micron gilding
- 3-pin wire
- Profile suitable for round cables
- For use with unshielded (U / UTP) twisted pair
- Standard 8P8C design, for connections in RJ45 networks
- Full compatibility with Category 3, 4, 5 and 5e cables

- Category 5 (ANSI / TIA / EIA-568-C)
- Category 5e (TIA / EIA-568-C)
- Category 6 (ANSI / TIA-568-C)
- Material: Insulation: UL 94V-2 polycarbonate / Connectors: phosphorus
- Contact coating: 15 micron gold plating

CAT 6, EIA/TIA 568 und ISO/IEC 11801 / EN 50173
Tested and 3P Channel Link certified for LINK Performance CAT 6 CLASS E for up to 250MHz, 1Gbit Ethernet
Complete shielding of RJ45 sockets and LSA strips from enclosed metal die cast housing
Integrated installation cable strain relief
40° socket angle
Trunking system, surface / flush mount ready
Cable installation via LSA strips, color codes based on EIA/TIA 568 A & B
Cover frame in 80/80mm incl. Central plate 50x50mm according to DIN 49075
Horizontal cable entry
Color white RAL 9010

CAT 5e Surface modular outlet RAL 9003

•      2x RJ45, 8P8C
•      shielded
•      CAT5e
•      LSA connector (EIA/TIA 568B)
•      RoHS

Shielded plug RJ45 Cat6, 8P8C universal- suitable for mounting on the solid / stranded

- Shielded RJ45 connector, cat.6
- Universal 8P8C
- Pack: 100 pcs
