Lanberg PDU 1U 16A 2m 7 Schuko Outlet PDU-PRO-07F-0200-BK
Technical data
Colour | Black |
Cable length | 2 Meter |
Filters / protection | Surge |
No. of type E sockets | 7 |
Plug | European |
Switch | Yes |
Mounting | Rack |
Rack dimensions | 1U |
Description

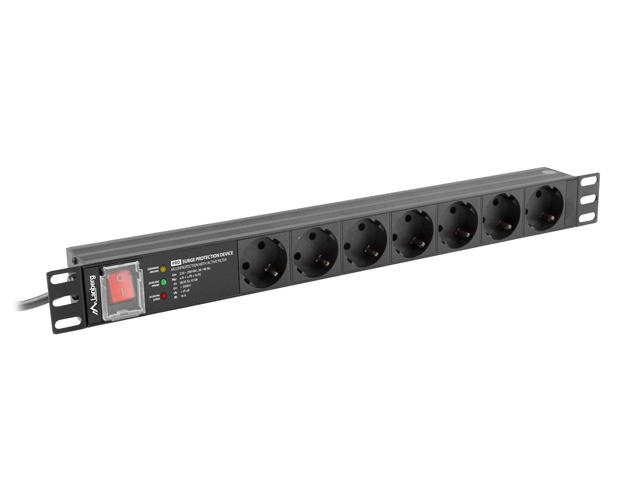

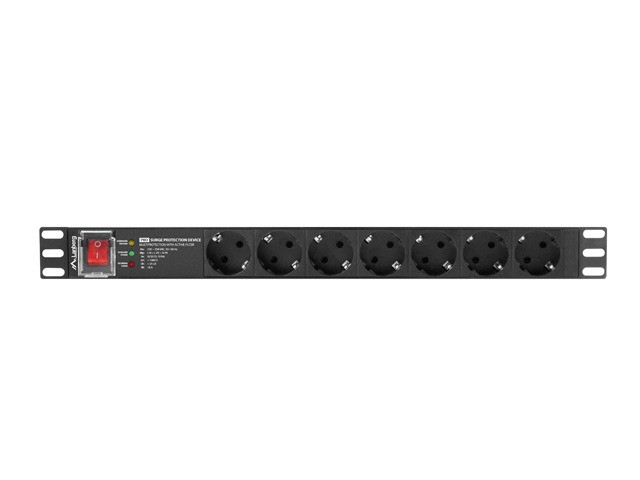

Lanberg’s PDU (Power distribution unit) surge protector is a solution dedicated to professional applications in the field of power strips. Its construction has been prepared exclusively for horizontal mounting on the front of all types of 19" server cabinets. The strip provides uninterrupted, reliable power supply to devices connected to it, giving its users an additional level of protection.
- Height: 1U,
- Voltage range: 220V ~ 250V,
- Frequency range: 50Hz / 60Hz,
- Maximum power of the strip: 4000W,
- Fuse: automatic,
- Max. work intensity of the switch: 16A,
- Active anti-interference filter,

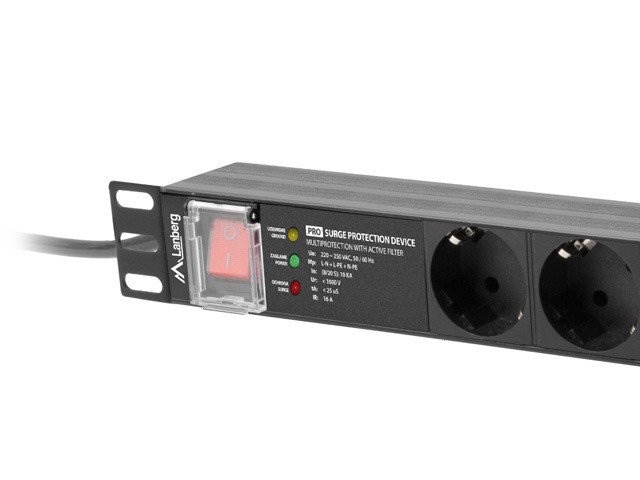

- Surge protection: Un: 220 ~ 250 VAC, 50/60 Hz; Uc: 280 VAC; Mp: L-N + L-PE + N-PE; In: (8/20 S): 10 KA; Up: < 1000 V; Ur: < 1000 V; tA < 25 nS; IR: 16 A; Pmax: 4000 W,
- Type of arrester: Type 2 / T2 according to class II test (former E according to VDE 0675 Teil 6),
- PDU material: aluminum,

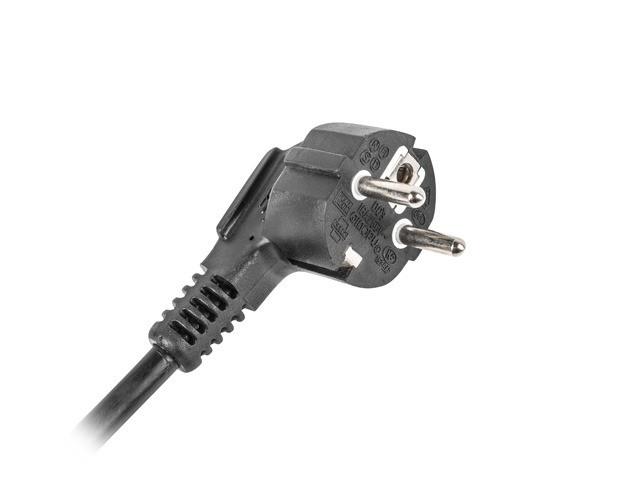

- Input cable plug type: uni-schuko (DIN 49441), 16A,
- Input cable pins type: solid, brass,
- Type and number of output sockets: schuko x7 (DIN VDE 0620-1),
- Output socket pin type: full, brass,
- Length and type of cable: 2m, 3-core, cross-section 1.5mm^2. Compliant with VDE,
- Rackmount ears (can be reversed, not detached).
