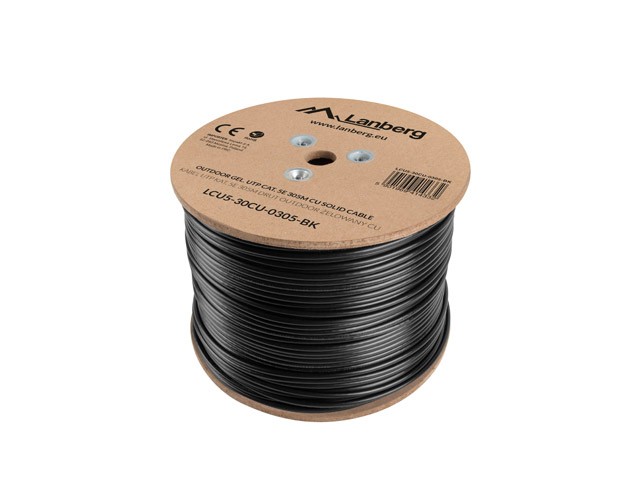

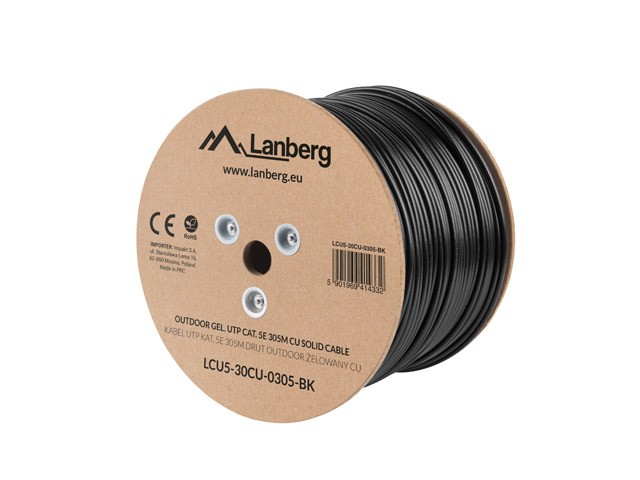

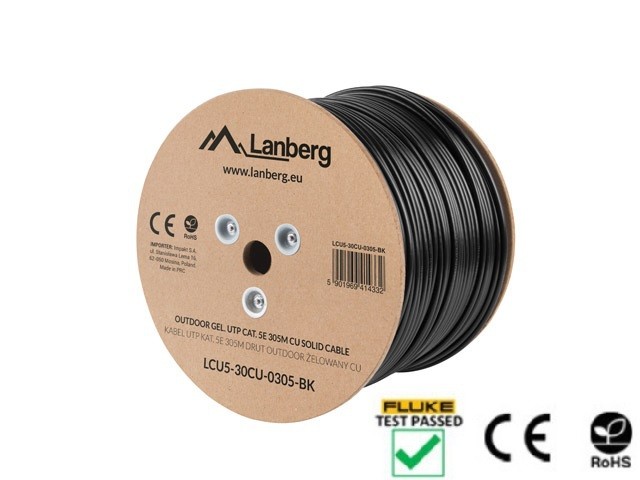

Lanberg Outdoor LAN Cable UTP Solid Cable Cat.5E 305m CU gel-filled
Technical data
Type | Cable |
Colour | Black |
Category | CAT 5e |
Cable length | 305 Meter |
Usage | LAN |
Connectors #1 | None |
Connectors #2 | None |
Twisted-pair cable | U/UTP |
Description
Product specification:

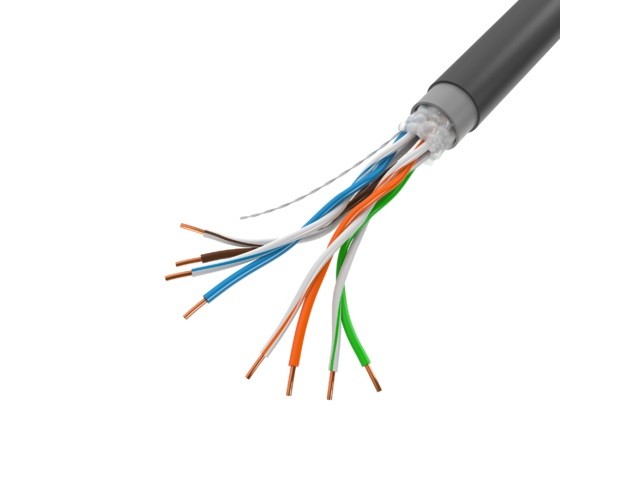

- LAN cable category 5e UTP (unshielded) gelled outdoor.
- Length 305m.
- The wires are made of pure copper (CU 100% bare copper).
- AWG 24 (4*2*0.5mm).
- Conductor stranding: single wire.
- Color: black RAL9004.
- Printed length counter at every meter of cable.
- External PVC insulation: 0.59mm.
- PE insulation: 6.0mm.
- HDPE conductor insulation: 0.93mm.
- Operation up to 100Mhz.
Electrical characteristics (20 degrees):
- Conductor resistance (max.): 20 - 40Om / 305m.
- Insulation resistance (min.): 5000mOm km.
- Pair-to-Ground capacitance: < 330PF / 100m.
- Characteristic impedance: < 100Om (+/- 15).
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 70 degrees.
- Working distance: 150-180m
