Lanberg LAN Cable UTP Solid Cable Cat.6 CCA 305m, grey
Technical data
Type | Cable |
Colour | Grey |
Category | CAT 6 |
Cable length | 305 Meter |
Usage | LAN |
Connectors #1 | None |
Connectors #2 | None |
Twisted-pair cable | U/UTP |
Description
Product specification:

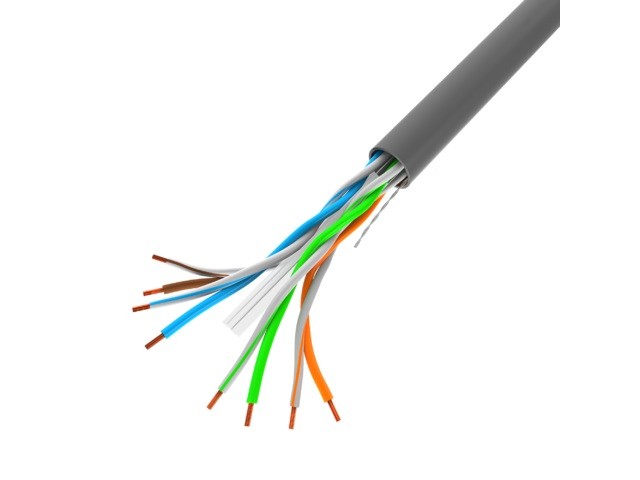

- LAN cable category 6 UTP (unshielded).
- Length 305m.
- The wires are made of copper conductor cable (CCA).
- AWG 23 (4*2*0.57mm).
- Conductor stranding: single wire.
- Color: grey RAL7035.
- Printed length counter at every meter of cable.
- External PVC insulation: 5.6mm.
- HDPE conductor insulation: 0.95mm.
- Operation up to 250Mhz.

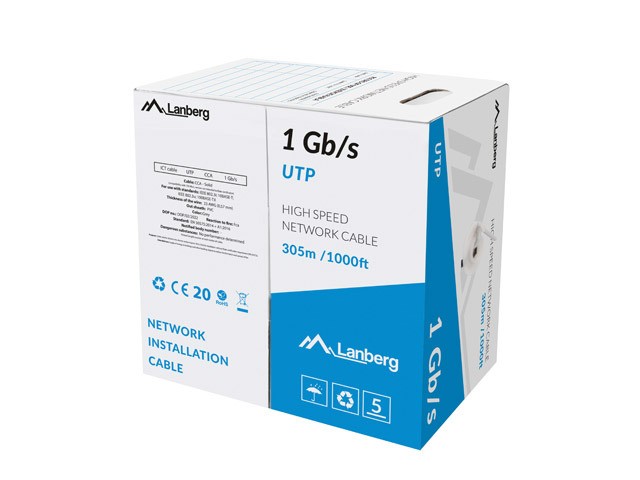

- Package: cardboard box.
- Packaging dimensions (W x D x H): 38x24x38 cm.
Electrical characteristics (20 degrees):
- Conductor resistance (max.): 60 - 90Om / 305m.
- Insulation resistance (min.): 5000mOm km.
- Pair-to-Ground capacitance: < 330PF / 100m.
- Characteristic impedance: < 100Om (+/- 15).
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 70 degrees.
- Working distance: 100-120m.
Cable intended to be used for short-distance. Fluke's compliance has not been confirmed.
