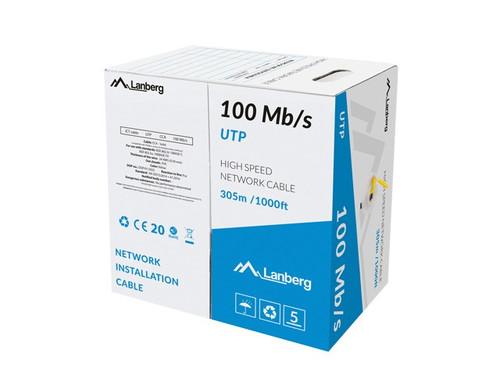

Lanberg LAN Cable UTP Cat.5E CCA LCU5-10CC-0305-Y 305m, yellow

<< Previous Next >>
Availability: Available
Delivery: 08-01-2025
Price: €55.49 55.49
quantity pcs
add to wish list
Brand: LANBERG
Product code/SKU: 352986

Technical data

Type Cable
Colour Yellow
Category CAT 5e
Cable length 305 Meter
Usage LAN
Connectors #1 None
Connectors #2 None
Twisted-pair cable U/UTP
Designation CE

Description

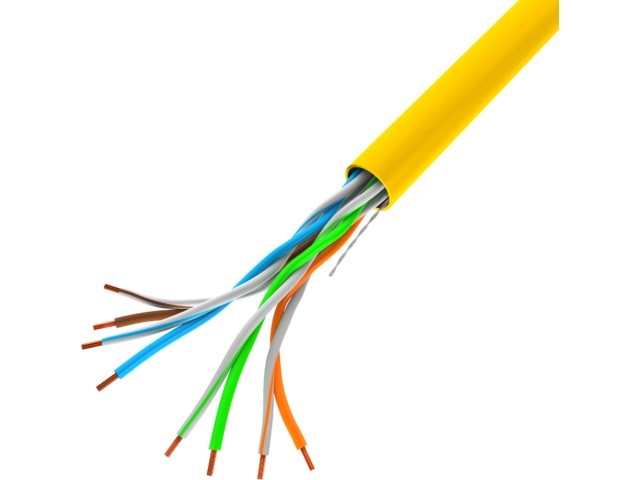

- LAN cable category 5e UTP (unshielded).
- Length 305m.
- The wires are made of copper conductor cable (CCA).
- AWG 24 (4*2*0.5mm).
- Conductor stranding: single wire.
- Color: yellow RAL1028.
- Printed length counter at every meter of cable.
- External PVC insulation: 5.0mm.
- HDPE conductor insulation: 0.93mm.
- Operation up to 100Mhz.
- Package: cardboard box.
- Packaging dimensions (W x D x H): 36x23x36 cm.

Electrical characteristics (20 degrees):

- Conductor resistance (max.): 60 - 90Om / 305m.
- Insulation resistance (min.): 5000mOm km.
- Pair-to-Ground capacitance: < 330PF / 100m.
- Characteristic impedance: < 100Om (+/- 15).
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 70 degrees.
- Working distance: 100-120m.

Cable intended to be used for short-distance. Fluke's compliance has not been confirmed.
