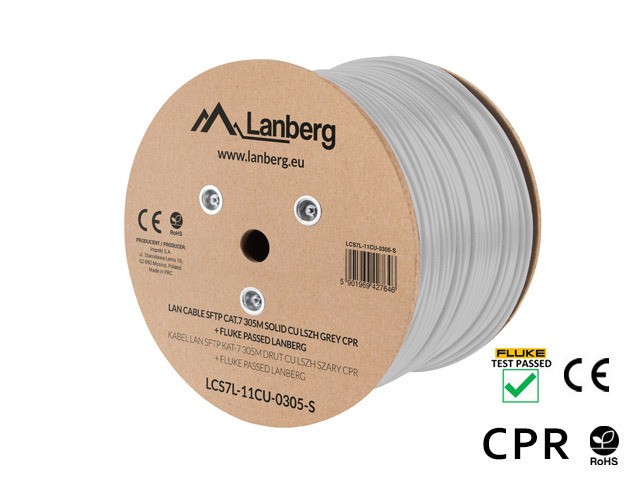

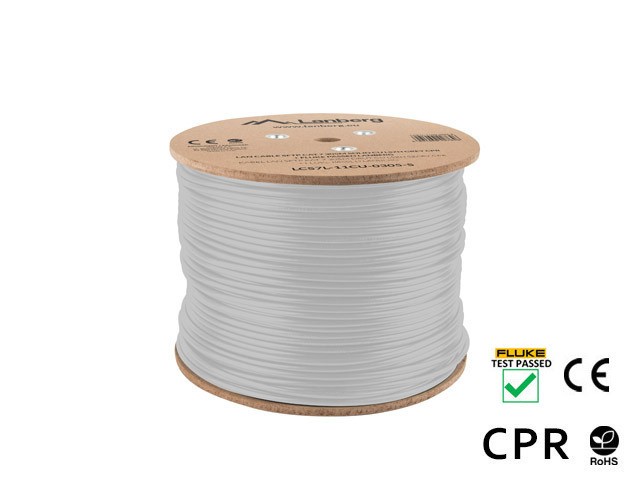

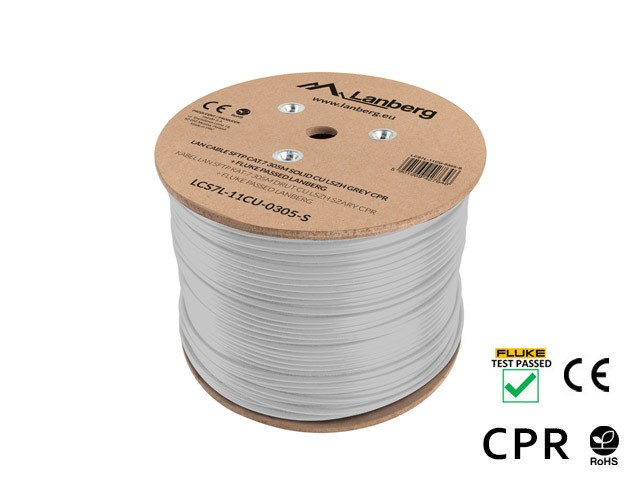

Lanberg LAN Cable SFTP cat.7 CU 305m LCS7L-11CU-0305-S
Technical data
Type | Cable |
Colour | Grey |
Category | CAT 7 |
Cable length | 305 Meter |
Usage | LAN |
Connectors #1 | None |
Connectors #2 | None |
Twisted-pair cable | S/FTP |
Description
- LAN cable category 7 SFTP (shielded).
- Length 305m.
- The wires are made of pure copper (CU 100% copper).
- AWG 23 (4*2*0.58mm).
- Conductor stranding: single wire.
- Color: PANTONE COOL GRAY 5C.
- Printed length counter at every meter of cable.
- External PVC insulation: 7.8mm.
- HDPE conductor insulation: 1.38mm.
- Operation up to 600Mhz.
- Package: Wooden Drum.
- Packaging dimensions (W x D x H): 50x50x52 cm.
Electrical characteristics (20 degrees):
- direct-current resistance: ?9.5?/100m
- Pair-to-Ground capacitance: ?160PF / 100m.
- Characteristic impedance: 100?±15 (4~250MHz) 100?±22(250~600MHz).
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m
