Lanberg LAN Cable SFTP cat.5e Solid CU CPR 305m
Technical data
Type | Cable |
Colour | Grey |
Category | CAT 5e |
Cable length | 305 Meter |
Usage | LAN |
Connectors #1 | None |
Connectors #2 | None |
Twisted-pair cable | S/FTP |
Description

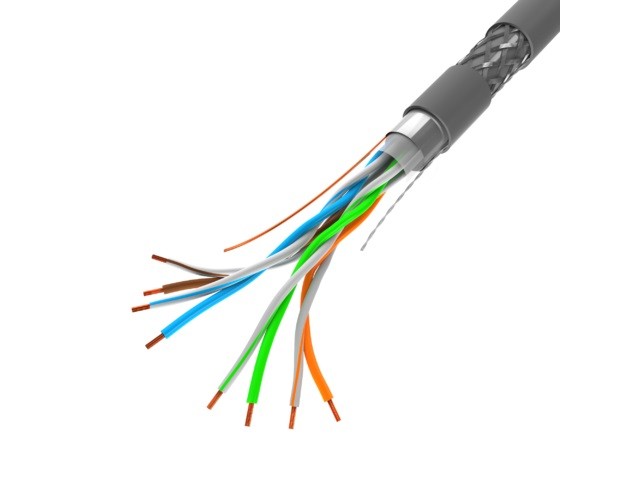

- LAN cable category 5e SFTP (shielded).
- Length 305m.
- The wires are made of pure copper (CU 100% copper).
- AWG 24 (4*2*0.51mm).
- Conductor stranding: single wire.
- Color: RAL7035 GREY
- Printed length counter at every meter of cable.
- External PVC insulation: 6.5mm.
- HDPE conductor insulation: 1.03mm.
- Operation up to 100Mhz.

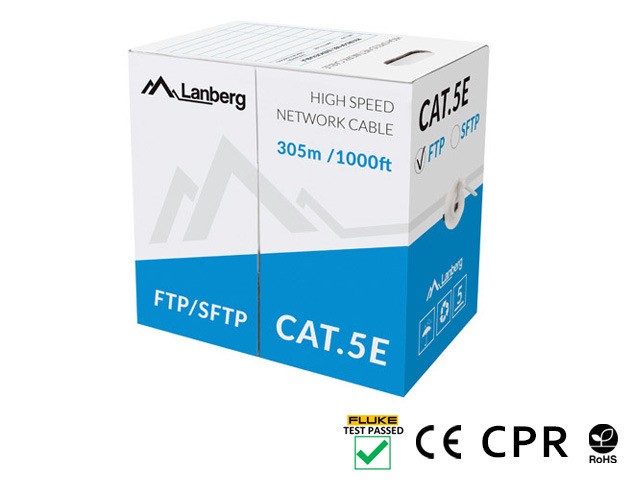

- Package: Color inner box with master carton.
- Packaging dimensions (W x D x H): 43.5x43.5x50cm.
(Inner box dimension: 42x42x24 cm)
Electrical characteristics (20 degrees):
- direct-current resistance: ?9.1?/100m
- Pair-to-Ground capacitance: ?160PF / 100m.
- Characteristic impedance: 100?±15.
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m
