Lanberg LAN Cable FTP Cat.6 Solid CU Grey CPR 305m



Type | Cable |
Colour | Grey |
Category | CAT 6 |
Cable length | 305 Meter |
Usage | LAN |
Connectors #1 | None |
Connectors #2 | None |
Twisted-pair cable | F/FTP |

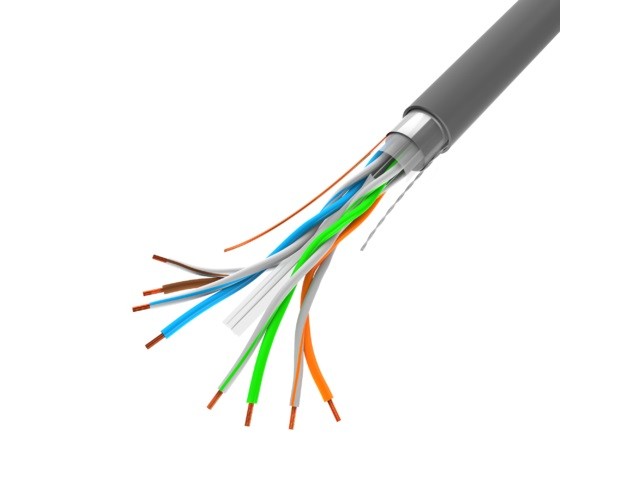

- LAN cable category 6 FTP (shielded).
- Length 305m.
- The wires are made of pure copper (CU 100% copper).
- AWG 24 (4*2*0.57mm).
- Conductor stranding: single wire.
- Color: PANTONE COOL GRAY 5C.
- Printed length counter at every meter of cable.
- External PVC insulation: 7.3mm.
- HDPE conductor insulation: 1.17mm.
- Operation up to 250Mhz.
- Package: Color inner box with master carton.
- Packaging dimensions (W x D x H): 50x50x52 cm.
(Inner box dimension: 48.5x48.5x25 cm)
Electrical characteristics (20 degrees):
- direct-current resistance: ?9.1?/100m
- Pair-to-Ground capacitance: ?160PF / 100m.
- Characteristic impedance: 100?±15.
- Transport and storage temperature: 0 - 60 degrees.
- Operating temperature: -20 - 75 degrees.
- Working distance: 100m
