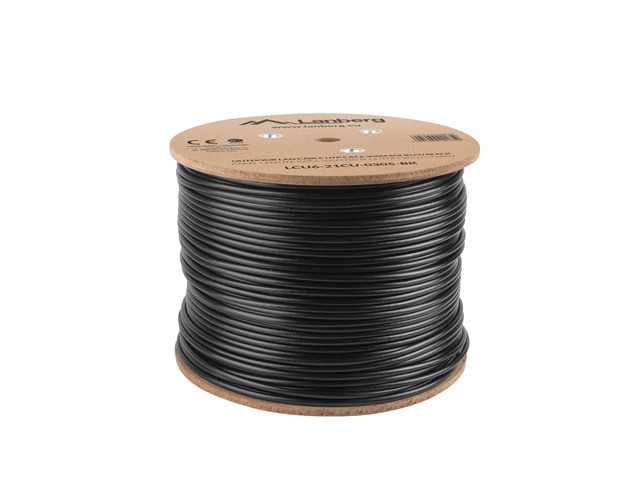

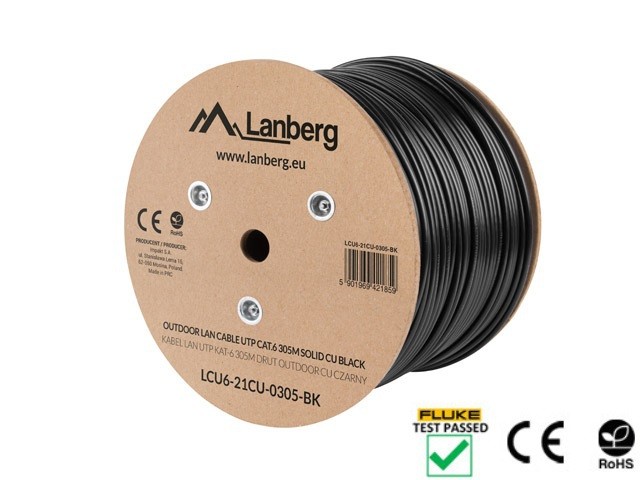

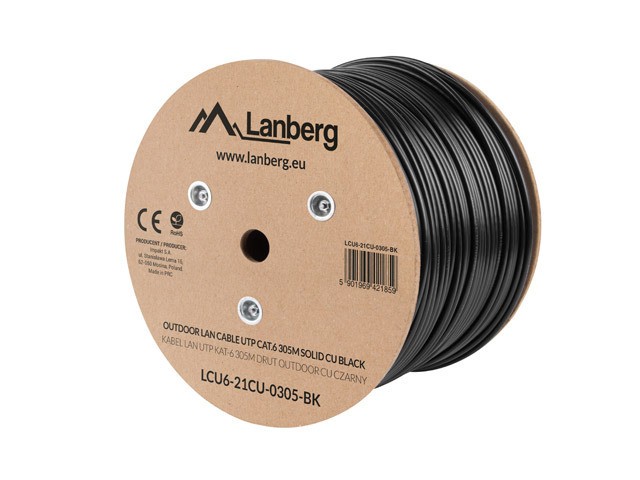

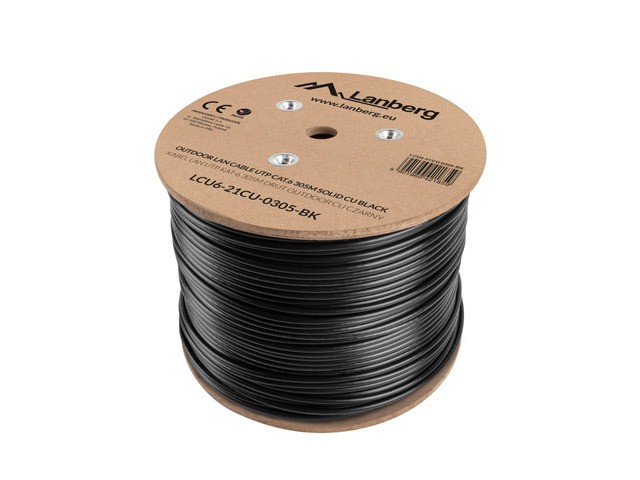

Lanberg Cable Outdoor CAT 6 CU 305m UTP

<< Previous Next >>
Availability: Low Stock
Delivery: 09-01-2025
Price: €314.19 314.19
quantity pcs
add to wish list
Brand: LANBERG
Product code/SKU: 311104

Technical data

Type Cable
Usage LAN
Cable length 305 Meter
Connectors #1 None
Connectors #2 None
Category CAT 6
Twisted-pair cable U/UTP
Colour RAL 9004
Other features Electrical parameters (20 degrees): Core resistance (max.): 20 - 36Om / 305m Insulation resistance (min.): 5000mOm km Para-a-ground capacity: 160PF / 100m Impedance characteristics: 100Om (+/- 15) Storage and transport temperature: 0 - 60 degrees Working temperature: -20 - 75 degrees Operating distance: 100 m
Designation CE

Description

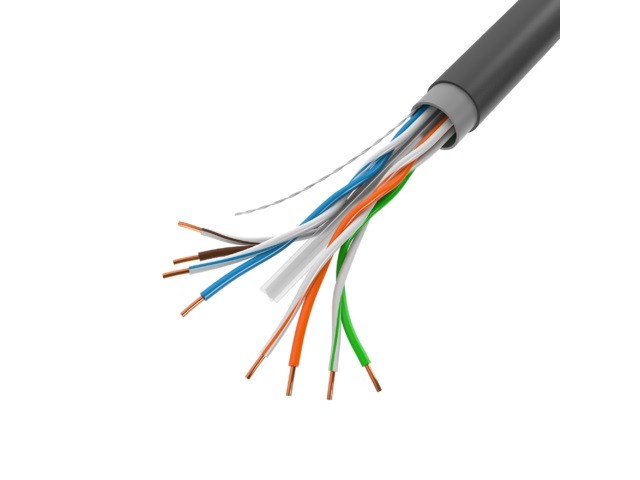

CAT 6 CU 305m UTP cable outdoor wire

  • Category 6 UTP LAN cable (unshielded) outdoor
  • Length: 305m
  • Cable wires made of pure copper (CU 100% copper)
  • AWG 23 (4 * 2 * 0.55mm)
  • Structure of the wire: single wire
  • Color: black RAL9004
  • Length counter print every meter of cable
  • PE insulation: 6.0mm
  • HDPE core insulation: 0.98mm
  • Work up to 250Mhz
  • Packing: carton
  • Size (W x D x H): 35x35x25 cm


Electrical specifications (20 degrees):

  • Conductor resistance (max.): 20 - 36Om / 305m
  • Insulation resistance (min.): 5000mOm km
  • Para-a-ground capacity: <160PF / 100m
  • Impedance characteristics: <100Om (+/- 15)
  • Storage and transport temperature: 0 - 60 degrees
  • Operating temperature: -20 - 75 degrees
  • Operating distance: 100m
