Lanberg Cable FTP Cat.5E CCA 305m link
Technical data
Type | Cable |
Colour | Grey |
Other features | - Resistance of the core (max.): 20 - 40Om / 305m. - Insulation resistance (min.): 5000mOm km. - Steam-a-ground capacity: <330PF / 100m. - Impedance characteristic: <100Om (+/- 15). - Storage and transport temperature: 0 - 60 degrees. - Working temperature: -20 - 70 degrees. - Action distance: 150-180m. |
Category | CAT 5e |
Cable length | 305 Meter |
Usage | LAN |
Connectors #1 | None |
Connectors #2 | None |
Twisted-pair cable | F/UTP |
Description

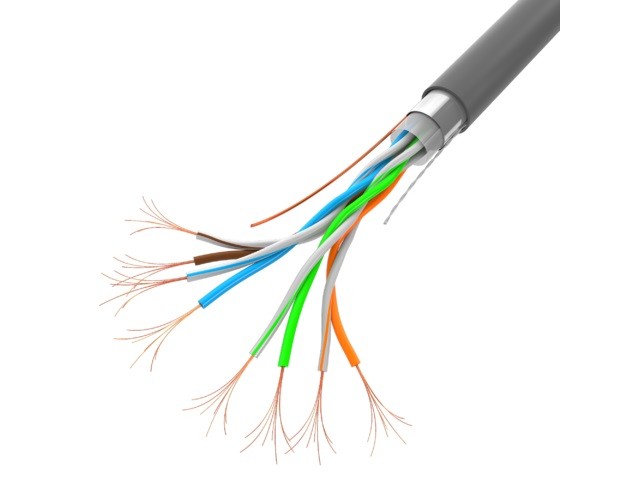

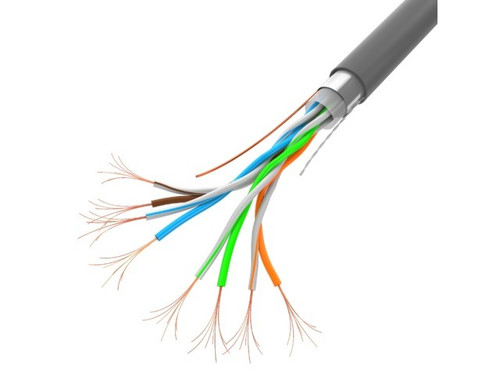

FTP cable Cat.5E CCA 305m link
LAN cable category 5e UTP (unshielded)
- Length: 305m
- Cable wires made of pure copper (CU 100% copper)
- AWG 24 (4 * 2 * 0.5mm)
- Wire construction: single wire
- Color: gray RAL7035
- Overprint of the length meter every cable meter
- External PVC insulation: 5.0mm
- HDPE insulation: 0.93mm
- Work up to 100Mhz
- Compatibility with the standards: ANSI / TIA / EIA-568 & ISO / IEC 11801
- Packaging: cardboard
- Package dimensions (S x G x W): 36x23x36 cm
- Resistance of the core (max.): 20 - 40Om / 305m.
- Insulation resistance (min.): 5000mOm km.
- Steam-a-ground capacity: <330PF / 100m.
- Impedance characteristic: <100Om (+/- 15).
- Storage and transport temperature: 0 - 60 degrees.
- Working temperature: -20 - 70 degrees.
- Action distance: 150-180m.
