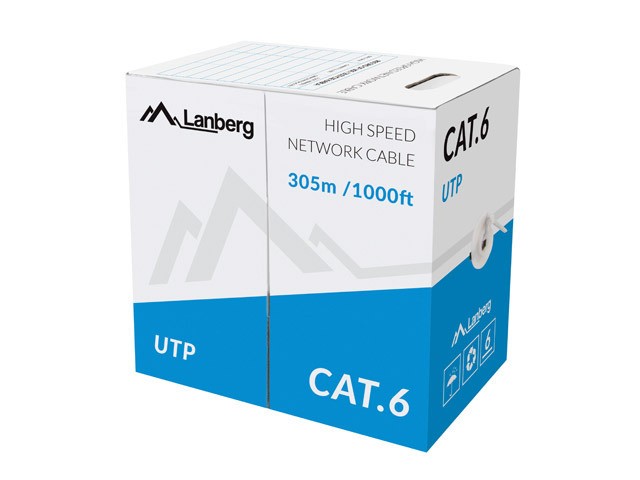

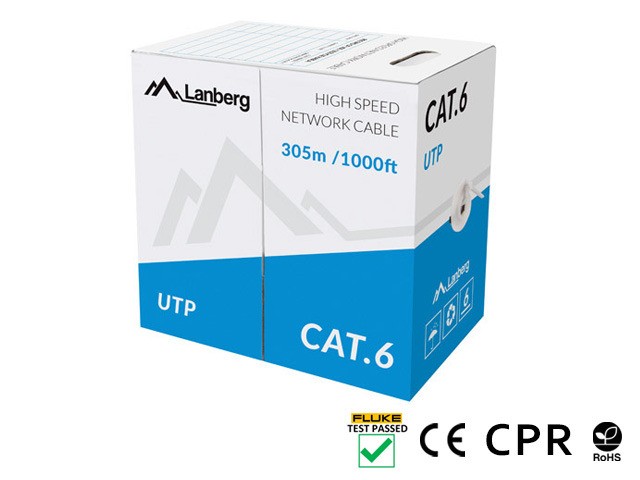

Lanberg Cable, grey wire CAT 6 CU 305m UTP
Availability:
Available
Delivery:
14-01-2025
Price:
€254.22
254.22
add to wish list
Brand:
LANBERG
Product code/SKU:
311102
Technical data
Type | Adapter |
Colour | Grey |
Category | CAT 6 |
Usage | Antenna cable |
Connectors #1 | None |
Connectors #2 | None |
Twisted-pair cable | U/UTP |
Description
CAT 6 CU 305 m UTP cable, grey wire
- Category 6 UTP LAN cable (unshielded)
- Length: 305m

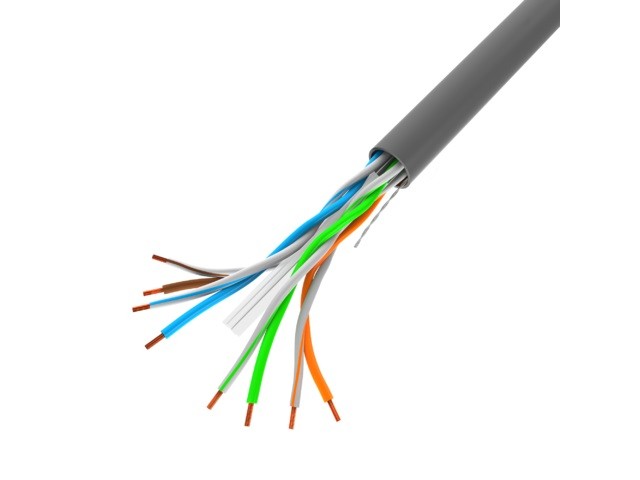

- Cable cores made of pure copper (CU 100% copper)
- AWG 23 (4 * 2 * 0.55mm)
- Structure of the wire: single wire
- Color: gray COOL GRAY 5C
- Printed length counter every meter of cable
- PVC outer insulation: 6.0mm
- HDPE core insulation: 0.98mm
- Work up to 250Mhz
- Package: box
- Package dimensions (W x D x H): 42x42x24 cm
Electrical specifications (20 degrees):
- Conductor resistance (max.): 20 - 36Om / 305m
- Insulation resistance (min.): 5000mOm km
- Capacity para-a-ground: <160PF / 100m
- Impedance characteristics: <100Om (+/- 15)
- Storage temperature and transport: 0 - 60 degrees
- Operating temperature: -20 - 75 degrees
- Operating distance: 100m
