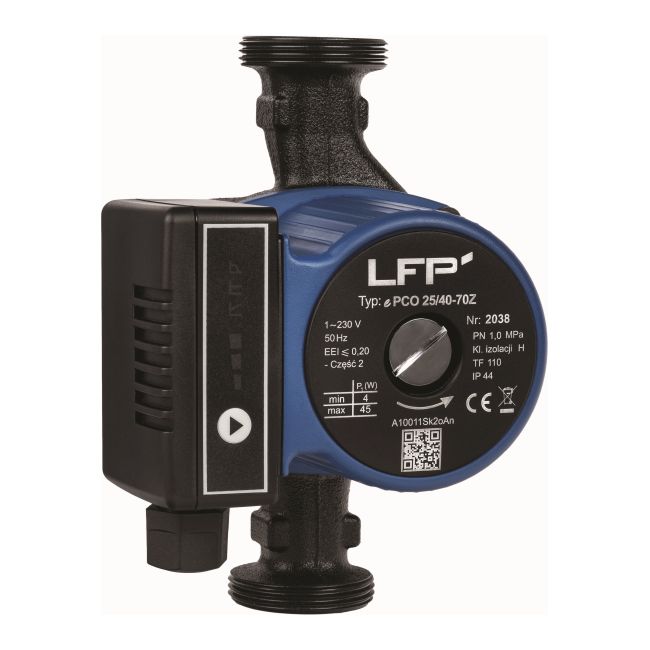

LFP Electronic Central Heating Pump Epco 25/40-70

<< Previous Next >>
LFP Electronic Central Heating Pump Epco 25/40-70
Availability: Low Stock
Delivery: 16-05-2024
Price: €183.40 183.40
quantity pcs
add to wish list
Brand: Other
Product code/SKU: 377330
  • ask about product
  • recommend to a friend

Technical data

Package height 15 cm
Packaging length 19.5 cm
Package width 14 cm
Gross weight 2.4 kg
Application central heating installations
Reference no. PCLEPCO25/40-70
Additional details cast iron body, wet motor lubricated with pumped liquid with vent plug, ceramic shaft, stainless steel sleeve and technopolymer impeller form a structural whole
Material body, rotor housing - cast iron, rotor - plastic
Assembly method inside the building, on a straight section of the pipeline between two shut-off valves, a filter should be installed before the pump, the flow direction should be in line with the arrow on the pump housing, the motor axis must be horizontal
Product dimensions 180 x 180 x 124 cm
Capacity 3,9 m3/h
Power adjustment 4 - 42 W
Working pressure 1,0 MPa
Maximum water lifting height 7 m
Liquid temperature from +2°C to +110°C
Supply voltage 230 V
Connection plan 25 mm

Description

Benefits:

  • compact design
  • low noise
  • long life with minimal maintenance
