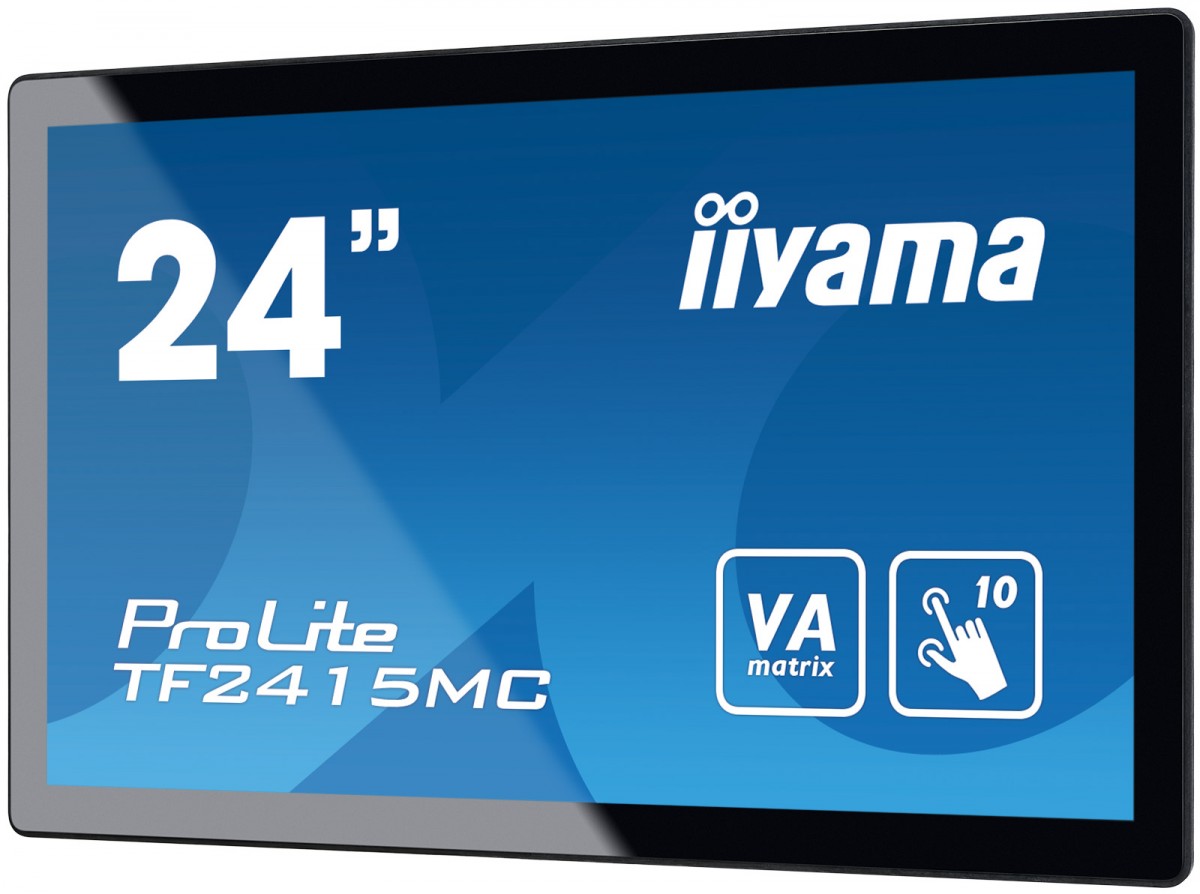

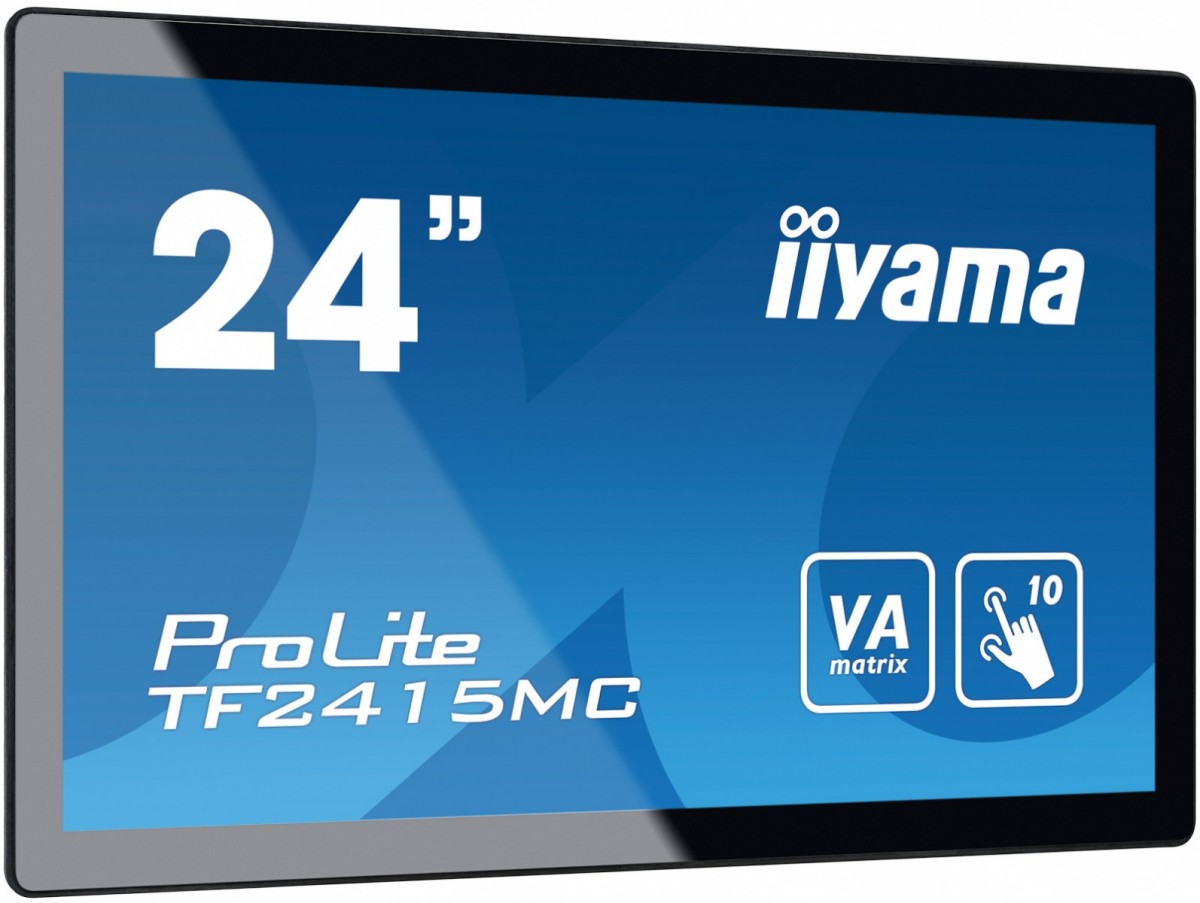

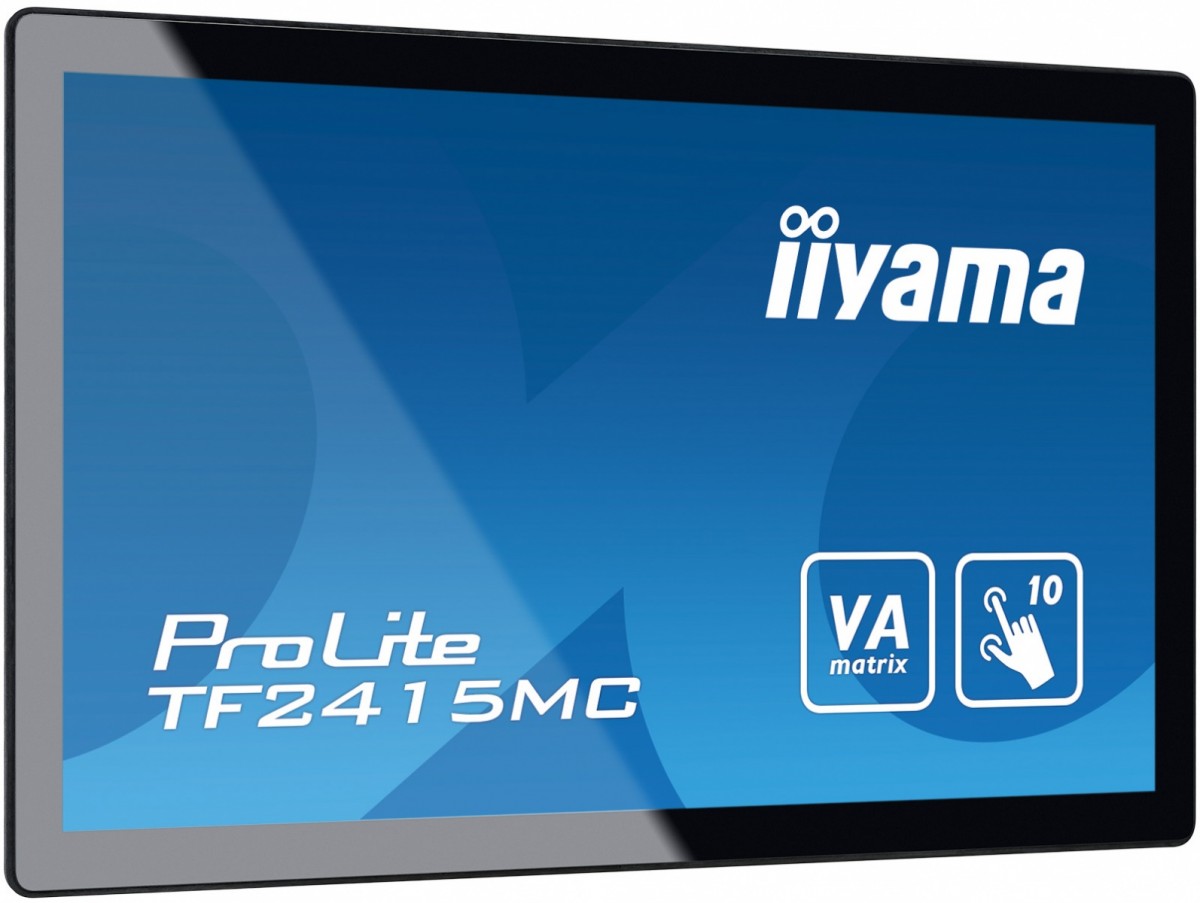

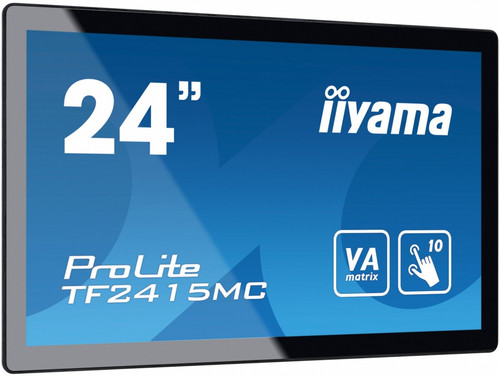

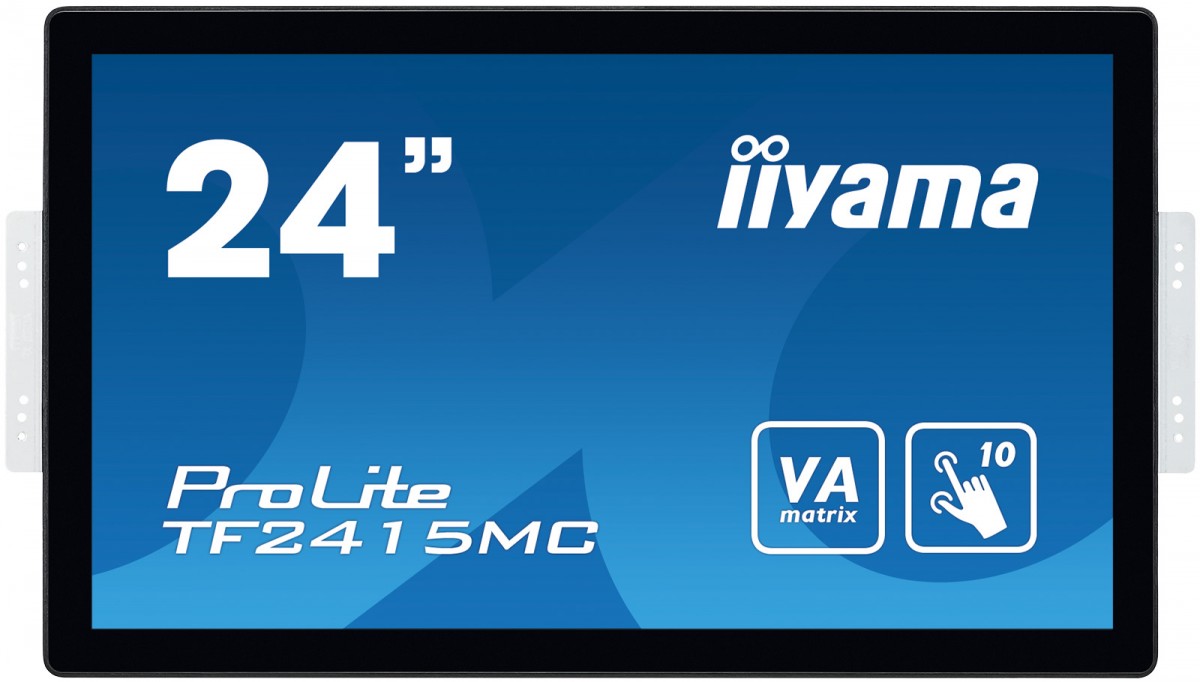

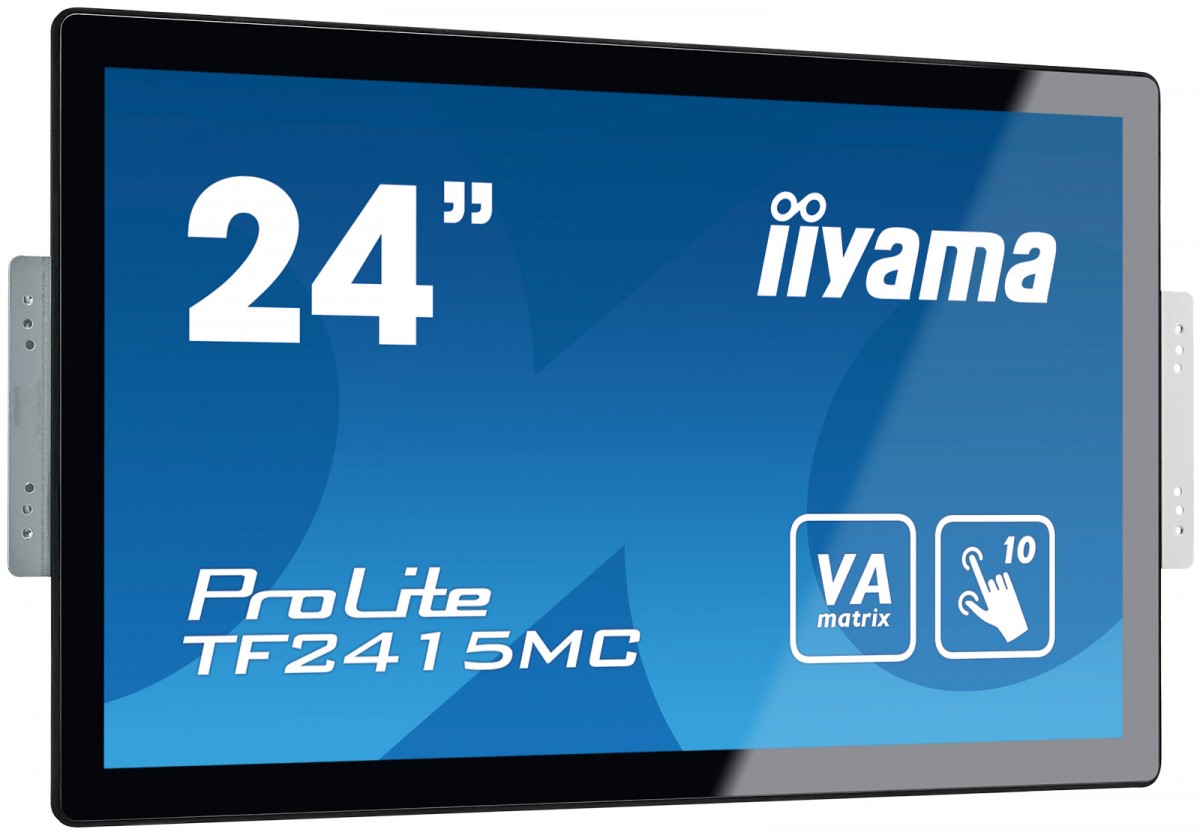

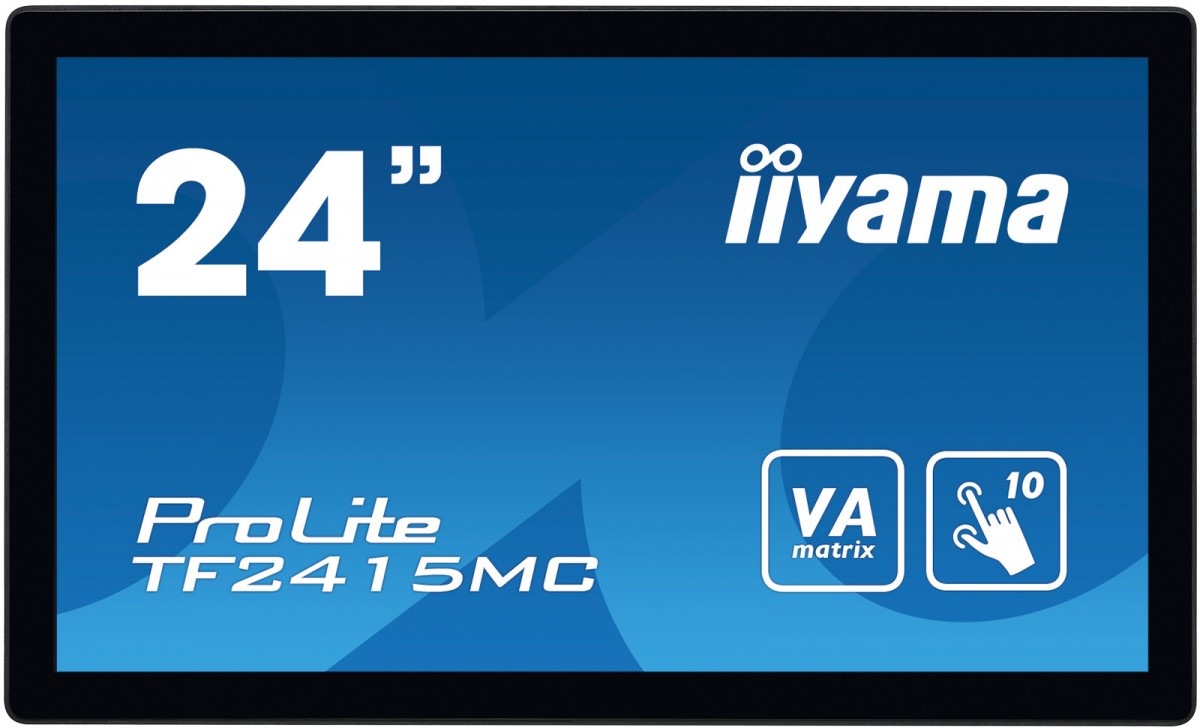

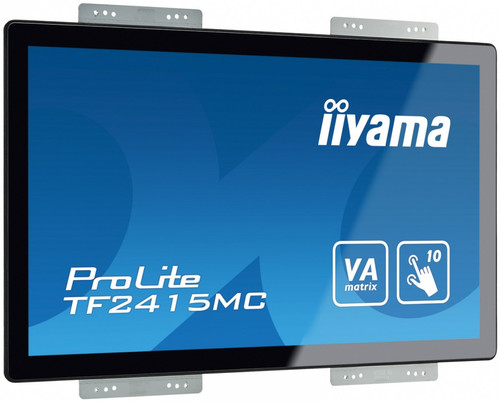

Iiyama 23.8" Monitor TF2415MC-B2 Capacitive 10PKT, Foam, HDMI, DP
Technical data
Colour | Black |
Weight | 5.8 kilogram |
Accessories included | Power cable (1.8m) USB cable (1.8m) HDMI cable (1.8m) DP cable (1.8m) Quick User Guide Safety Instructions Power Supply Touch Panel Driver Disk (CD-ROM) Mounting strips External control panel |
Model | ProLite TF2415MC-B2 |
Aspect ratio | 16:9 |
Screen size (diag.) | 23.8'' |
Matrix type | VA |
Transreflective technology | LED |
Dot pitch | 0.2745 Millimetre |
Resolution | 1920 x 1080 (FHD 1080) |
Brightness | 350 cd/m2 |
Static contrast | 3 000:1 |
Frequency, horizontal (min) | 31.4 kHz |
Frequency, horizontal (max) | 82 kHz |
Frequency, vertical (min) | 56 Hz |
Frequency, vertical (max) | 75 Hz |
I/O connectors | 1 x 3.5 mm minijack |
Built-in speakers | No |
Built-in TV tuner | No |
Auto pivot | No |
Certificates | CE |
VESA | 100 x 100 |
Power consumption | 25 Watt |
Response time | 16 millisecond |
Viewing angle, horizontal | 178 Degrees |
Viewing angle, vertical | 178 Degrees |
Visible area, vertical | 296.46 Millimetre |
Visible area, horizontal | 527.04 Millimetre |
Web camera | None |
Width | 575 Millimetre |
Depth | 42.5 Millimetre |
Height | 347 Millimetre |
Description
ProLite TF2415MC-B2 is a multi-touch monitor using capacitive technology that guarantees durability and scratch resistance. What's more, any scratches on the screen do not affect the touch function. The monitor front is one smooth glass surface and has IP65 rating meaning that it can work in rooms with high dustiness and that it is resistant to water jets. Foam cover along the edge of the housing ensures perfect fit of the monitor to the mounting location. The kit comes with external mounting strips as standard, making this screen the perfect solution for touch system integrators.
Touch through the glass
The screen can be mounted under a glass window, and the touch function will continue to work without problems. It is an ideal solution in places where there is a high risk of flooding the screen e.g. in restaurants.
Touch technology - Capacitive
This technology uses electrical conductivity. The touch is registered because the electrical capacity changes where the finger touches the glass coating covering the screen. This coating not only guarantees excellent image quality, but also durability and scratch resistance. What's more, any scratches on the screen do not affect the touch function. The panel recognizes the touch made with a finger (also in a latex glove) or a special stylus.

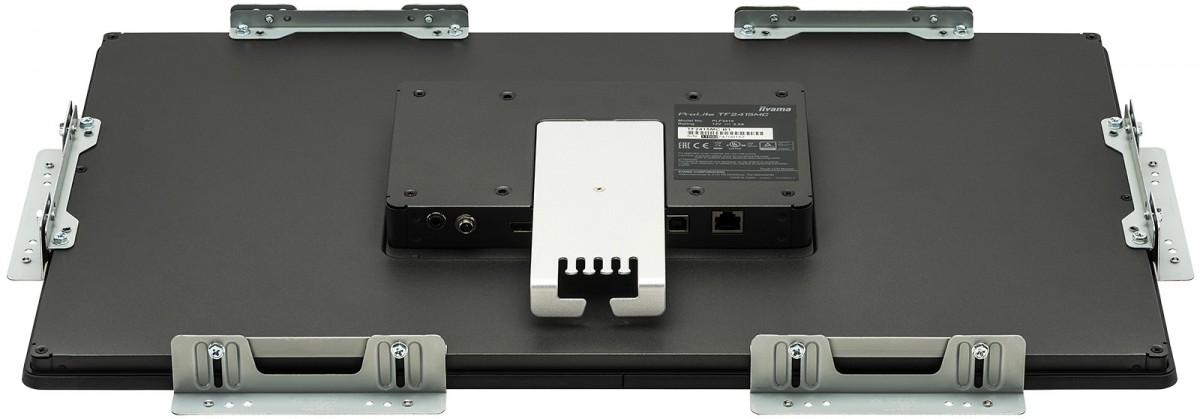

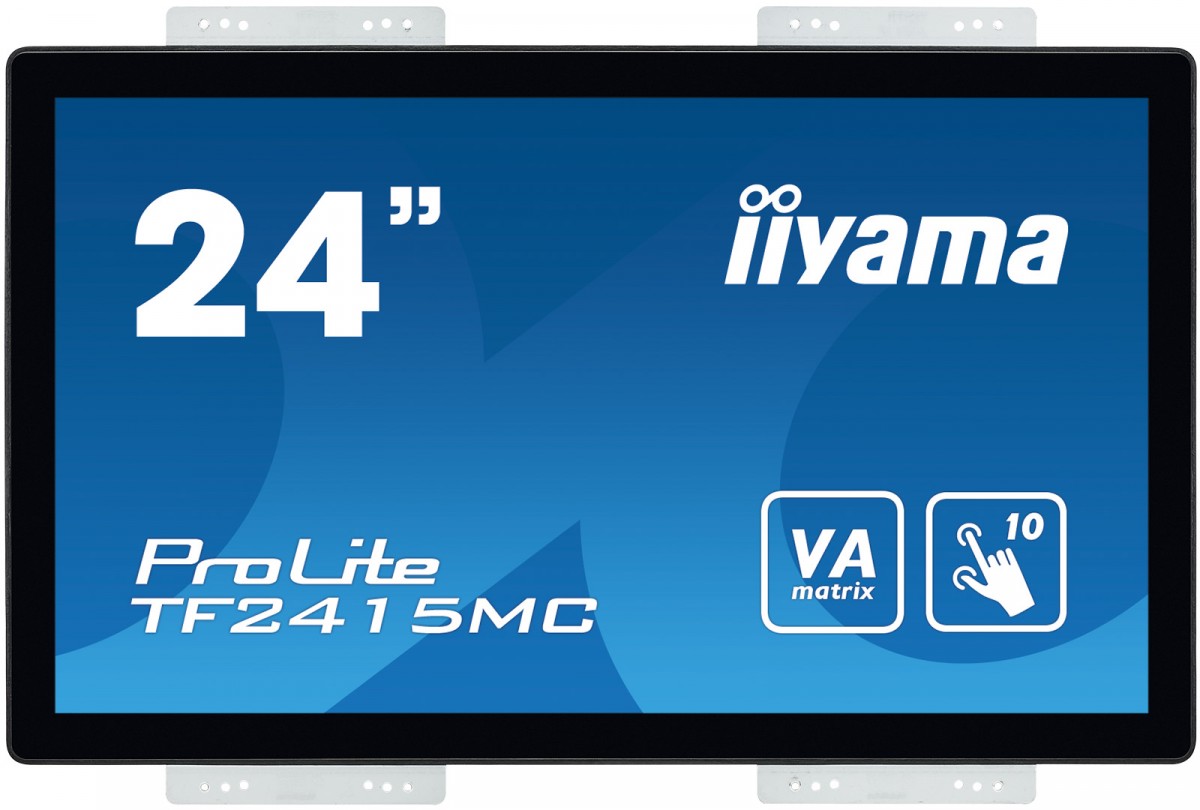

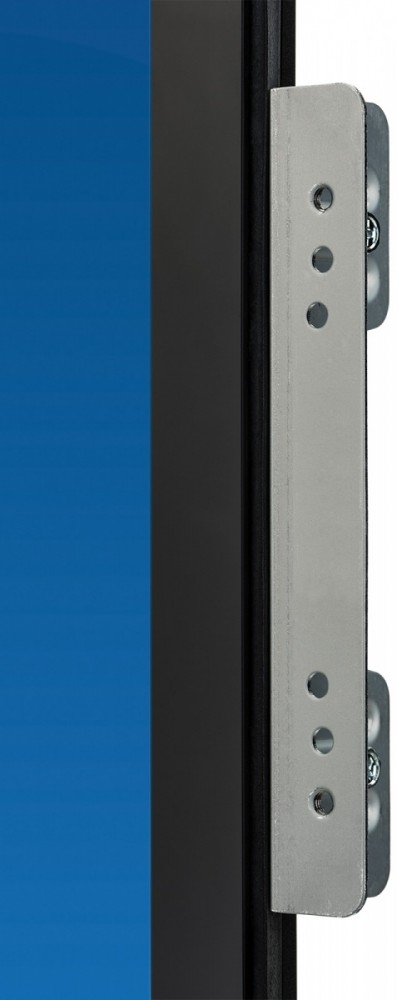

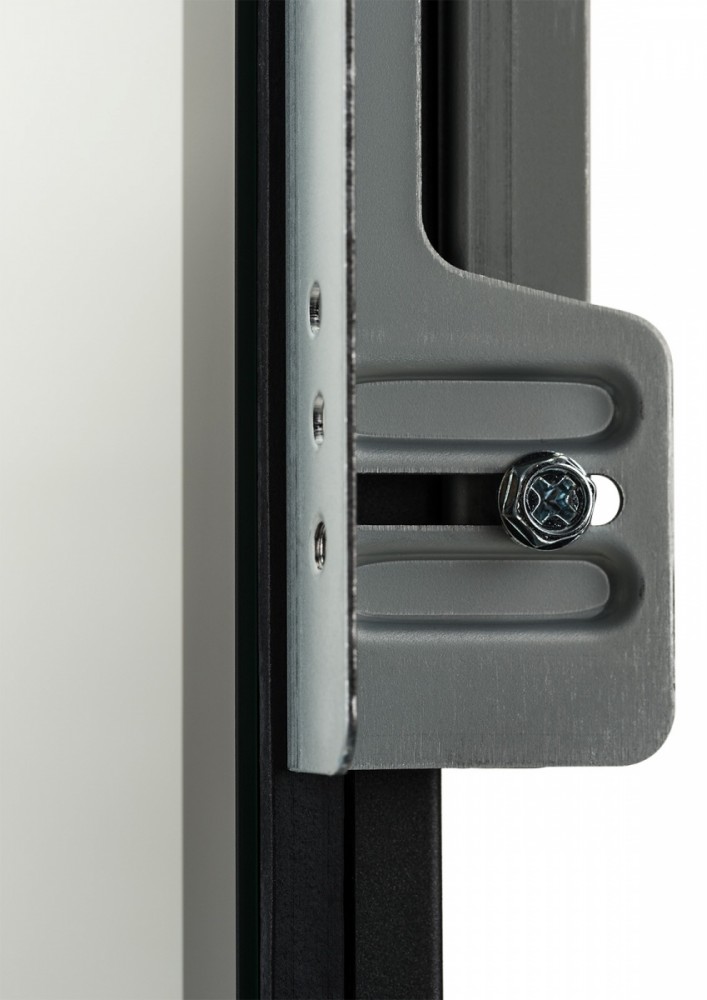

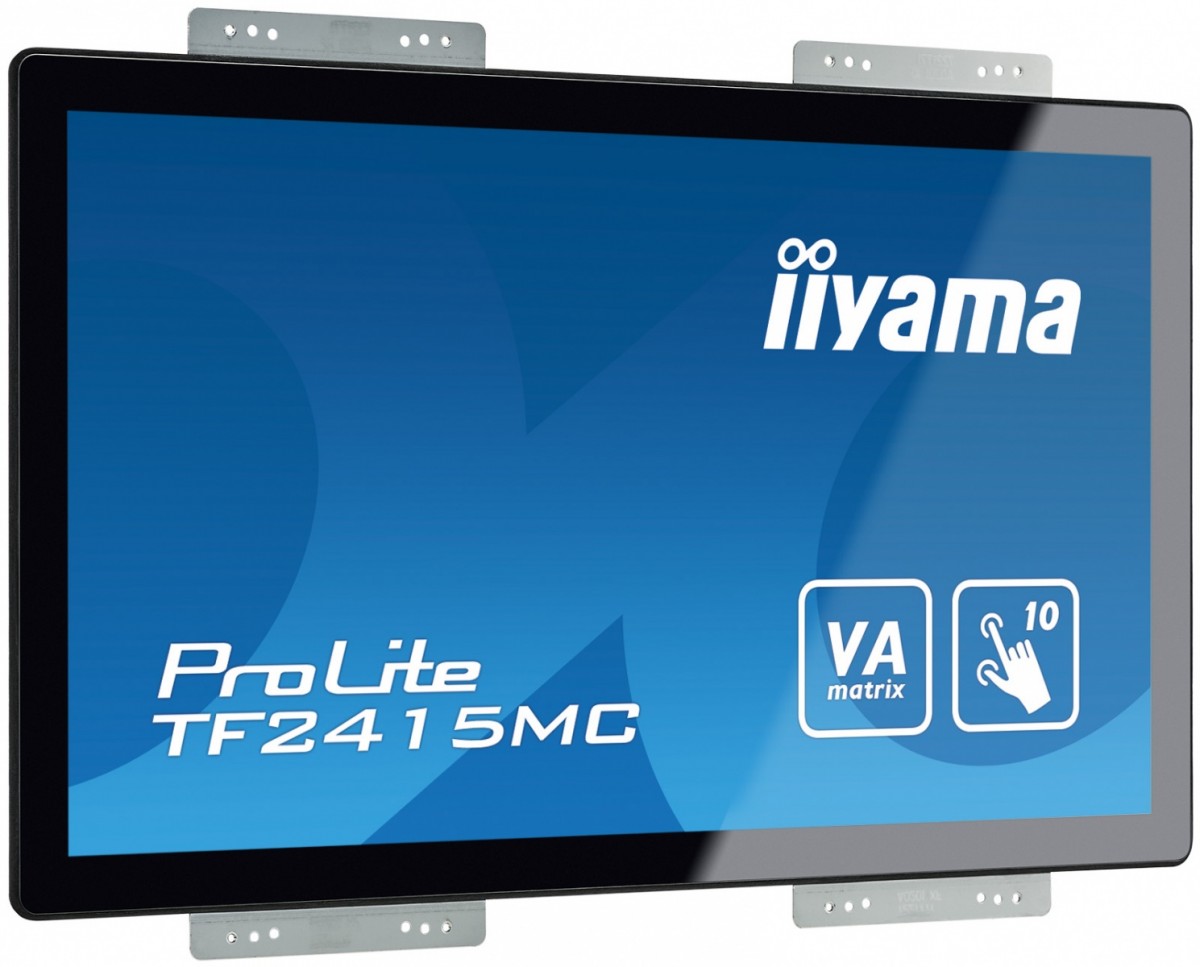

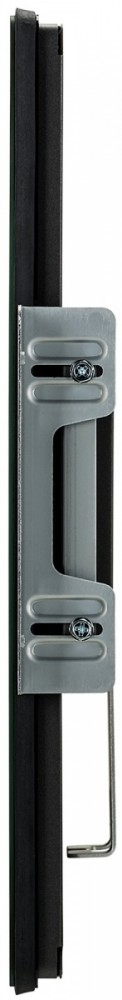

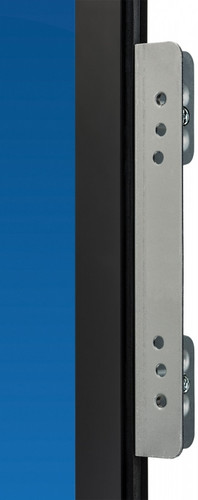

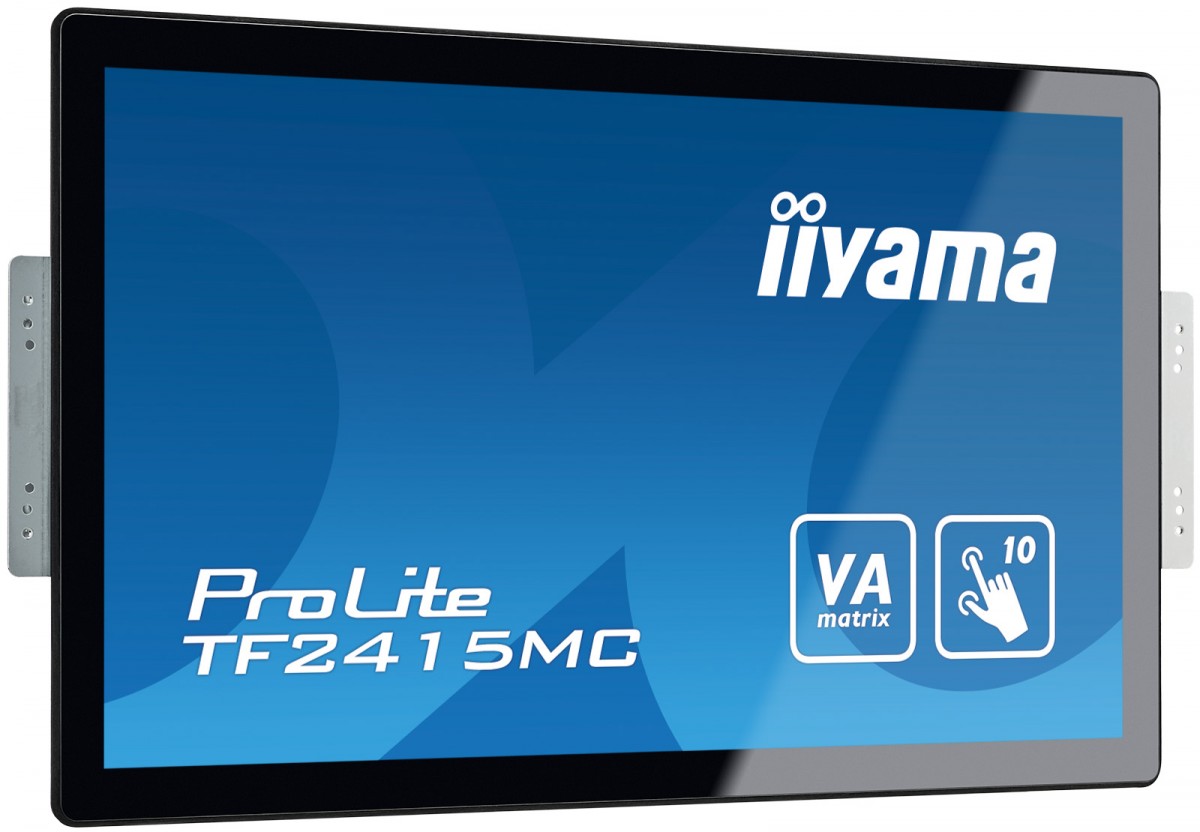

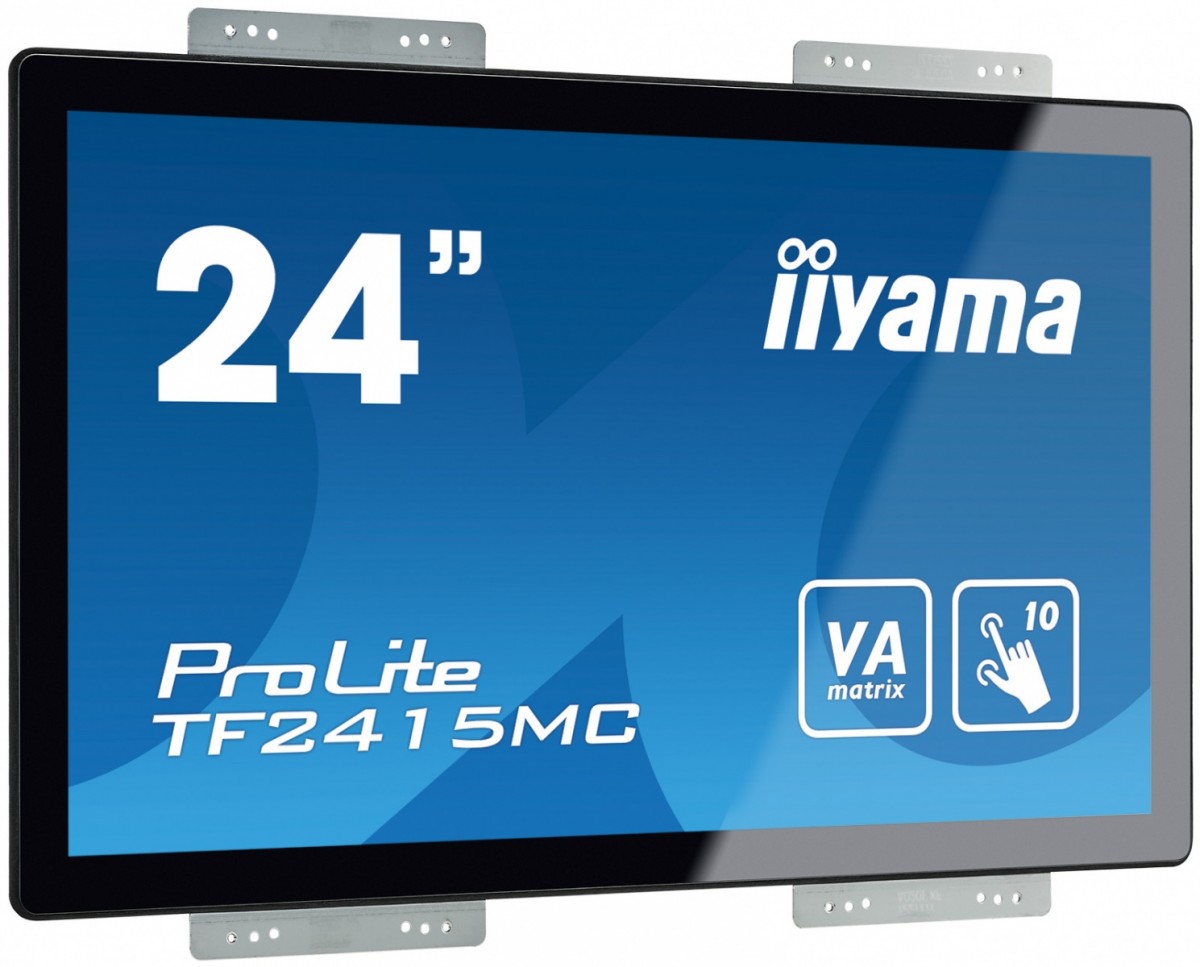

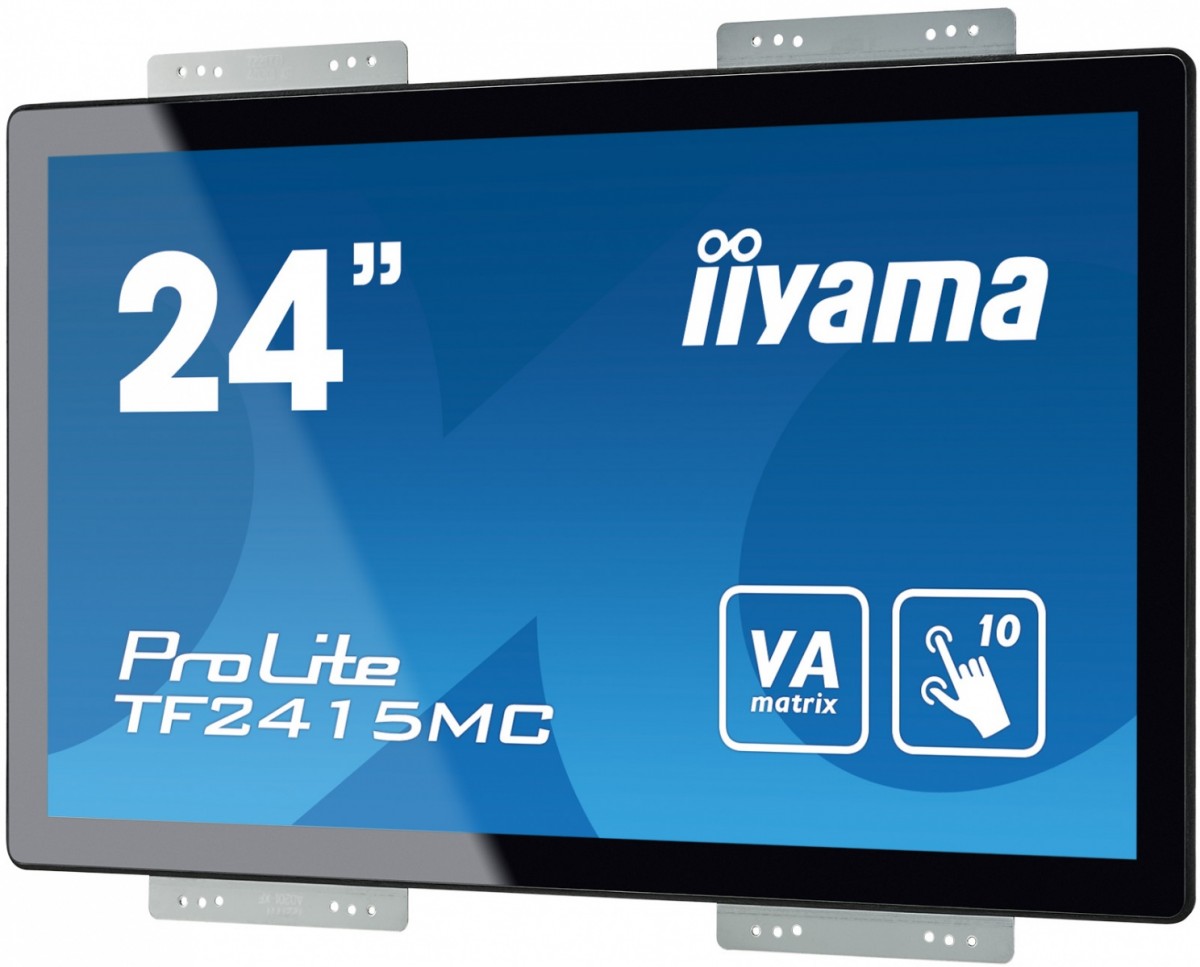

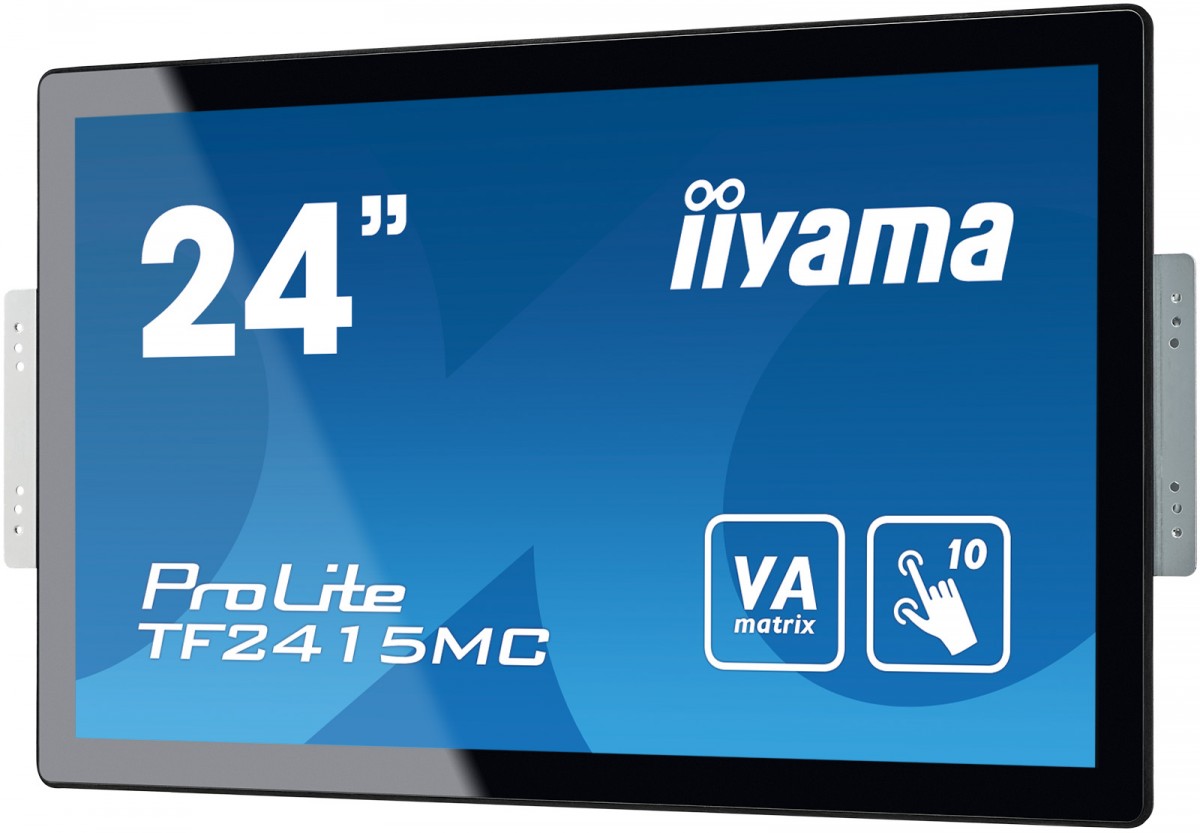

Open frame brackets
This open frame monitor is equipped with mounting strips as standard. This guarantees ease of installation in all kinds of interactive kiosks and outlets.
Foam cover
Foam cover (8mm) along the edge of the housing ensures perfect fit of the monitor to the mounting location and additionally protects against dust penetration.
Anti-fingerprint coating
The special nano coating ensures trouble-free operation and smooth touch. In addition, the screen becomes less susceptible to dirt, dust and fingerprints.
- Power cable (1.8m)
- USB cable (1.8m)
- HDMI cable (1.8m)
- DP cable (1.8m)
- Quick User Guide
- Safety Instructions
- Power Supply
- Touch Panel Driver Disk (CD-ROM)
- Mounting strips
- External control panel
