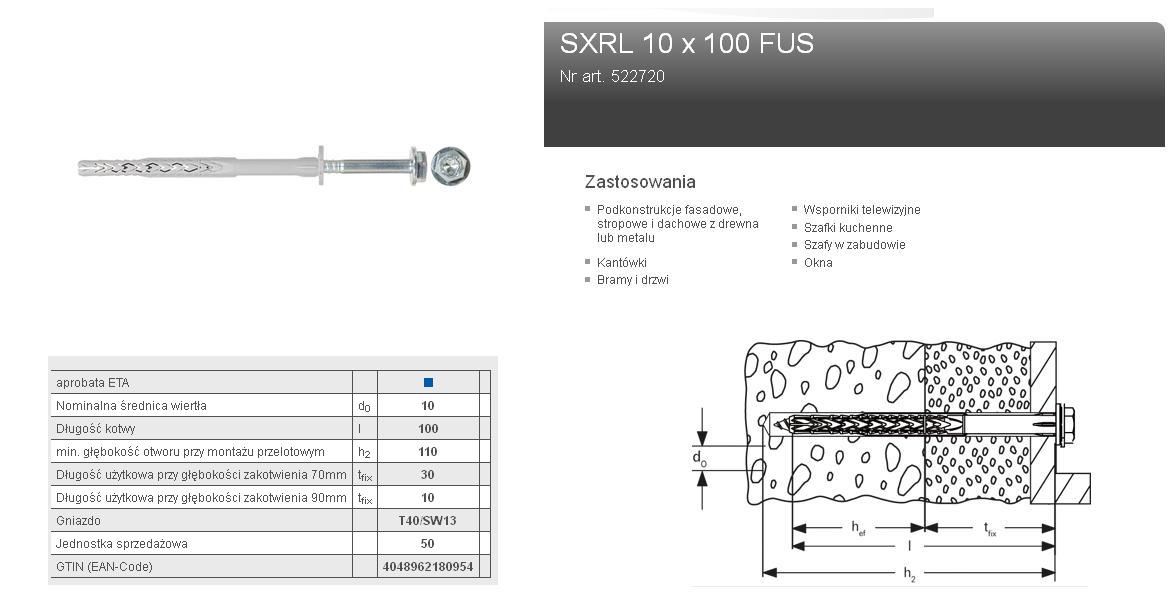

Fischer Wall Plug Frame fixing SXRL 10 x 100 FUS zinc-plated steel T40/SW13 50pcs

The fischer frame fixing SXRL FUS is approved along with the fischer hexagon head screw with moulded washer and integrated bit holder T40 for multiple fixings of non-load-bearing systems in masonry, concrete, and aerated concrete. The two expansion zones in the fixing induce forces equally into perforated masonry, these combine to form a long expansion element in aerated concrete and solid building material. The frame fixing with the safety screw made out of zinc-plated steel is suitable for fixings of façade, ceiling and roof substructures made of metal.

Nominal drill diameter 10mm
Anchor length 100mm
min. hole depth for through-hole assembly (h2) 110mm
Usable length at anchorage depth 70mm (tfix) 30 m
Usable length at anchorage depth 90mm (tfix) 10 mm
Socket T40 / SW13

Applications
Façade, ceiling and roof substructures made of metal Squared timbers Joist hanger Windows Gates and doors Fire protection doors Blinds / folding shutters Handrails Wardrobes Kitchen hanging cabinets TV consoles Shelves Lighting Wall covering Metal brackets Metal supports Guide rails Cable ducts Cable trays Radiators Air conditioning units Beams

Building materials
Approved for: Vertically perforated brick Aerated concrete Hollow blocks made from lightweight concrete Perforated sand-lime brick Thermal insulation blocks Solid block made from lightweight and normal weight concrete Solid brick Solid sand-lime brick Concrete ≧ C12/15
Also suitable for: Natural stone with dense structure Solid panel made from gypsum
