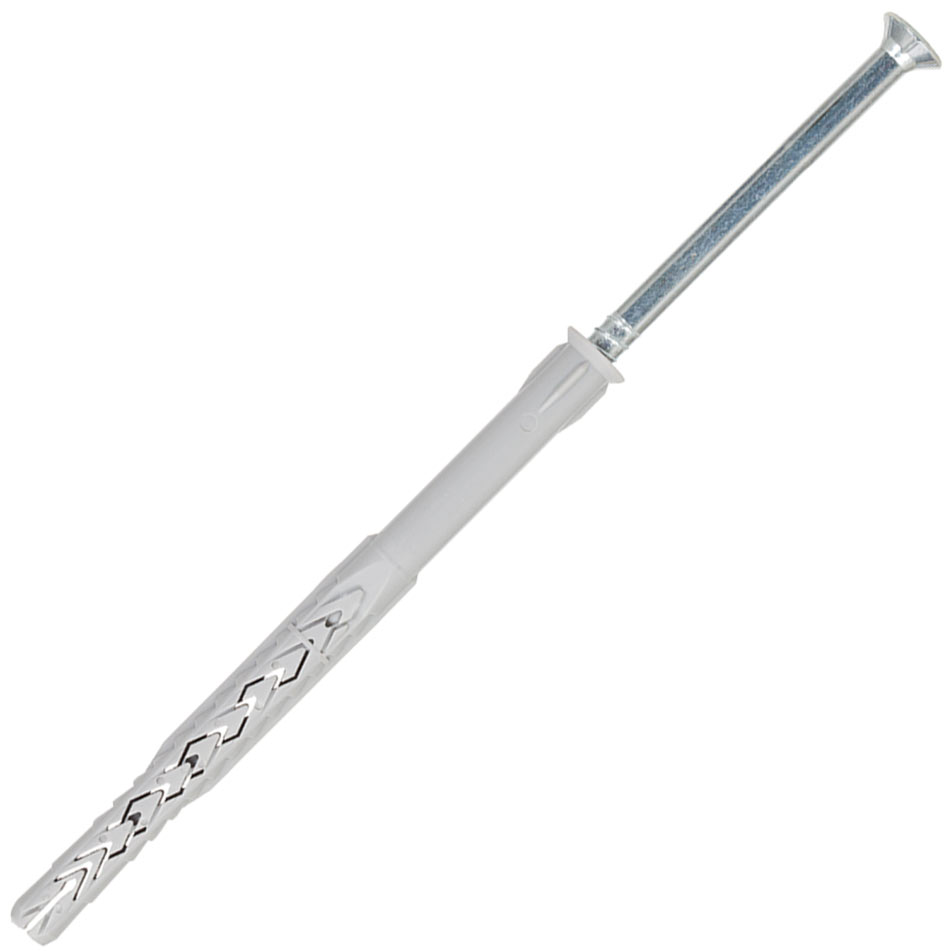

Fischer Wall Plug Frame Fixing SXRL 10 x 100 T zinc-plated steel T40 50pcs

The fischer frame fixing SXRL-T is approved along with the fischer countersunk head screw with T40 drive for multiple fixings of non-load-bearing systems in masonry, concrete, and aerated concrete. The two expansion zones in the fixing induce forces equally into perforated masonry, these combine to form a long expansion element in aerated concrete and solid building material. The frame fixing with the safety screw made out of zinc-plated steel is suitable for fixings in internal areas such as windows, coat racks, wall cupboards, or TV consoles.

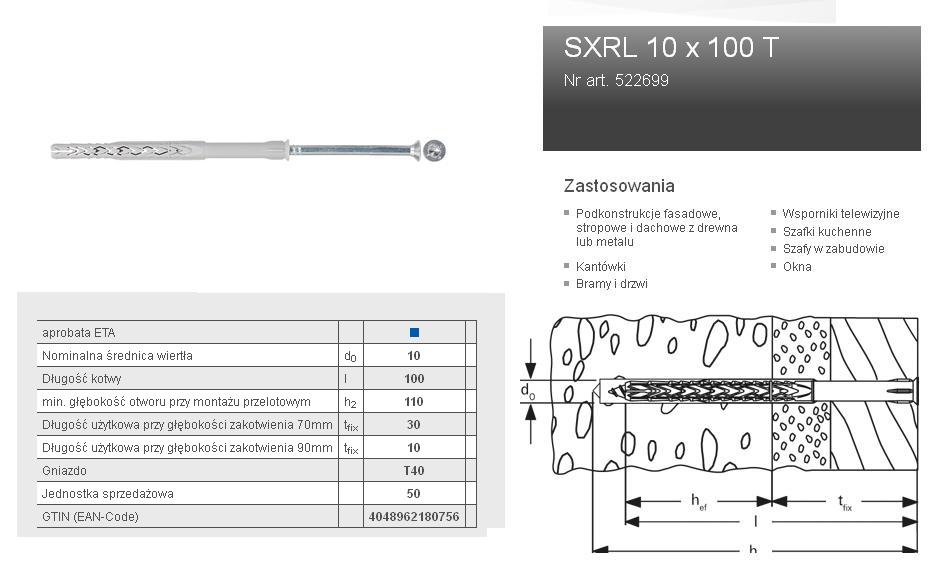

Nominal drill diameter (d0) 10
Anchor length (i) 100
Min. Hole depth for through-hole assembly (h2) 110mm
Usable length at anchorage depth 70mm (tfix) 30mm
Usable length at anchorage depth 90mm (tfix) 10mm
T40 socket

Applications:
Façade, ceiling and roof substructures made of wood Squared timbers Windows Gates and doors Fire protection doors Blinds / folding shutters Handrails Wardrobes Kitchen hanging cabinets TV consoles Shelves Lighting Wall covering Metal brackets Metal supports Guide rails Cable ducts Cable trays Radiators Air conditioning units Beams

Building materials
- Approved for: Vertically perforated brick Aerated concrete Hollow blocks made from lightweight concrete Perforated sand-lime brick Thermal insulation blocks Solid block made from lightweight and normal weight concrete Solid brick Solid sand-lime brick Concrete ≧ C12/15
- Also suitable for: Natural stone with dense structure Solid panel made from gypsum
