Epson Scanner WF DS-1630 A4 USB3/25ppm/ADF50/1200dp
Technical data
Dimensions | 451 x 315 x 120 mm |
Weight | 3.7 kilogram |
Other parameters | - Electrical Standards : Compliance with Energy Star - Noise: Operating: 55 dB ( A) - Humidity : Work 20 % - 80 % Storage 20 % - 80 % - Temperature: Operating 10 ° C - 35 ° C , storage -20 ° C - 60 ° C - Settings Ethernet 10BASE - T / 100BASE -TX / 1000BASE -T / full duplex / half- duplex - Panel Type : 5-line LCD panel with the " Push Scan" - Supported protocols : TCP / IP , DHCP , DNS , SNMP, SLP - IPv6 support : Yes - The " Push Scan" : Yes ( with solutions Document Capture Pro ) - Lock the panel with the slogan: Yes ( with solutions Document Capture Pro ) |
Delivery set | - Basic unit - Power cable - Installation instructions - Software ( CD) - USB cable - Documents Warranty |
Interface | USB |
Application | text (OCR) |
Scanner type | flat |
Optical system | ReadyScan LED technology |
Optical resolution | 600 DPI x 600 DPI |
Automatic document feeder | yes |
Maximum original width | 210 Millimetre |
Maximum original height | 3048 Millimetre |
Scanning speed | - Monochrome 25 ppm . - Color: 25 ppm . measurement using Size: A4 Resolution: 200/300 dpi - Monochrome 10 images / min - Color: 10 images / min measurement using Size: A4 Resolution: 200/300 dpi |
Scanned size | A4 |
Interpolated resolution | 1200 x 1200 DPI |
Designation | CE+WEEE |
Description

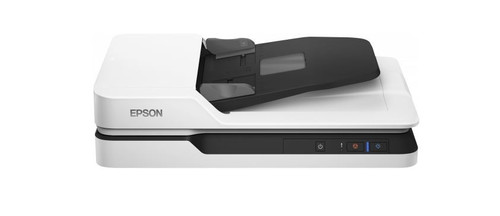

WorkForce DS-1630

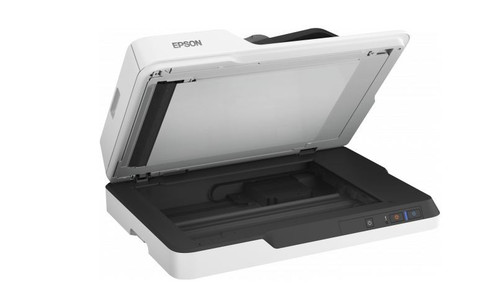

The combination of universal flatbed scanner with the convenience of an automatic document feeder for 50 sheets, you can scan various types of media such as books, passports or documents stapled or delicate, yet fast and simple scanning of office documents. Its compact size, you can easily place the device in any office, including in areas accessible to customers.
Smart features
Image processing technology Epson - features intelligent color matching and image, such as trimming documents, Skew, blank page removal and background. Long Document Mode allows you to scan single-sided documents over a three meter (3048 mm).
Streamline working in his office
The scanning speed is 25 pages per minute - is one of the fastest scanners in its class. Connectivity USB 3.0 eliminates the delay, even when scanning at a high resolution of 300 dpi. Scanning both sides of a document thanks to the two-sided scanning increases comfort. An optional adapter panel allows you to create up to 30 jobs and scan directly to servers, cloud services and Microsoft SharePoint portal. Bundled with the scanner is Epson with the option of Dual Image Output for sending scanned once the document to two different destinations. Model DS-1630 also allows easy scan to folder, e-mail accounts online2 and other places with one push.
- Monochrome 25 ppm. - Color: 25 ppm. measurement using Size: A4 Resolution: 200/300 dpi
- Monochrome 10 images / min - Color: 10 images / min measurement using Size: A4 Resolution: 200/300 dpi
451 x 315 x 120 mm
- Electrical Standards: Compliance with Energy Star
- Noise: Operating: 55 dB (A)
- Humidity: Work 20% - 80% Storage 20% - 80%
- Temperature: Operating 10 ° C - 35 ° C, storage -20 ° C - 60 ° C
- Settings Ethernet 10BASE-T / 100BASE-TX / 1000BASE-T / full duplex / half-duplex

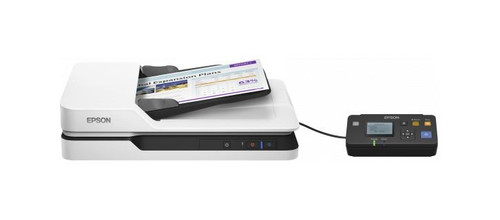

- Panel Type: 5-line LCD panel with the "Push Scan"
- Supported protocols: TCP / IP, DHCP, DNS, SNMP, SLP
- IPv6 support: Yes
- The "Push Scan": Yes (with solutions Document Capture Pro)
- Lock the panel with the slogan: Yes (with solutions Document Capture Pro)
