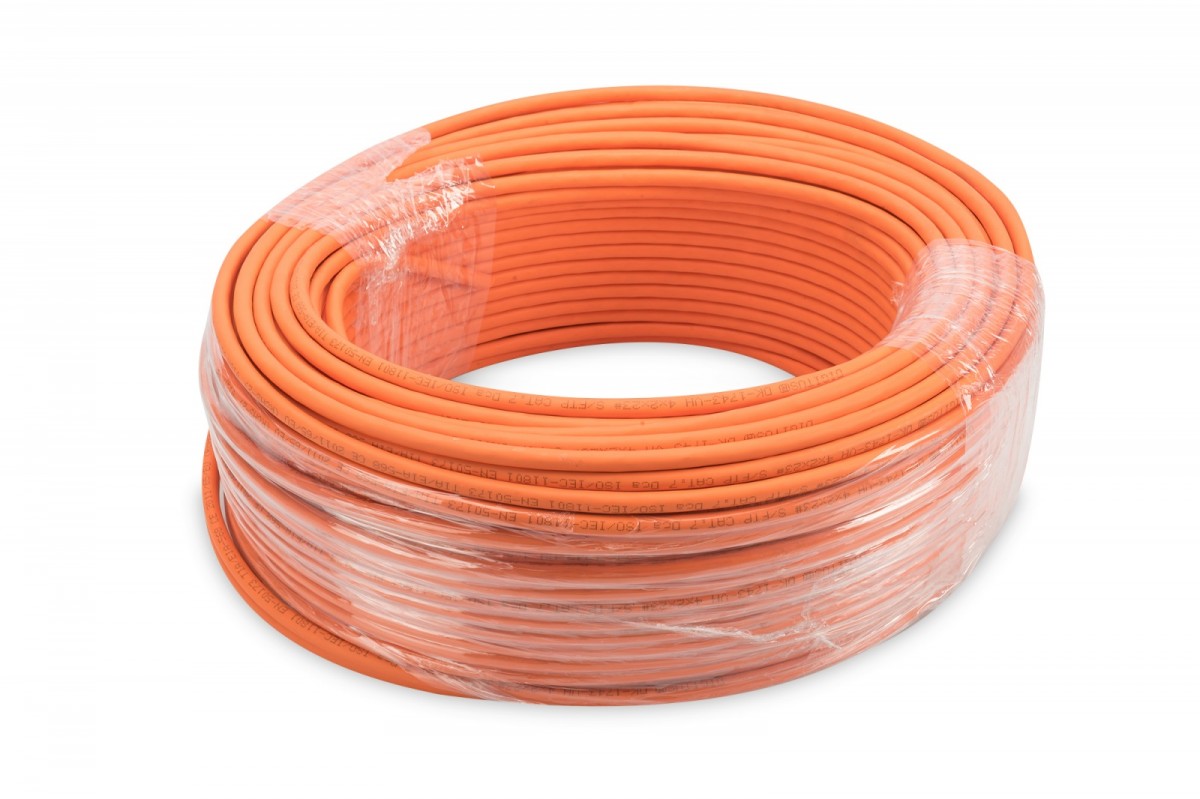

Digitus Cat.7 S/FTP Installation Cable, 100 m, simplex, Dca

<< Previous Next >>

Availability:

Available

Delivery: 08-01-2025

Price: €122.09 122.09

quantity pcs

add to wish list

Brand: Digitus

Product code/SKU: 127831

Technical data

Type	Cable
Colour	Orange
Other features	Type AWG (avg. Wire): AWG 23/1 Cable Coating Type (PVC / LS0H): LS0H (Low Smoking Zero Halogen) Cable wire type: wire Fire classification (CPR): Dca-s2, d1, a1
Category	CAT 7
Cable length	100 Meter
Usage	LAN
Connectors #1	None
Connectors #2	None
Twisted-pair cable	S/FTP
Designation	CE

Description

Future-oriented standards and high-end quality for your network.

10GBit Ethernet
1200 MHz transmission frequency
Permanent link certified
PoE Power over Ethernet support
CPR class Dca

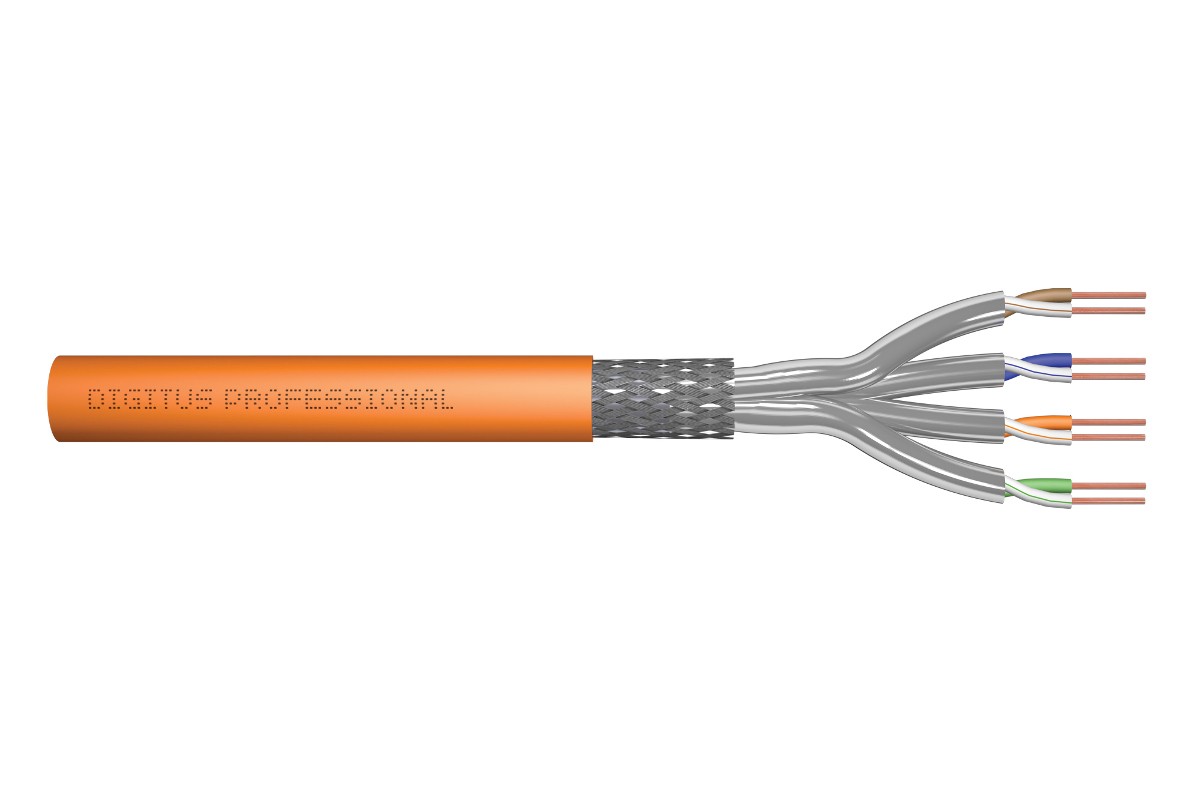

The Digitus® Professional Cat.7 S/FTP installation cable is characterized by the following cable construction 4x2x AWG23/1 and reaches a transmission frequency up to 1200 MHz. The halogen free cable jacket is conform to the standard IEC 60332-3-24, FRNC-C, LSZH-3 and CPR Euro class Dca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

Technical Details
Physical properties:
Conductor: Bare annealed copper, solid AWG 23/1
Insulation: SFS-PE (Foam-Skin Polyethylene)
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shielding: Aluminum foil, providing 100 % coverage
Overall shielding: Copper braid
Outer sheath: Eca to B2ca acc. to EN 50575; LSZH
Outer sheath diameter (nominal): 0,50 mm (Eca); 0,52 mm (Dca); 0,60 mm (Cca); 0,60 (B2ca)
Color: Orange (RAL 2000)
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -20 °C up to +50 °C
Installation temperature range: 0 °C up to +50 °C
Overall diameter Simplex (nominal): 7,0 mm (Eca); 7,2 mm (Dca); 7,5 mm (Cca); 7,5 mm (B2ca)
Weight (kg/km): 49,5 kg (Eca); 51 kg (Dca), 53 kg (Cca); 53 kg (B2ca)
Electrical properties:
Impedance: 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
Capacitance: 45 pF/m nominal @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 95 Ohm/km max. (2% max. resistance unbalance)
DC loop resistance: 190 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: CA-Type 1b
Signal propagation delay: 450 nS/100 m max.
Propagation delay: 10 nS/100 m max.
Separating class: “d” acc. to EN 50174-2
NVP: 79%
Assortment: Twisted Pair Installation Cables
USB-C Products: no
Length: 100 m
Category: CAT 7
Color: orange
CPR: Dca
Jacket: LSOH
Shielding: S-FTP, pairs in metal foil and braid shielding
Structure: 4 x 2 AWG 23/1, solid twisted pair
