DIGITUS Cat.5e U/UTP Installation Cable, 305 m, simplex, Eca

<< Previous Next >>

Availability:

Low Stock

Delivery: 15-05-2024

Price: €130.81 130.81

quantity pcs

add to wish list

Brand: Digitus

Product code/SKU: 97490

Technical data

Type	Cable
Colour	Grey
Other features	- Type AWG (medium diameter): AWG 24/1 - Cable coating type: PVC (Polyvinyl Chloride)
Category	CAT 5e
Cable length	305 Meter
Usage	LAN
Connectors #1	None
Connectors #2	None
Twisted-pair cable	U/UTP

Description

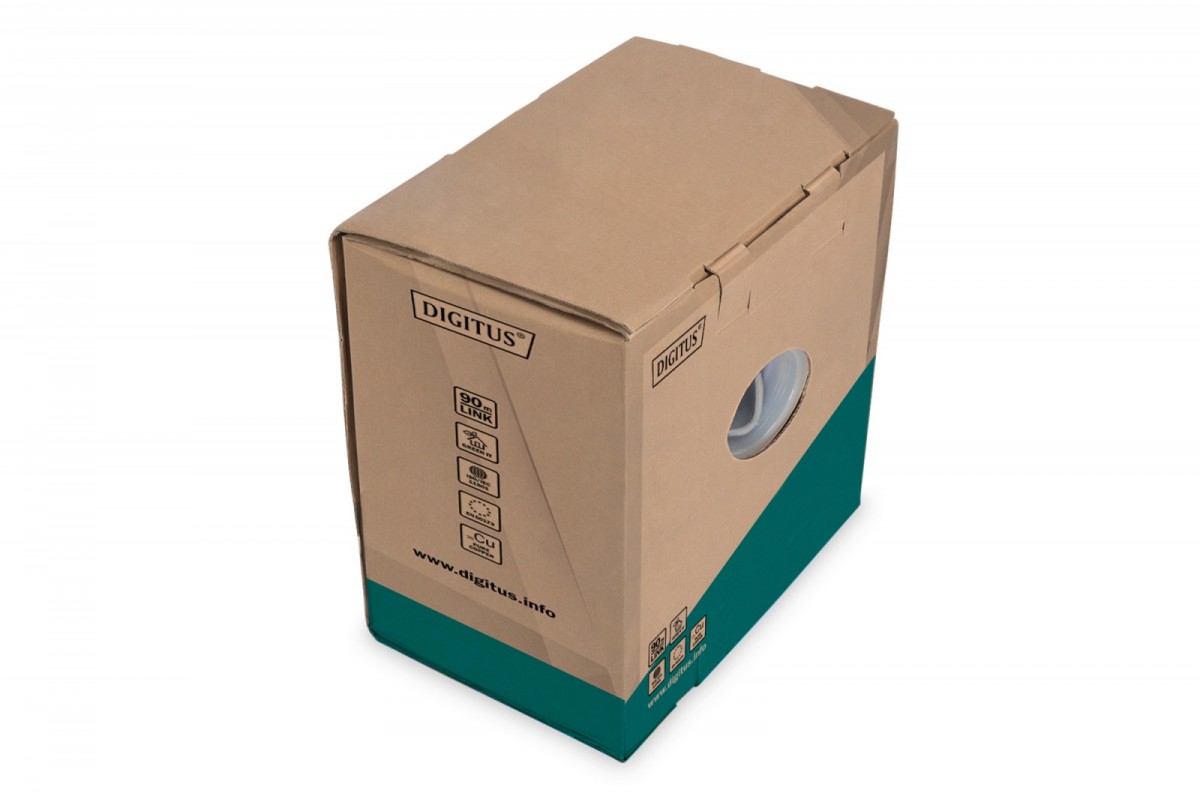

CAT 5e U-UTP installation cable, 100 MHz Eca (PVC), AWG 24/1, 305 m paper box, sx, grey

1GBit Ethernet
100 Mhz transmission frequency
PoE Power over Ethernet support
CPR class Eca

The Digitus® Professional Cat.5e U/UTP installation cable reaches a transmission frequency up to 100 MHz. The PVC cable jacket is conform to the CPR Euro class Eca. The cable is suitable for building structured cabling in the secondary and tertiary area. Compliant with the following standards ISO/IEC 11801, DIN EN 50173, DIN EN 50288-2-1.

Technical Details

Physical properties:
Conductor: Bare annealed copper, solid AWG 24/1
Insulation: PE (Polyethylene)

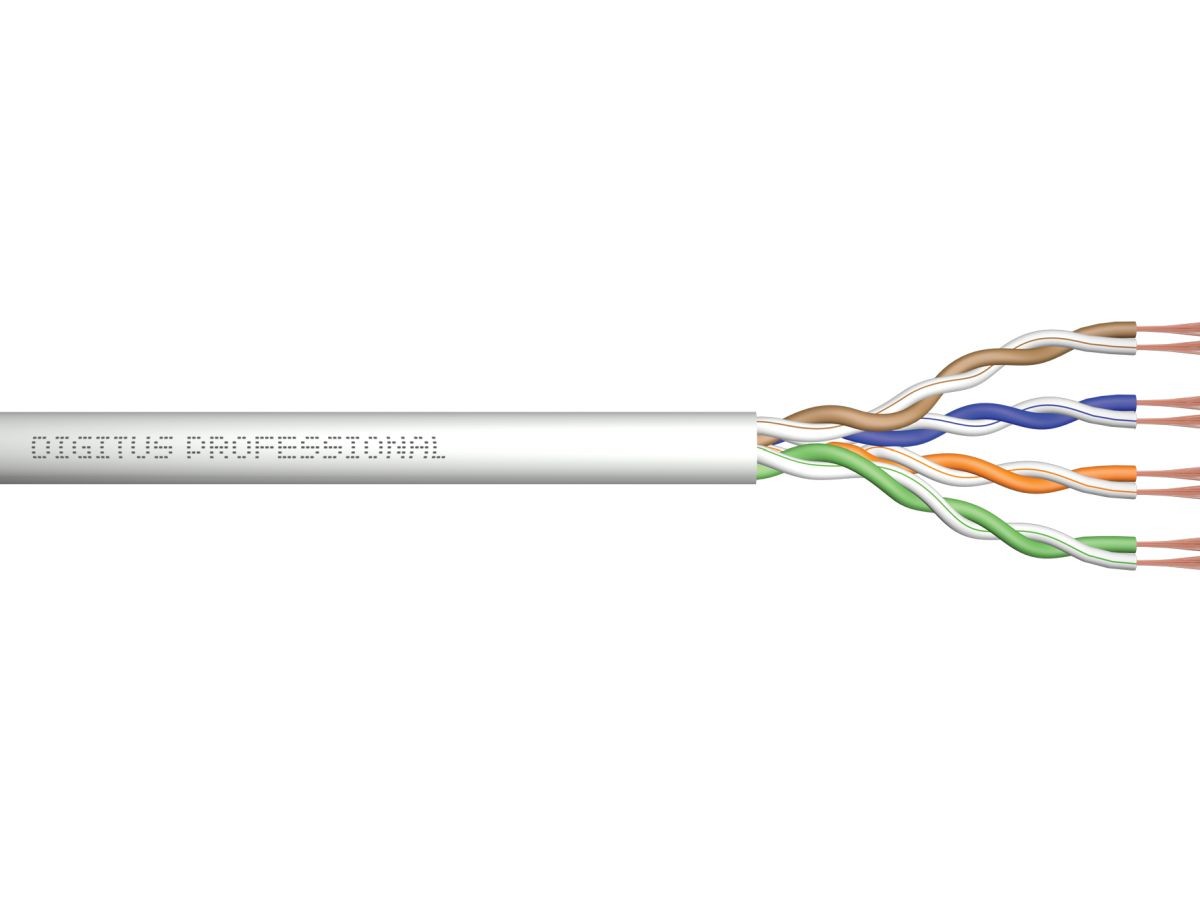

Total number of insulated conductors: 8, twisted in 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Individual pair shield: None
Overall shielding: None
Outer sheath: Eca acc. to EN 50575; PVC
Outer sheath diameter (nominal): 0.50 mm nominal
Outer sheath color: Grey (RAL 7035)
Mechanical properties:
Tensile loading: 150N max.
Dynamic bending radius: 8x AD mm min.
Static bending radius: 4x AD mm min.
Shipping- and storage temperature range: -20 °C up to +75 °C
Operating temperature range: -20 °C up to +60 °C
Installation temperature range: 0 °C up to +50 °C
Overall diameter Simplex (nominal): 4.7 mm nominal
Electrical properties:
Impedance: 100±5 Ohm @ 1-600 MHz
Capacitance: 40 pF/m nominal @ 800 Hz
Capacitance unbalance (pair-ground): 1.5 pF/m max. @ 1 KHz
Insulation resistance: 5 GOhm x km min.
DC loop resistance: 147 Ohm/km max. (2% max. resistance unbalance)
Voltage resistance: 72 Vdc max.
Coupling attenuation: CA-Type 3
Signal propagation delay: 535 nS/100 m max.
Propagation delay: 20 nS/100 m max.
Separating class: ,,b" acc. to EN 50174-2
NVP: 69%
Assortment: Twisted Pair Installation Cables
Length: 305 m
Category: CAT 5e
Color: grey
CPR: Eca
Jacket: PVC
Shielding: U-UTP, unshielded
Structure: 4 x 2 AWG 24/1, solid twisted pair
