Cudy Outdoor Router WiFi LT400 4G LTE SIM N300
Technical data
Type | GSM 3G/4G |
Colour | White |
Dimensions | Router body: 240 x 100 x 53.7 mm 4G antennas: 197.5 x 21.6 x 15.5mm |
Other features | Wi-Fi data rate: 2.4 GHz (802.11n/g/b, 300 Mbps) Cellular Data Rate: FDD: Max 150Mbps(DL)/ 50Mbps(UL) TDD: Max 130Mbps(DL)/ 30Mbps(UL) DC-HSDPA: Max. 21Mbps (DL) / 5.76Mbps (UL) WCDMA: 384Kbps (DL/UL) |

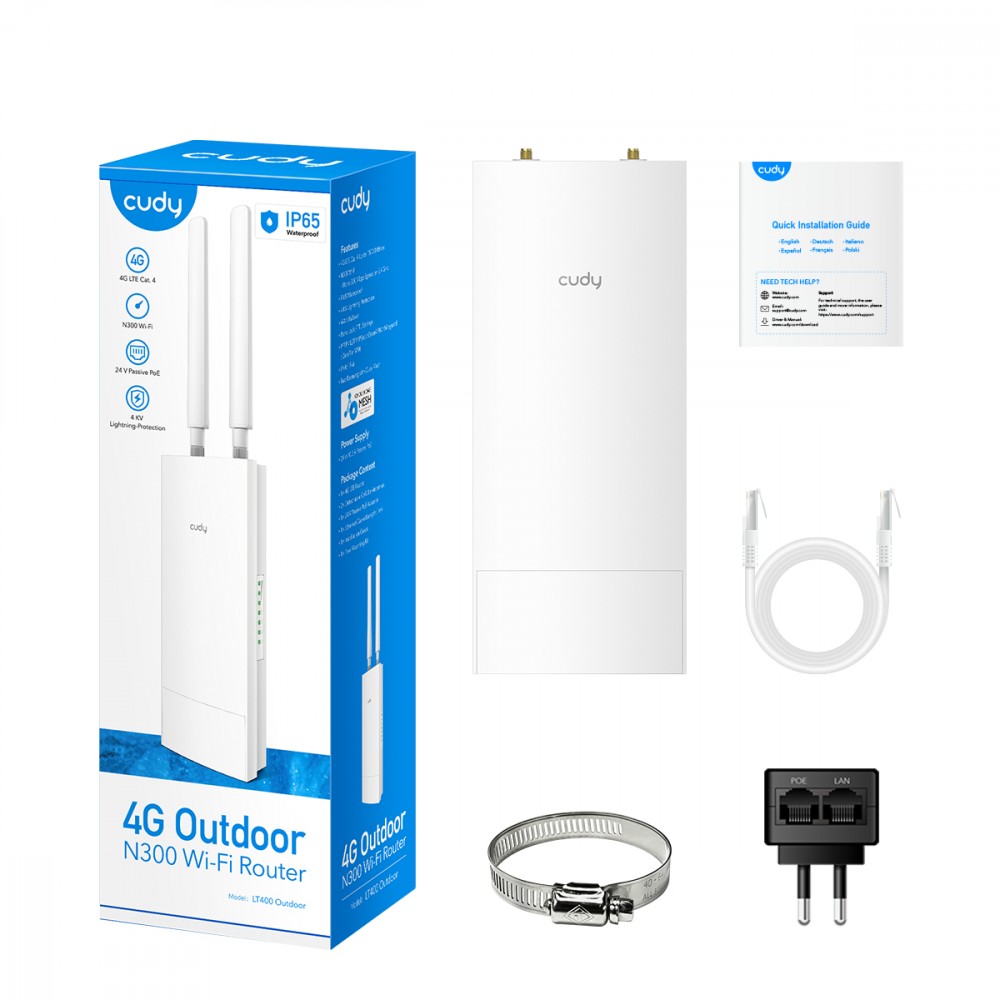

Accessories included | 2 x detachable 4G antenna Passive PoE adapter 24V/0.5A Accessories for pole installation Ethernet cable Quick Installation Guide |
Model | LT400 Outdoor |
Supported operating systems | Windows 11 |
I/O ports | 1 x 10/100 Mbit/s LAN / WAN (Combo) |
Power supply | Passive PoE adapter 24V/0.5A |
Security | WEP WPA/WPA2 WPA-PSK/WPA2-PSK |
Card reader | None |
System Requirements | Firefox 12.0, Chrome 20.0, Safari 4.0 or other Java-enabled browser |
Data transmission | LTE |
GSM network | 1900 MHz |
UMTS network | 900 MHz |
LTE network | 2100 MHz |
SIM card | Nano |
Antenna | Built-in |
Environment requirements | Operating temperature: -20°C to 60°C Storage temperature: -40°C to 70°C |
Operating frequency | 2,4 GHz |
Standards | 802.11b |
Number of antennas | 4 |
Antenna gain | 5 dBi |
Management, monitoring, configuration | WAN Type: 4G/Dynamic IP/Static IP/PPPoE DHCP: server, DHCP client list, address reservation Dynamic DNS: Compatible with 15 other DDNS providers NAT: port forwarding, port triggering, UPnP, DMZ VPN server and client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier CWMP protocol: TR069 / TR098 / TR111 / TR181 Compatible with ACS server: GenieACS, OpenACS Management: Access Control, Local Management, Remote Management, Wake on LAN TTL: Extend/Spoof/Custom DNS: Cloudare/Google/Custom Internet protocols: IPv4 / IPv6 IPv6: Relay; Dynamic (SLAAC/DHCPv6); Static (permanent IP address); Go through; MAP-E (dual stack); DS-Lite (Dual Stack) SMS: send/receive Blocking the 4G band |
Aero2 support | No |
Warning | CE+WEEE |
Description
Router LT400 Outdoor
- LTE FDD/TDD Cat 4
- N300 Wi-Fi
- 1 x 10/100Mbps WAN/LAN
- Nano SIM Slot
- 24V Passive PoE
- 2 x Internal WiFi Antennas + 2 x Detachable 4G Antennas
- VPN & DDNS
- IP65 WaterProof
Turn Everywhere 4G into N300 Wi-Fi
With 4G Cat.4 standards, LT400 Outdoor communicates with a 4G tower with speeds of up to 150 Mbps download and 50 Mbps upload. It features a N300 Wi-Fi, providing reliable network for web browsing,video streaming, surveilance, and POS services.
Boosted Wi-Fi Coverage with Beamforming
Tested Wi-Fi coverage performance in four dierent scenarios, achieved by Beamforming technology and two built-in antennas. If your space is too large for one Cudy 4G Outdoor Router to cover, you can expand your Wi-Fi coverage into a Mesh network by adding another Cudy AP.

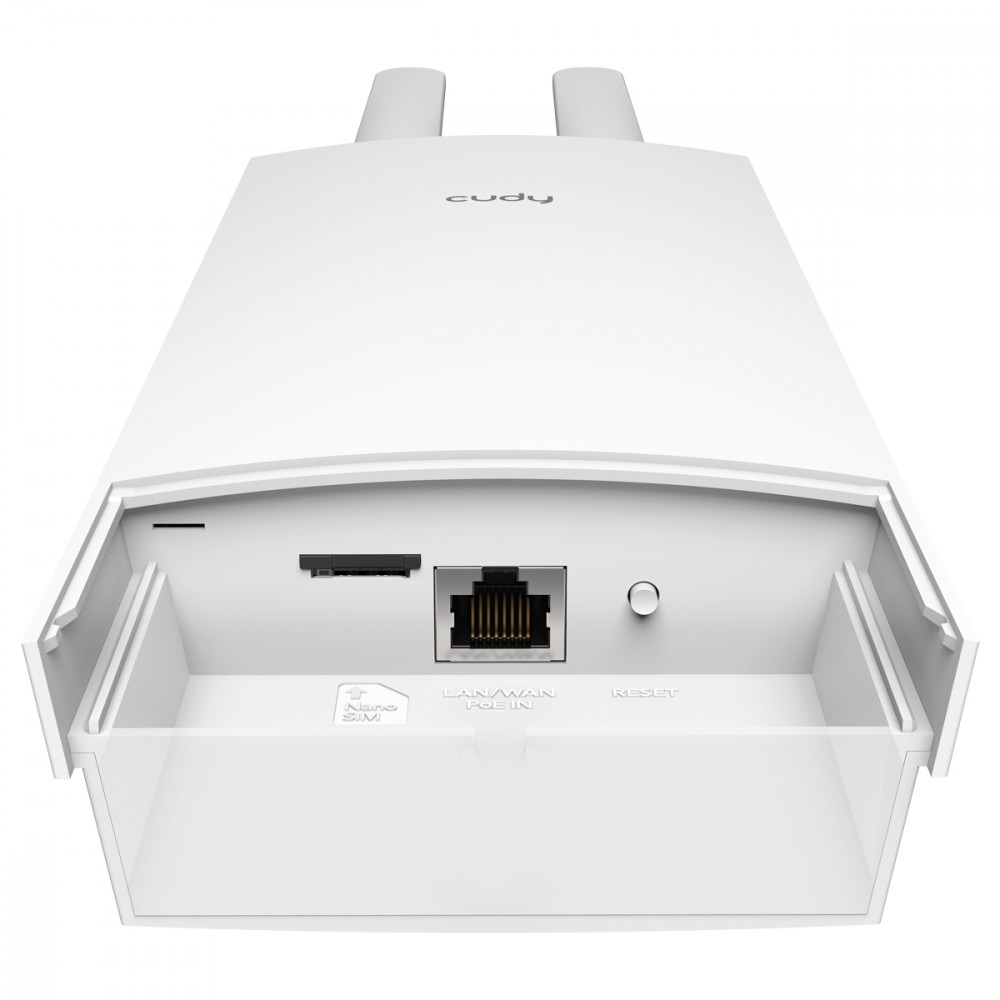

Insert a SIM, Enjoy Wi-Fi
Install Wi-Fi anywhere is as easy as plugging a SIM card and booting it up with the PoE adapter. One PoE Adapter is included in the box.
Pull Network to 100 m Away
Plug your Ethernet cable into the PoE adapter/switch to get up to 100 m of wired network reach. The extra cable is not included in the box.
Install an AP for Indoor Wi-Fi
Connect an AP to the PoE adapter to equip your cafe, home, or oce with a better Wi-Fi signal. AP needs to bepurchased separately.
Install Extension Antennas
The default 4G antennas are as sensitive as a standard phone's antennas. You can still replace them with customized ones via the SMA connectors.
- WEP
- WPA/WPA2
- WPA-PSK/WPA2-PSK
- WAN Type: 4G/Dynamic IP/Static IP/PPPoE
- DHCP: server, DHCP client list, address reservation
- Dynamic DNS: Compatible with 15 other DDNS providers
- NAT: port forwarding, port triggering, UPnP, DMZ
- VPN server and client: PPTP/L2TP/OpenVPN/WireGuard/IPSec/Zerotier
- CWMP protocol: TR069 / TR098 / TR111 / TR181
- Compatible with ACS server: GenieACS, OpenACS
- Management: Access Control, Local Management, Remote Management, Wake on LAN
- TTL: Extend/Spoof/Custom
- DNS: Cloudare/Google/Custom
- Internet protocols: IPv4 / IPv6
- IPv6: Relay; Dynamic (SLAAC/DHCPv6); Static (permanent IP address); Go through; MAP-E (dual stack); DS-Lite (Dual Stack)
- SMS: send/receive
- Blocking the 4G band
