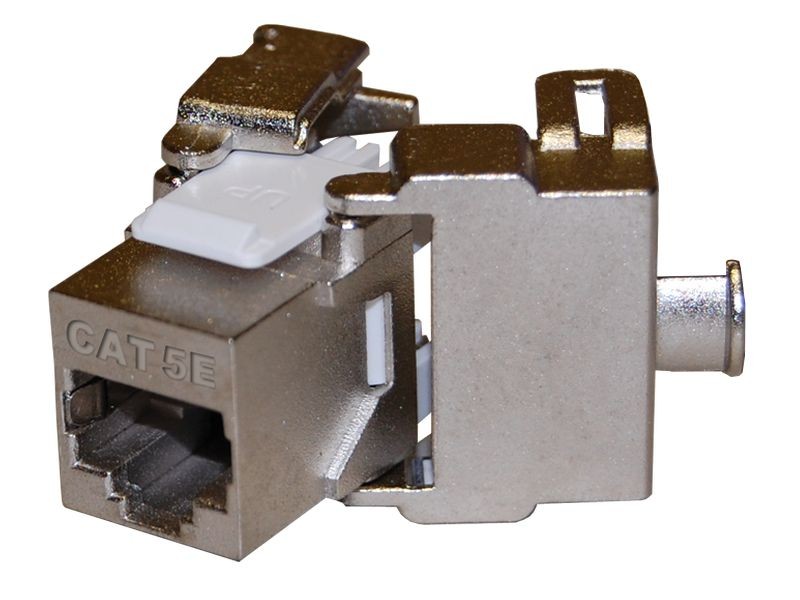

Alantec Toolless KEYSTONE Jack RJ45 Cat. 5e STP

<< Previous Next >>
Availability: Out of stock
Price: €5.81 5.81
quantity pcs
add to wish list
Brand: Alantec
Product code/SKU: 731774

Technical data

Quantity in unit package 1
Connector RJ-45

Description

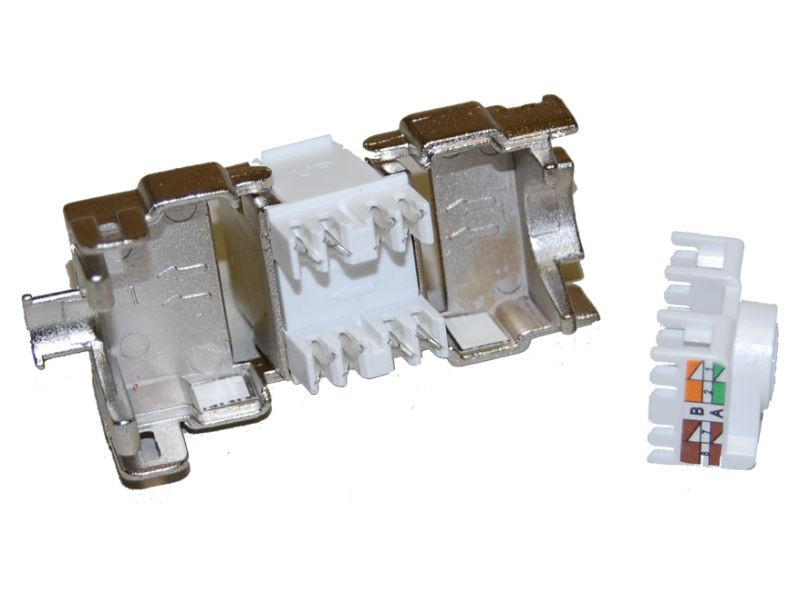

ALANTEC Toolless, shielded transmission jack is designed to build both the user outlet and patch fields in indoor installations in horizontal and vertical data communication networks threatened by the impact of electromagnetic interference. This solution enables to assemble without the use of special tools for terminating connectors entire transmission path highly efficient Class D shielded. The whole installation process is quick and comfortable (according to our experience earn such outlets is 1/3 of the standard timebased performance tooling system).

Through the use of special, universal attachments can be mounted in any elements (empty patch panels, wall boxes, floor etc.)
- possibility of connecting cables AW 22-26 in sequences 568A/B
- connectors allow slot with a special guide on fixing without tools installers
- based on the printed circuit board

Category 5e (Class D) is provided to work at frequencies up to 100 MHz and 1 GB/s.

GENERAL
Category    5E
Class    D (100MHz standard) with extended characteristics up to 250 MHz / 1 Gb/s
Shield    Yes
Type of tool    toolless

BODY
Material    full metal, die-cast zinc, nickel plated compliant with EN 55022

SOCKET
Durability to standards    > 750 cycles
Durability to tests    > 1000 cycles
Contact material    fosforobrąz
Coating contacts    1,25 μm gold on 2,5 μm nickel
Contact pressure force    100 g
Breaking strength    50N / 60 second

SLOT CONNECTOR
Sequences    568A/B
Contact materials    fosforobrąz
Accepts wires    22-24AWG
Body    thermoplastic ABS compliant with UL 94 V-0

PCB PLATE
Material    laminate FR4 1,6 mm

ELECTRICAL FEATURES
Maximum current value    1,5 A
Insulation resistance    500 MΩ @ 100 Vdc
Resistance    20 mΩ
IDC resistance    2,5 mΩ
POE
Standards    PoE / 802.3 af (802.3at typ 1)

TEMPERATURE RANGE
Storage    -40oC do +70oC
Work    -10oC do +60oC
