Alantec LAN Cable U/UTP Copper Cat.6 4PR Eca PVC KIU6PVC305 305m, grey
Technical data
Type | Cable |
Colour | Grey |
Category | CAT 6 |
Cable length | 305 Meter |
Usage | LAN |
Connectors #1 | None |
Connectors #2 | None |
Twisted-pair cable | U/UTP |
Description
Category 6 U/UTP Cables are manufactured, tested and verified to the ISO/IEC 11801 2nd Edition, EN 50173:2007 and ANSI/TIA/EIA-568-B.2 standards for enhanced performance Category 6 cables.

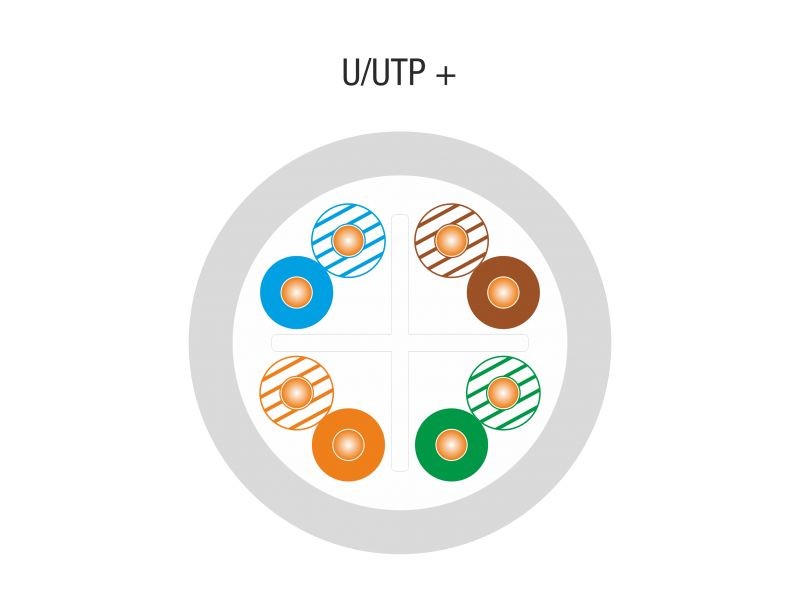

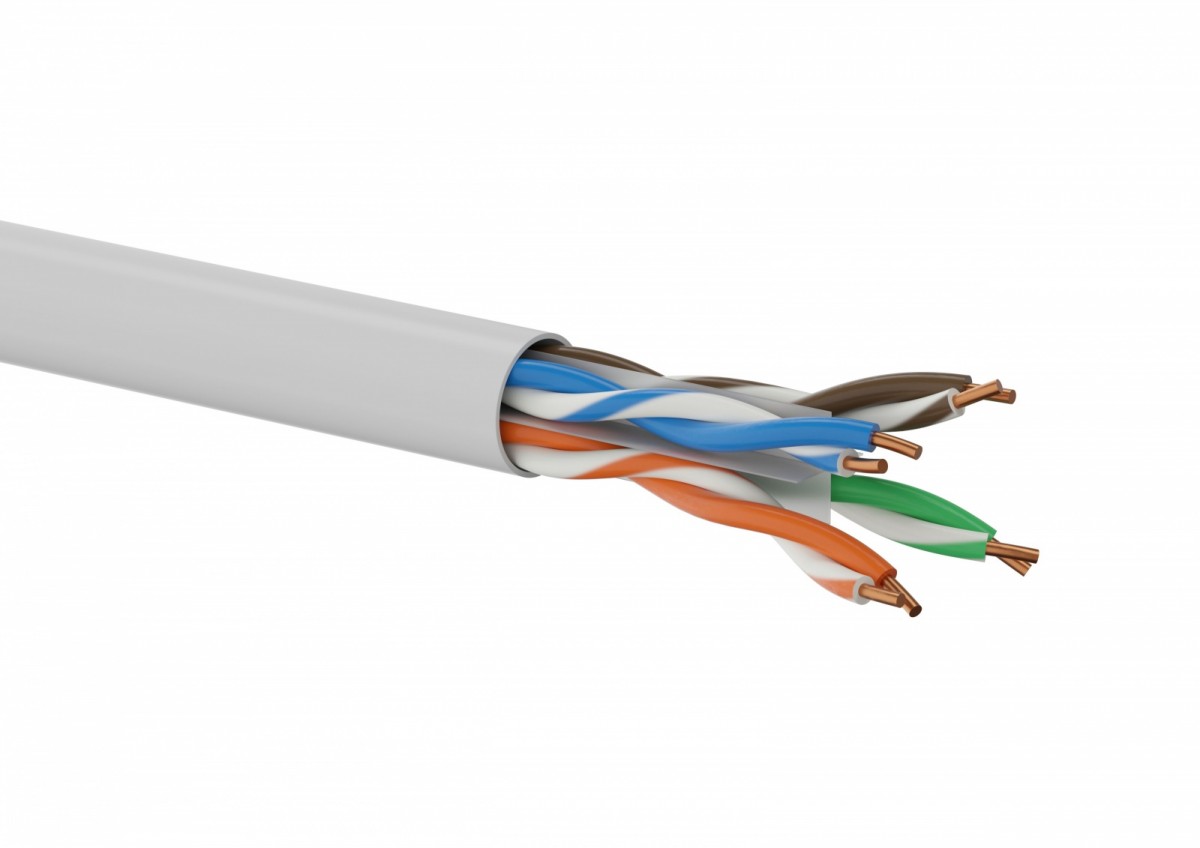

Each cable consists of 8 colour coded polyethelene insulated conductors. These are twisted together to form 4 pairs with varying lay lengths. These pairs, together with a strong nylon rip cord are jacketed in a heat resistant LSOH/FRNC or PVC material. The printing detail on the sheath, includes the cables part number, specification details and a unique 305 metre marking within each box supplied, allowing for quick and easy measurement of cable installed and the amount remaining within the box. A choice of jacket colour enables departmental or application identification where necessary.
- Category: 6
- Class: E (250MHz standard) with extended characteristics up to 475 MHz / 1 Gb/s
- Twisted element: 4x2x24AWG
- Conductor: 100% Cu - bare copper wire AWG 24/1
- Insulation: polyethylene
- Fire euroclass: Eca
- Screen: No
- Jacket: FR PVC
- PoE: 802.3 af
- Colour: Light grey
