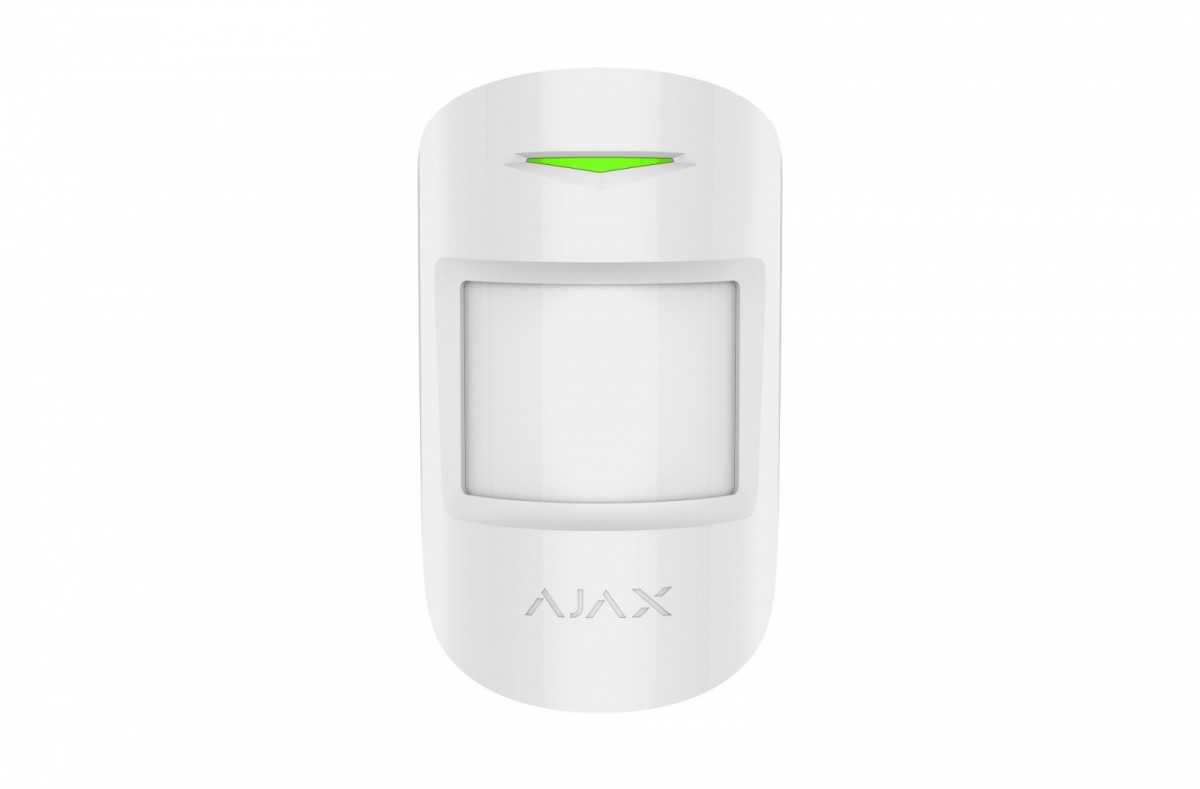

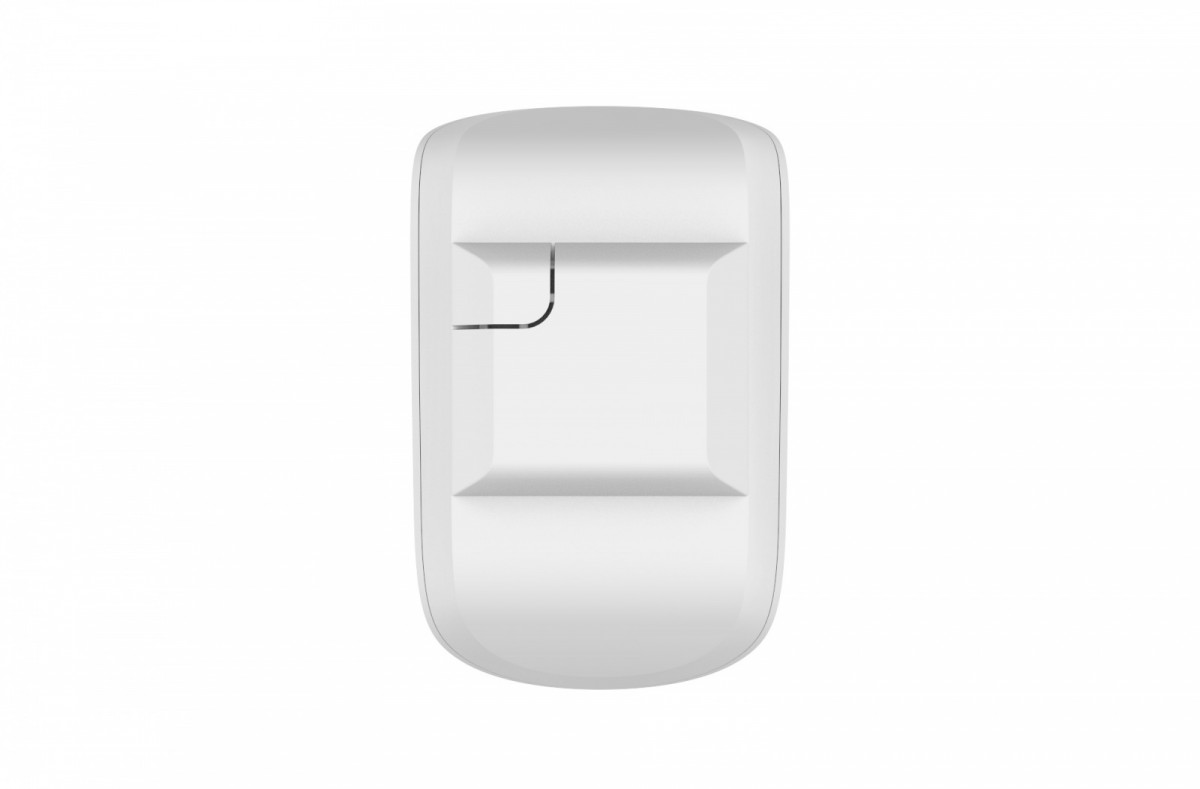

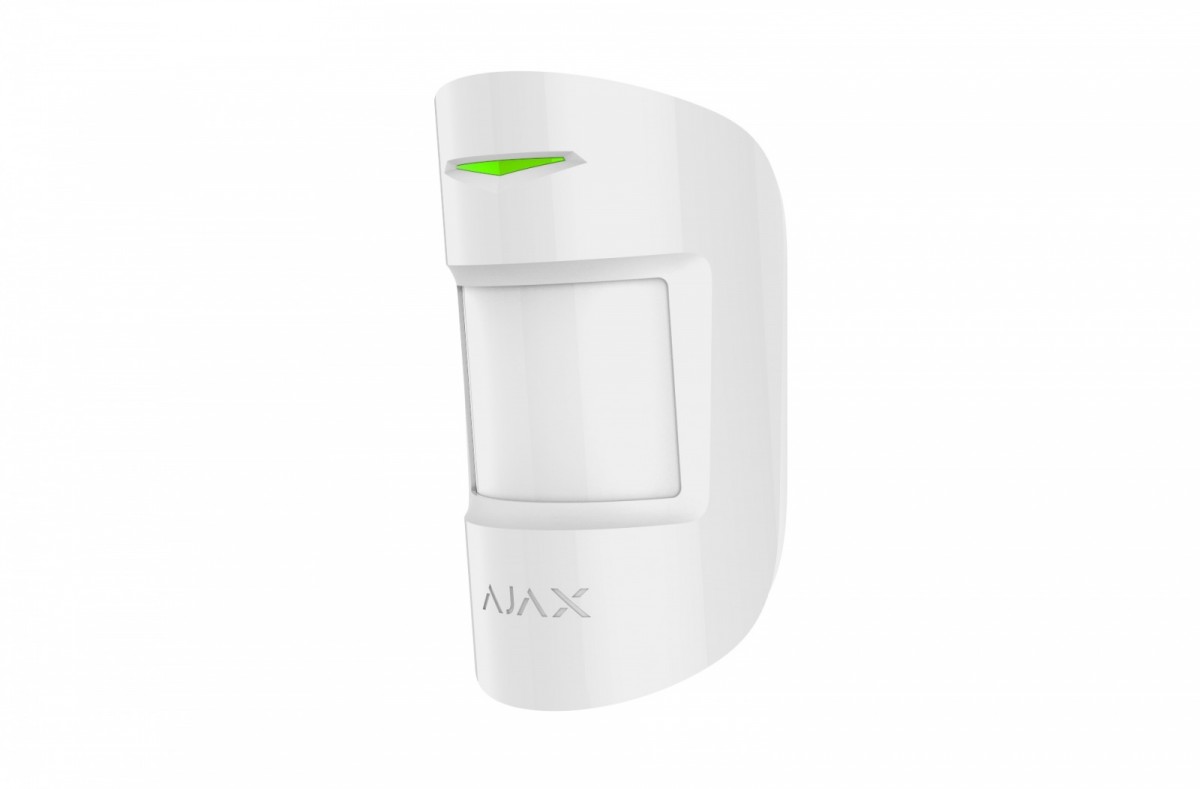

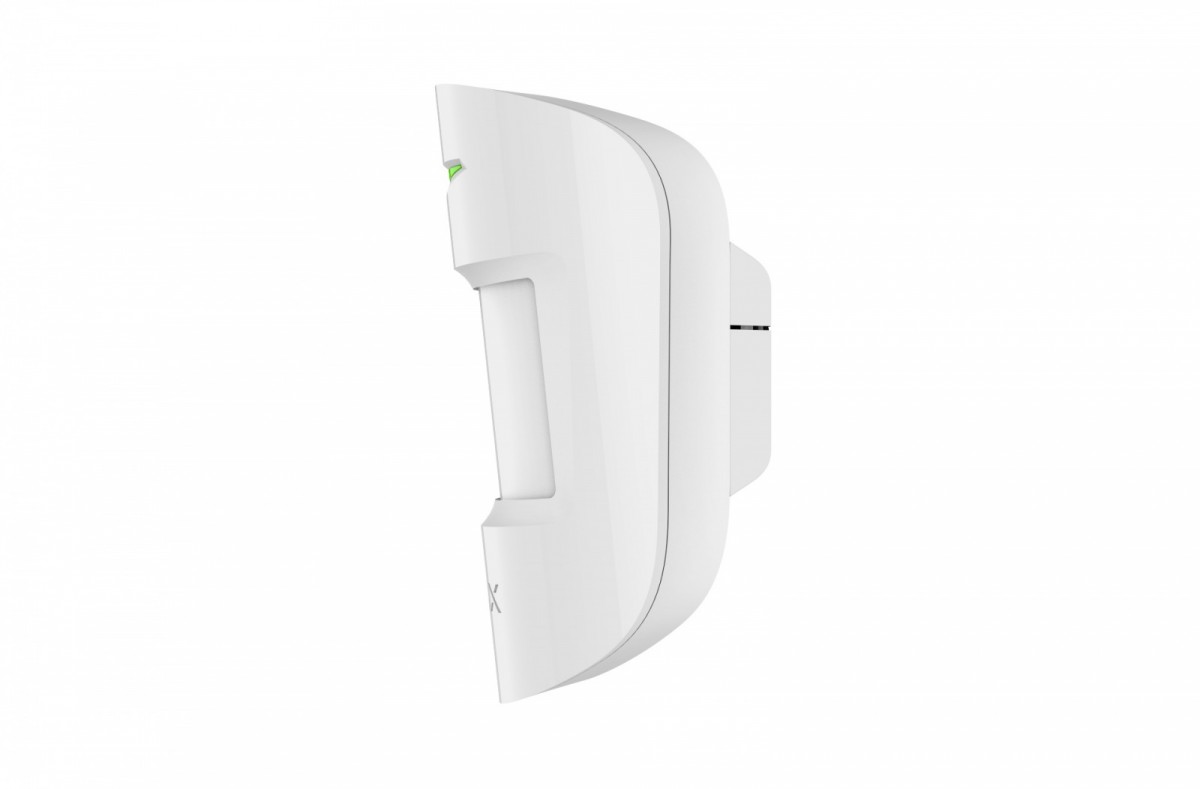

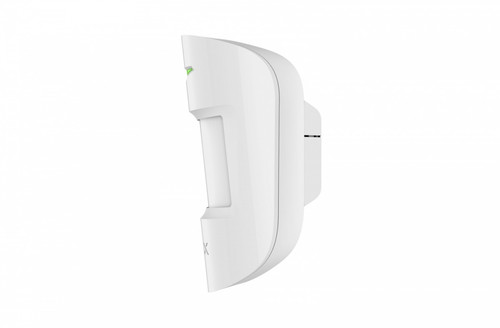

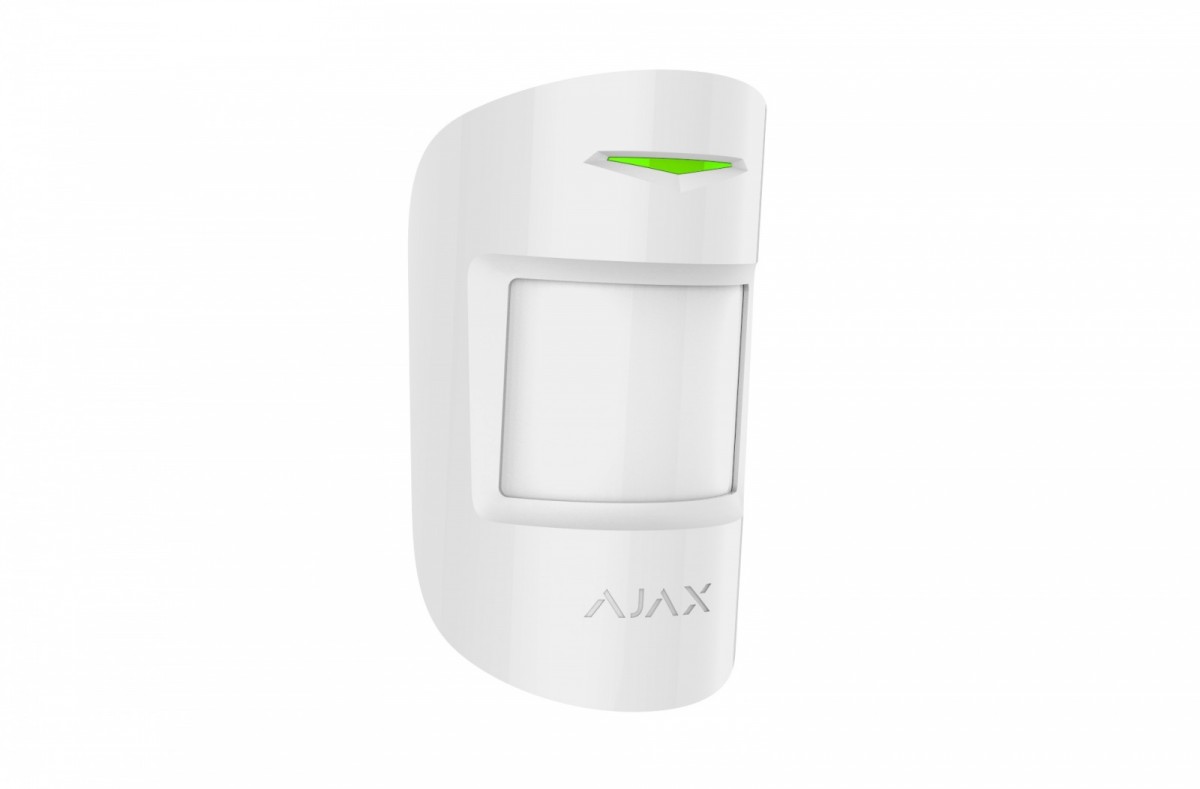

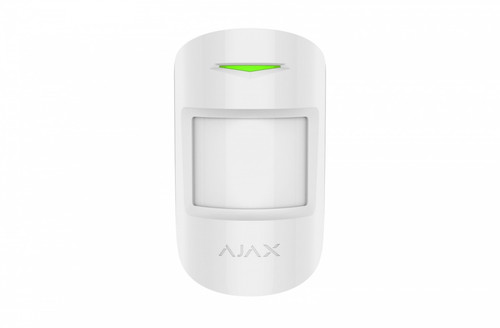

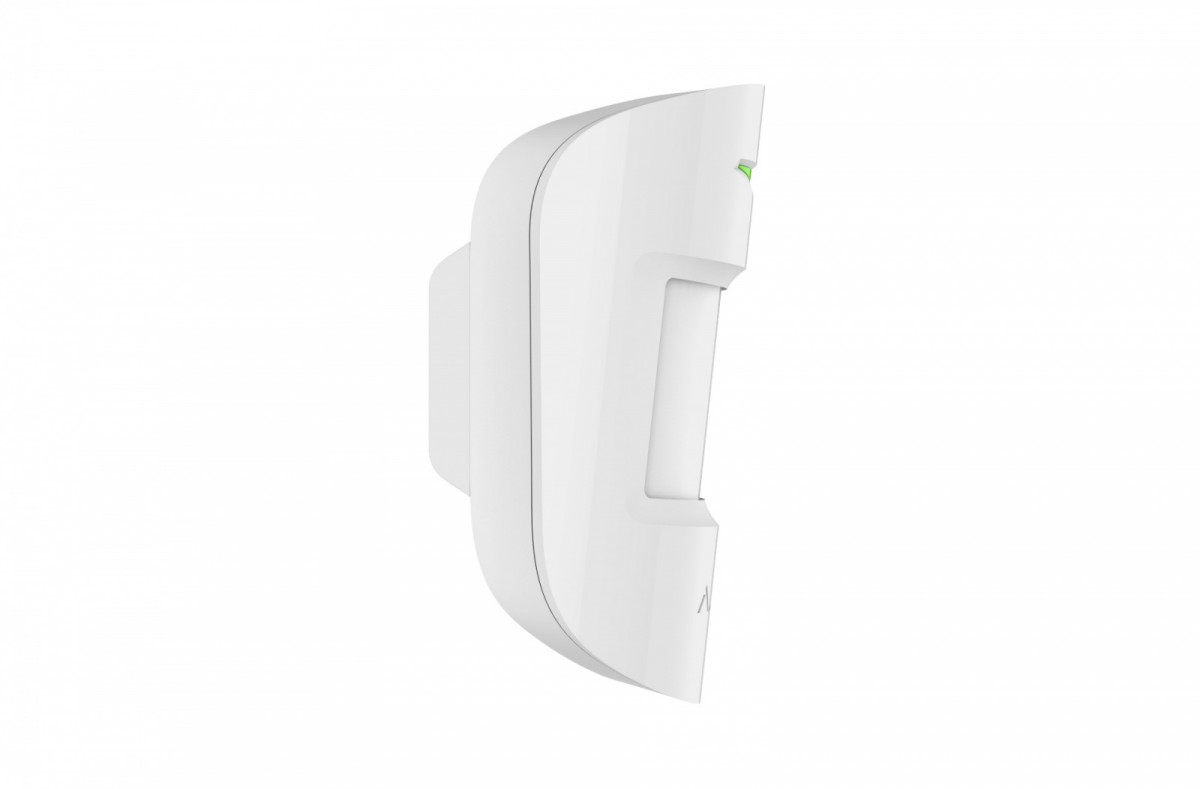

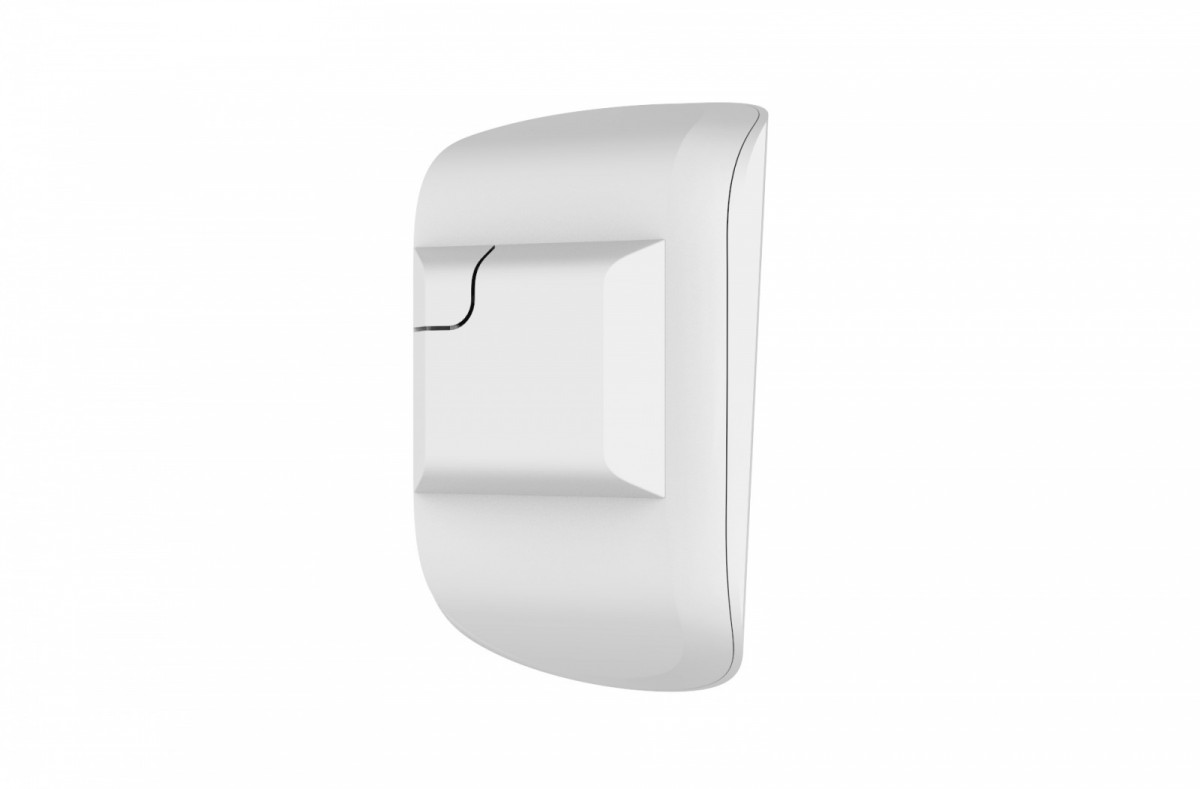

Ajax Motion Sensor MotionProtect Plus 8EU, white

<< Previous Next >>
Availability: Out of stock
Price: €112.76 112.76
quantity pcs
add to wish list
Brand: AJAX
Product code/SKU: 846026

Technical data

Compatible with Ajax hubs Ajax range doublers ocBridge Plus Ajax uartBridge Ajax
Colour White
Dimensions 110 x 65 x 50 mm
Weight 96 gram
Other features Installation method: Indoor Measuring element: PIR sensor, microwave sensor (24 GHz) Alarm signal delivery time: 0.15 s Motion detection distance: Up to 12m Viewing angles: Horizontal 88.5°; Vertical 80° Time to detect motion: 0.3 to 2 ms Sensitivity: Adjustable, 3 levels Recommended installation height: 2.4 m Pet immunity: Weight: up to 20 kg; Height: up to 50 cm Jeweler radio protocol: Range of communication with the central unit - up to 1200 m in open area Two-way communication between devices Self-regulation of the radio signal output power - up to 20 mW Block encryption based on the AES algorithm Sensor sampling period - 12-300 seconds
Accessories included MotionProtect Plus motion sensor SmartBracket mounting panel CR123A battery (installed) Installation kit user manual
Special functions temperature sensor Remote configuration and testing Fraud protection Interference detection Tamper resistant
Power supply CR123A 3V battery
Environment requirements Permissible operating temperature: from -10° to +40° Permissible humidity: Up to 75%
Detector Motion
Frequency range 868,0-868,6 MHz
Warning CE+WEEE

Description

Rating: Electro-optical security detector combined with radio channel
Type of detector: Wireless
Installation method: Inside
Compatibility: Works with Hub, Hub Plus, ReX, ocBridge Plus, uartBridge
Distance of motion detection: Up to 12
Detection angle:

  • Horizontal - 88° 30'
  • Vertical - 80°

Sensitivity: Adjustable, 3 levels
Recommended mounting height: 2.4m
Ignore pets:

  • Weight - up to 20 kg
  • Height - up to 50 cm

Battery: CR123A battery
Power voltage: 3V
Battery life: up to 5 years
Working temperature range: -10°C to +40°C
Admissible humidity: Up to 75% humidity
Dimensions: 110x65x50mm
