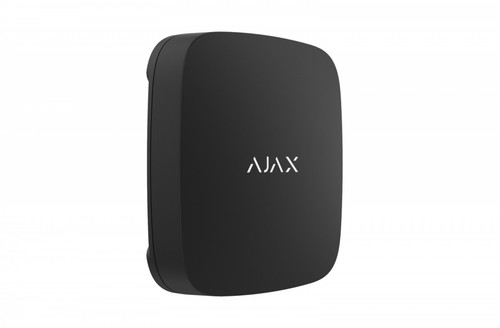

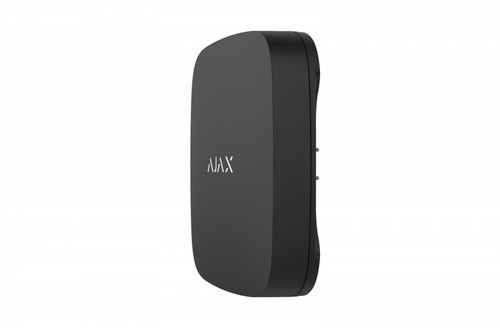

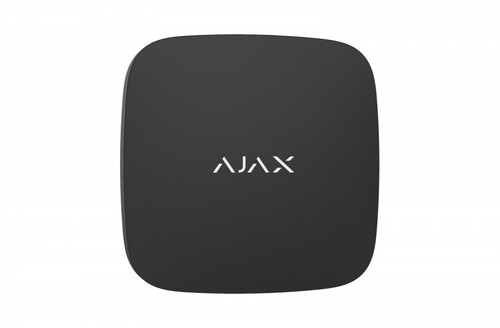

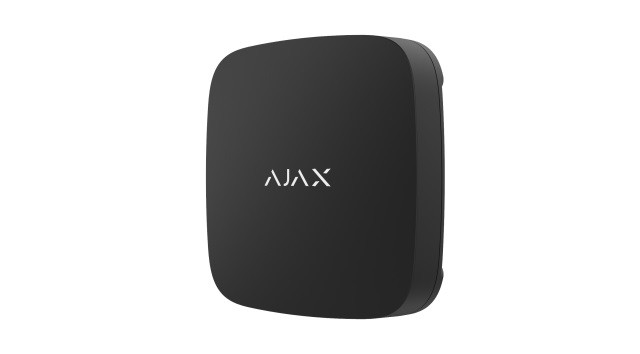

Ajax Flood Sensor LeaksProtect 8EU, black
Technical data
Colour | Black |
Dimensions | 56 x 56 x 14 mm |
Weight | 40 gram |
Other features | Sensor Type: Wireless Installation method: Indoor Alarm signal delivery time: 0.15 s Degree of protection: IP65 Jeweler radio protocol: Range of communication with the central unit - up to 1300 m in open area Two-way communication between devices Self-regulation of the radio signal output power - up to 20 mW Block encryption based on the AES algorithm Sensor sampling period - 12-300 seconds |
Accessories included | LeaksProtect leak sensor Two AAA batteries (installed) user manual |
Special functions | temperature sensor Remote configuration and testing Fraud protection Interference detection |
Power supply | Batteries: 2 x AAA batteries, 3V |
Environment requirements | Permissible operating temperature: from 0° to +50° Permissible humidity: Up to 100% |
Detector | Flood |
Frequency range | 868,0-868,6 MHz |
Warning | CE+WEEE |
Description
LeaksProtect
Wireless addressable flood sensor
Constant control. Instant notifications.
LeaksProtect can even be placed in hard-to-reach places. It requires no installation, runs for years without maintenance, and runs non-stop 24 hours a day, seven days a week. If there is a leakage from the washing machine or a burst pipe, the sensor will immediately react and report the event. If the room has an anti-flooding system, Ajax will automatically shut off the water.
Wherever there is a risk of flooding

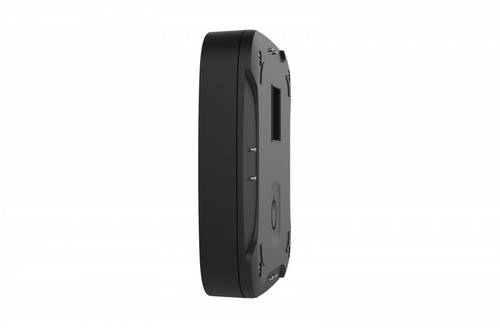

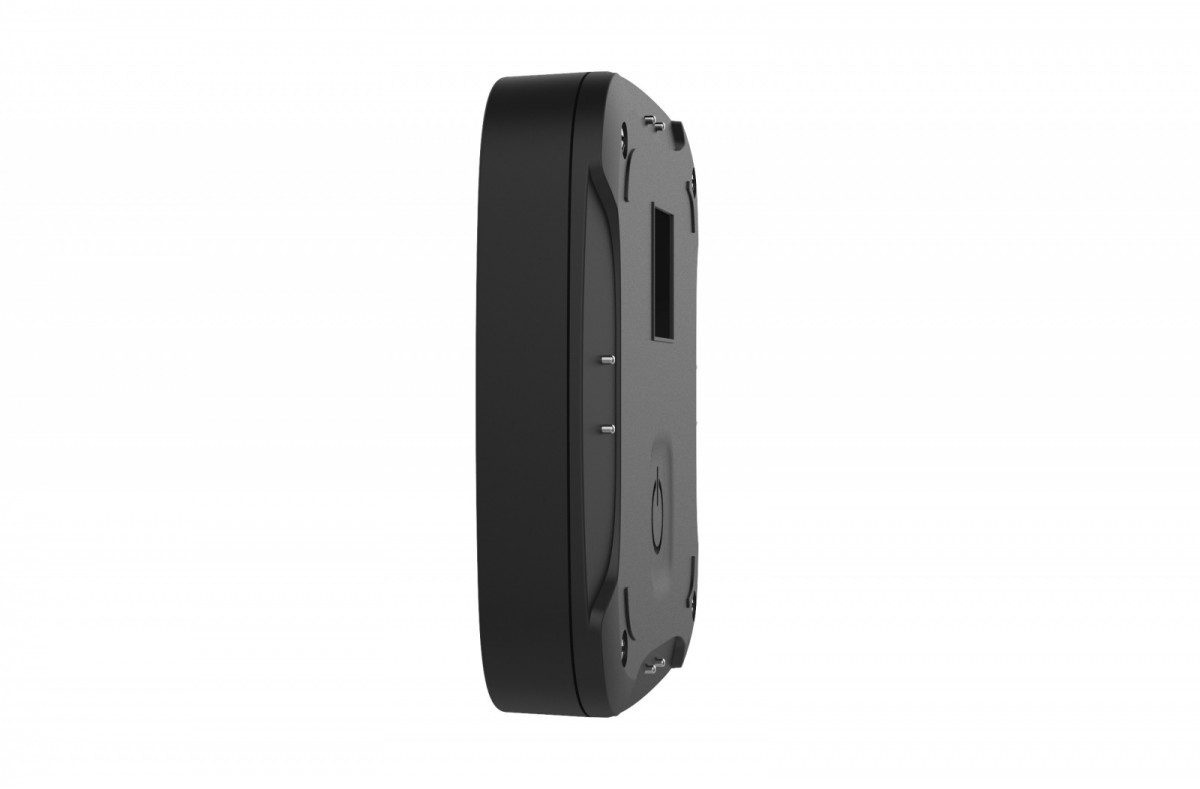

LeaksProtect miniature sensors fit anywhere flooding can occur. The height of the device is only 14 mm.
Effective minimalism

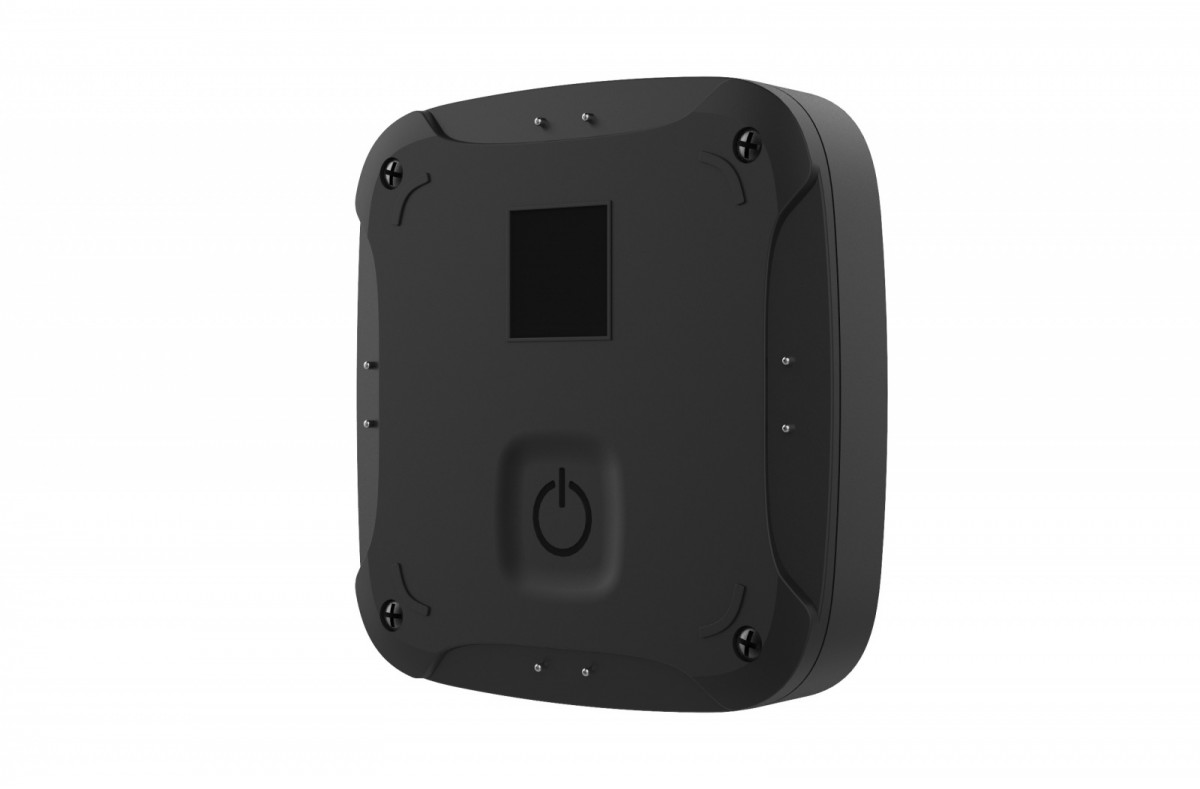

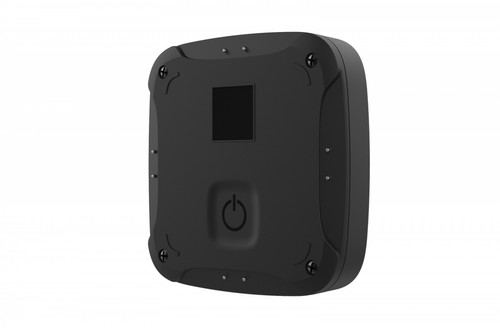

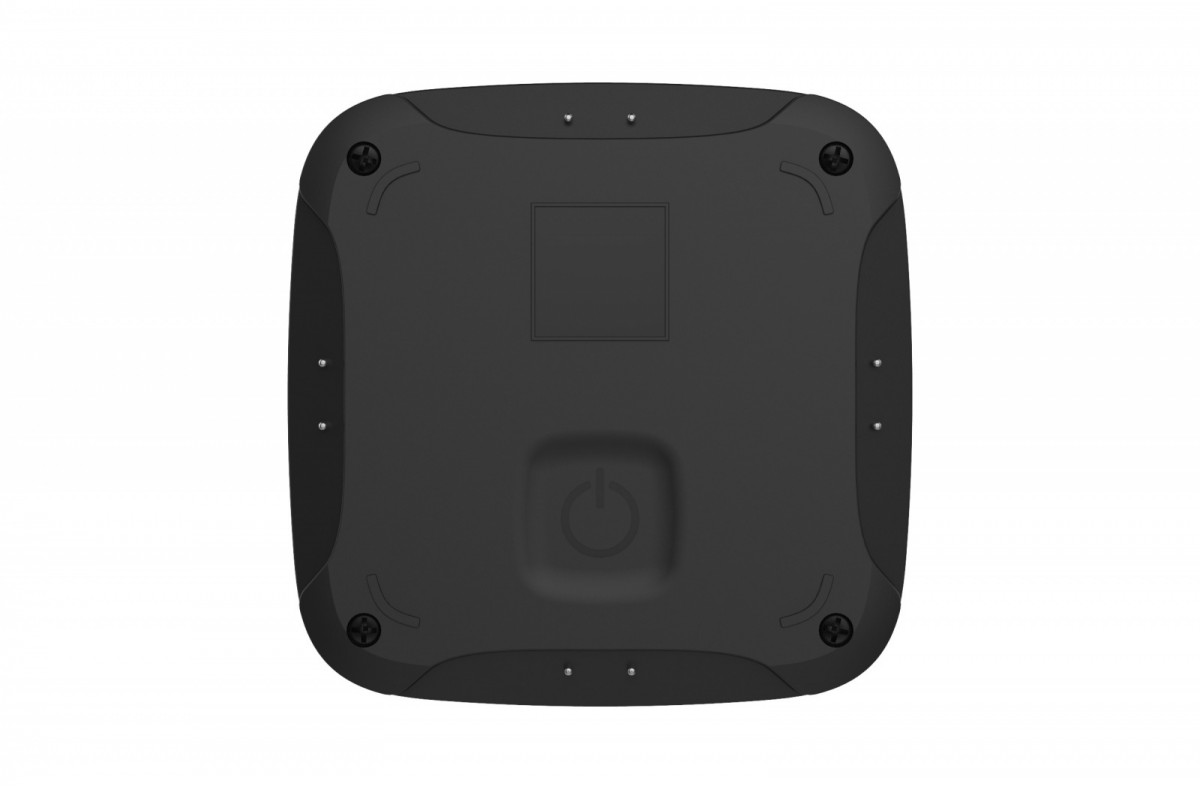

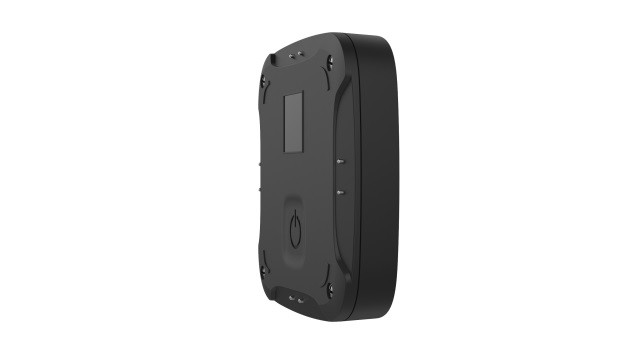

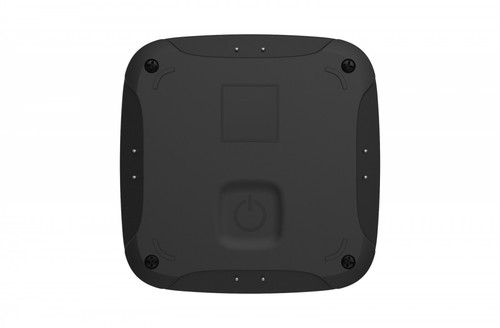

Regardless of which side the water reaches the sensor, it will immediately trigger an alarm. There are pairs of contacts installed on the four sides of LeaksProtect. If at least one of them comes into contact with water, the sensor will report flooding. When the water dries and opens the contacts, the sensor will notify you that the flooding is over.
- Up to 5 years of battery life
- He works non-stop 24/7
- IP65 housing
Protection against small spills and large floods
LeaksProtect sensors provide protection against flooding in small apartments and large commercial/industrial centers. In the event of an accident, notifications will tell you where to send the plumber.
- Up to 200 sensors in the system
- The name and number of the room with the sensor in the notification
Flood protection and water management
You can use LeaksProtect sensors, Relay or WallSwitch relays and electric valves to create a smart water control and flood prevention system.
Guaranteed alarm delivery
We developed the Jeweler radio protocol to ensure uninterrupted operation of all devices in the alarm system. The radio protocol uses frame synchronization in the communication session between devices, authentication to prevent fraud, and encryption to protect against data theft. The protocol is also energy efficient: the sensors run for years on built-in batteries.
- Two-way communication up to 1300 meters
- 5 ReX radio range doublers in the system
- Acknowledgment of alarm delivery within
- 0.15s
- Ping adjustable from
- 12 sec
Hassle-free installation
To connect LeaksProtect to the hub, simply scan the QR code using your smartphone camera. During installation, you do not need to disassemble the housing, attach the device to the surface or install the battery to make the sensor ready to work, just place it on a flat surface in the area of potential flooding.
