AXAGON Wall Charger EU Plug QC3.0/AFC/FCP + P ACU-PQ22

Input:

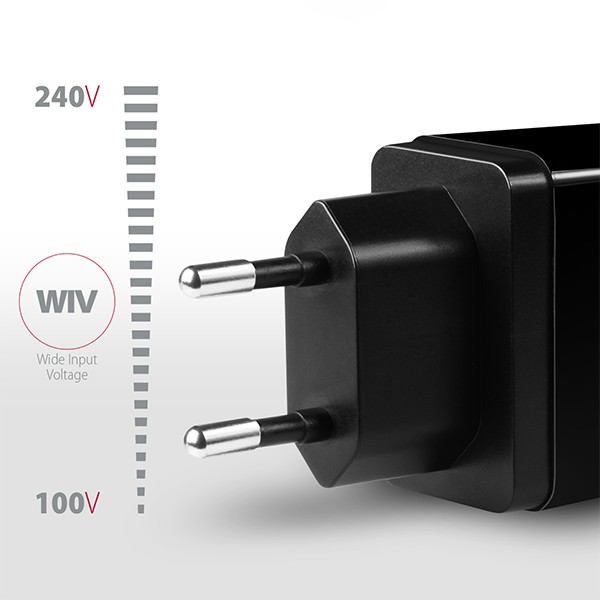

• input voltage AC 100V-240V / 50-60 Hz (WIV function) supports multiple national power standards
• two-pin euro fork - integrated in the body of the charger

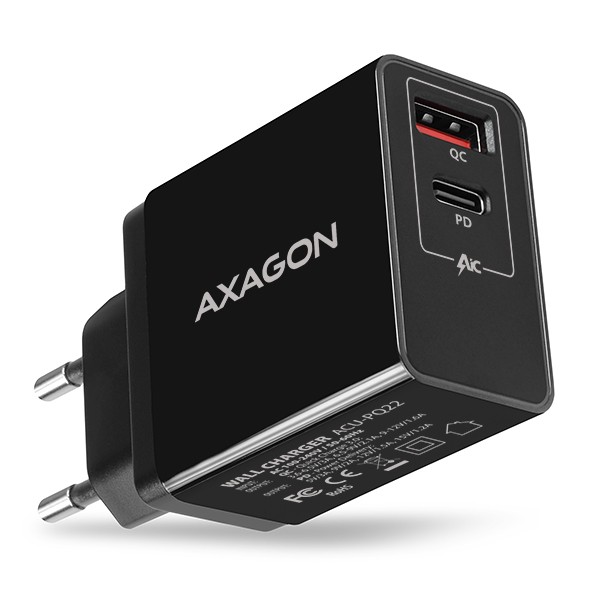

Outputs:
• two outputs
• 1x USB Type A port QC: Quick Charge 3.0 - 3.6-6.5V/3A, 6.5-9V/2A, 9-12V/1.5A
• 1x QC USB type C port PD: Power Delivery 2.0 - 5V/3A, 9V/2A, 12V/1.5A, 15V/1.2A
• By simultaneous charging from both outputs, SMART charging is used (max. 5V/4.4A)
• total maximum power 18W (using one QC or PD port)

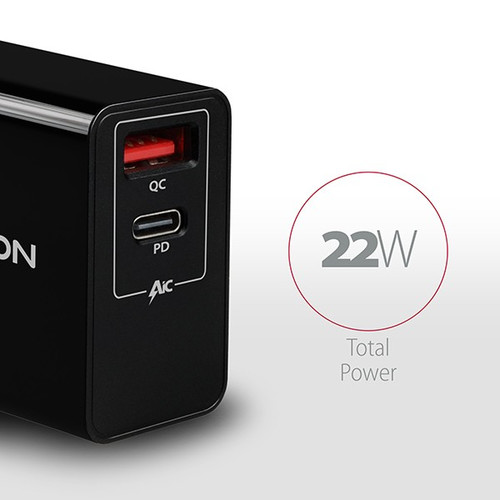

• total maximum power 22W (using both ports simultaneously)
• total maximum current 4.4A (QC port and PD port simultaneously)

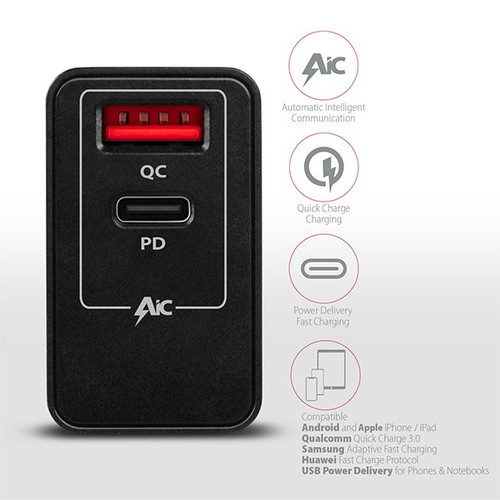

Supported charging technologies:
• USB type A port QC: Quic Charge QC2.0, QC3.0, AFC, FCP, SMART charging of max. 5V/4.4A
• USB type C port PD: Same as QC port + quick charging PD 2.0, quick charging Apple

The charger charges devices with the following technologies:
• Standard charging of all devices that support 5V and Apple iPhone 5, 6, SE, 7 charging.
• Smart 5 V/4.4A Qualcomm Quick Charge 1.0, USB Battery Charging 1.2 a Apple 2.4A (iPad).
• QC - fast charging of devices that support Qualcomm Quick Charge 2.0 and Quick Charge 3.0.
• AFC - fast charging of devices that support Samsung Adaptive Fast Charging.
• FCP - fast charging of devices that support Huawei Fast Charge Protocol.
• PD - fast charging of Apple iPhone 8, 8 Plus, X, XS, XS Max, XR, 11, 11 Pro, 11 Pro Max phone.
• PD - fast charging of devices that support USB Power delivery a charging of Apple MacBook, MacBook Pro, iPad Pro.

The charger supports WIV, AIC, and CV/CC functions:
• Wide Input Voltage - function of a wide range of input voltage; it protects the adapter against undervoltage and overvoltage at the input and allows the use of more “national power standards”.
• Automatic Intelligent Communication - function of automatic recognition of the connected device to select optimal charging parameters.
• Constant Output Current - the current hold function prevents the output power fluctuations; this function ensures steady course of charging.

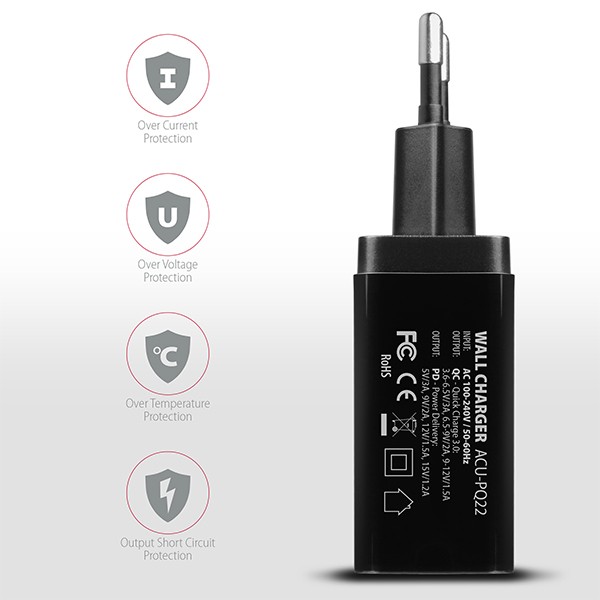

Complex output protection: OCP, OVP, OTP, OSP:
• Over Current Protection - protection of output against current overload.
• Over Voltage Protection - protection against overvoltage at the output.
• Over Temperature Protection - protection against overheating of the adapter.
• Output Short Circuit protection - short circuit protection at the output.

Other features:

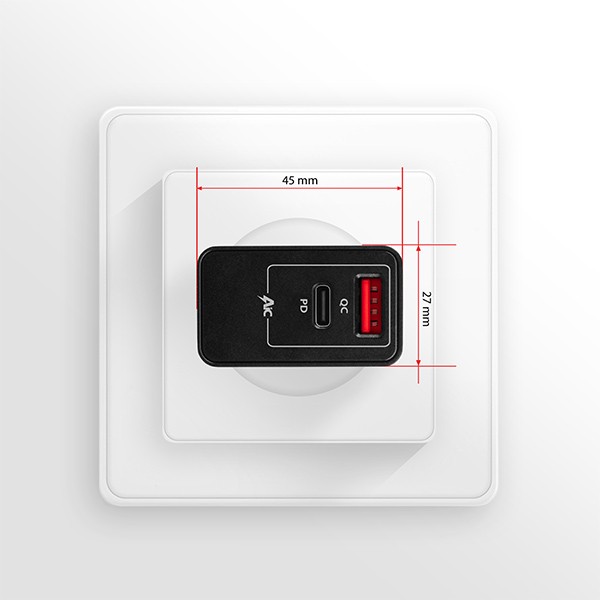

• dimensions of the charger body 90 x 45 x 27mm including a fork (W x H x D),
• weight: 62 g,
• material: non-flammable plastic.
