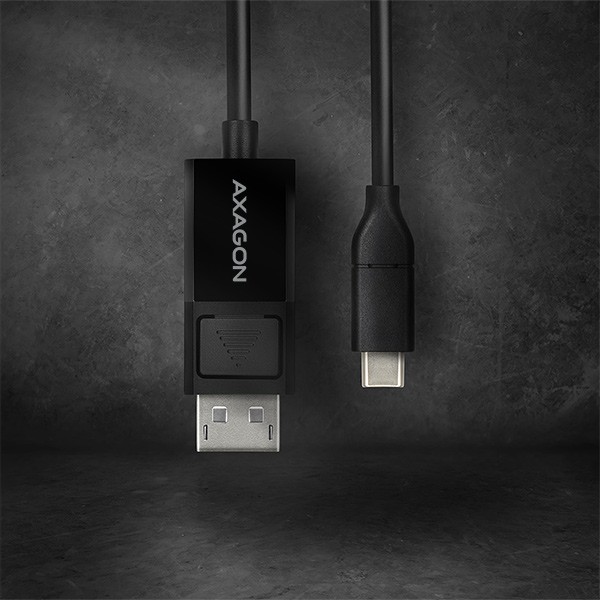

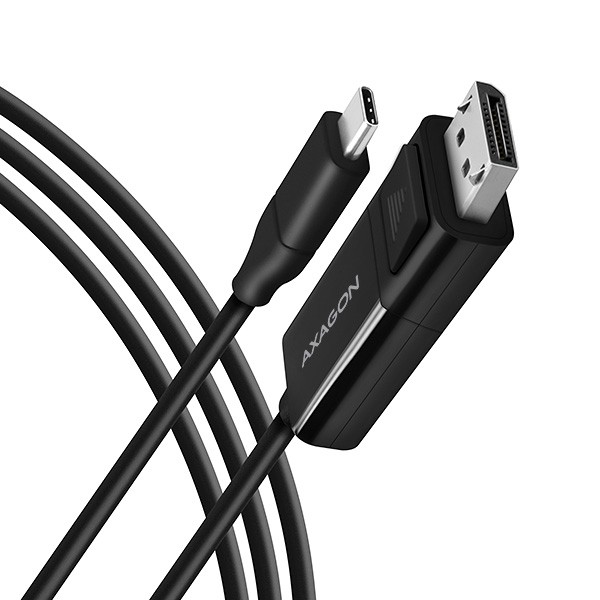

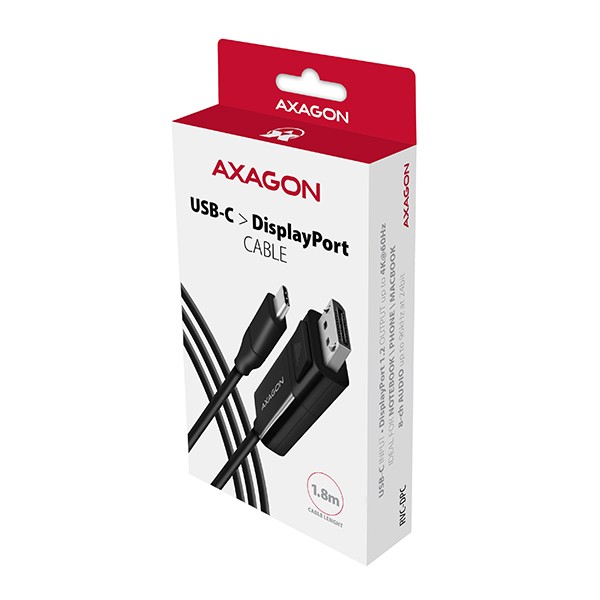

AXAGON Cable USB-C - DisplayPort 1.8m

<< Previous Next >>
Availability: Available
Delivery: 08-01-2025
Price: €20.17 20.17
quantity pcs
add to wish list
Brand: AXAGON
Product code/SKU: 816978

Technical data

Type Cable
Colour Black
Dimensions 47 x 22 x 10 mm Cable length including connections 185 cm
Weight 71 gram

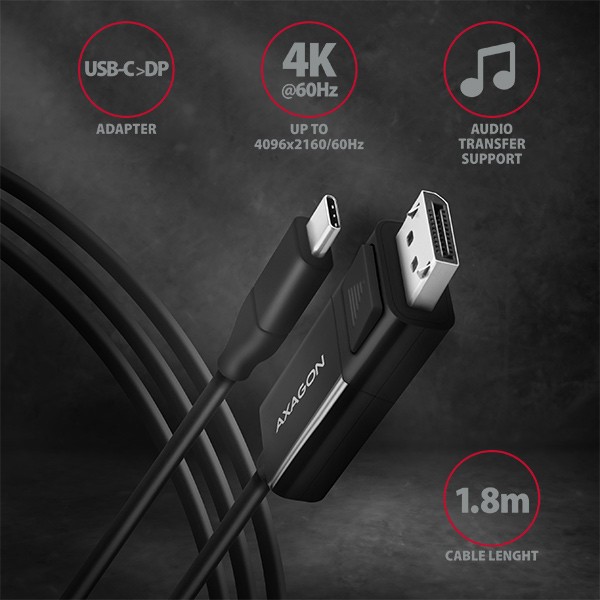

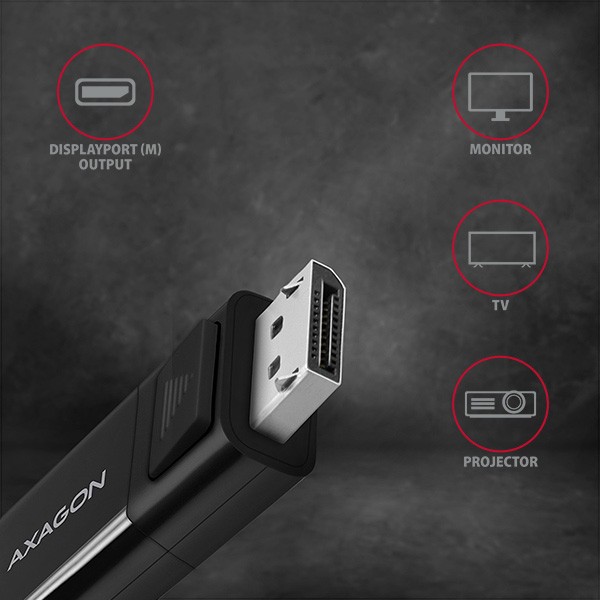

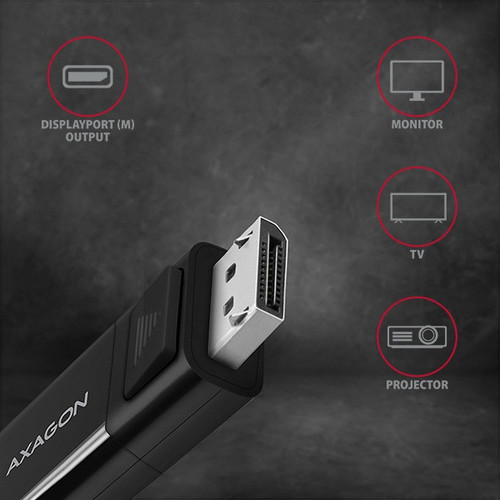

Other features Input: USB-C USB type C (M) male connector Output: DisplayPort 1.2 DP connector with latch (M) male connector latch control button Supported resolution max. 4096 x 2160 (19:10) @60Hz DCI 4K 3840 x 2160 (16:9) @60Hz UHD-1 4K (UHDTV) 3840 x 1600 (21:9) UW 4K (Ultrawide 1600p) 3840 x 1200 (32:10) 29:9 4K (Super Ultrawide 1200p) 3840 x 1080 (32:9) 32:9 4K (Super ultrawide 1080p) 3440 x 1440 (21:9) UWQHD (Ultrawide 1440p) 2560 x 2048 (5:4) QSXGA 2560 x 1920 (4:3) 2560 x 1600 (16:10) WQXGA 2560 x 1440 (16:9) QHD 2560 x 1080 (21:9) UWFHD (Ultrawide 1080p) 2048 x 1536 (4:3) QXGA 2048 x 1152 (16:9) QWXGA 1920 x 1440 (4:3) 1920 x 1200 (16:10) WUXGA 1920 x 1080 (16:9) Full HD/1080p 1856 x 1392 (4:3) 1792 x 1344 (4:3) 1680 x 1050 (16:10) WSXGA+ 1600 x 1200 (4:3) UXGA 1600 x 900 (16:9) HD+ 1536 x 864 (16:9) 1440 x 900 (16:10) WXGA+ 1400 x 1050 (4:3) SXGA+ 1366 x 768 (16:9) HD 1360 x 768 (16:9) HD 1280 x 1024 (5:4) SXGA 1280 x 960 (4:3) SXGA- 1280 x 800 (16:10) WXGA 1280 x 768 (5:3) WXGA 1280 x 720 (16:9) HD/WXGA/720p 1280 x 600 1152 x 864 (4:3) XGA+ 1024 x 768 (4:3) XGA 800 x 600 (4:3) SVGA *resolution depends on monitor/TV/projector and graphics adapter parameters.

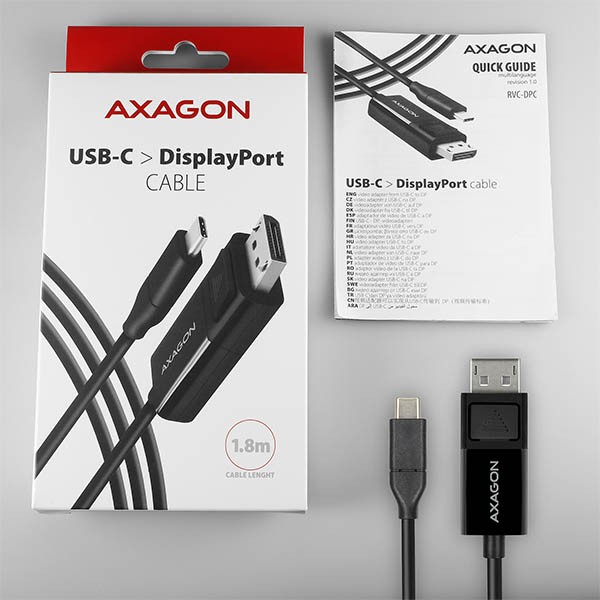

Accessories included USB-C > DP cable 1.8m long Printed installation guide Packed in a cardboard box
Cable length 1.8 Meter
Usage Video
Connectors #1 DisplayPort Male
Connectors #2 USB Type C Male
Standard USB 3.0/USB 3.1 gen 1
Designation CE

Description

  • Supported modes: mirroring the desktop of the main monitor, (default setting), extending the desktop of the main monitor.
  • HPD (Hot-Plug-Detect) support - communication sequence controlling device connection/disconnection during run.
  • Supports up to 8 channel audio transmission - 96kHz at 24-bit.
  • Complies with USB Type-C Cable and Connector Specification Revision 1.1.

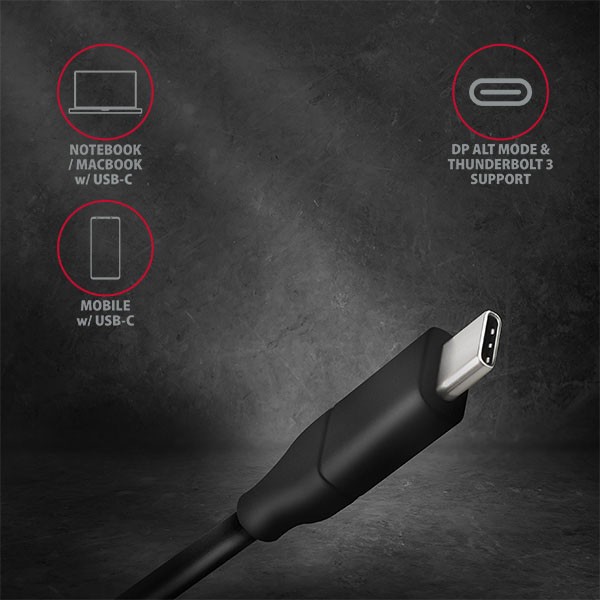

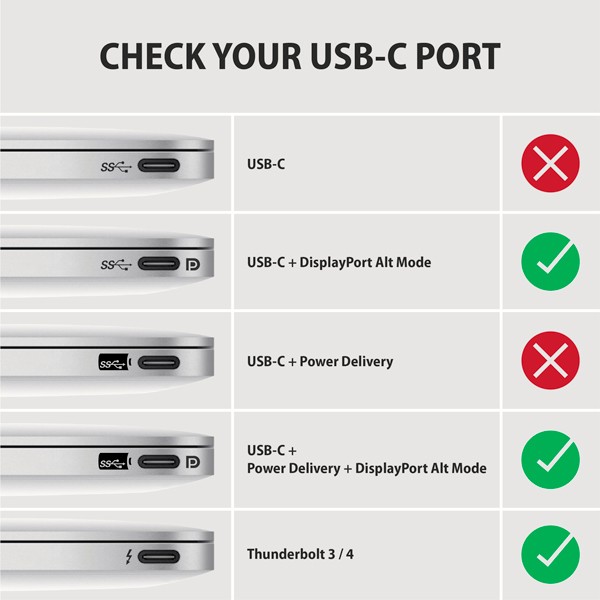

  • Complies with VESA DisplayPort Alt Mode on USB Type-C Standard Version 1.0 specification.
  • Conforms to the USB Device Class Definition for Billboard Devices Revision 1.0 specification.
  • Support for HDCP 2.2 (High-bandwidth Digital Content Protection) - a mechanism for protecting digital content.
  • Support for power saving mode with source device (PC) and display (monitor/TV) controlled sleep.

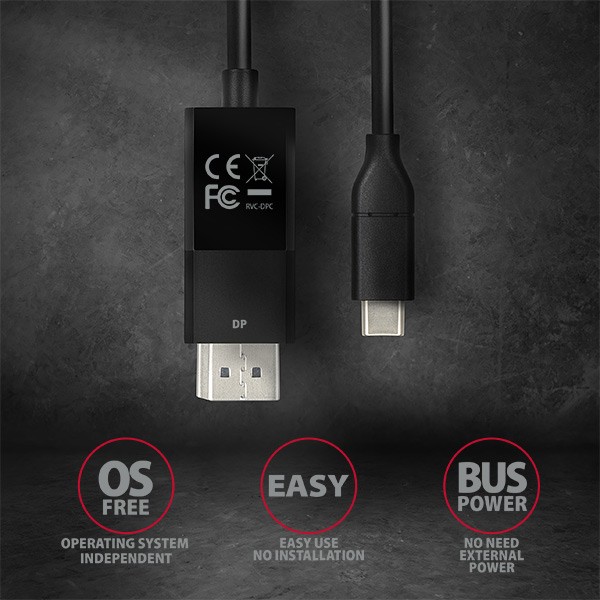

  • Powered by USB-C - no external power required.
  • Working temperature: 0 ~ 45°C.
  • Storage temperature: -10 ~ 70°C.
