AW Stripping & Crimping Pliers Tool Set 5pcs

<< Previous Next >>
AW Stripping & Crimping Pliers Tool Set 5pcs
Availability: Available
Delivery: 04-12-2024
Price: €44.72 44.72
quantity pcs
add to wish list
Brand: AWTOOLS
Product code/SKU: 1017796
  • ask about product
  • recommend to a friend

Description

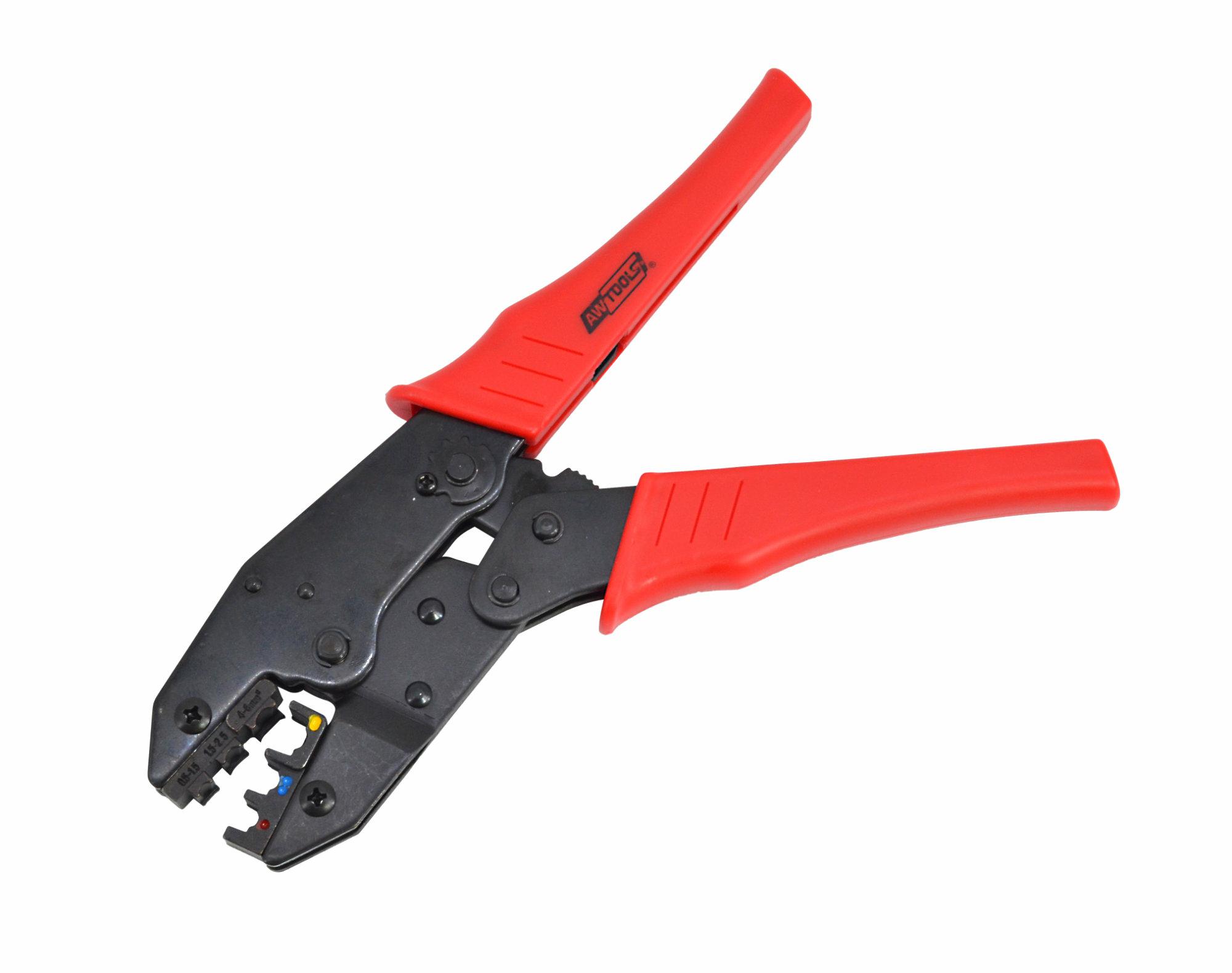

Crimper equipped with hardened steel jaws with a blackened finish.
Ergonomic plastic handles enable crimping with low force.
Equipped with a ratchet mechanism.
Die secured with screws to prevent from falling out.
Designed for crimping connector terminals.
Perfect for home use as well as in a professional workshop.

Technical data:
Working range: 0.5 - 6.0 mm
Terminal crimping range: 0.5 - 1 mm2 / 1 - 2.5 mm2 / 4.0 - 6.0 mm2
Total length: 220 mm

Stripper equipped with an automatic self-adjusting mechanism and rebound spring.
Jaws made of hardened carbon steel.
Ergonomic TPR-coated handle.
Swivel knob for easy adjustment to the wire thickness.
Stripper, cutter and crimper function in one.

Technical data:
Stripping terminals: 0,2-6mm² (24-10 AWG)
Crimping terminals: 1,5-6mm² (22-10 AWG)
Cutting terminals: 0,5-2,5 mm²
Auto ignition terminals: 7-8mm²
Length: 205mm

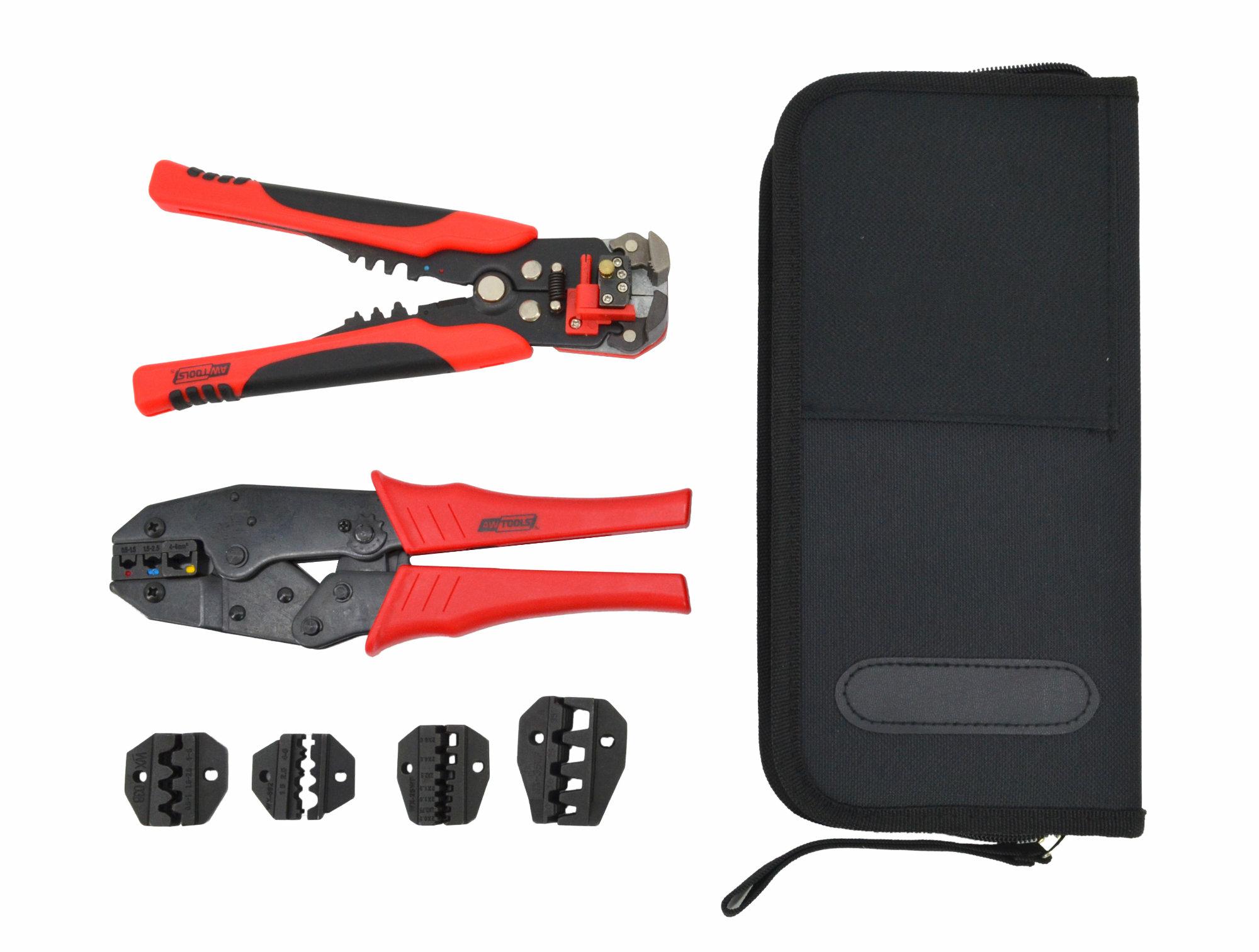

Set includes 5 interchangeable dies:
for non-insulated automotive terminals (1.5 - 6.0 mm)
for insulated terminals (0.25-1, 1-1.5, 2.5, 4-6mm)
for double cable ferrules (2x0.5-6mm)
for single cable ferrules (10-35mm)
for tubular cable lugs (0.25-1, 1-1.5, 2.5, 4-6mm)

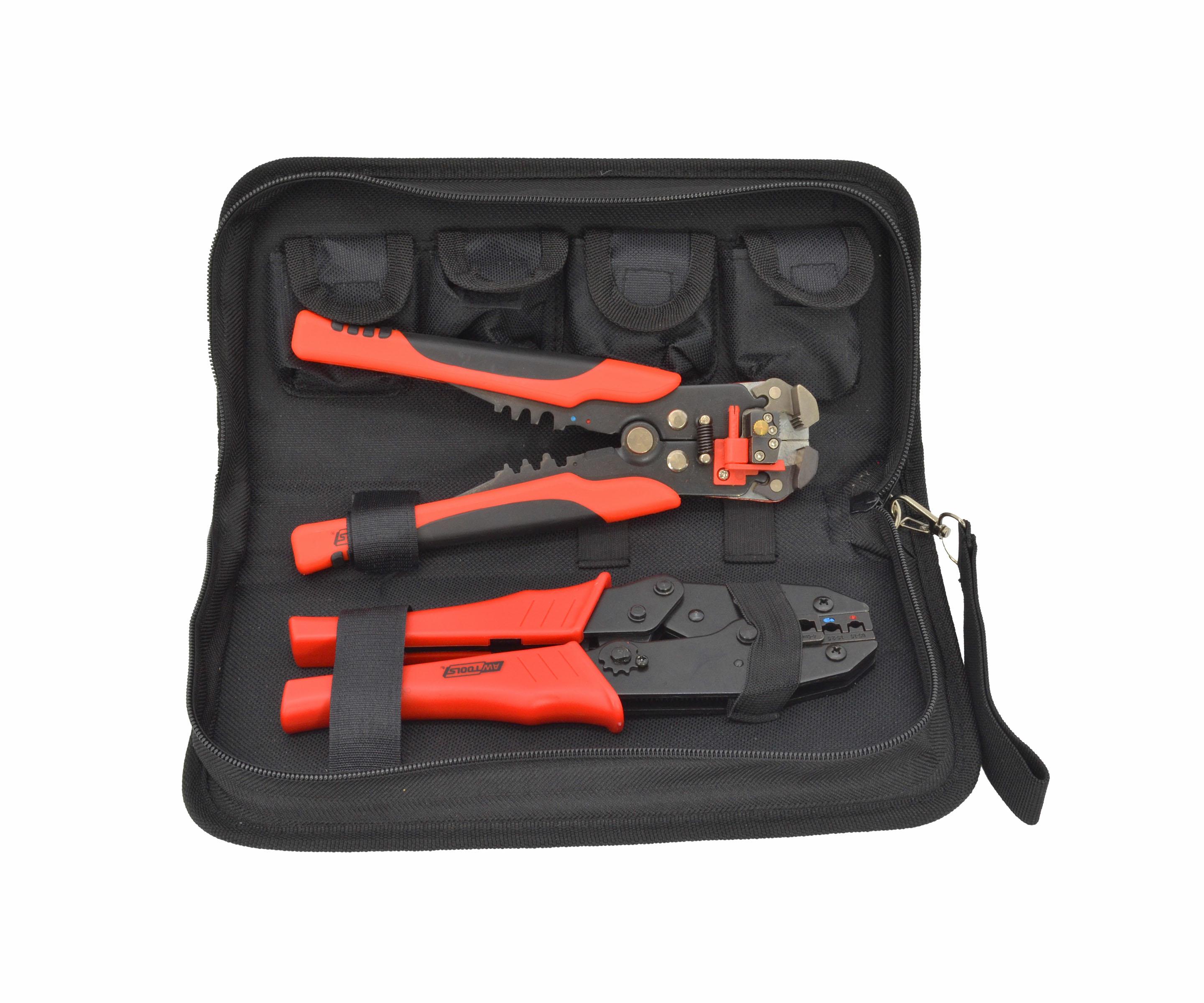

All in a nylon case.
Set weight: 1.3 kg
