13-42" TV Wall Mount Max 25kg
Technical data
Type | Wall |
Colour | Black |
Accessories included | - Screws for mounting the wall bracket and the TV to the bracket - Polish installation manual |
Load (max) | 25 kilogram |
Usage | TV |
VESA | 200 x 100 |
Screen size (min) | 13" |
Screen size (max) | 42" |
Range adjustment | Yes |
Range (min) | 59 Millimetre |
Range (max) | 400 Millimetre |
Vertical adjustment | 12 Degrees |
Corner mount | No |
Description

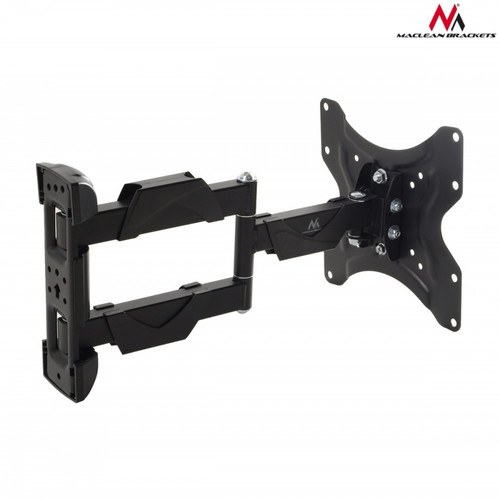

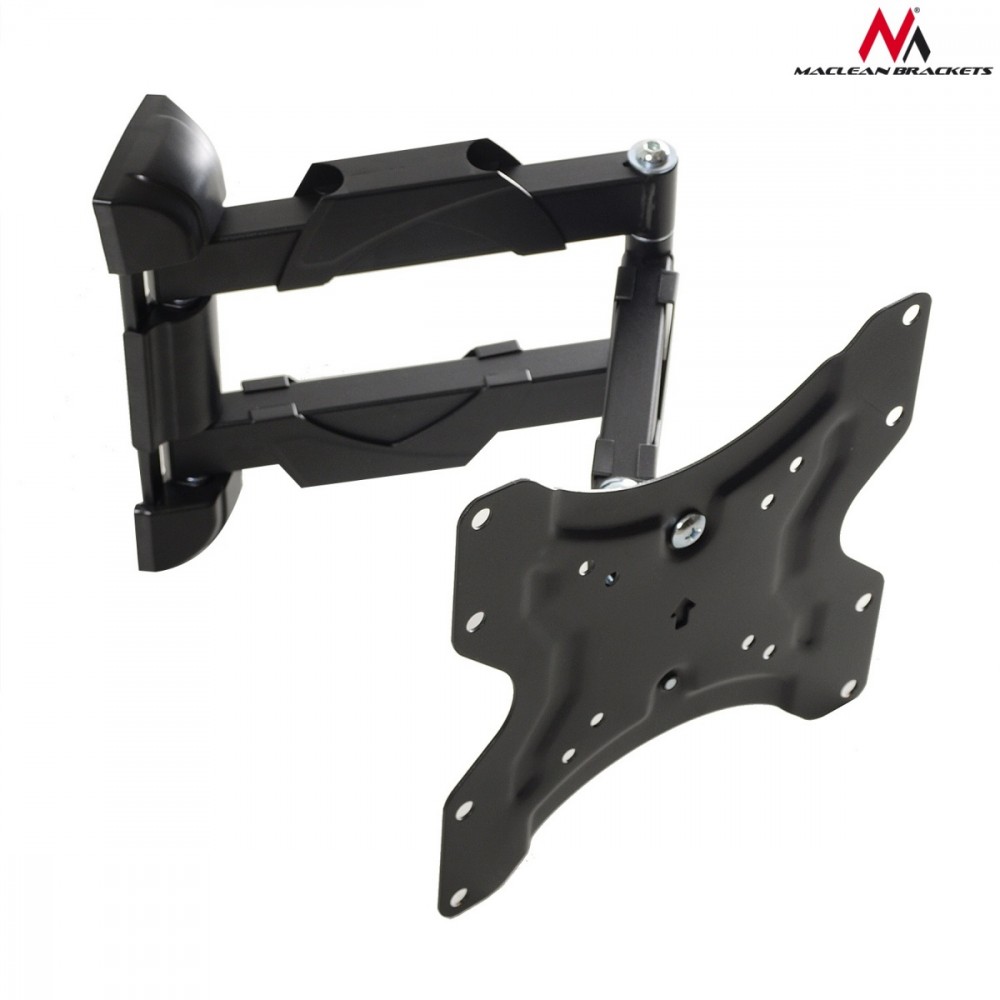

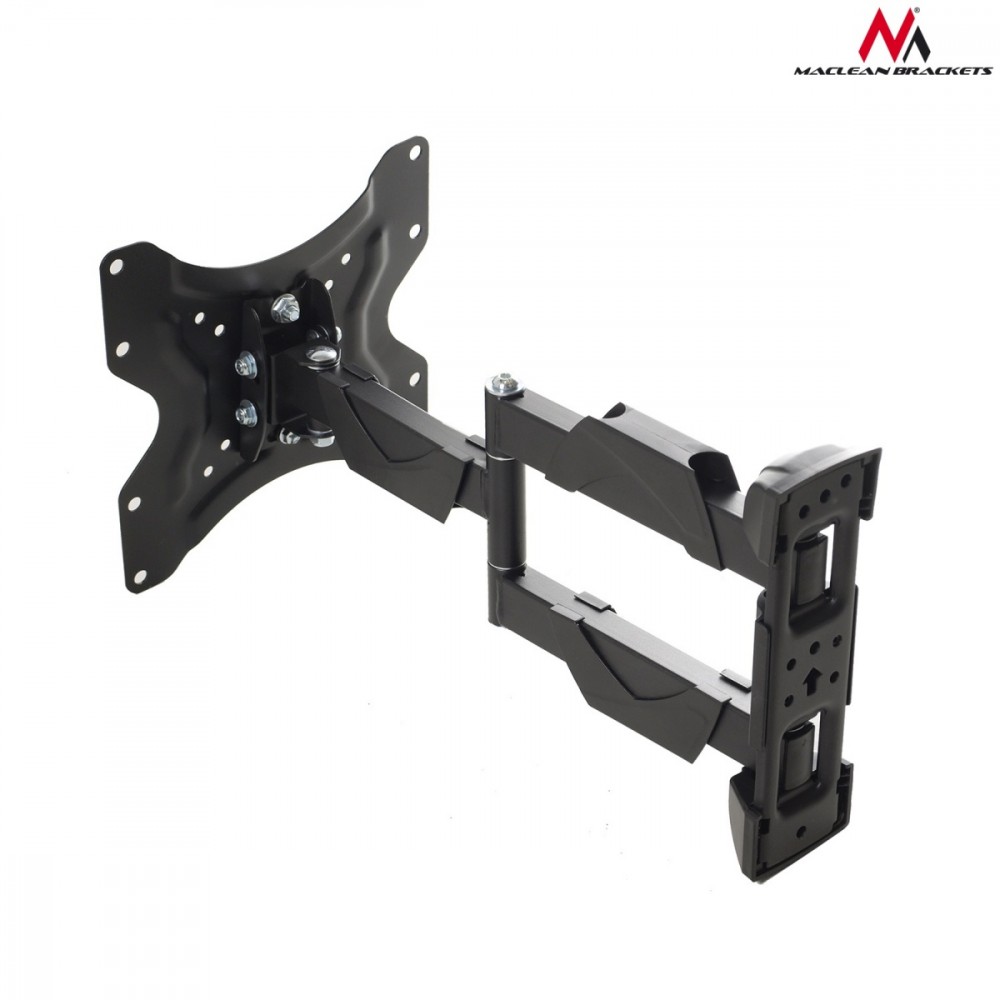

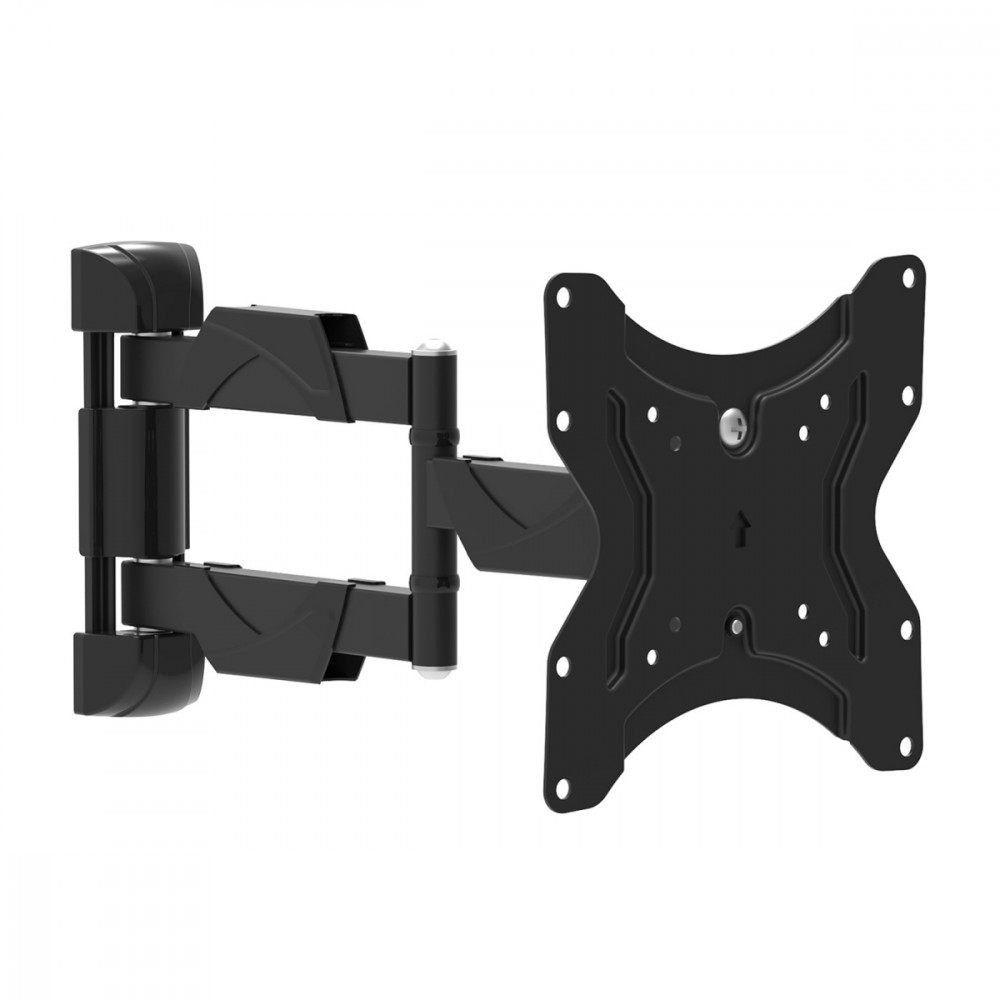

Handle for TV or monitor 13-42 "Maclean MC-742 25kg black
The universal wall mount is designed for mounting LCD, LED and plasma TVs and monitors of up to 25kg and 13 "to 42" diagonal screens. LCD, PLAZMA compatible: Sony, LG, Samsung, Philips, Sharp, Panasonic, Toshiba, Grundig, Pioneer, JVC, Benq, Sanyo, NEC, Hyundai, Hitachi.
VESA compliance
The specified screen size is only a suggestion. A larger TV can be mounted on the handle when it is not exceeding the maximum weight and is within the specified VESA standard. For the bracket, we can easily attach a VESA screen: 75x75, 100x100, 200x100, 200x200.
Complete set

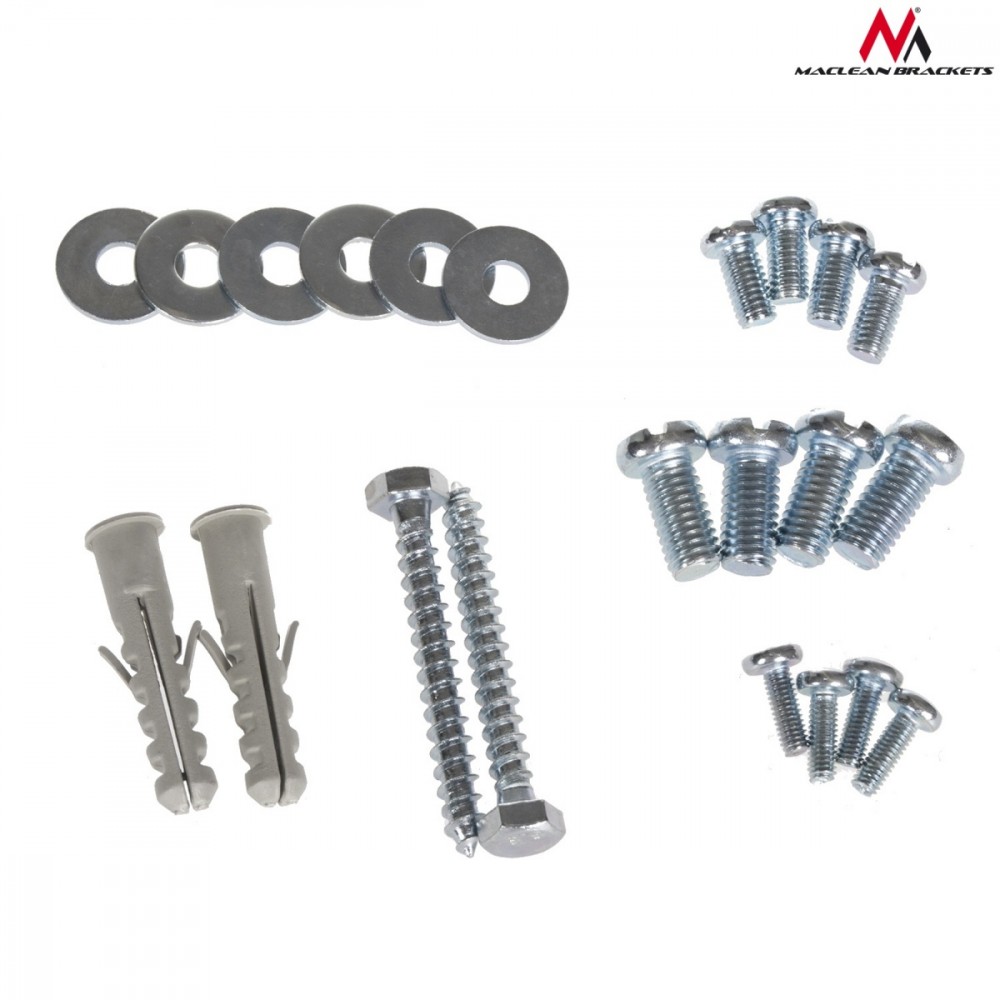

Includes a set of screws to mount the handle to the wall and the TV to the handle. Polish installation manual!

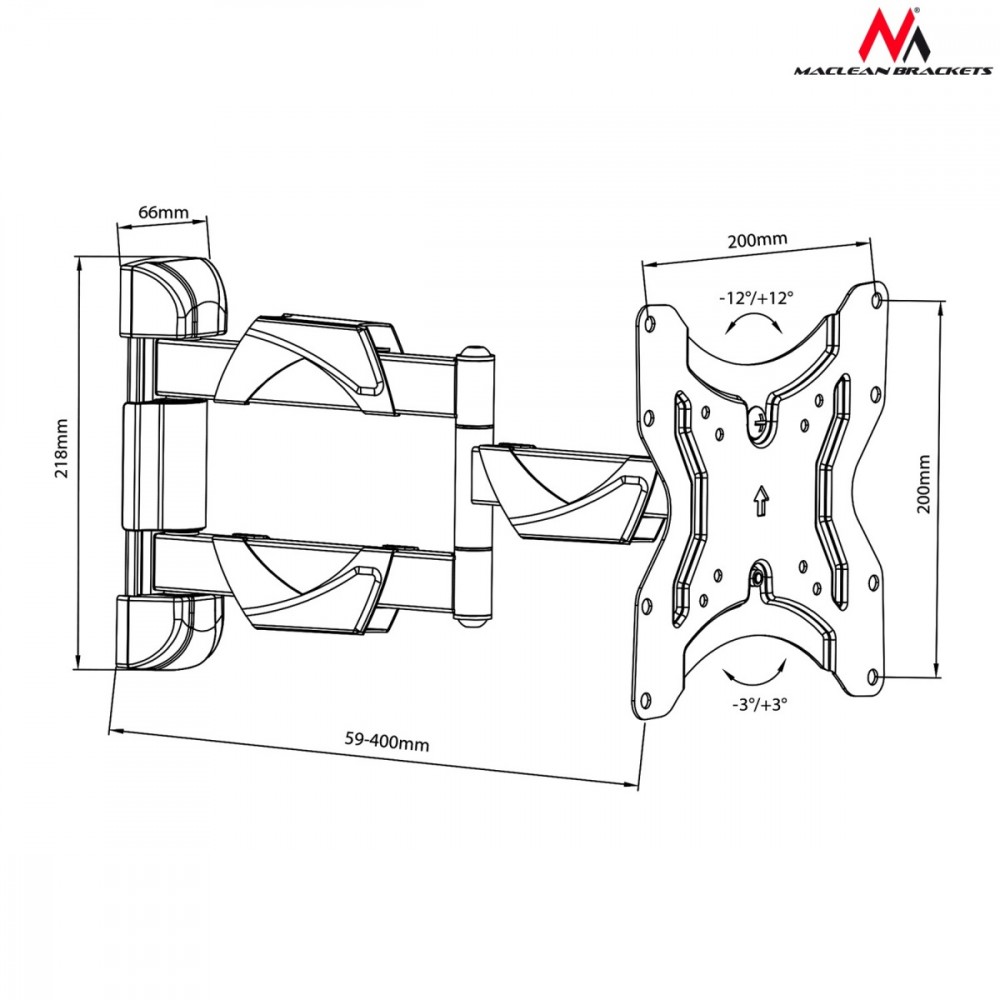

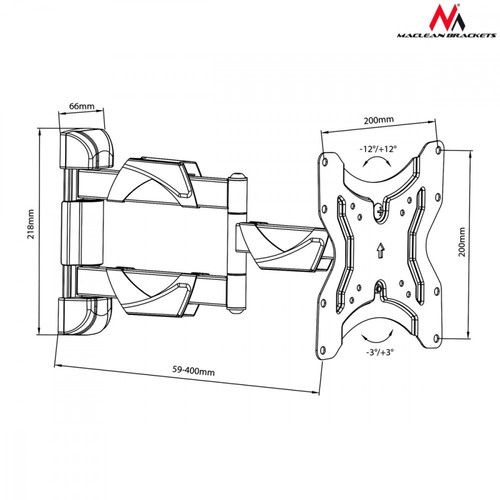

Technical Specifications:
- Maximum load: up to 25 kg
- Adjustable tilt: + 12 ° to -12 °
- Minimum / Maximum horizontal spacing: 75/200 mm
- Minimum / Maximum vertical spacing: 75/200 mm
- Adjustable distance from the wall: 59 - 400 mm
- Robust metal construction, very easy to assemble
- High quality
- Powder coating black
- Designed for TVs 13 "- 42" (or larger if their weight does not exceed 25kg and VESA complies with the grip)
- The set of mounting screws for the wall and the installation of the TV is included
- Vesa: 75x75, 100x100, 200x100, 200x200
- Warranty: 2 years
- Screws for mounting the wall bracket and the TV to the bracket
- Polish installation manual
